Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1987-1995 Nissan Pathfinder All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Pathfinder (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 Nissan Pathfinder All Class 3 Trailer Hitch, 2" Receiver, Select Nissan Pathfinder
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1987 - 1995 | Nissan Pathfinder | — |

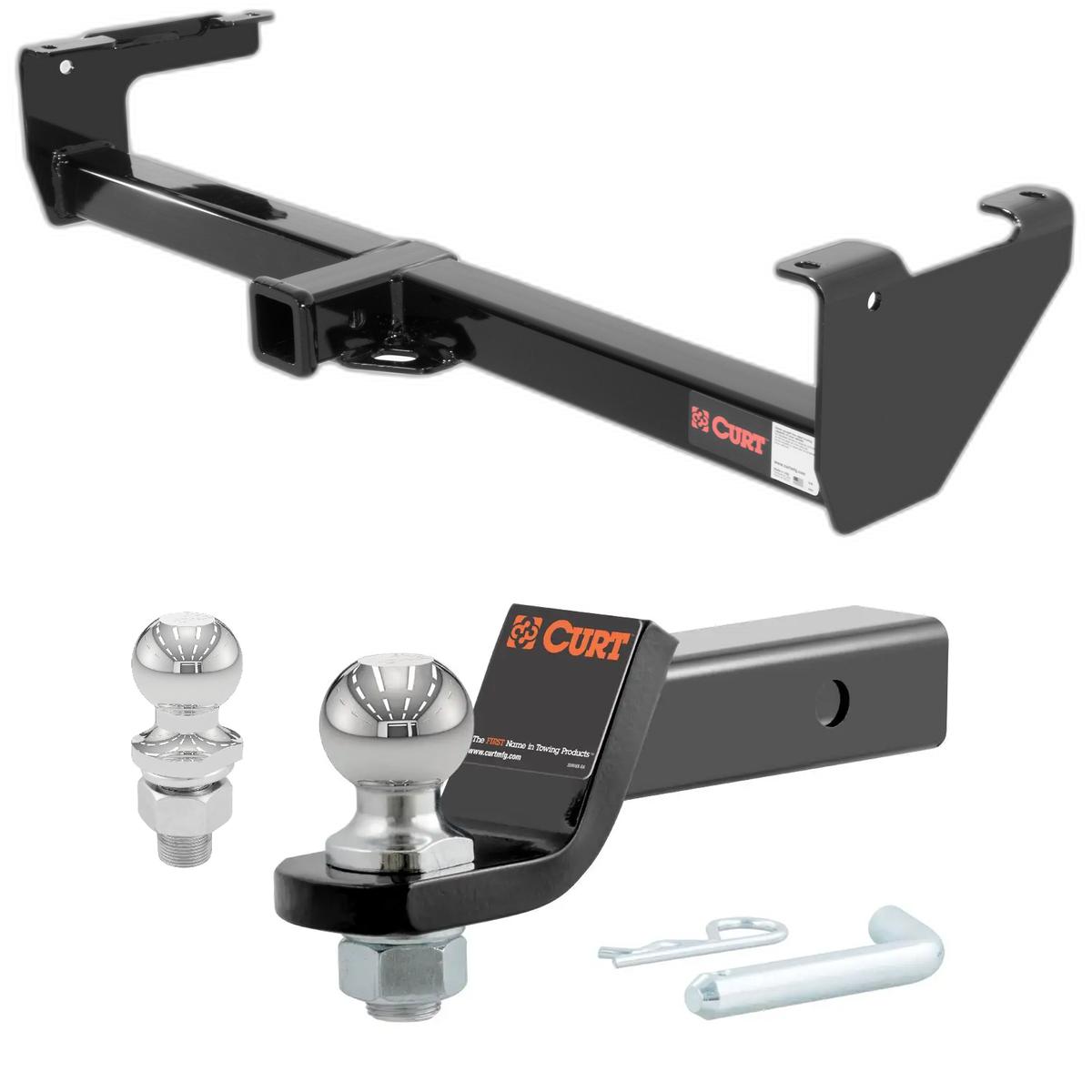

The 1987-1995 Nissan Pathfinder All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13095-001) fits the following vehicles: 1987-1995 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
The 1987-1995 Nissan Pathfinder All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13095-001) fits 1987-1995 Nissan Pathfinder models. The 1995 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1987-1995 Nissan Pathfinder All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13095-001) is designed to fit the 1987-1995 Nissan Pathfinder.
The 1987-1995 Nissan Pathfinder All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13095-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13095 (also referenced as 757221) is designed for 1987–1995 Nissan Pathfinder models. Verify your vehicle year falls within this range before purchasing.
When used as a weight distribution hitch, the Curt 13095 supports 6,000 lbs trailer weight and 600 lbs tongue weight. The weight-carrying capacity is not specified in the manual. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. You must lower the vehicle exhaust from its hangers before installation. You will also need to remove the exhaust isolator, which will be re-attached later in the installation process. The exhaust is reconnected to the hangers once installation is complete.
Remove the brackets at the end of the frame that are positioned in the hitch mounting location. Also lower and remove the exhaust isolator from the lowered exhaust system.
Yes, drilling is required. You must drill out the front mounting hole to 17/32" using the hitch as a template. This is a permanent modification to the vehicle frame.
The front mounting hole must be drilled to 17/32". Use the hitch as a template to locate and drill this hole.
The kit includes: one 5/16-18 UNC flange nut, two 1/2-13 UNC hex head cap screws (1-1/2" long), six 1/2-13 UNC serrated flange nuts, one 5/16-18 UNC hex head cap screw (1-1/4" long), two 0.250 x 1.50 x 2.00" square hole spacers, two 0.188 x 1.00 x 3.00" square hole spacers, four 1/2-13 UNC carriage bolts (1-3/4" long), and one 1/2" fishwire.
All 1/2" hardware must be torqued to 110 ft/lbs. This includes the flange nuts and hex bolts used to attach the hitch to the frame and side brackets.
1. Lower the vehicle exhaust from hangers. 2. Remove frame brackets at the hitch mounting location. 3. Remove the exhaust isolator. 4. Fishwire carriage bolts and spacers through the frame and out the rear mounting holes. 5. Raise the hitch into position and attach using 1/2" flange nuts. 6. Install 1/2" hex bolts through the side brackets on both sides, attach with 1/2" flange nuts. 7. Drill the front mounting hole to 17/32" using the hitch as a template. 8. Fishwire a carriage bolt and spacer through the frame rail access slot near the gas tank and out the front hole, attach with 1/2" flange nut. 9. Re-attach the exhaust isolator to the bracket using 5/16" hardware and to the isolator hanger. 10. Torque all 1/2" hardware to 110 ft/lbs. 11. Reconnect the exhaust to the hangers.
Fishwire is a technique for routing fasteners (carriage bolts and spacers) through the vehicle frame. The 1/2" fishwire is included in the kit and is used to guide the carriage bolts and spacers through the frame channels and out the mounting holes.
The front mounting hole is accessed through an access slot located on the inside of the frame rail near the gas tank. You will drill this hole to 17/32" using the hitch as a template, then fishwire a carriage bolt and spacer through the access slot and out this hole.
A 1/2" hex bolt is installed through each side bracket and the hitch plate, then secured with a 1/2" flange nut. This is done on both sides of the hitch. These bolts are torqued to 110 ft/lbs.
One end of the exhaust isolator is attached to the bracket provided with the hitch using the 5/16" hardware. The other end is attached to the original isolator hanger. The exhaust is then reconnected to its hangers.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
Curt Manufacturing warrants the hitch to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Do not exceed your vehicle manufacturer's recommended towing capacity, even though the hitch is rated for 6,000 lbs trailer weight and 600 lbs tongue weight when used as a weight distribution hitch. Your vehicle's limits take priority.
Yes, the Curt 13095 is designed for 1987–1995 Nissan Pathfinder models.
Yes, you must drill the front mounting hole to 17/32" using the hitch as a template.
Yes, you must lower the exhaust from its hangers and remove the exhaust isolator before installation.
All 1/2" hardware must be torqued to 110 ft/lbs.
When used as a weight distribution hitch, it supports 6,000 lbs trailer weight and 600 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound.
