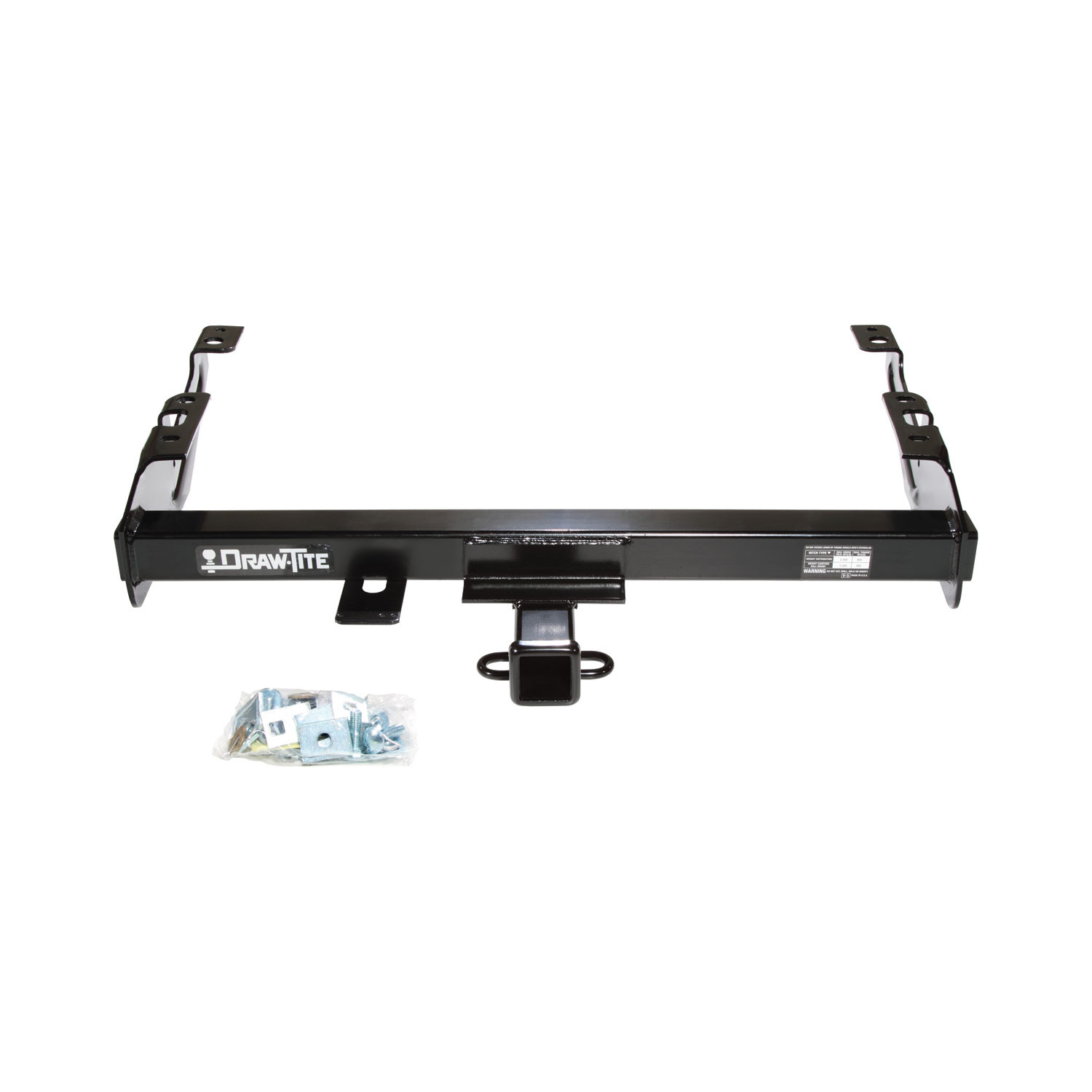

These durable custom hitches are manufactured for 1988-1999 Chevrolet C1500, 1988-2000 Chevrolet C2500, 1988-2000 Chevrolet C3500, 1988-1999 Chevrolet K1500, 1988-2000 Chevrolet K2500, 1992-2000 Chevrolet K3500, 1988-1999 GMC C1500, 1988-2000 GMC C2500, 1988-2000 GMC C3500, 1988-1999 GMC K1500, 1988-2000 GMC K2500, 1988-2000 GMC K3500 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 1999 | Chevrolet C1500 | — |

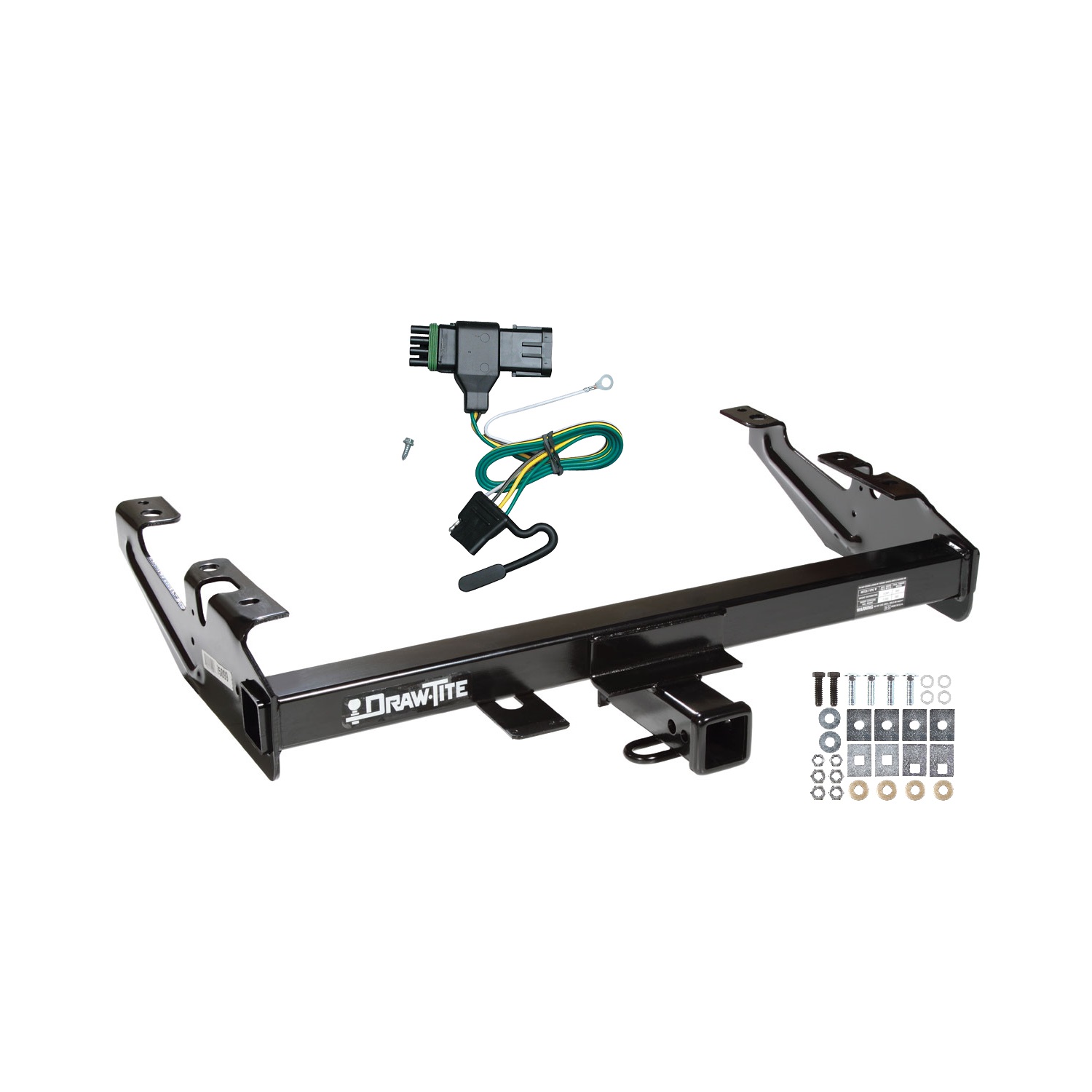

The 1988-1999 Chevrolet C1500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness DTB75099-118315 (Part #DTB75099-118315) fits 1988-1999 Chevrolet C1500 models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1988-1999 Chevrolet C1500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness DTB75099-118315 (Part #DTB75099-118315) is designed to fit the 1988-1999 Chevrolet C1500.
The 1988-1999 Chevrolet C1500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness DTB75099-118315 (Part #DTB75099-118315) fits the following vehicles: 1988-1999 Chevrolet C1500. Always verify your specific year, make, and model before ordering.
The 1988-1999 Chevrolet C1500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness DTB75099-118315 (Part #DTB75099-118315) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This unit is rated for 7.5 amps per circuit.

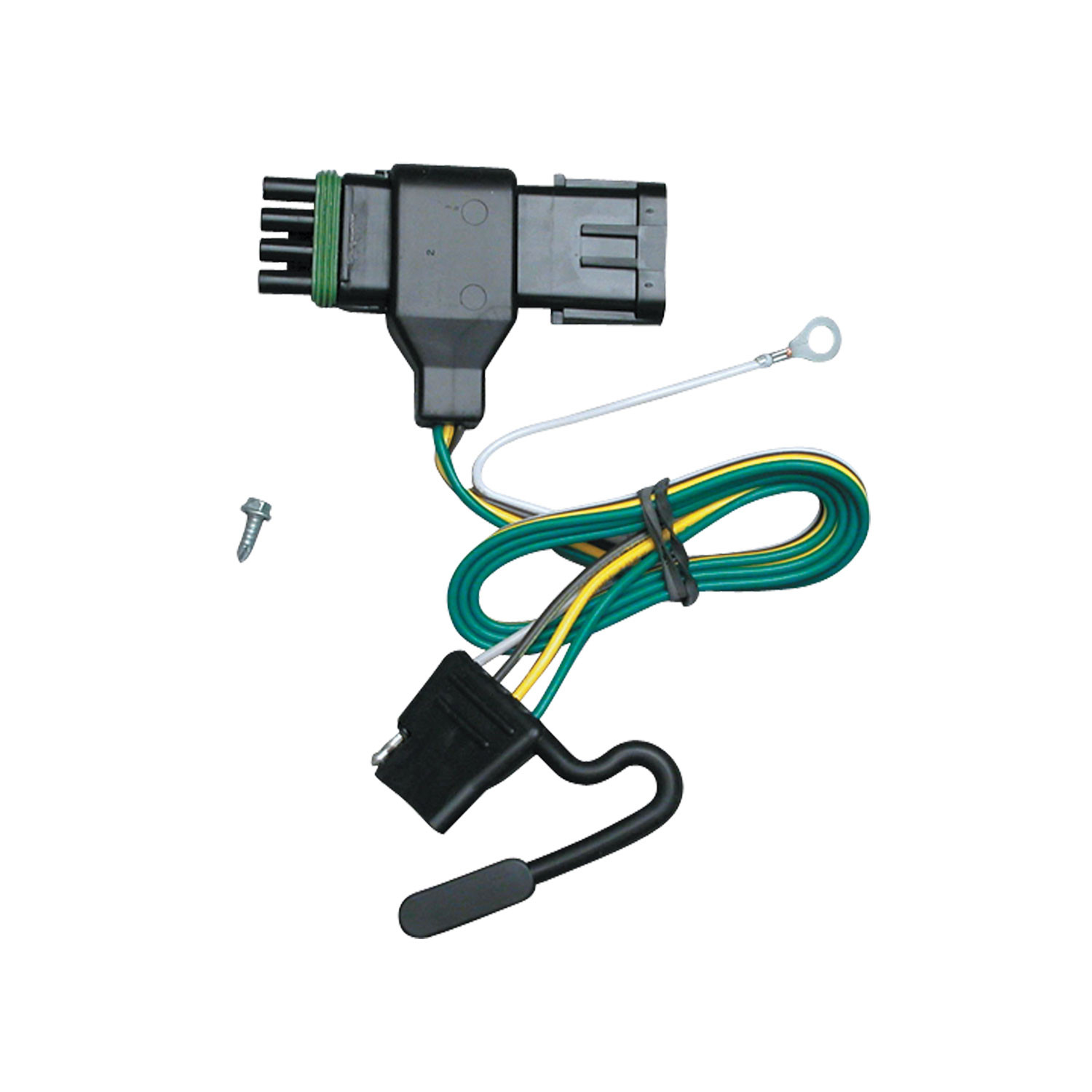

The taillight wiring harness is located along the inside of the left rear frame rail. It has a connection point with connectors that match the ends of the T-connector adapter.
Before inserting the T-connector adapter, separate the harness connectors carefully without breaking the locking tabs. Check that the mating surfaces of the connectors are free of dirt and clean them if necessary.
Insert the T-connector adapter between the harness connectors and lock it into place. Ensure that the connectors are fully inserted with the locking tabs in place.
Drill a 3/32" hole for the grounding point.
Locate a suitable grounding point near the connector on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
Secure the white wire to the grounding point using an eyelet and the screw provided.
Route the T-connector harness to the center of the vehicle and secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps. Note that tie straps are not supplied.
Test the installation with a test light or trailer to verify that all connections are working correctly.
The T-connector adapter is designed to fit vehicle taillight wiring harnesses located along the inside of the left rear frame rail with matching connectors. Verify that your vehicle's harness connectors match the adapter ends before purchasing.
Yes, you must drill a 3/32" hole for the grounding point on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed.
You need a drill with a 3/32" bit. Electrical tape or tie straps (not supplied) are recommended for securing the harness. A test light or trailer is needed to test the installation.
This unit is rated for 7.5 amps per circuit.
Separate the harness connectors carefully without breaking the locking tabs. Clean the mating surfaces of the connectors if they are dirty.
The grounding wire is white. It is secured to the grounding point using an eyelet and a screw that is provided.
Ensure that the connectors are fully inserted and that the locking tabs are properly aligned and not damaged. If the locking tabs are broken, the adapter will not secure properly and the connectors may separate.
Check that the T-connector adapter is fully inserted with locking tabs in place. Verify that the connector mating surfaces are clean and free of dirt. Confirm that the white grounding wire is securely attached to the grounding point with the eyelet and screw. Test the installation again with a test light or trailer.
