Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1996-2002 Toyota 4Runner All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota 4Runner (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

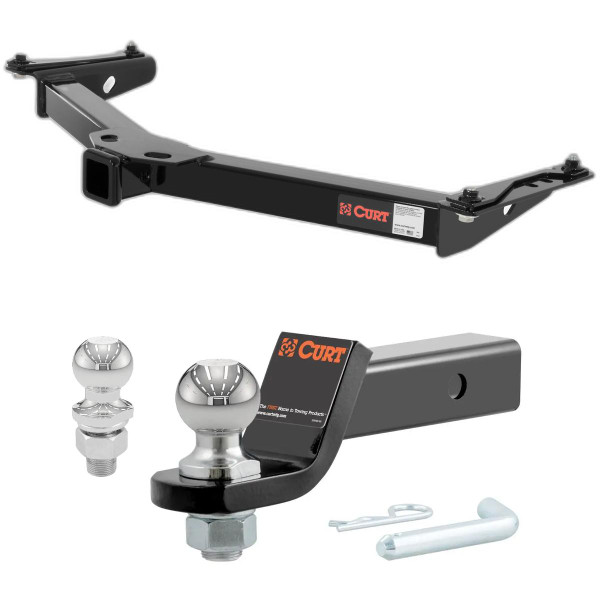

1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner All Class 3 Trailer Hitch, 2" Receiver, Select Toyota 4Runner (Square Tube Frame)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
The 1996-2002 Toyota 4Runner All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13087-001) fits the following vehicles: 1996-2002 Toyota 4Runner. Always verify your specific year, make, and model before ordering.
Yes, the 1996-2002 Toyota 4Runner All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13087-001) is designed to fit the 1996-2002 Toyota 4Runner.
The 1996-2002 Toyota 4Runner All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13087-001) fits 1996-2002 Toyota 4Runner models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1996-2002 Toyota 4Runner All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13087-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 13087 is designed for 1996–2002 Toyota 4Runner models in both 2-door and 4-door configurations. Verify your vehicle year and door count against this range before purchasing.
No. The manual explicitly states "NO DRILLING REQUIRED." The hitch uses existing M12 bolt holes in the frame rails where the factory tow hooks are mounted.
The manual does not specify required tools. You will need a torque wrench to tighten fasteners to the specified values (86 lb.-ft. for M12 fasteners and 75 lb.-ft. for 1/2" fasteners). A socket set and basic hand tools are likely necessary, but the manual does not list them.
The kit includes four 1/2"-13 UNC hex head cap screws (HHCS), grade 5, 1-1/2" long (part 10-10035), and four 1/2" conical tooth washers (part 30-00149). The hitch also includes two weldnut plate weldments (CM-NP4W and CM-NP3W). Installation reuses the existing M12 bolts and tow hooks from your vehicle.
1. Remove the factory tow hooks from the vehicle frame. 2. Position the weldnut plates inside the frame rails as shown in the diagram. 3. Raise the hitch into position, align the side brackets with the existing tow hook holes, and reinstall the existing M12 bolts and tow hooks. 4. Insert a 1/2" bolt and conical tooth washer through the rearmost existing hole in the hitch and hand-tighten into the weldnut plate. 5. Insert a 1/2" bolt and conical tooth washer through the foremost existing hole in the hitch and hand-tighten into the weldnut plate. 6. Torque all M12 fasteners to 86 lb.-ft. and all 1/2" fasteners to 75 lb.-ft.
Torque all M12 fasteners to 86 lb.-ft. These are the existing factory bolts that secure the hitch to the frame rails.
Torque all 1/2" fasteners to 75 lb.-ft. These are the new bolts (part 10-10035) that attach the hitch to the weldnut plates.
Hand-tighten the 1/2" bolts in steps 4 and 5 only. Do not fully tighten them until step 6, after both bolts are in place. This allows you to align the hitch properly before final torquing.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a maintenance interval, so regular visual inspection before towing is recommended.
No. The manual explicitly states: "DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY." Even though the hitch has its own load ratings, you must respect your vehicle's limits.
The Curt 13087 is designed for 1996–2002 Toyota 4Runner in 2-door and 4-door models.
No drilling is required. The hitch uses existing M12 bolt holes in the frame rails.
Torque M12 fasteners to 86 lb.-ft. and 1/2" fasteners to 75 lb.-ft.
Four 1/2"-13 UNC grade 5 hex head cap screws (1-1/2" long) and four 1/2" conical tooth washers. Installation reuses existing M12 bolts and factory tow hooks.
Periodically check that all fasteners are tight and structural components are sound. Do not exceed your vehicle manufacturer's recommended towing capacity.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2002 | Toyota 4Runner | — |
