This fits: 1999-2025 Ford F-450 Super Duty Cab & Chassis with 34 In. Frame

Specs:

• Main Body Shape: Square
• Receiver Tube Size: 2 IN
• Weight Carrying Capacity: 17,000 LB
• Tongue Weight: 2,550 LB
• Visibility: Exposed
• Drilling Required: Yes
• Installation Difficulty: Novice
• Installation Time: 30
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Application Notes:

• Main body exposed
• Carbide black finish

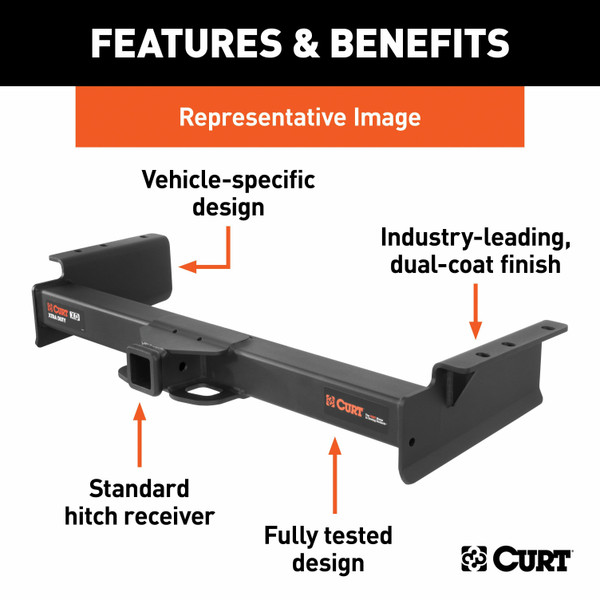

Features:

• Rated to 17,000 lbs. gross trailer weight and 2,550 lbs. tongue weight
• Compatible with weight distribution hitch (17,000 lbs. WD / 2,550 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Constructed with a large, powerful main body
• Protected by a highly durable carbide powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Features wide safety chain openings for heavy-duty hooks
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

Description:

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 17,000 lbs. and an extra-high tongue weight capacity of 2,550 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Ford F350 Super Duty, F450 Super Duty and F550 Super Duty (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,550 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.

Notes:

Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

Includes strong, grade-8 installation hardware

Partial List of Years:

1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford F-450 Super Duty Cab & Chassis with 34 In. Frame Xtra Duty Class 5 Trailer Hitch, 2" Receiver, Select Ford F350, F450, F550
