| Color | Black |
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |

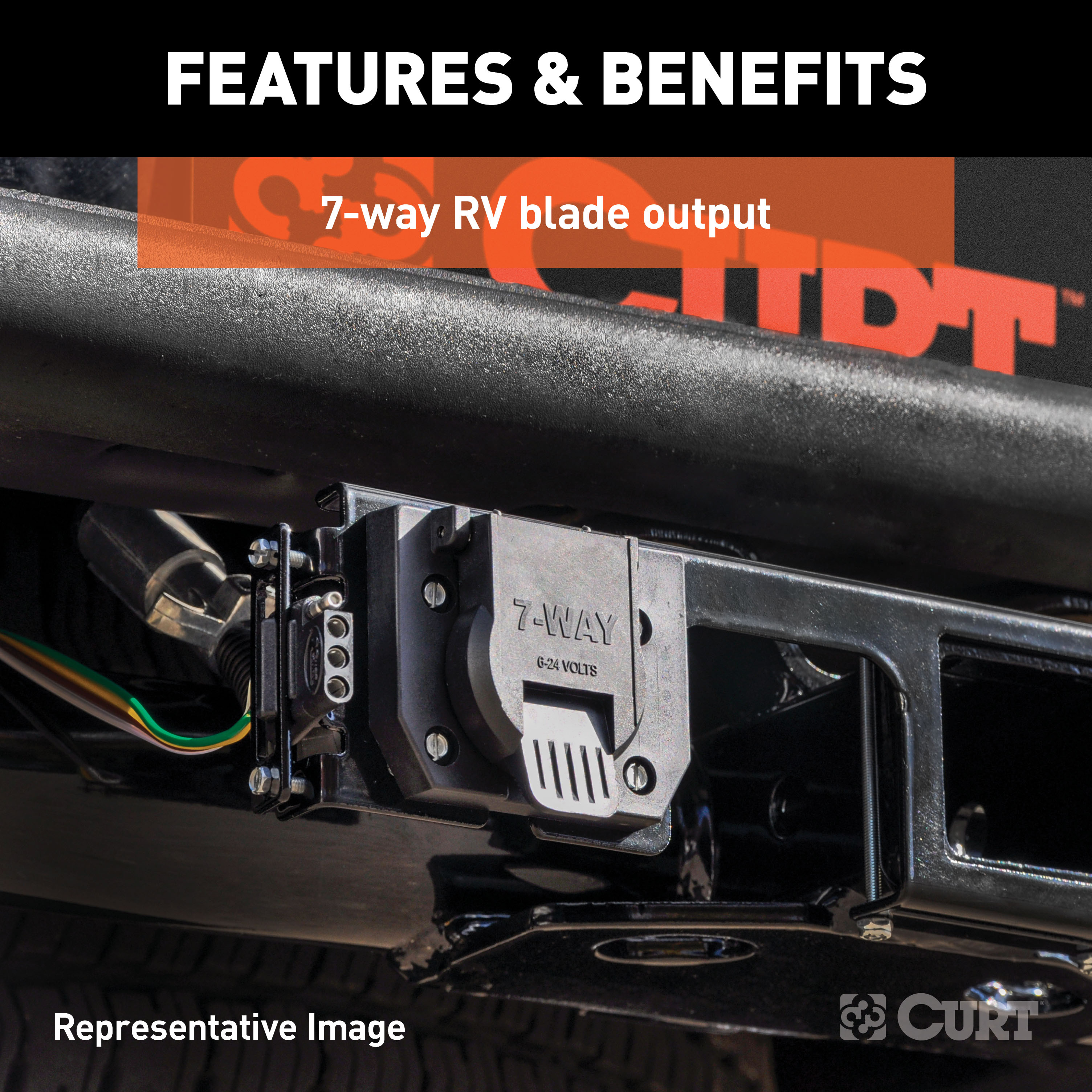

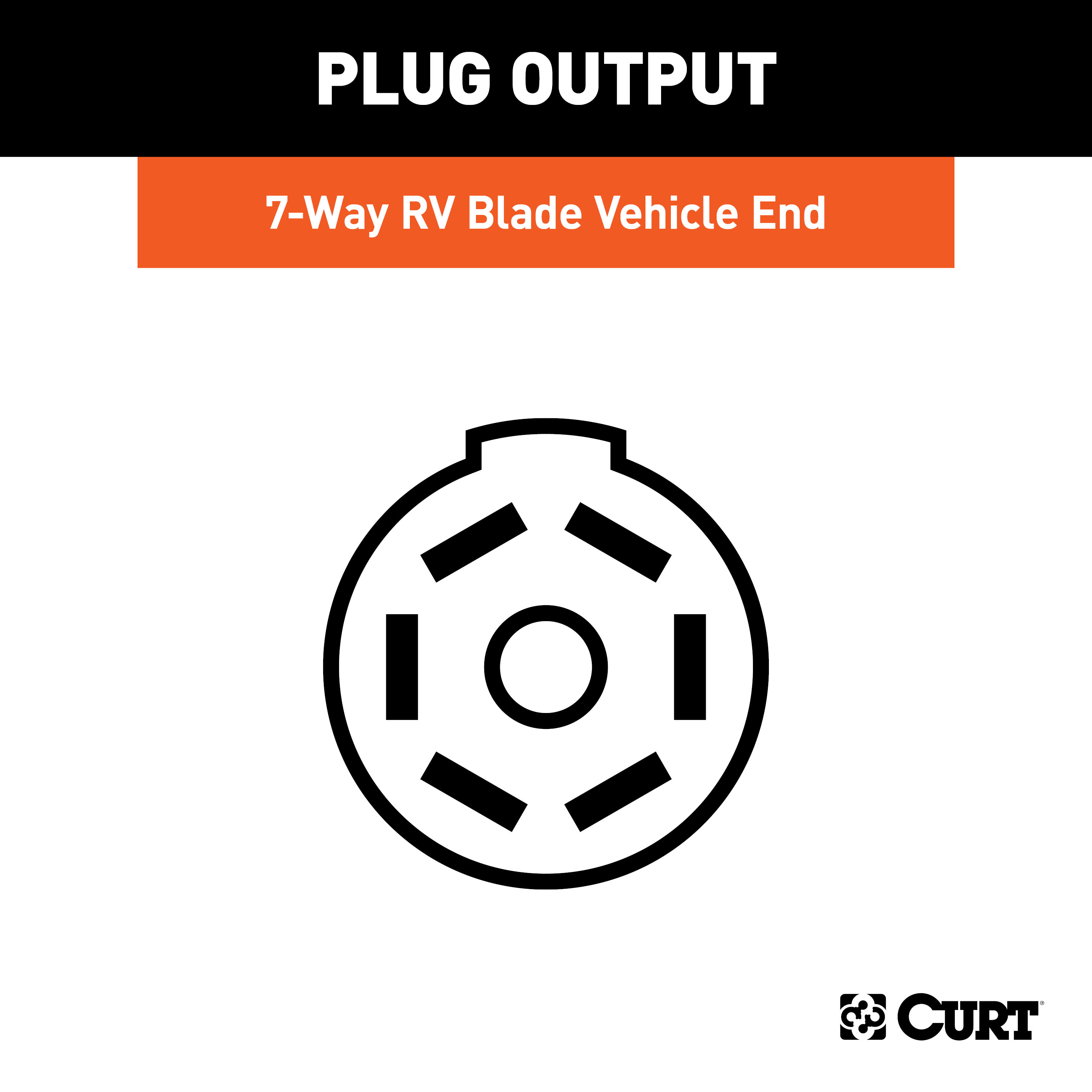

| Output Type | 7-Way RV Blade |
| Side Application Type Description | Blank |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2024 | Cadillac XT6 | — |

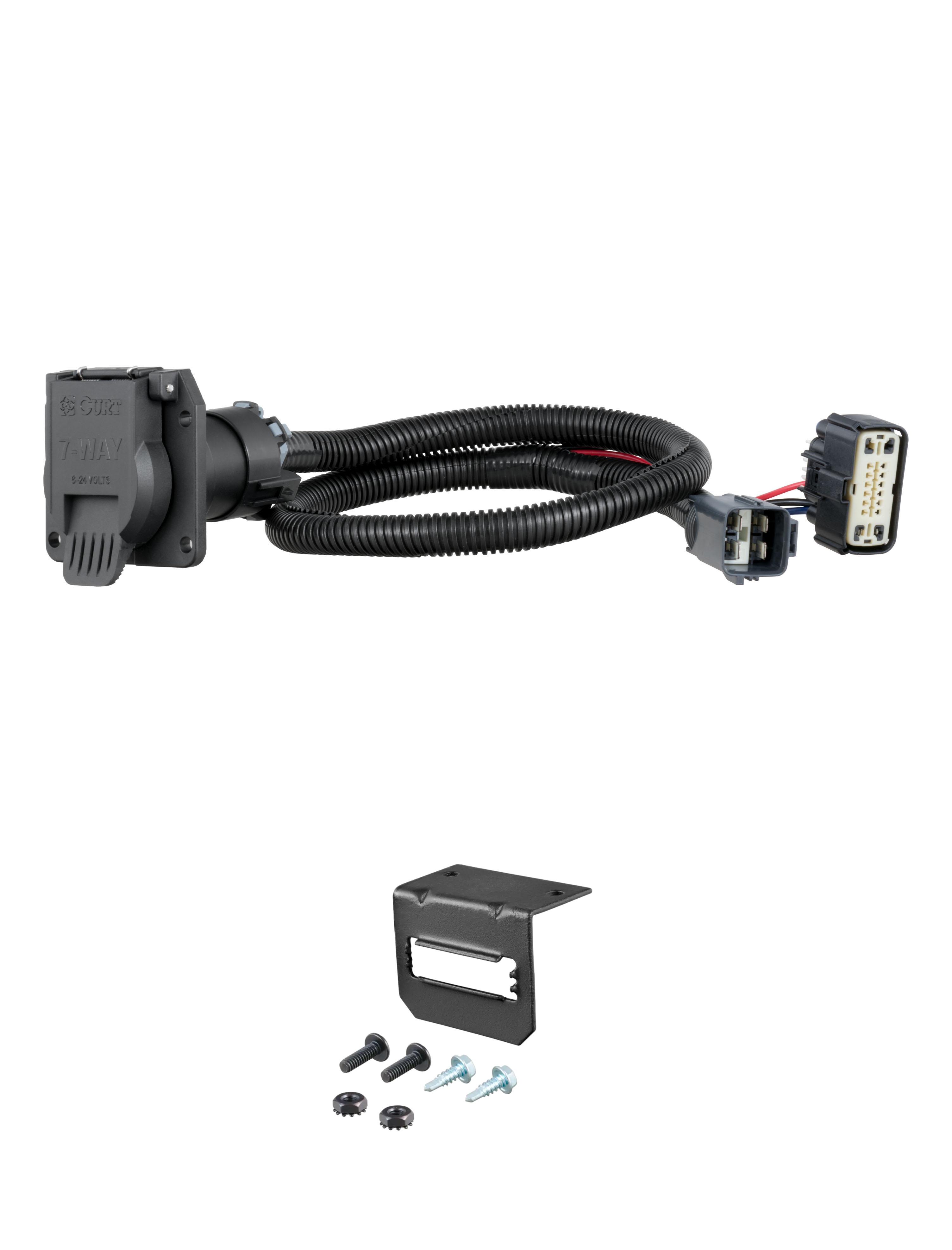

The 20-24 Cadillac XT6 CURT 7-way Plug and Play Trailer Wiring (Part #CTW250) fits the following vehicles: 2020-2024 Cadillac XT6. Always verify your specific year, make, and model before ordering.
The 20-24 Cadillac XT6 CURT 7-way Plug and Play Trailer Wiring (Part #CTW250) fits 2020-2024 Cadillac XT6 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 20-24 Cadillac XT6 CURT 7-way Plug and Play Trailer Wiring (Part #CTW250) is designed to fit the 2020-2024 Cadillac XT6.
The 20-24 Cadillac XT6 CURT 7-way Plug and Play Trailer Wiring (Part #CTW250) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 56326 is designed for the Cadillac XT5. The wiring connector is installed behind the rear bumper in the center of the vehicle.
CURT part 56326 is compatible with GMC Acadia models, with one exception: it does not fit the Acadia Limited trim. Check your vehicle's trim level before purchasing.
The manual does not specify a maximum towing capacity. The product has a rating that must not be exceeded. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Refer to your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
You will need a wire cutter. This is the only tool listed as required for installation.
Yes, you must disconnect the negative battery terminal before beginning installation. The battery is located on the driver side under the hood. Reconnect the negative battery terminal after all installation steps are complete.
The vehicle connector is located behind the rear bumper in the center of the vehicle. It will be similar in appearance to the CURT wiring connector you are installing.
1. Separate the vehicle connectors from the weather seal connectors, taking care not to damage the locking tabs. 2. Insert the CURT wiring connector end into the vehicle connector. 3. Make sure the connectors are fully inserted with locking tabs in place. 4. Route the other end of the wiring connector along the inside of the bumper towards the center of the vehicle to the 7-way mounting location. 5. Insert the 7-way connector end between the separated 7-way connectors. 6. Ensure the connectors are fully inserted with locking tabs in place.
The fuse ratings are: Stop/Turn Light - 10 amps; Taillights - 10 amps; Backup - 10 amps; Power Circuit - 30 amps; Trailer Brakes (3 Axles / 6 Brakes) - 20 amps.
Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer. For the initial test, reset the electrical system of the vehicle by temporarily removing the vehicle's key from the ignition. All connections must be complete for the wiring harness to function. Test and verify installation after completing all steps.
After all connections are complete, reinstall all items removed during installation and reconnect the negative battery terminal. Then test the installation using a test light or by connecting a properly wired trailer.
CURT 56326 fits Cadillac XT5 and GMC Acadia (excluding Limited trim).
Only a wire cutter is required.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete.
Stop/Turn Light and Taillights: 10 amps each; Backup: 10 amps; Power Circuit: 30 amps; Trailer Brakes (3 Axles/6 Brakes): 20 amps.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating, and potential fire.
Use a test light or connect a properly wired trailer. Reset the electrical system by temporarily removing the vehicle key from the ignition before testing.
