| Side Application Type Description | Not Applicable |
| T-Connector Location | T3 |
| Warranty | One-Year Limited Warranty |
| Finish | N/A |
| Material | THERMOPLASTIC RUBBER |
| Mount Type Description | Not Applicable |

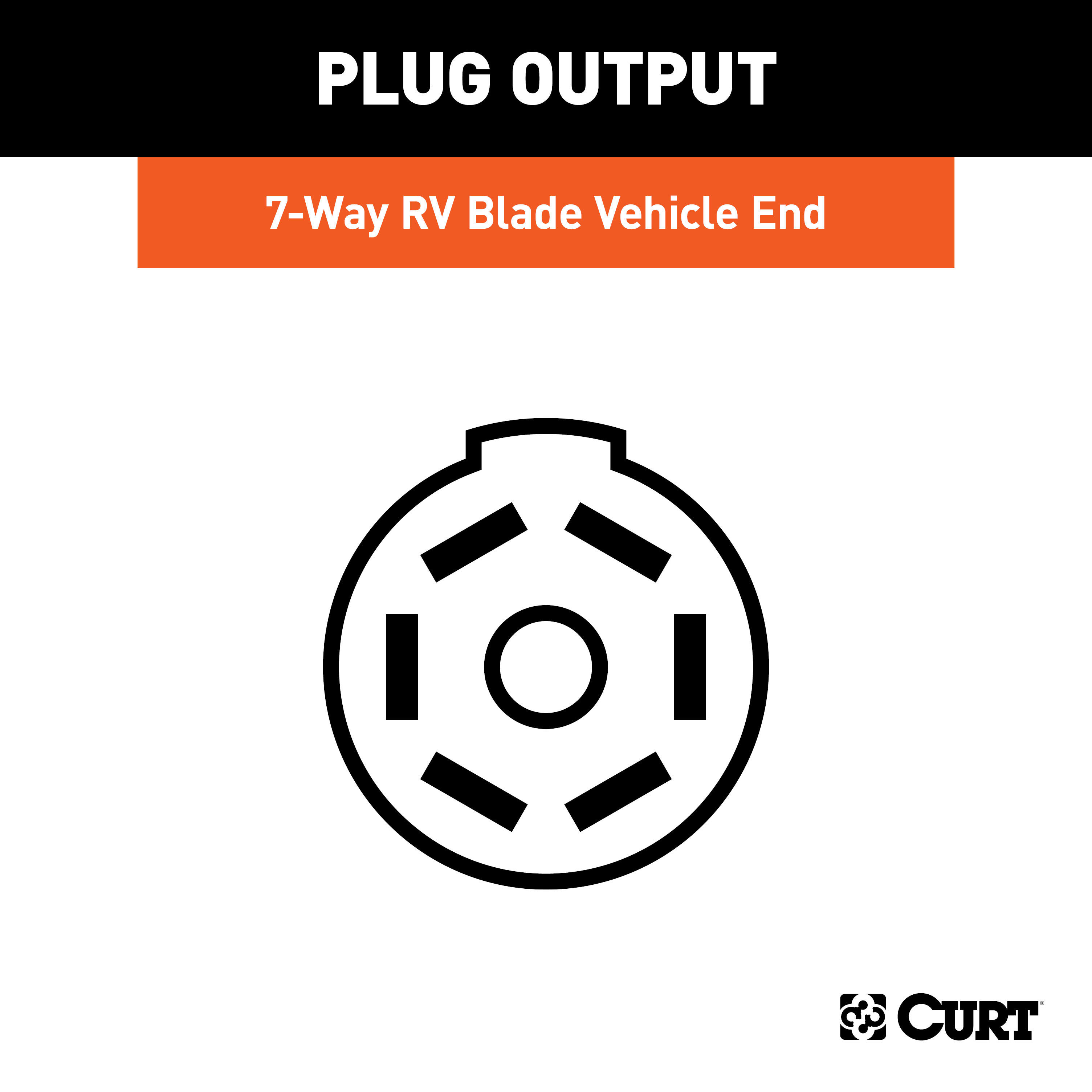

| Output Type | 7-Way RV Blade |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2024 | Ford F-550 Super Duty | Cab & chassis with 34" frame width (O.D.) |
Free Shipping
Ships free on all orders
Authorized DealerThe 20-24 Ford F-550 Super Duty Cab & chassis with 34" frame width (O.D.) CURT 7-way Plug and Play Trailer Wiring (Part #CTW921) fits 2020-2024 Ford F-550 Super Duty models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 20-24 Ford F-550 Super Duty Cab & chassis with 34" frame width (O.D.) CURT 7-way Plug and Play Trailer Wiring (Part #CTW921) is designed to fit the 2020-2024 Ford F-550 Super Duty.
The 20-24 Ford F-550 Super Duty Cab & chassis with 34" frame width (O.D.) CURT 7-way Plug and Play Trailer Wiring (Part #CTW921) fits the following vehicles: 2020-2024 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
The 20-24 Ford F-550 Super Duty Cab & chassis with 34" frame width (O.D.) CURT 7-way Plug and Play Trailer Wiring (Part #CTW921) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 56443 is designed for trucks with factory connectors located on the driver-side frame rail or rear-most cross member. Check your vehicle's frame rail and rear cross member for existing connectors that match the appearance of those shown in the manual. If your truck has these factory connectors, the harness is compatible. If you cannot locate matching connectors, your vehicle may not be equipped for this product.

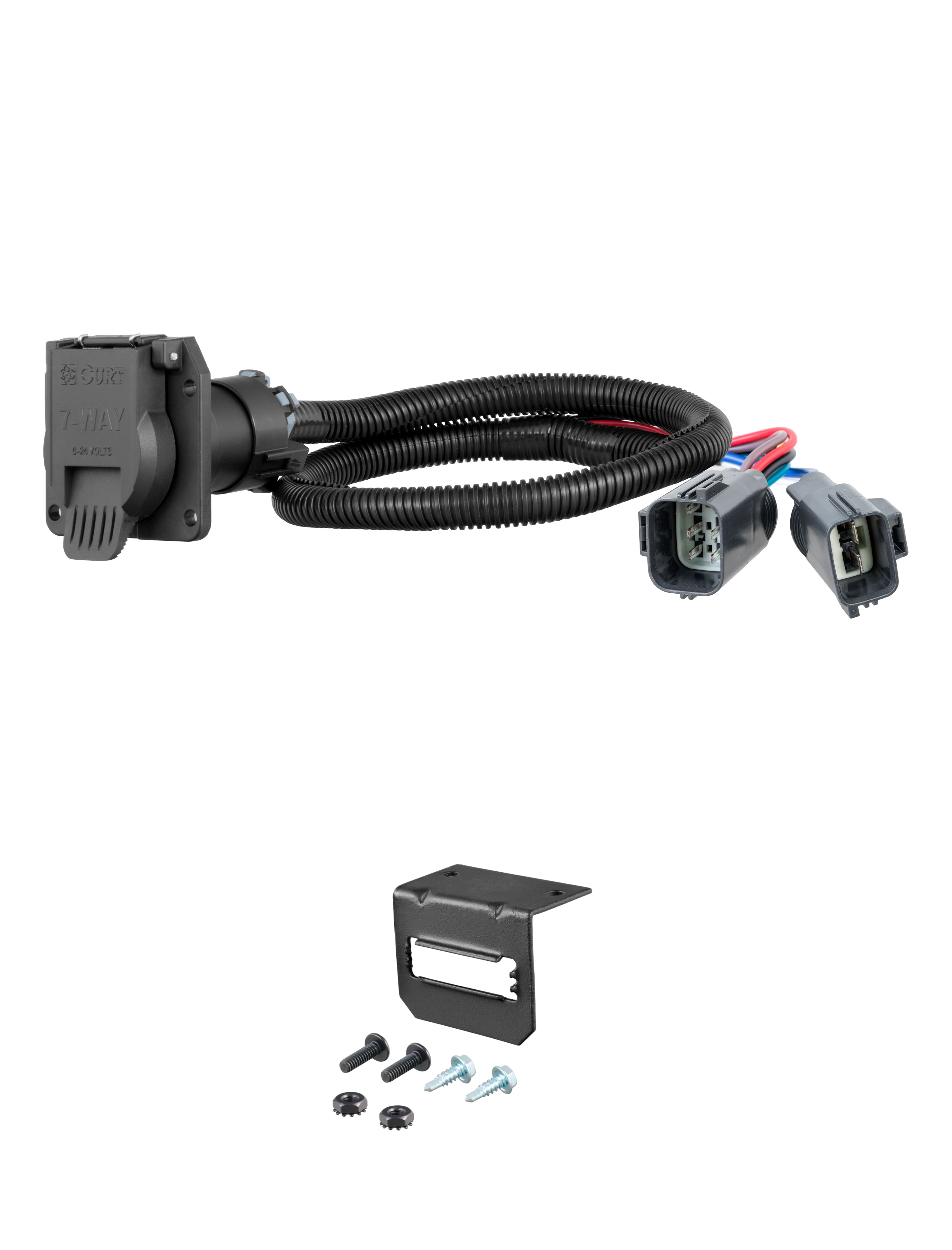

Part 56443 is a custom wiring harness that connects to a 7-way RV blade connector for trailer lighting and braking functions. It routes from the vehicle's factory connectors to a round USCAR plug that mounts to the vehicle, allowing you to connect a trailer with compatible wiring.
You need a flathead screwdriver. Cable ties are also recommended to secure loose wires during routing. A test light, 7-way RV blade tester, or functioning trailer is required to verify proper function after installation.
Yes. Before beginning installation, locate your vehicle's battery in the engine compartment (typically on the passenger side for most gas engines, and on both sides for some gas engines and all diesel engines) and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation.
The factory connectors are located on the driver-side frame rail or the rear-most cross member of your vehicle. They will resemble the connectors included with your new custom wiring harness. Separate these connectors from their dust covers carefully, taking care not to damage the locking tabs.
Route the harness to the 7-way mounting location on your vehicle. Install the round USCAR plug into the 7-way RV blade connector and mount it to the vehicle. Use cable ties as needed to secure any loose wires along the route. Once mounted, reconnect the negative battery terminal if it was disconnected.
After connecting the 12-volt power wire to the harness and reconnecting the battery, verify that the harness is functioning by attaching the battery and testing with a test light, 7-way RV blade tester, or a functioning trailer. This confirms all connections are working properly before towing.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Consult your vehicle's owner's manual and the product documentation for the specific rating of part 56443.
If your vehicle is not factory equipped with trailer brakes, you must consult your vehicle's owner's manual to verify that your vehicle can utilize components and wiring for the trailer braking function. The owner's manual will also specify any fuses that need to be installed. Do not assume your vehicle supports trailer braking without checking the owner's manual first.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. Regular maintenance helps prevent electrical failures and ensures safe trailer operation.
The manual provides a wiring location guide for trucks with five reference points: T1 (behind driver side taillight housing), T2 (behind passenger side taillight housing), T3 (behind driver side rear bumper), T4 (behind center of rear bumper fascia), and T5 (behind passenger side rear bumper). These locations help you route the harness correctly during installation.
Part 56443 fits trucks with factory connectors on the driver-side frame rail or rear-most cross member. Check your vehicle for these connectors before purchasing.
You need a flathead screwdriver, cable ties, and a test light or 7-way RV blade tester to verify function after installation.
Yes, disconnect the negative battery terminal before starting installation. Fasten the wire down and away from the battery during the installation process.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. If your vehicle lacks factory trailer brakes, verify in the owner's manual that your vehicle can use trailer braking components.
