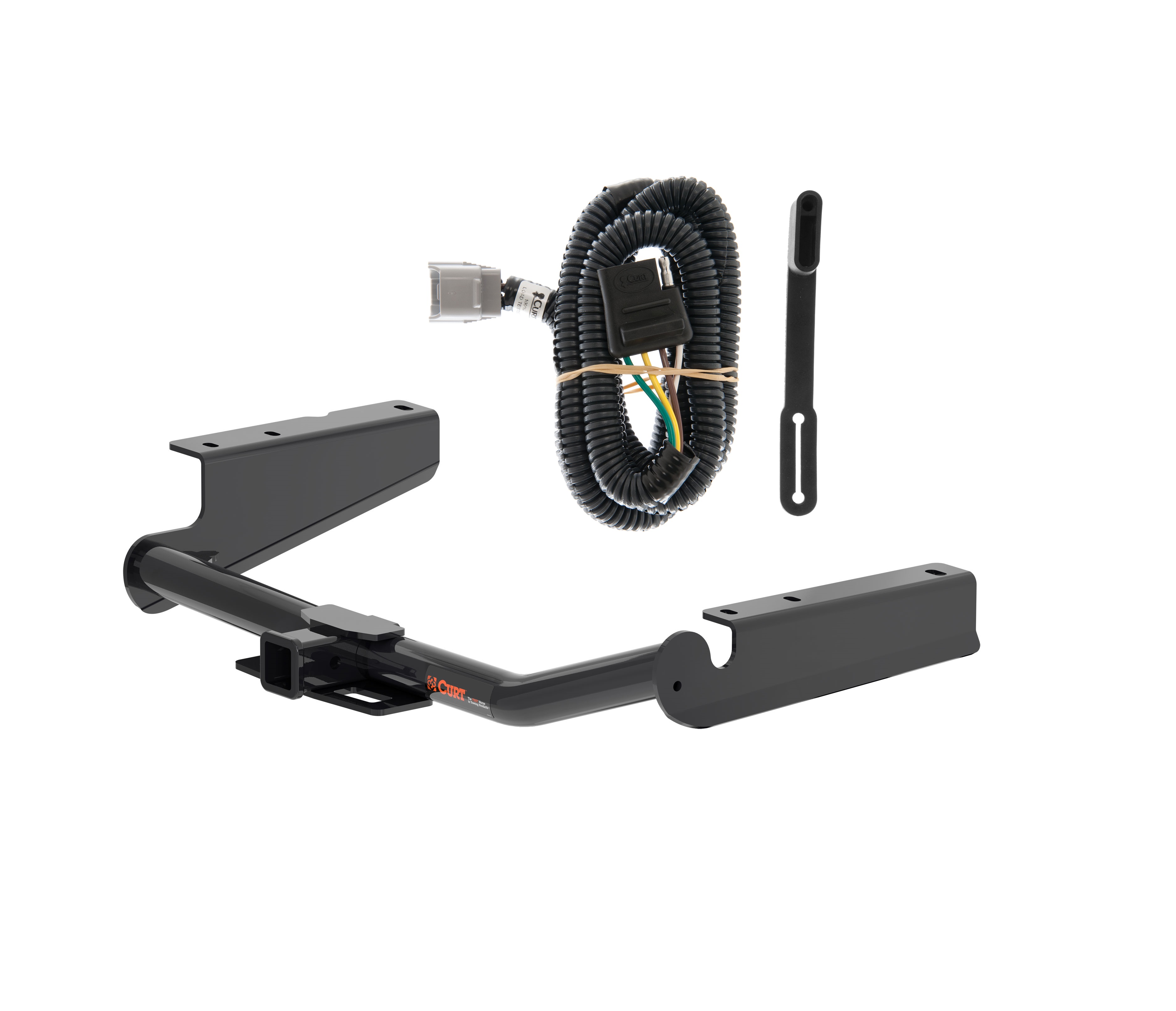

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2020 - 2026 Toyota Highlander Excluding XSE. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Highlander (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

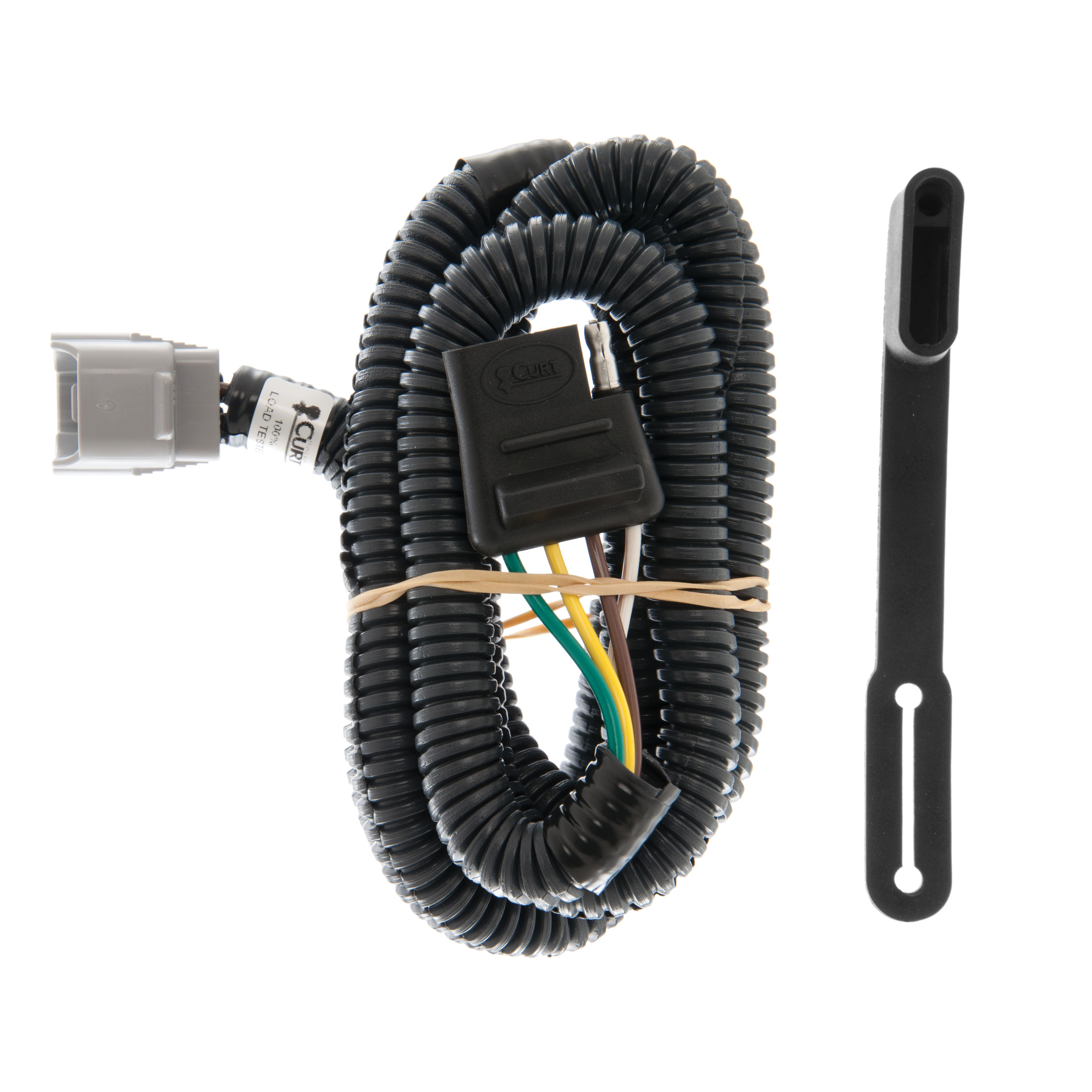

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Toyota 4Runner, Toyota Highlander, Toyota Grand Highlander, Toyota Land Cruiser, Lexus LX470, Lexus LX570, Lexus RX300, Lexus TX350, Lexus TX500h, and Lexus TX550h+ (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Toyota Highlander | Excluding XSE |
Yes, the 20 - 24 Toyota Highlander Excluding XSE Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13460 (Part #CHW-2885) is designed to fit the 2020-2024 Toyota Highlander.
The 20 - 24 Toyota Highlander Excluding XSE Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13460 (Part #CHW-2885) fits the following vehicles: 2020-2024 Toyota Highlander. Always verify your specific year, make, and model before ordering.
The 20 - 24 Toyota Highlander Excluding XSE Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13460 (Part #CHW-2885) fits 2020-2024 Toyota Highlander models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 20 - 24 Toyota Highlander Excluding XSE Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13460 (Part #CHW-2885) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part 55245 is designed for Lexus LX 470, Lexus RX 300, Toyota 4Runner, Toyota Highlander, and Toyota Landcruiser. Verify your vehicle model matches this list before purchasing.
The manual does not specify what components are included in the kit. Contact Curt Manufacturing or your retailer for a complete parts list.
The factory tow plug is located behind the bumper (marked as S6). On some vehicles, the tow plug may be hidden under a black box cover secured with 10 mm hex bolts. Remove these bolts to access the plug.
You will need a 10 mm hex wrench or socket to remove the bolts securing the black box cover (if present on your vehicle). A 20 amp fuse is required for Highlander and RX300 models.
Insert the harness connector into the vehicle's factory harness connector (located at S6 behind the bumper). Route the 4-flat connector to the center of the vehicle and secure it in a convenient, out-of-the-way location.
A 20 amp fuse is required for Lexus RX300 and Toyota Highlander models. Locate the fuse panel on the driver's side of the engine compartment and insert the fuse in the location marked 'towing'. Other vehicles in the compatibility list may not require this step; consult your vehicle's manual if uncertain.
Before drilling, verify that no miscellaneous items (wiring, fuel lines, brake lines, etc.) are hidden behind or under any surface where you plan to drill. Drilling into hidden components can cause damage and personal injury.
Yes, if you own a Lexus LX 470, RX 300, or a Toyota 4Runner, Highlander, or Landcruiser. Other models are not compatible.
A 10 mm hex wrench to remove the black box cover (if present), and a 20 amp fuse for Highlander and RX300 models.
The manual does not specify whether professional installation is required or recommended. Contact Curt Manufacturing or a qualified installer if you are unsure about performing the installation yourself.
Yes, CURT part number 13460 is designed for 2020-present Toyota Highlander SUVs. Confirm your vehicle matches this year range and model before purchasing.
When used as a weight-carrying hitch, the CURT 13460 supports 6,000 lbs trailer weight and 900 lbs tongue weight. When used as a weight-distribution hitch, it supports 8,000 lbs trailer weight and 900 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
The hitch includes 6 M12×1.25 hex cap screws (part number 10-10275) and 6 1/2" conical toothed washers (part number 30-00149). These are used to secure the hitch to the frame weldnuts.
Required tools: screwdriver, ratchet, torque wrench, 10mm socket, 12mm socket, 17mm socket, 19mm socket, 6" extension, and safety glasses. A rotary tool is optional for trimming the fascia.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
No, drilling is not required. The hitch uses existing weldnuts in the frame for attachment.
Two modifications are required: (1) Mark and trim the lower fascia exhaust air deflector 2" from the hinge to allow room for the hitch. (2) Mark and trim the underbody panel to fit around the installed hitch. Dimensions are approximate; confirm fit prior to trimming. A rotary tool is optional for this work.
The following must be removed: (1) 7 fasteners securing the driver side underbody panel (which is then lowered); (2) 4 rubber plugs from the frame rails; (3) 5 threaded plastic inserts from the frame rails; (4) 1 M12 bolt and 1 M6 screw securing the metal fascia tab to the passenger side frame rail; (5) the exhaust hanger rod closest to the exhaust tip from the rubber isolator. All removed parts should be returned to the owner or reinstalled after hitch installation.
Raise the hitch over the exhaust and align the holes in the hitch with the weldnuts in the frame. Secure the hitch using the supplied M12-1.25 hex bolts and 1/2" conical toothed washers. Torque all 12mm hardware to 86 ft-lbs.
Torque all 12mm hardware to 86 ft-lbs.
1. Remove 7 fasteners securing the driver side underbody panel and lower it. 2. Remove 4 rubber plugs and 5 threaded plastic inserts from frame rails. 3. Mark and trim the lower fascia exhaust air deflector 2" from the hinge. 4. Remove the M12 bolt and M6 screw securing the metal fascia tab to the passenger side frame rail. 5. Lower the muffler by removing the exhaust hanger rod closest to the exhaust tip from the rubber isolator. 6. Raise the hitch over the exhaust, align holes with weldnuts, and secure using M12-1.25 hex bolts and 1/2" washers; torque to 86 ft-lbs. 7. Mark and trim the underbody panel, reattach the muffler, and reinstall the underbody panel using original fasteners.
Yes. After lowering the underbody panel in Step 1, you can either return it to the owner or trim and reinstall it in Step 7. If reinstalling, mark and trim it to fit around the installed hitch (dimensions are approximate; confirm fit prior to trimming), then reattach it using the fasteners removed in Step 1.
In Step 5, lower the muffler by removing the exhaust hanger rod closest to the exhaust tip from the rubber isolator. This allows clearance for the hitch. In Step 7, reinstall the muffler by reattaching the exhaust hanger rod to the rubber isolator.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is essential for safe towing.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. This applies whether you are using the hitch as a weight-carrying hitch (6,000 lbs trailer / 900 lbs tongue) or weight-distribution hitch (8,000 lbs trailer / 900 lbs tongue).
Professional installation time is approximately 60 minutes. Novice (DIY) installation time is approximately 44 minutes.
The installation is rated as moderate difficulty. Using proper tools will greatly improve the quality of the install and reduce the time required. Two people may be required to ease installation.
You will need 10mm, 12mm, 17mm, and 19mm sockets, plus a 6" extension.
Mark the lower fascia exhaust air deflector 2" from the hinge. This is where you should trim to allow room for the hitch.
Yes. Return the following removed parts to the owner: the 4 rubber plugs, the 5 threaded plastic inserts, the metal fascia tab, and the fasteners (M12 bolt and M6 screw) that secured the fascia tab. The underbody panel can either be returned to the owner or trimmed and reinstalled.
Call CURT Manufacturing technical support at 877-287-8634. You can also log onto www.curtmfg.com for more information and www.hitchinfo.com for helpful towing tips.
