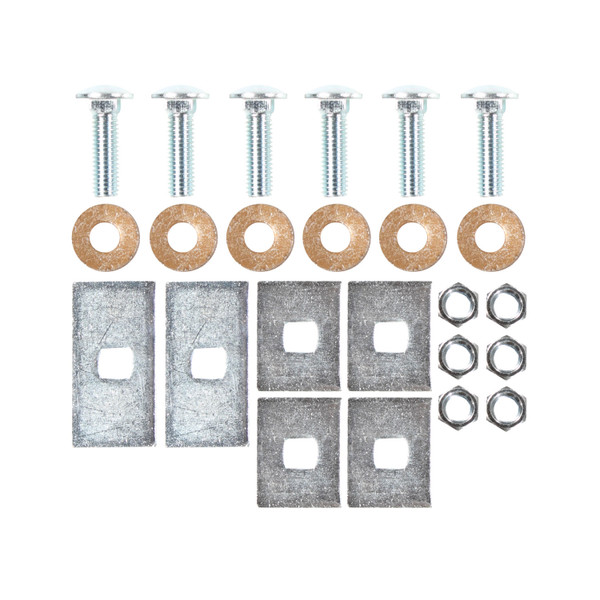

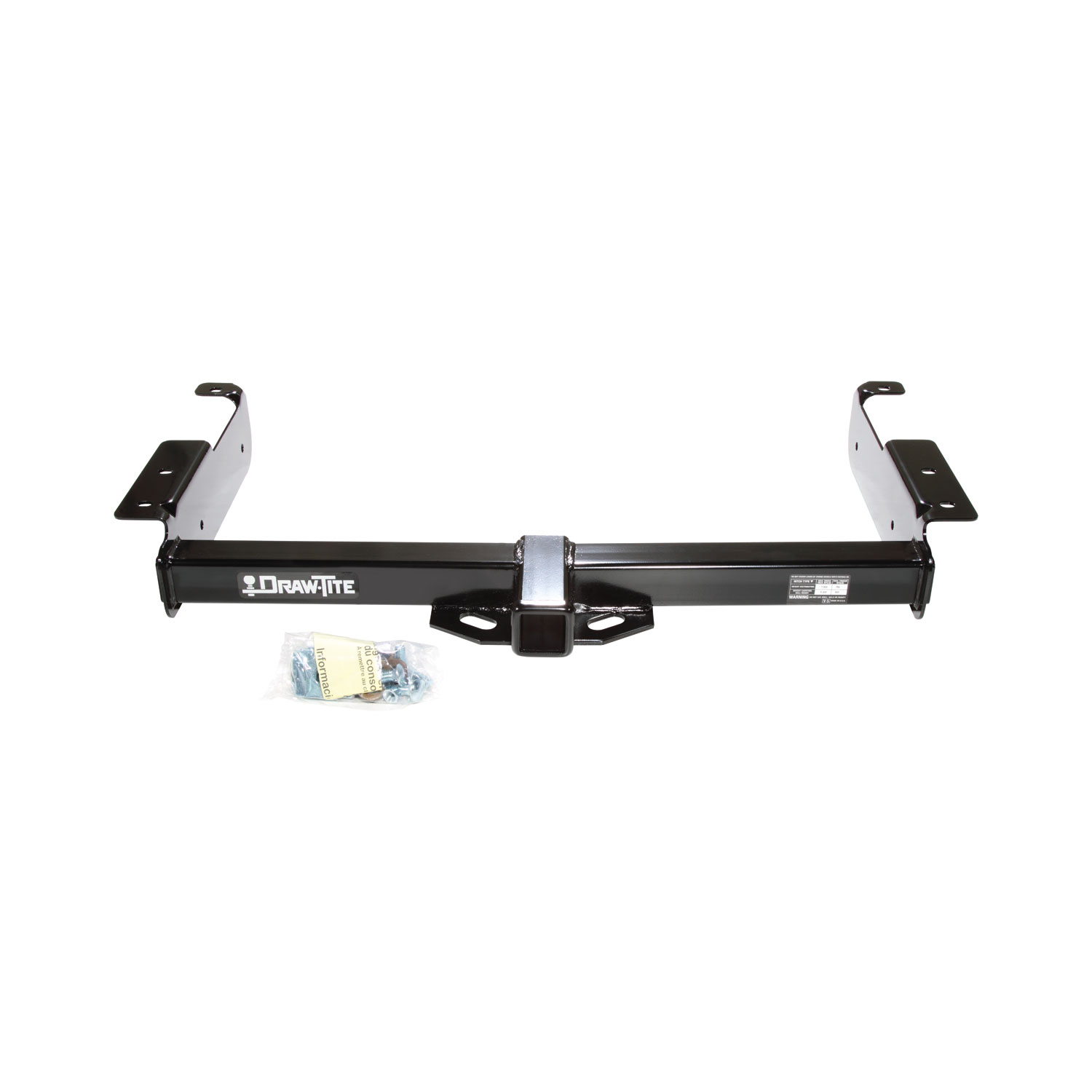

These durable custom hitches are manufactured for 1996-2014 Chevrolet Express 1500, 1996-2023 Chevrolet Express 2500, 1996-2023 Chevrolet Express 3500, 1996-2014 GMC Savana 1500, 1996-2023 GMC Savana 2500, 1996-2023 GMC Savana 3500 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Chevrolet Express 2500 | — |

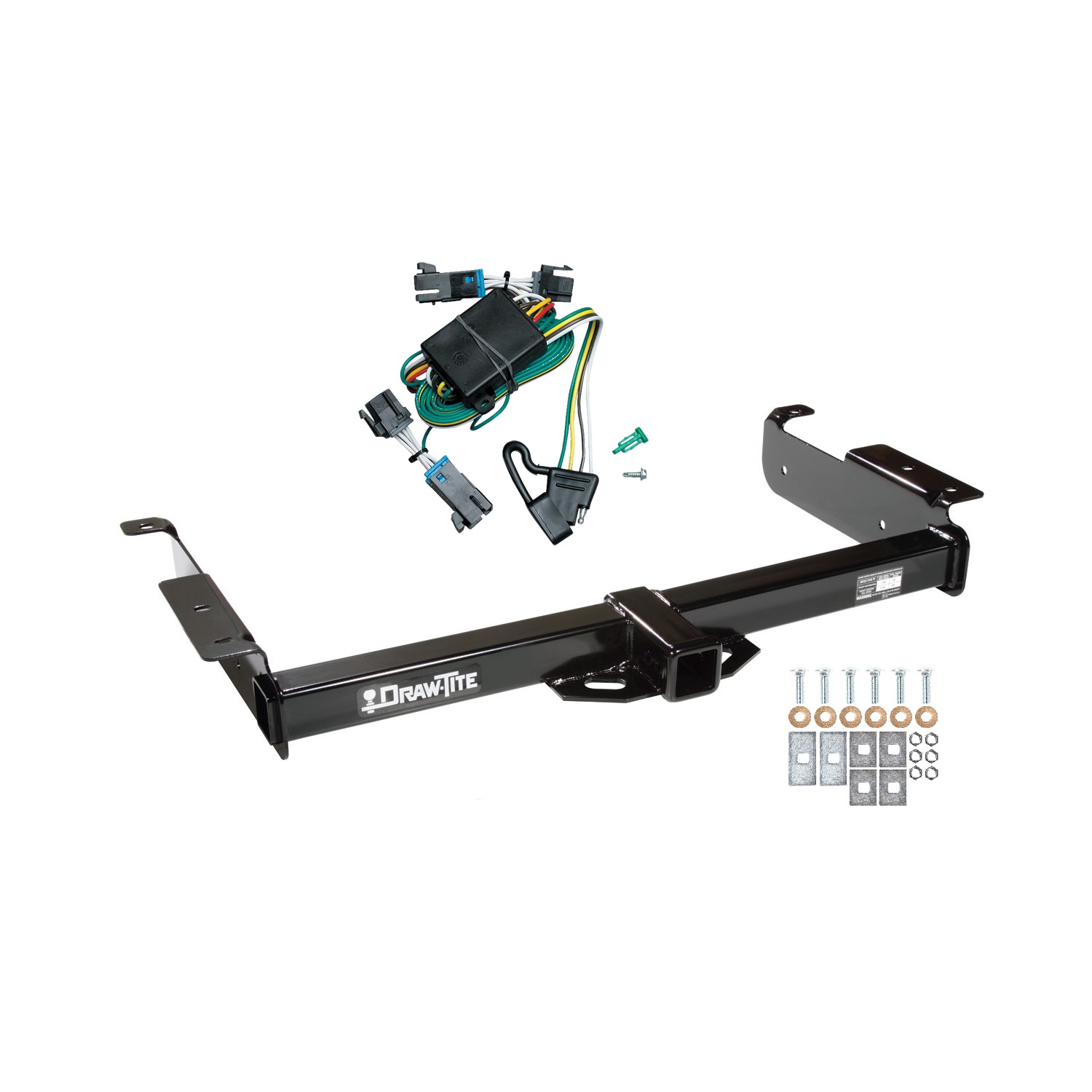

Yes, the 2000-2002 Chevrolet Express 2500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75189-8-118377) is designed to fit the 2000-2002 Chevrolet Express 2500.
The 2000-2002 Chevrolet Express 2500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75189-8-118377) fits 2000-2002 Chevrolet Express 2500 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2000-2002 Chevrolet Express 2500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75189-8-118377) fits the following vehicles: 2000-2002 Chevrolet Express 2500. Always verify your specific year, make, and model before ordering.
The 2000-2002 Chevrolet Express 2500 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75189-8-118377) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 18377-037 is rated for 7.5 amps per circuit. It is designed to connect a trailer or auxiliary lighting system to a vehicle's existing taillight wiring harness without cutting or splicing factory wires.
The manual does not specify which vehicle makes, models, years or body styles are compatible with the 18377-037. Contact the manufacturer or your dealer to confirm fitment for your specific vehicle before purchasing.
The manual does not specify whether battery disconnection is required. Consult your vehicle's service manual or a qualified installer to determine if this step is necessary for your vehicle.
The manual indicates you will need either a screw or cable tie (both provided with the unit) to secure the black box. No other tools are mentioned in the installation instructions.
The black box is positioned on the driver's side of the vehicle, behind the rear interior trim panel. It is secured with either a screw or cable tie (provided) after the wiring connections are made.
The yellow wire connector is plugged into the left (driver's side) vehicle taillight wiring harness connector. The green wire connector is plugged into the right (passenger's side) vehicle taillight wiring harness connector. The manual does not specify the function of each wire beyond their left/right positioning.
1. Remove the rear interior trim panels near the doors and locate the vehicle's taillight wiring harness connectors on each side. 2. Disconnect the vehicle wiring harness connectors on the driver's side, being careful not to damage the locking tabs. 3. Plug the T-Connector harness connector containing the yellow wire into the left vehicle wiring harness connector, ensuring connectors are fully inserted using existing and supplied locking tabs. 4. Repeat for the passenger side using the connector containing the green wire. 5. Tuck the green wire under the floor trim (threshold) panel.

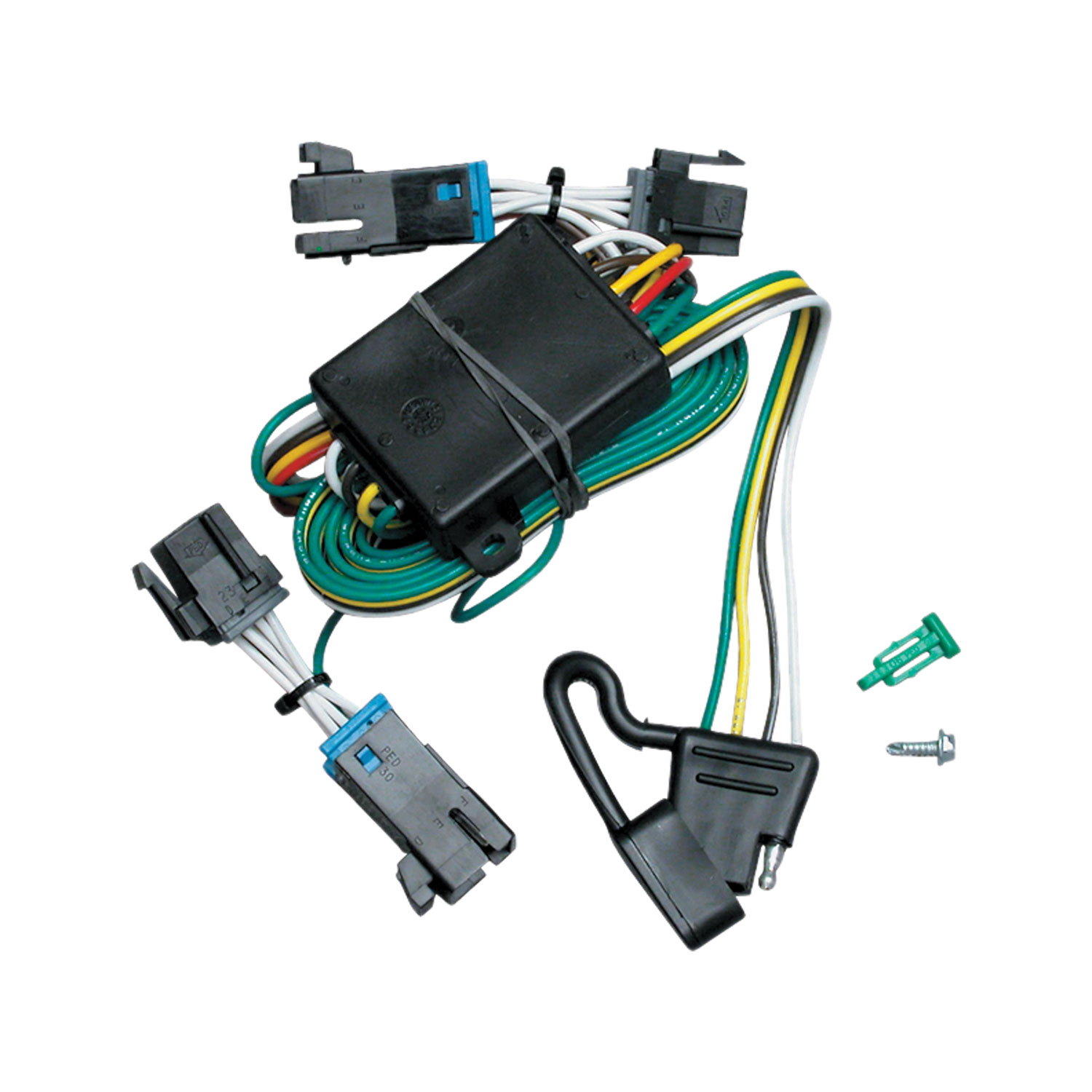

The 18377-037 includes the T-Connector adapter with yellow and green wire connectors, a black box, cable ties, and a screw for securing the black box to the vehicle. Locking tabs are supplied as part of the connector assembly.
On some early production vehicles, the taillight and stoplight circuits may be reversed. If this occurs, the wires can be switched as shown in the diagram provided with the unit, or contact your dealer for an earlier application with the correct wire position.
Secure the black box on the driver's side behind the rear trim panel using either the provided screw or one of the provided cable ties. The green wire should be tucked under the floor trim (threshold) panel before securing the box.
No. The 18377-037 T-Connector uses a plug-and-play design that connects to existing vehicle taillight wiring harness connectors without cutting, splicing, or permanently modifying factory wires.
Connectors must be pushed together completely until they seat fully, utilizing both the existing vehicle locking tabs and the supplied locking tabs on the T-Connector. This ensures a secure, reliable electrical connection.
The manual does not specify compatible vehicles. Contact the manufacturer or dealer to confirm fitment before purchasing.
Only a screw or cable tie (both provided) to secure the black box. No additional tools are required.
No. The T-Connector plugs directly into existing vehicle taillight harness connectors without cutting or splicing.
The unit is rated for 7.5 amps per circuit.
Early production vehicles may have reversed taillight and stoplight circuits. Switch the wires as shown in the diagram, or contact your dealer for a corrected application.
