These durable custom hitches are manufactured for 2000-2014 Ford E-150 Econoline, 2000-2014 Ford E-250 Econoline, 2000-2002 Ford E-350 Econoline, 2003-2014 Ford E-350 Econoline Super Duty and attach to your vehicle?s frame with strong, secure heavy-duty side brackets. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. DRAW-TITE Class 5 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a limited lifetime guarantee. So, whether you are headed out to the campground, the snowmobile trails, or off-roading, or you are hauling cargo to and from the job site, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

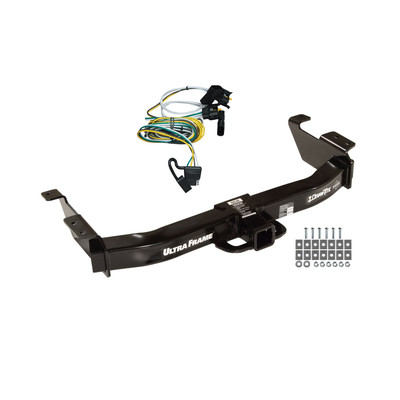

Call 888-634-9494Yes, the 2000-2002 Ford E-250 Econoline Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41945-5-118344) is designed to fit the 2000-2002 Ford E-250 Econoline.
The 2000-2002 Ford E-250 Econoline Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41945-5-118344) fits 2000-2002 Ford E-250 Econoline models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2000-2002 Ford E-250 Econoline Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41945-5-118344) fits the following vehicles: 2000-2002 Ford E-250 Econoline. Always verify your specific year, make, and model before ordering.
The 2000-2002 Ford E-250 Econoline Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41945-5-118344) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 41945 is a hitch for Ford Econoline Van, all models. It is a weight-carrying or weight-distributing hitch depending on the ball mount configuration used.
Yes, the 41945 hitch is designed for Ford Econoline Van, all models.
The maximum towing capacity depends on the ball mount type used. With a weight-distributing ball mount, the maximum gross trailer weight is 12,000 lbs (5,448 kg) and maximum tongue weight is 1,200 lbs (545 kg). With a weight-carrying ball mount, the maximum gross trailer weight is 10,000 lbs (4,540 kg) and maximum tongue weight is 1,500 lbs (681 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch capacity.
You will need wrenches in 13/16" and 7/8" sizes and a torque wrench. No drilling is required.

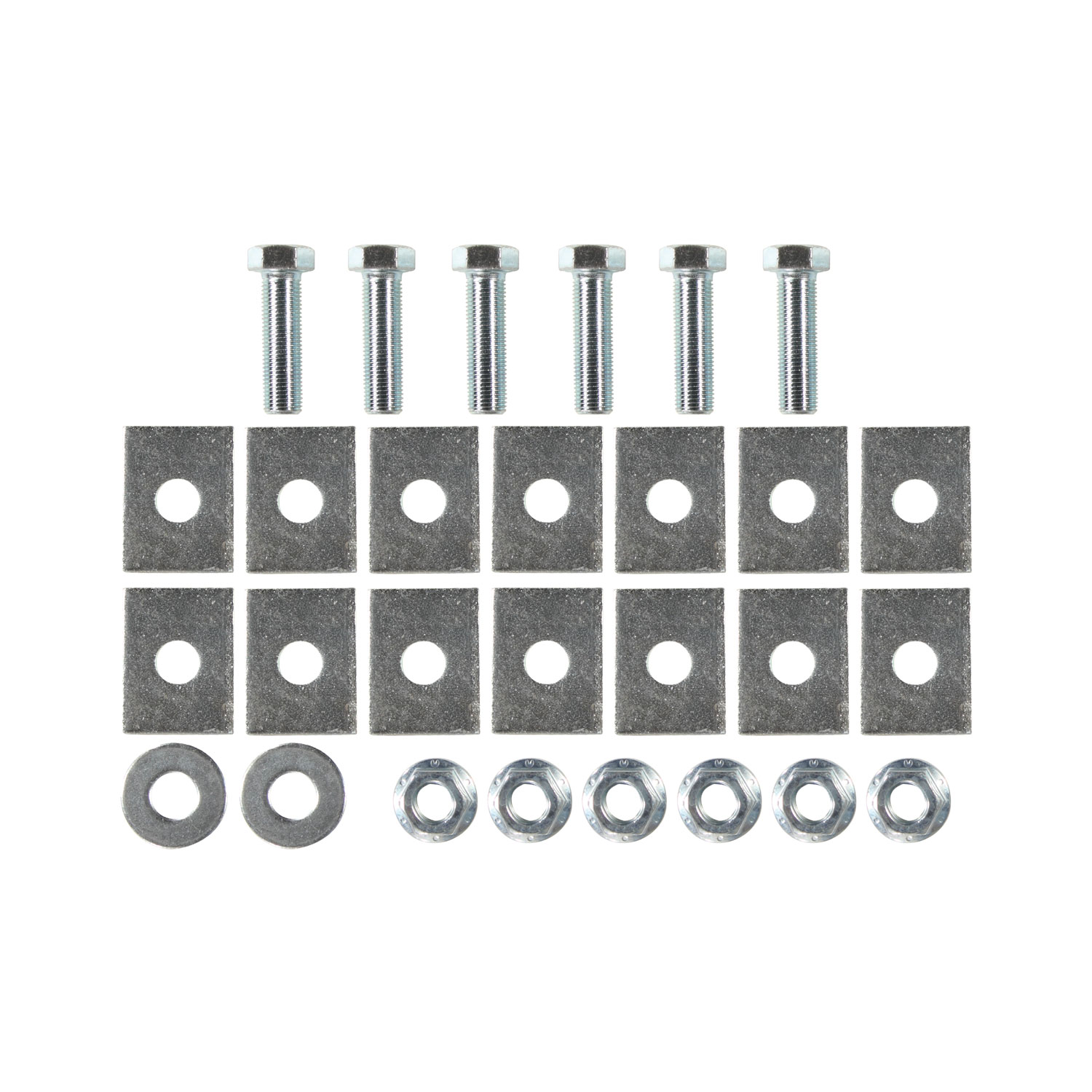

The fastener kit 41945F includes: 6 hex head bolts (9/16-18 x 2.00 GR5), 6 flanged locknuts (9/16-18), 14 blocks (1.50 x 2.00 x .250), and 2 washers (9/16").
If a carbon canister is present on the driver's side frame rail, it must be lowered before installation. After the hitch is installed, the carbon canister must be reattached. It must not contact the bolt head; if it does, loosen the canister fasteners and reposition it to ensure clearance.
If a factory-installed optional driver's side trailer wiring connector is present on the bumper, it must be disconnected before raising the hitch into position. After installation, it must be reconnected and positioned to clear the hitch.
1. If present, lower the carbon canister from the driver's side frame rail. 2. Disconnect the factory trailer wiring connector from the bumper if present. 3. Raise the hitch into position and attach with fasteners as shown in the diagram, making sure to sandwich a block between the hitch and frame at the middle attachment. 4. Reinstall the factory trailer wiring connector to clear the hitch. 5. Reattach the carbon canister if present, ensuring it does not contact the bolt head.
A block (1.50 x 2.00 x .250) must be sandwiched between the hitch and frame at the middle attachment point. The manual does not explain the reason, but this is a required step shown in the installation diagram.
All 9/16-18 grade 5 fasteners must be tightened with a torque wrench to 120 Lb.-Ft. (163 N·m).
Tighten all 9/16-18 grade 5 fasteners to 120 Lb.-Ft. (163 N·m) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection.
No, no drilling is required. The manual lists drill bits as NONE under Equipment Required.
The wiring access location is SUV1 or SUV2, as indicated in the manual.
Yes, the 41945 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.

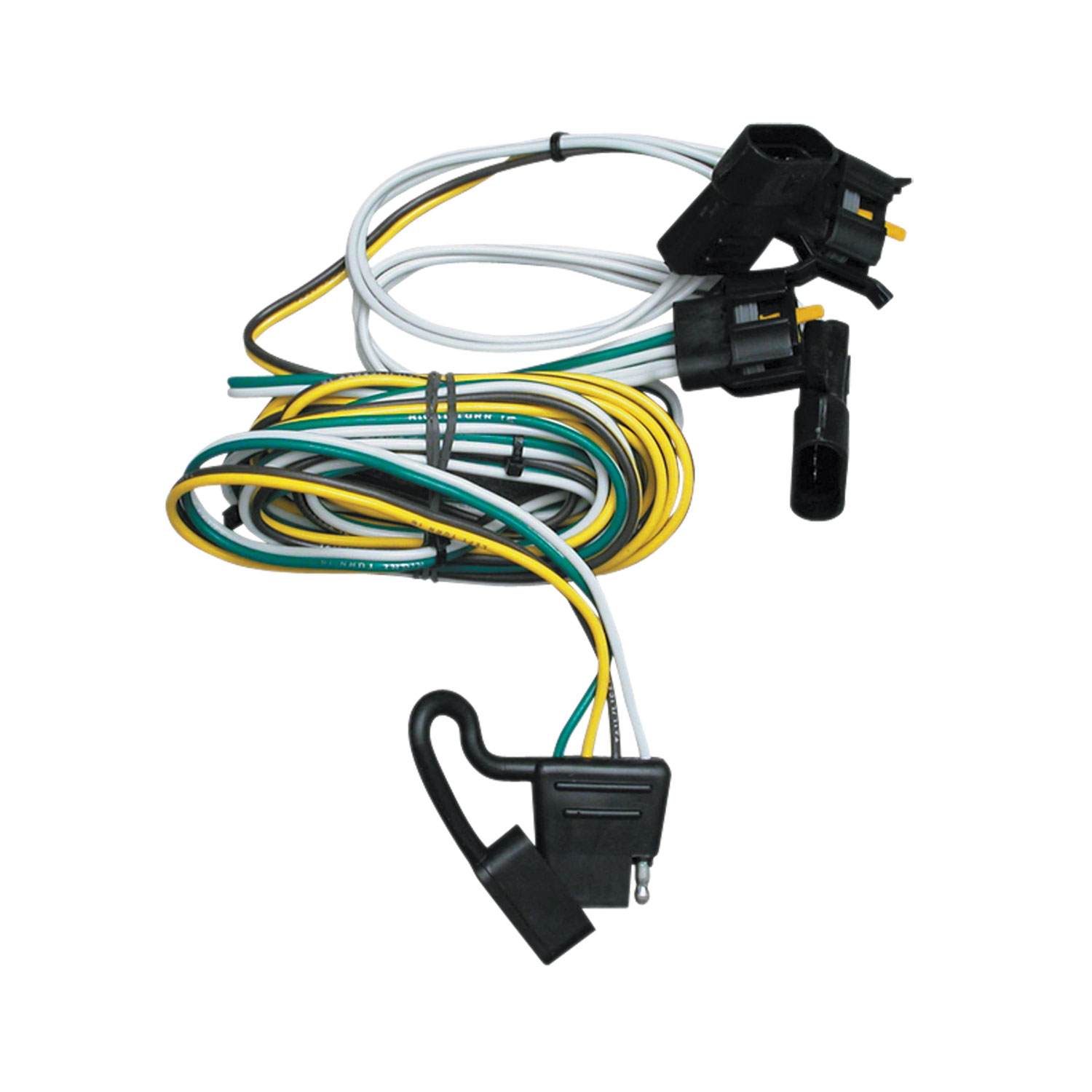

The T-connector adapter is designed for Ford Vans, Expedition, Navigator, Escort, Tracer, and F-150 Pickups with Flareside beds only. If your F-150 has a Flareside bed, it is compatible. If you have a different truck bed style or a different vehicle brand, this adapter will not fit. Check your vehicle's model and bed type before purchasing.
No. The installation instructions specify F-150 Pickups with Flareside beds only. The access method for non-Flareside F-150s is different and not covered in this manual. Do not use this adapter on F-150s with other bed styles.
The unit is rated for 7.5 amps per circuit. Do not exceed this rating, as it may damage the adapter or create a fire hazard.
The manual specifies that you will need a test light or trailer to test the installation after completion. No other tools are explicitly listed. Depending on your vehicle, you may need basic hand tools to remove trim panels and tail light assemblies, but the manual does not detail these.
Remove both tail light assemblies and locate the vehicle's wiring harness. There will be connection points on each side of the vehicle matching the ends of the T-connector adapter.
Partially remove the rear interior plastic trim panels on the driver's (left) side and open the vehicle's jack storage compartment to expose the openings to the tail light assemblies. Also remove the threshold cover plate between the rear doors.
Partially remove the trunk lining to expose the grommets accessing the tail lights. Remove and slit the grommet to allow wires to pass into the tail light openings.
From underneath the vehicle, locate the access hole into the tail light openings. There will be an access hole on each side of the vehicle.
The T-connector end containing the green wire is routed from the passenger side. This connector is plugged between the separated halves of the vehicle's center black wiring harness connector at the tail light assembly.
The T-connector end containing the yellow wire is routed across the vehicle under the threshold cover and out through the tail light opening on the driver's side. This connector is plugged between the separated halves of the vehicle's center black wiring harness connector at the tail light assembly.
Route the yellow wire across the vehicle under the threshold cover that was removed in step 2. Then route the T-connector end containing the yellow wire out from inside the vehicle through the tail light opening.
Disconnect the vehicle's center black wiring harness connector from the tail light assembly, being careful not to damage the locking tabs. Plug the T-connector connector between these separated halves. Repeat this process for both the green wire connector (passenger side) and the yellow wire connector (driver's side).
The manual warns to be careful not to damage the locking tabs when disconnecting the vehicle's center black wiring harness connector. If the tabs are damaged, the connector may not hold securely. Do not proceed; contact the manufacturer or a qualified technician for repair or replacement of the connector.
Test the installation with a test light or trailer. The manual does not specify the exact testing procedure, so consult the test light or trailer manufacturer's instructions for proper use.
Tuck the yellow wire under the threshold panel and secure it. Then reinstall the plastic trim panel, jack storage panel grommets, and tail lights.
The T-connector fits Ford Vans, Expedition, Navigator, Escort, Tracer, and F-150 Pickups with Flareside beds only. Check your vehicle model and bed type before purchasing.
The unit is rated for 7.5 amps per circuit. Do not exceed this rating.
You will need a test light or trailer to test the installation after completion.
The T-connector has a green wire (passenger side) and a yellow wire (driver's side). Both connect to the vehicle's tail light wiring harness.
Yes. Remove both tail light assemblies first to access the vehicle's wiring harness and connect the T-connector.
Do not damage the locking tabs on the vehicle's center black wiring harness connector when disconnecting it from the tail light assembly.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Ford E-250 Econoline | — |
