Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2000 - 2002 GMC Savana 2500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

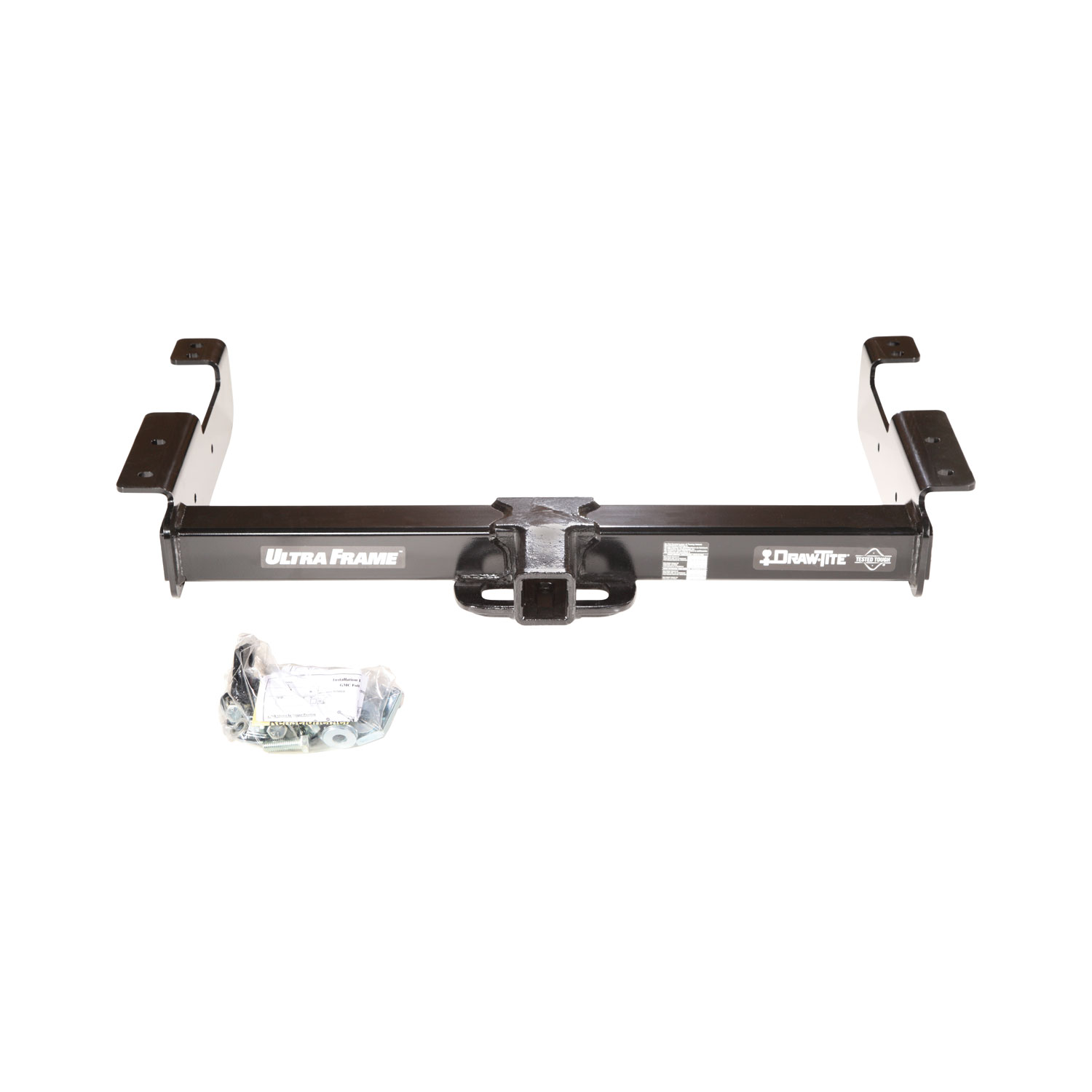

These durable custom hitches are manufactured for 1996-2014 Chevrolet Express 1500, 1996-2023 Chevrolet Express 2500, 1996-2023 Chevrolet Express 3500, 1996-2014 GMC Savana 1500, 1996-2023 GMC Savana 2500, 1996-2023 GMC Savana 3500 and attach to your vehicle?s frame with strong, secure heavy-duty side brackets. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. DRAW-TITE Class 5 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a limited lifetime guarantee. So, whether you are headed out to the campground, the snowmobile trails, or off-roading, or you are hauling cargo to and from the job site, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | GMC Savana 2500 | — |

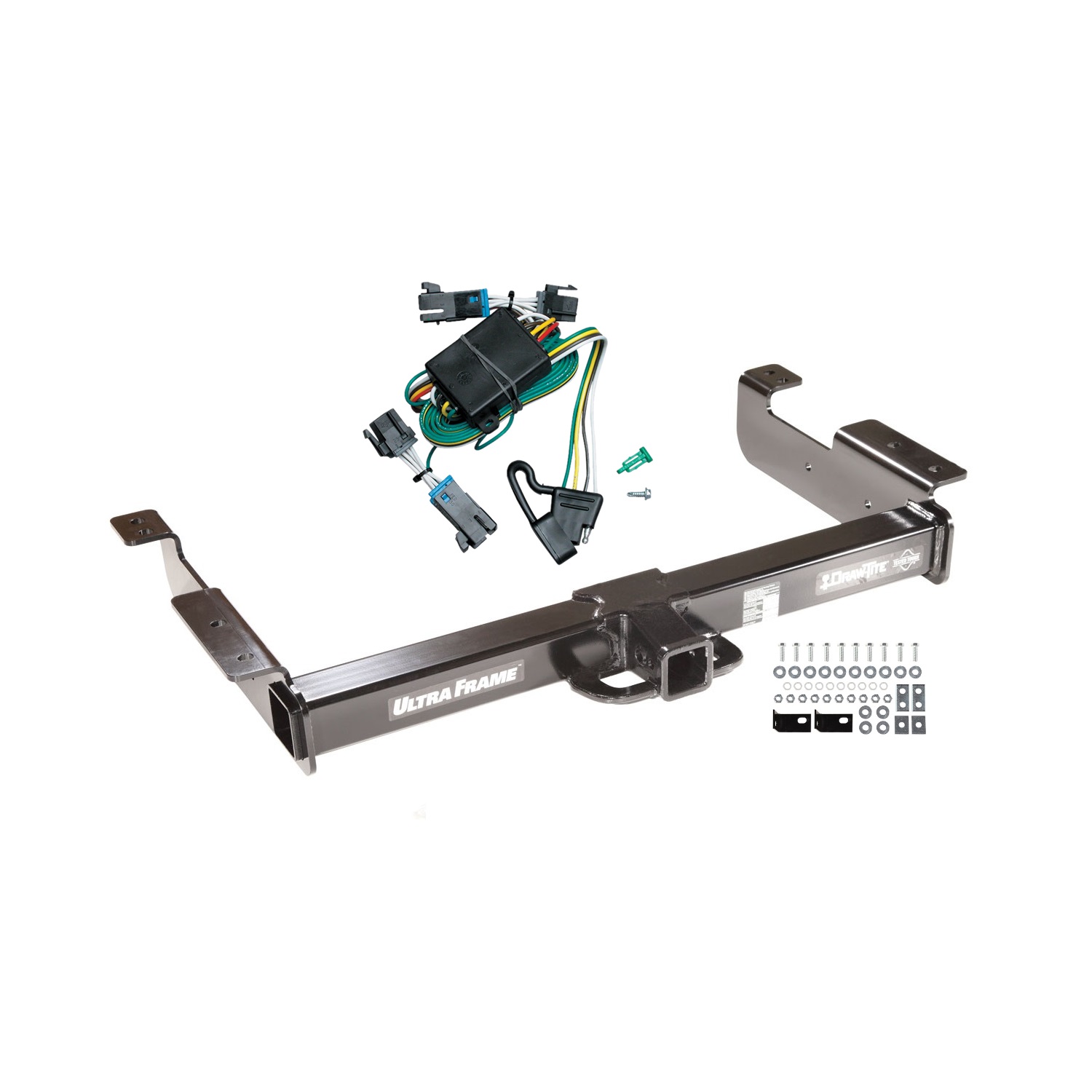

The 2000-2002 GMC Savana 2500 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-11-118377) fits the following vehicles: 2000-2002 GMC Savana 2500. Always verify your specific year, make, and model before ordering.
The 2000-2002 GMC Savana 2500 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-11-118377) fits 2000-2002 GMC Savana 2500 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2000-2002 GMC Savana 2500 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-11-118377) is designed to fit the 2000-2002 GMC Savana 2500.
The 2000-2002 GMC Savana 2500 Draw-tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-11-118377) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 41946 is designed for GMC full size vans. The manual confirms this is the correct hitch for this vehicle type. However, the manual does not specify which model years are covered, so you should verify the exact year and model of your van with the manufacturer or retailer before purchasing.
The 41946 hitch has two configurations: Weight Distributing type supports a maximum gross trailer weight of 13,000 lb (5,902 kg) with a maximum tongue weight of 1,300 lb (590 kg). Weight Carrying Ball Mount type supports a maximum gross trailer weight of 10,000 lb (4,540 kg) with a maximum tongue weight of 1,500 lb (681 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: wrenches in 13/16" and 15/16" sizes, and a 9/16" drill bit. A torque wrench is also required to tighten all fasteners to the specified 110 Lb.-Ft. (149 N·M).
Yes. You must enlarge 8 existing holes to 9/16" diameter. The manual specifies that you should not cut access or attachment holes with a torch; use a drill bit instead.

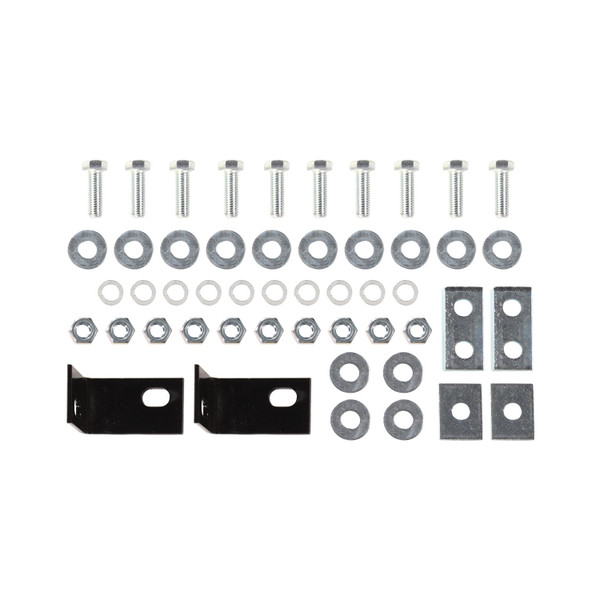

The hitch kit includes: 10 hex bolts 9/16"-12 X 1.75 GR5, 10 nuts 9/16"-12, 14 flat washers 9/16", 10 lock washers 9/16", 2 blocks 3/8" X 1-1/2" X 3", 2 blocks 1/4" X 1-1/2" X 2", 1 left-hand bracket, and 1 right-hand bracket. A separate fastener kit 41946F is also available.
All 9/16" fasteners must be tightened with a torque wrench to 110 Lb.-Ft. (149 N·M).
1. Enlarge the 8 existing holes to 9/16" diameter. 2. Insert bolts, brackets, and blocks through the existing access slots and into the attachment holes on each side. 3. Raise the hitch into position and fasten with flat washers, lock washers, and nuts as shown in the diagram. 4. Tighten all fasteners to 110 Lb.-Ft. (149 N·M) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection but does not specify an exact interval.
Yes. The installation uses 8 existing holes that you will enlarge to 9/16" diameter, and existing access slots through which you will insert the bolts, brackets, and blocks. The manual indicates these are factory-provided attachment points.
The wiring access location is listed as SUV3 or SUV4. The manual does not provide further detail on wiring installation or harness part numbers.
Yes, part 41946 is designed for GMC full size vans.
You need 13/16" and 15/16" wrenches, a 9/16" drill bit, and a torque wrench.
Yes, you must enlarge 8 existing holes to 9/16" diameter using a drill bit. Do not use a torch.
All 9/16" fasteners must be torqued to 110 Lb.-Ft. (149 N·M).
Weight Distributing: 13,000 lb gross trailer weight, 1,300 lb tongue weight. Weight Carrying Ball Mount: 10,000 lb gross trailer weight, 1,500 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wear eye protection. Work safely beneath the vehicle. Do not use a torch to cut holes. Plug holes if the hitch is removed. Replace any damaged hitch or ball immediately.
The 18377-037 is rated for 7.5 amps per circuit. It is designed to connect a trailer or auxiliary lighting system to a vehicle's existing taillight wiring harness without cutting or splicing factory wires.
The manual does not specify which vehicle makes, models, years or body styles are compatible with the 18377-037. Contact the manufacturer or your dealer to confirm fitment for your specific vehicle before purchasing.
The manual does not specify whether battery disconnection is required. Consult your vehicle's service manual or a qualified installer to determine if this step is necessary for your vehicle.
The manual indicates you will need either a screw or cable tie (both provided with the unit) to secure the black box. No other tools are mentioned in the installation instructions.
The black box is positioned on the driver's side of the vehicle, behind the rear interior trim panel. It is secured with either a screw or cable tie (provided) after the wiring connections are made.
The yellow wire connector is plugged into the left (driver's side) vehicle taillight wiring harness connector. The green wire connector is plugged into the right (passenger's side) vehicle taillight wiring harness connector. The manual does not specify the function of each wire beyond their left/right positioning.
1. Remove the rear interior trim panels near the doors and locate the vehicle's taillight wiring harness connectors on each side. 2. Disconnect the vehicle wiring harness connectors on the driver's side, being careful not to damage the locking tabs. 3. Plug the T-Connector harness connector containing the yellow wire into the left vehicle wiring harness connector, ensuring connectors are fully inserted using existing and supplied locking tabs. 4. Repeat for the passenger side using the connector containing the green wire. 5. Tuck the green wire under the floor trim (threshold) panel.

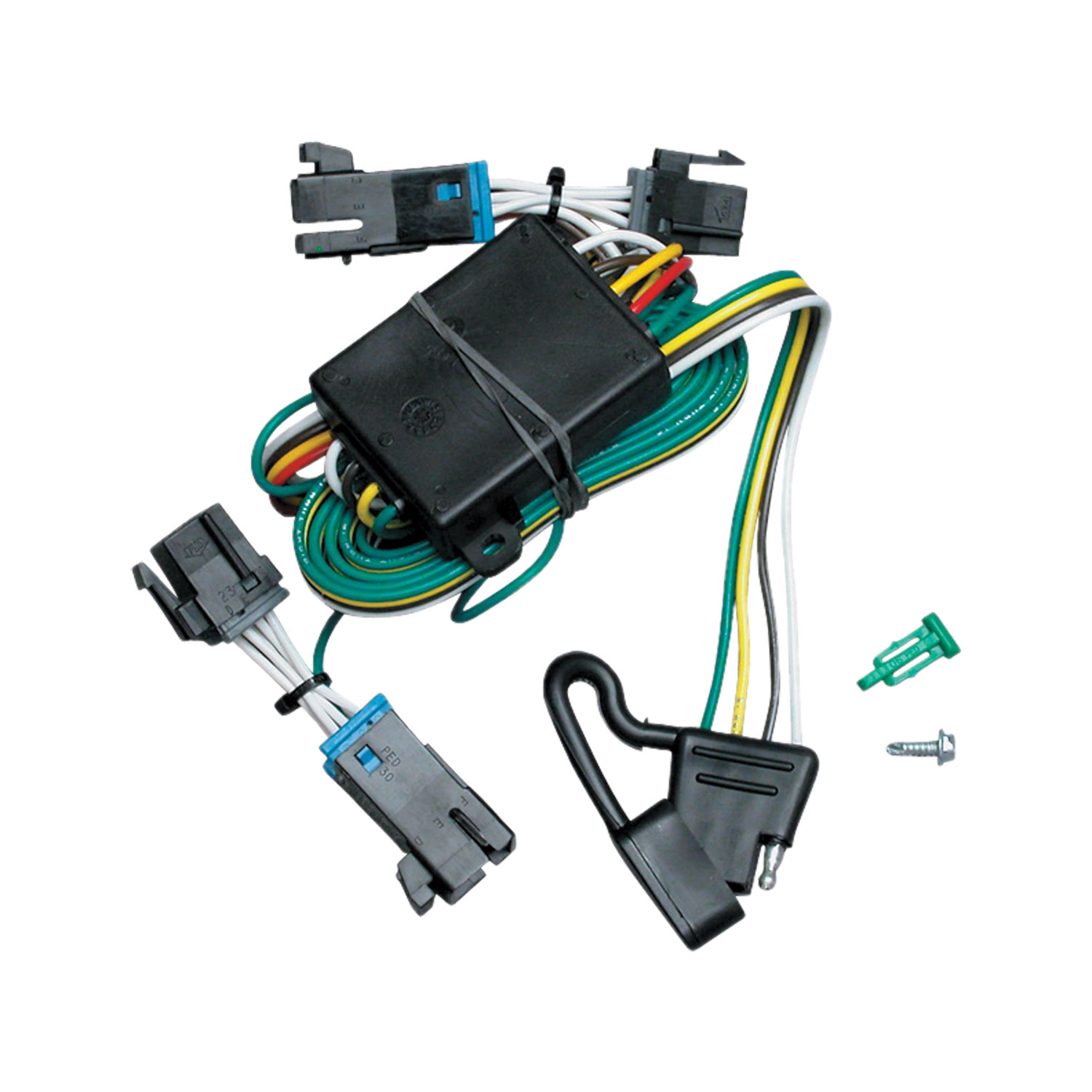

The 18377-037 includes the T-Connector adapter with yellow and green wire connectors, a black box, cable ties, and a screw for securing the black box to the vehicle. Locking tabs are supplied as part of the connector assembly.
On some early production vehicles, the taillight and stoplight circuits may be reversed. If this occurs, the wires can be switched as shown in the diagram provided with the unit, or contact your dealer for an earlier application with the correct wire position.
Secure the black box on the driver's side behind the rear trim panel using either the provided screw or one of the provided cable ties. The green wire should be tucked under the floor trim (threshold) panel before securing the box.
No. The 18377-037 T-Connector uses a plug-and-play design that connects to existing vehicle taillight wiring harness connectors without cutting, splicing, or permanently modifying factory wires.
Connectors must be pushed together completely until they seat fully, utilizing both the existing vehicle locking tabs and the supplied locking tabs on the T-Connector. This ensures a secure, reliable electrical connection.
The manual does not specify compatible vehicles. Contact the manufacturer or dealer to confirm fitment before purchasing.
Only a screw or cable tie (both provided) to secure the black box. No additional tools are required.
No. The T-Connector plugs directly into existing vehicle taillight harness connectors without cutting or splicing.
The unit is rated for 7.5 amps per circuit.
Early production vehicles may have reversed taillight and stoplight circuits. Switch the wires as shown in the diagram, or contact your dealer for a corrected application.
