On Sale Today
Original price was $303.75. Current price is $250.38.You save $53.37 (18%)
Free Shipping
Ships free on all orders
Authorized Dealer

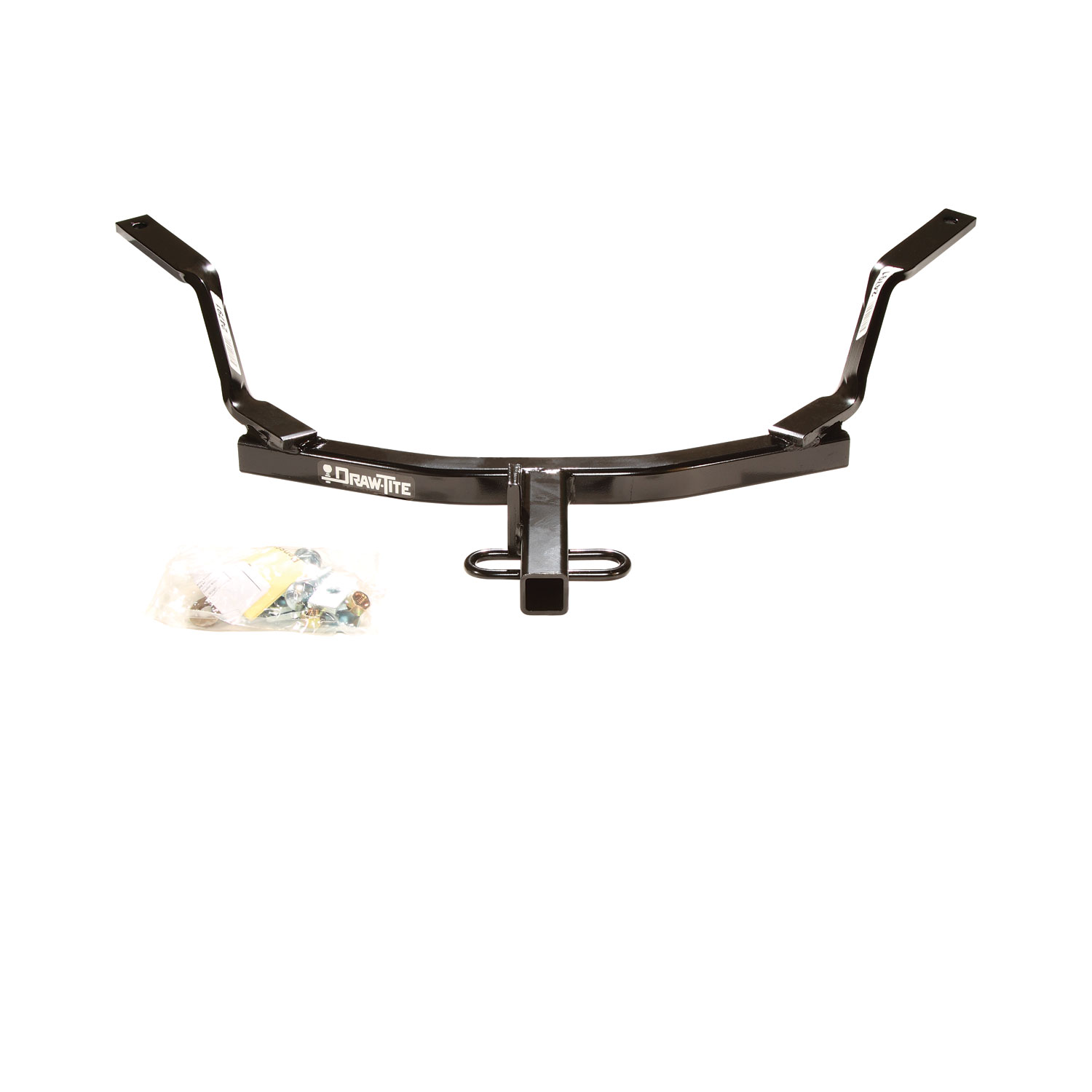

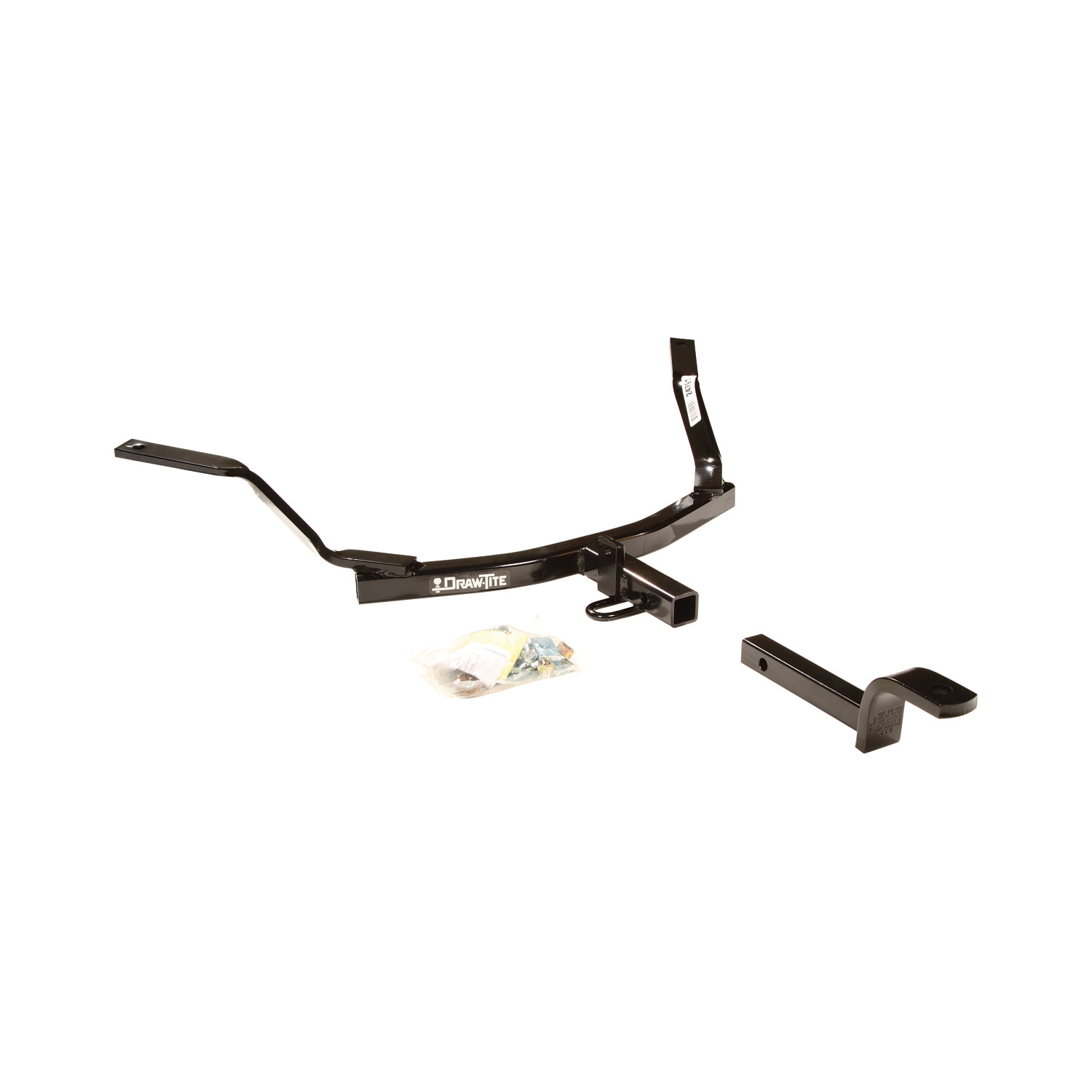

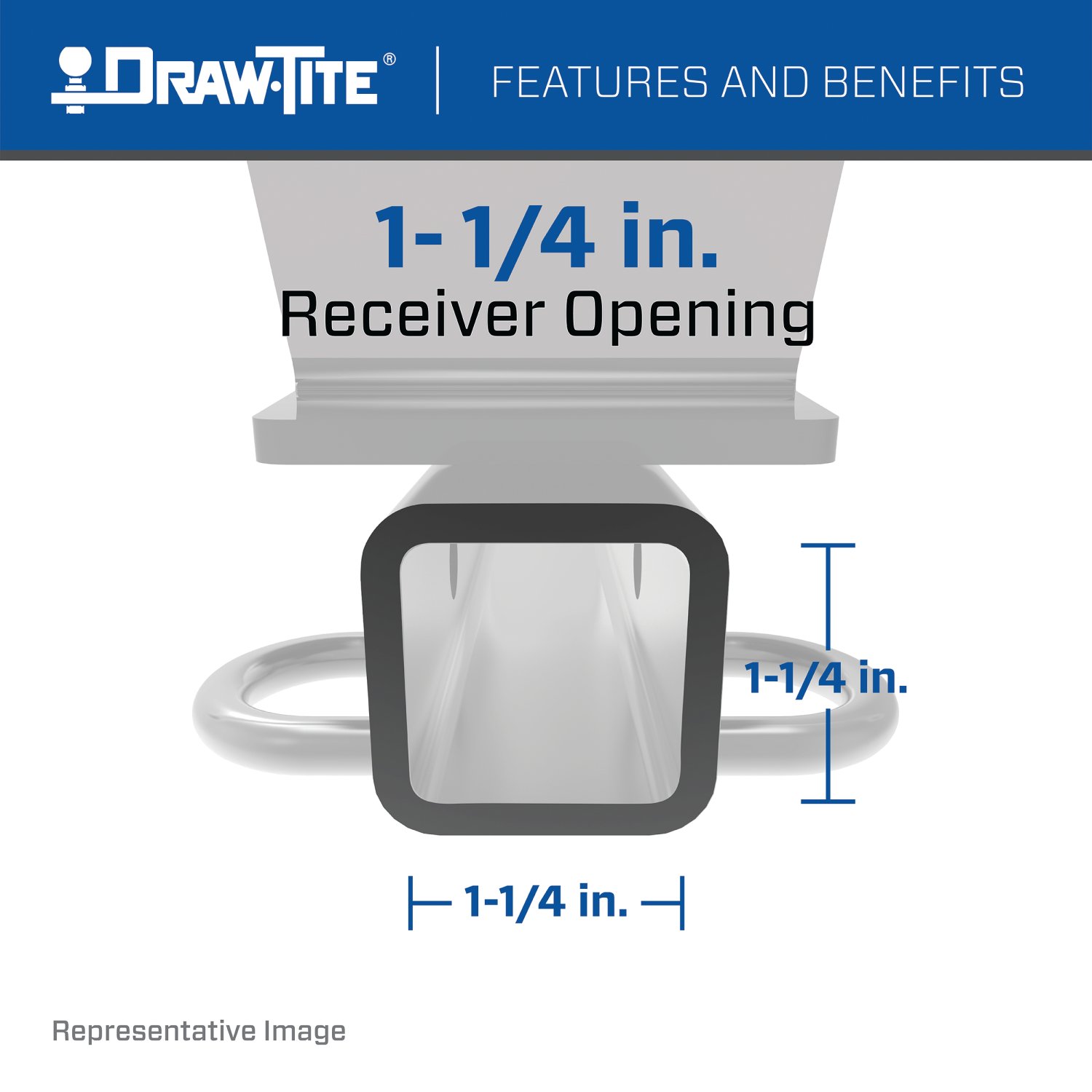

These dependable custom hitches are manufactured for 2001-2003 Acura CL, 1999-2003 Acura TL, 1998-2002 Honda Accord and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.

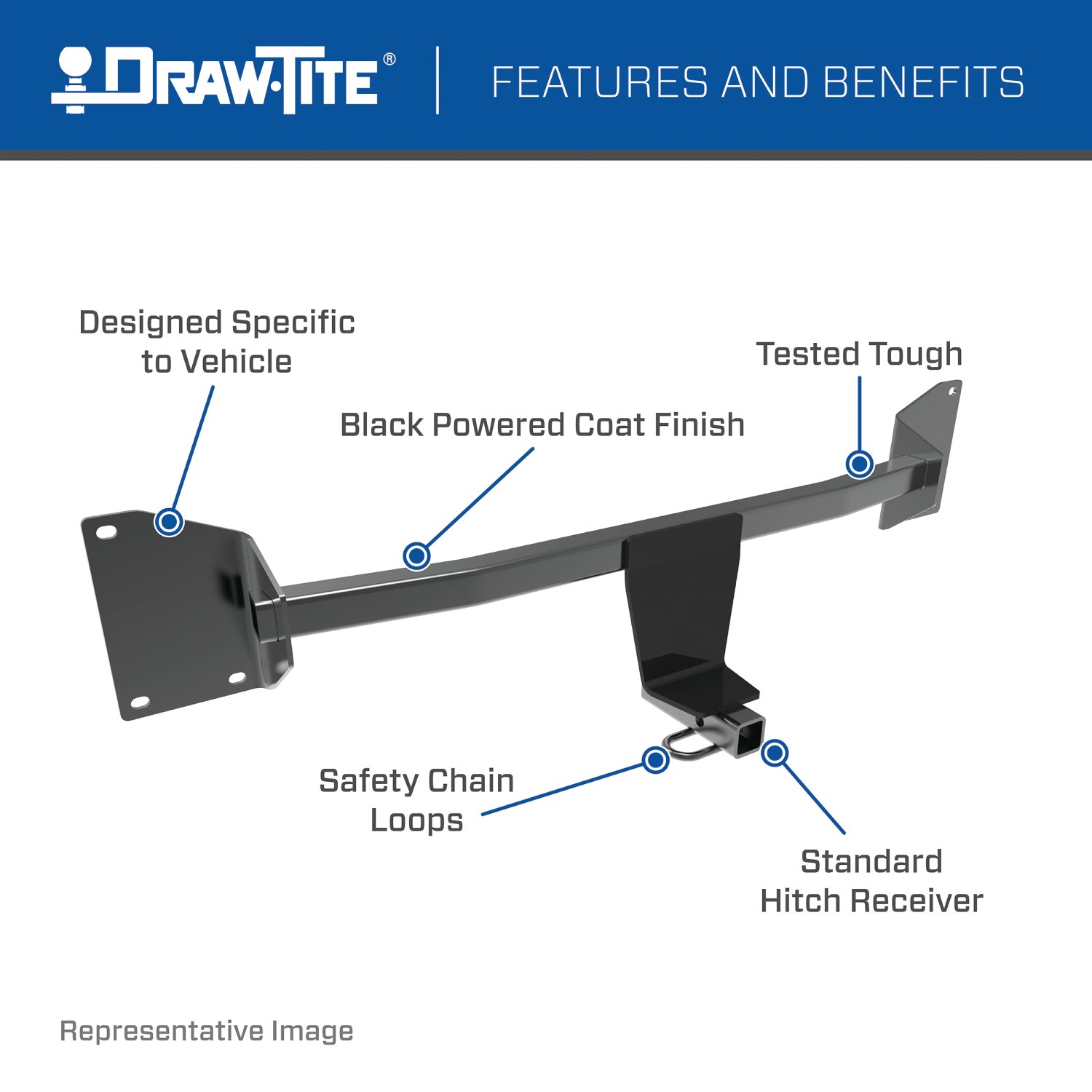

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2003 | Acura CL | 3.2 Engine |

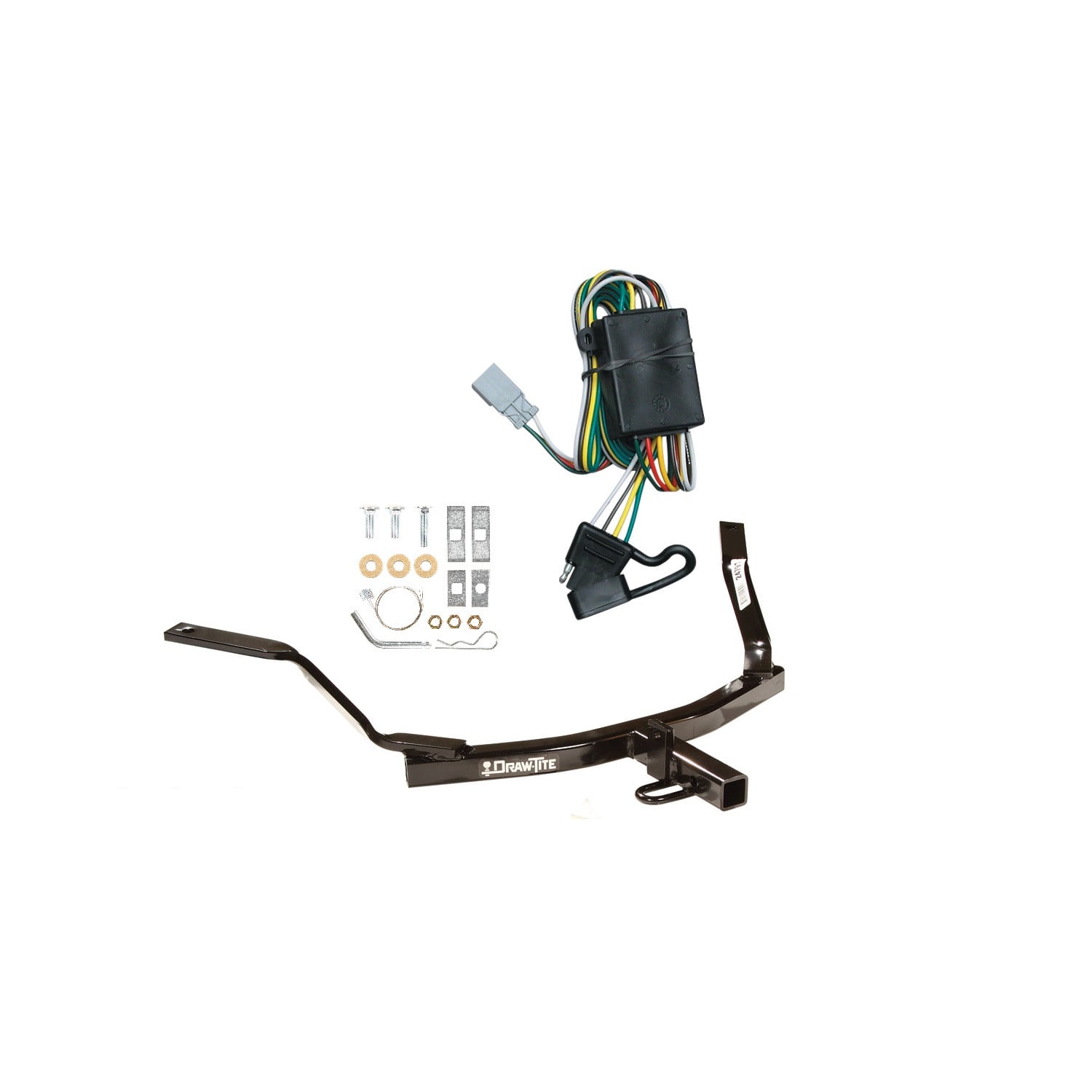

Total for 4 items:
$150.58
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 1 - Fri, Sep 4
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Yes. Part number 24791 is designed for Honda Accord Sedan, Acura 3.2 CL, and Acura 3.2 TL. The hitch is a Class II unit with a maximum gross trailer weight rating of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg), or the lower of your vehicle manufacturer's rating.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). You must not exceed the lower of this rating or your vehicle manufacturer's towing rating.
You will need a 3/4" wrench and a torque wrench. No drill bits are required. A file or prying tool (such as a wrench) may be needed to enlarge the frame access hole to accept the reinforcing plate and bolt head, depending on your vehicle's frame design.

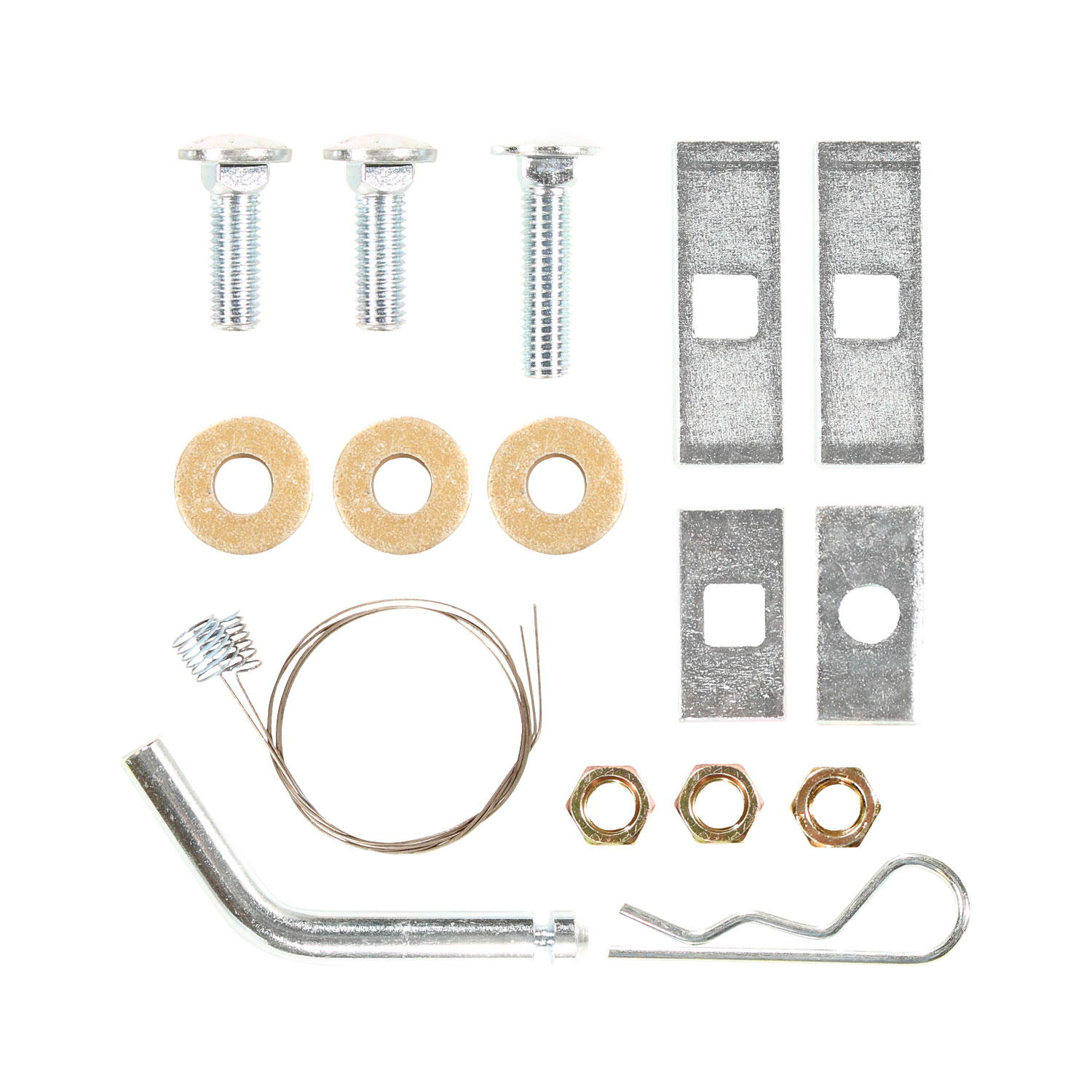

The hitch includes: two 1/2"-13 x 1 1/2" GR5 carriage bolts, one 1/2"-13 x 2 1/2" GR5 carriage bolt, two bolt leaders, two 1" x 3" x 1/4" reinforcing plates, three 1/2"-13 GR5 conical toothed washers, three 1/2"-13 GR5 nuts, one 1" x 2" x 1/4" square hole spacer, and one 1" x 2" x 1/4" round hole spacer. A separate Fastener Kit 24791F is available. The Drawbar Kit 3592 is sold separately.
Yes. The first step of installation is to lower the exhaust by removing the rubber isolators from the muffler hangers. After the hitch is installed and fastened, you must raise the exhaust back into position and reinstall the rubber isolators.
The correct order from the vehicle side is: 2" carriage bolt (6), square hole spacer (7), vehicle's tie down hook, round hole spacer (8), and hitch's mounting tab. The conical toothed washer (5) and nut (4) are then installed and hand tightened to hold the hitch in place.
All 1/2-13 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. This applies to the three nuts that secure the hitch to the vehicle frame.
Thread the bolt leader onto the 1 1/2" carriage bolt and insert the bolt leader through the hole in the reinforcing plate. Fish the bolt leader and assembly through the access hole in the bottom of the frame, then carefully pull down through the proper hole in the frame. Repeat for the other side. Do not push the bolt assemblies back into the frame channels. Once positioned, remove the bolt leaders and install the conical toothed washer and nut.
No drilling is required. However, the frame access hole may need to be enlarged using a file or by prying with a wrench to allow the reinforcing plate and bolt head to pass through. Enlarge the hole only enough to get the hardware through. Do not use a torch to cut or enlarge the access hole.
The conical toothed washer must be installed with the teeth side against the hitch. This ensures proper fastening and load distribution.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. Verify that all 1/2-13 GR5 fasteners are tightened to 75 Lb.-Ft. (102 N·M).
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
The drawbar must be used in the RISE position only. Do not use it in any other position.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Yes, part 24791 is designed for Honda Accord Sedan, Acura 3.2 CL, and Acura 3.2 TL. Maximum towing capacity is 2000 LB GTWR and 200 LB tongue weight, or your vehicle manufacturer's rating, whichever is lower.
You need a 3/4" wrench, a torque wrench, and possibly a file or prying tool to enlarge the frame access hole. No drilling is required.
Yes, you must lower the exhaust by removing the rubber isolators from the muffler hangers before installation, then raise and reinstall them after the hitch is secured.
Tighten all 1/2-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
No drilling is required. The frame access hole may need to be enlarged with a file or prying tool, but do not use a torch.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg), or the lower of your vehicle manufacturer's rating.
Yes, part number 18336-037 is compatible with 1999-Current Honda Odyssey models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the driver's side cargo bracket screw, and carefully pull back the trim panel to access the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2002-Current Honda CR-V models. Installation requires a Wrench, Trim Panel Tool, and Phillips Screwdriver. The installation process involves removing the cargo door, storage container, rear threshold, and cargo bracket before accessing the wiring harness.
Yes, part number 18336-037 is compatible with 1997-2001 Honda CR-V models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to remove the rear driver's side speaker and cover, which are held in place with three screws. The vehicle connector will be secured to the speaker wires.
Yes, part number 18336-037 is compatible with 2003-Current Honda Element models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the cargo door, hinge cover, three plastic clips, five screws, and the cargo net bracket before pulling back the passenger side trim panel.
Yes, part number 18336-037 is compatible with 2001-Current Acura MDX models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate, remove the cargo door, locate and remove two clips inside the storage area on the threshold, and carefully pry the threshold to remove it. The connector is located inside the cargo area on the driver's side, attached to the threshold plate.
Yes, part number 18336-037 is compatible with 1994-2002 Honda Accord models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 1996-2001 Acura RL models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2003-Current Honda Pilot models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate and carefully pry the threshold to remove it. The connector will be located on the driver's side under the threshold plate.
Yes, part number 18336-037 is compatible with 1995-98 Honda Odyssey models. Installation requires a Trim Panel Tool. You will need to remove the rear access panel located inside the van directly behind the driver's side taillight to expose the vehicle's wiring harness and connector.
For a 1997-2001 Honda CR-V, you will need a Trim Panel Tool and a Phillips Screwdriver. These tools are required to remove the rear driver's side speaker and cover, which are held in place with three screws.
For a 2002-Current Honda CR-V, you will need a Wrench, Trim Panel Tool, and Phillips Screwdriver. The wrench is needed to unscrew the bolt on the vehicle floor that secures the cargo bracket.

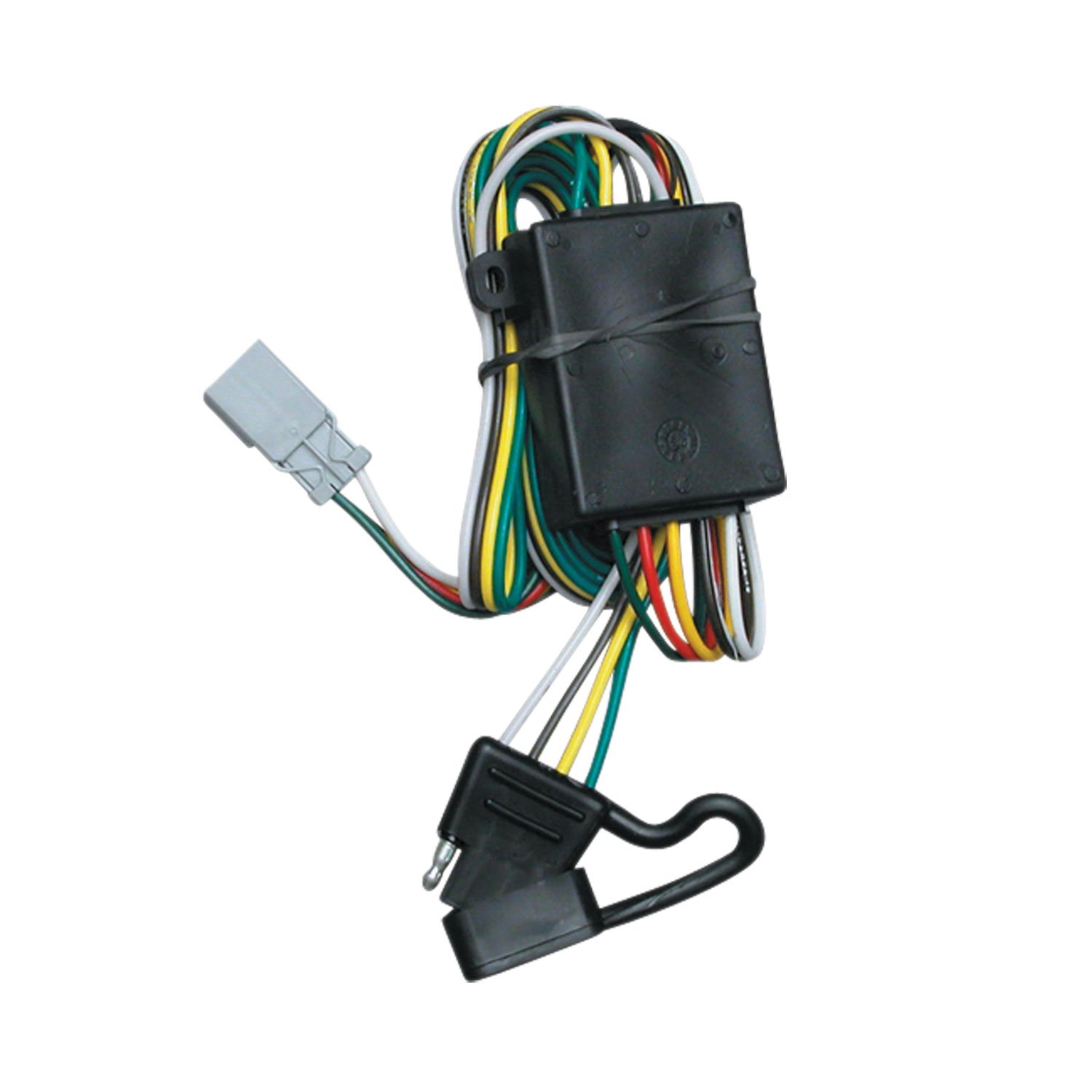

Part number 18336-037 includes a T-Connector adapter, a black box, a screw or cable tie for securing the black box, and a 4-Flat connector for routing (used on Honda CR-V models). The manual does not specify additional hardware or components included in the package.
The manual does not specify whether the battery must be disconnected before installation. Contact the manufacturer or a qualified installer for guidance on this safety requirement.
Remove the tape securing the wiring harness connector from the wiring loom. Attach the T-Connector adapter to the vehicle's wiring connector. Be sure that the T-Connector adapter is fully inserted with locking tabs in place. This step applies to all vehicles.
Secure the black box with either a screw or cable tie, both of which are provided with the product. Tuck any excess wiring behind the access panel before securing the black box into place.
On Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting. This routing prevents the connector from being pinched or damaged when the trim panel is reinstalled.
After securing the black box and routing the wiring, reinstall any plastic trim panels, screws, or brackets that were removed for installation. Then test the installation with a test light or trailer to verify proper operation.
Part number 18336-037 is rated for 4 amps per circuit. Do not exceed this rating when connecting electrical loads.
Test the installation with a test light or trailer. This verifies that the T-Connector adapter is properly connected and that the electrical circuit is functioning correctly.
When removing trim panels, be careful not to break any tabs or clips. This is especially important for the 2003-Current Honda Element, where you must carefully remove three plastic clips and five screws holding the passenger side trim panel, and for the 2002-Current Honda CR-V, where you must carefully pry the trim panel away from the vehicle body.
Part number 18336-037 fits 1997-Current Acura CL, 1996-2001 Acura RL, 1996-Current Acura TL, 1994-2001 Acura Integra, 1994-2002 Honda Accord, 2001-2002 Honda Prelude, 1996-99 Isuzu Oasis, 1995-98 Honda Odyssey, 1999-Current Honda Odyssey, 1997-2001 Honda CR-V, 2002-Current Honda CR-V, 2001-Current Acura MDX, 2003-Current Honda Pilot, and 2003-Current Honda Element.
All vehicles require a Trim Panel Tool. Some vehicles also require a Phillips Screwdriver (Odyssey 1999+, CR-V 1997-2001, CR-V 2002+, Element 2003+) and a Wrench (CR-V 2002+ only).
Remove the tape from the wiring harness connector, then attach the T-Connector adapter to the vehicle's wiring connector, ensuring it is fully inserted with locking tabs in place. Secure the black box with the provided screw or cable tie, tuck excess wiring behind the access panel, and test with a test light or trailer.
Part number 18336-037 is rated for 4 amps per circuit.
Yes, on Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting.
