2008-2012 Jeep Liberty Tekonsha Custom 7-Way + Brake Controller Install KitTekonsha$256.33Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Free Shipping
Ships free on all orders
Authorized DealerVerify Fitment
Select your vehicle to confirm this part fits.
2002 - 2007 Jeep Liberty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
FREE ShippingFREE SHIPPING
Estimated delivery Sun, Aug 30 - Wed, Sep 2
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 2 items:
$37.98
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year

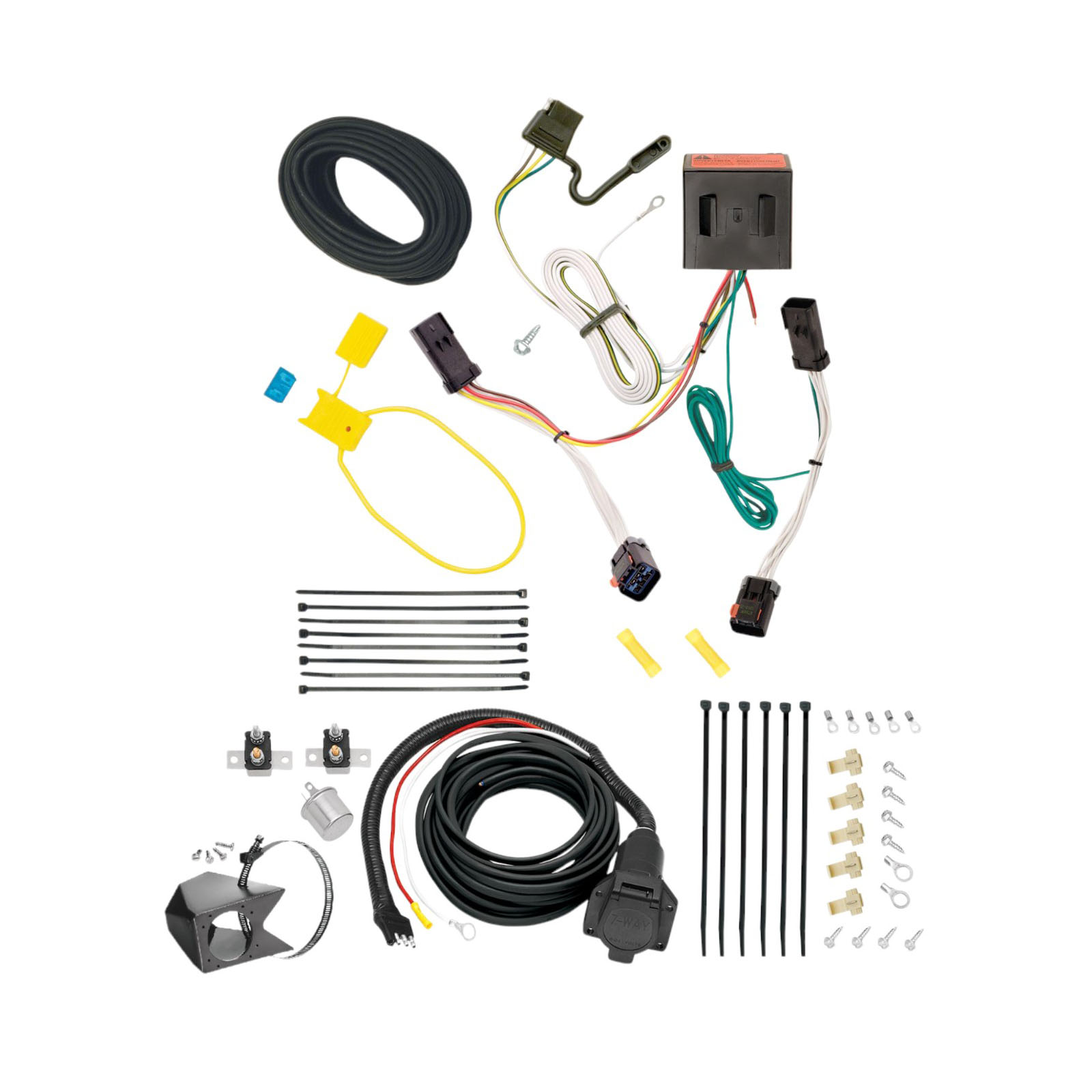

The 2002-2007 Jeep Liberty Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW23295) fits 2002-2007 Jeep Liberty models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2002-2007 Jeep Liberty Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW23295) is designed to fit the 2002-2007 Jeep Liberty.
The 2002-2007 Jeep Liberty Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW23295) fits the following vehicles: 2002-2007 Jeep Liberty. Always verify your specific year, make, and model before ordering.
The 2002-2007 Jeep Liberty Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW23295) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.
The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
The T-Connector is a trailer wiring adapter that allows you to connect a trailer to your vehicle's existing taillight wiring. It intercepts the vehicle's taillight signals and provides a 4-flat connector for trailer lights. The product includes a black module box, harnesses with colour-coded wires (yellow, green, white), a 4-flat connector, fuse holder, ring terminal, butt connector, cable ties, and double-sided tape.
Yes, the manual confirms the T-Connector is designed for the Jeep Liberty. However, the manual does not specify which model years or body styles are compatible. Contact the manufacturer or your installer to confirm fitment for your specific vehicle year and configuration.
The manual only confirms compatibility with the Jeep Liberty. Do not assume it will fit other vehicles. Contact the manufacturer or check the product fitment database before purchasing for a different vehicle.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, test probe, and T20 Torx screwdriver. You will also need rubbing alcohol and water for cleaning.
The T-Connector includes: a black module box, two harnesses with colour-coded wires (yellow and green), a 4-flat connector, a white wire with eyelet and screw for grounding, a red 12 ga. power wire from the module, a black 12 ga. wire, a yellow fuse holder with 15 amp fuse, a ring terminal, a yellow butt connector, cable ties, and double-sided tape.
Yes. Step 8 requires you to disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive battery terminal. Reconnect the negative cable in step 9 after the fuse holder is installed.
Yes. Step 1 requires you to open the rear glass gate and tailgate, then remove the T20 Torx screws holding the taillight housings in place. Carefully pry the taillight housings rearward away from the vehicle, being careful not to break the alignment tabs. The taillight assemblies are reinstalled in step 11.
Step 2 requires you to slide the red locking tab on the harness connector to the unlocked position and disconnect the vehicle's wire harness from both taillight sockets. In step 3, plug the T-Connector harness containing the yellow wire between the vehicle's mating connectors, then slide the red locking tab into the locked position. Repeat for the passenger side in step 5 using the harness end with the green wire.
Step 4 requires you to route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver's side, then route the 4-flat to the center of the vehicle. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight. Step 12 requires you to secure the remainder of the harness with cable ties provided, avoiding areas that would pinch, cut, or melt the wire.
Yes. Step 6 requires you to drill a 3/32" hole for the white ground wire. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill any exposed surfaces. Clean dirt and rustproofing from the area, then drill the hole and secure the white wire using the eyelet and screw provided.
Step 6 requires you to locate a suitable grounding point near the adapter such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
The T-Connector uses colour-coded wires: yellow wire connects to the driver's side taillight connector (step 3), green wire connects to the passenger's side taillight connector (step 5), white wire is the ground wire that connects to the vehicle frame or crossmember (step 6), red 12 ga. wire is the power wire from the T-Connector module (step 7), and black 12 ga. wire connects the power wire to the vehicle's positive battery terminal via the fuse holder (steps 7–8).
Step 7 requires you to locate the red 12 ga. power wire from the T-Connector box on the driver's side and attach the black 12 ga. wire provided. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch, break, or melt the wire. Step 8 requires you to disconnect the vehicle's negative battery cable, then attach the ring terminal to the vehicle's positive battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Step 9 requires you to reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The T-Connector uses a 15 amp fuse. The fuse holder is provided with the product. Step 8 requires you to install the fuse into the fuse holder after connecting the power wire to the vehicle's positive battery terminal.
Step 6 requires you to locate a suitable grounding point near the adapter such as the vehicle frame or crossmember (do not drill into the vehicle floor or bed). Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
Step 10 requires you to mount the black box behind the taillight assembly on the driver's side. Clean a flat area using a mixture of rubbing alcohol and water, then mount the box using cable ties or double-sided tape provided. The epoxy side of the module must point towards the ground to prevent water buildup. The module must not be mounted underneath the vehicle or in an area directly exposed to the elements. Ensure the taillight assembly can be reinstalled before mounting the box.
Step 4 requires you to route the 4-flat connector to the center of the vehicle. The manual notes that the 4-flat should be mounted in a suitable location under the vehicle, but does not specify the exact location. Consult your installer or the manufacturer for the recommended mounting location on your vehicle.
Do not exceed the lower of the vehicle manufacturer's rating or: maximum 2 stop/turn lights per side (4.2 amps total), or maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Route wires carefully to avoid areas that may pinch, break, or melt the wire. Read and follow all warnings and cautions printed on the vehicle's battery. Ensure all connections are complete before testing.
Step 9 requires you to test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition, then re-insert the key and turn it to the proper position. All connections must be complete for the T-Connector to function properly.
After installation, verify that: (1) all wire connections are secure and complete, (2) the black module box is mounted with the epoxy side pointing downward and is not underneath the vehicle or directly exposed to elements, (3) the taillight assemblies are reinstalled without pinching or cutting wires, (4) the harness is secured with cable ties to prevent damage or rattling, (5) the 4-flat connector is mounted in a suitable location under the vehicle, and (6) the T-Connector functions properly using a test light or trailer.
The T-Connector is designed for the Jeep Liberty. Confirm your specific model year and body style with the manufacturer before purchasing.
Yes, disconnect the vehicle's negative battery cable before connecting the power wire to the positive terminal (step 8). Reconnect it after the fuse holder is installed (step 9).
The T-Connector uses a 15 amp fuse, provided with the product. Install it into the fuse holder after connecting the power wire to the vehicle's positive battery terminal.
Do not exceed: 2 stop/turn lights per side (4.2 amps) or tail lights (7.5 amps). Overloading can cause fires. Check your vehicle's owner's manual for additional limits.
Step 9 states that all connections must be complete for the T-Connector to function properly. Verify that: (1) the yellow wire harness is locked into the driver's side taillight connector, (2) the green wire harness is locked into the passenger's side taillight connector, (3) the white ground wire is securely fastened to the vehicle frame or crossmember, (4) the black 12 ga. power wire is connected to the vehicle's positive battery terminal via the fuse holder, (5) the 15 amp fuse is installed in the fuse holder, and (6) the negative battery cable is reconnected. Reset the vehicle electrical system by temporarily removing the ignition key, then re-insert and turn to the proper position.
The module is not mounted correctly. Step 10 requires that the epoxy side of the module point towards the ground to prevent water buildup. Remount the black box so that the epoxy side faces downward. Also ensure the module is not mounted underneath the vehicle or in an area directly exposed to elements, as this can cause damage.
Step 10 includes a warning to ensure the taillight assembly can be reinstalled before mounting the black box. If the box is already mounted and blocking the taillight, you must remount the black box in a different location behind the taillight assembly on the driver's side, or use a different mounting method (cable ties instead of double-sided tape, or vice versa) to ensure clearance.
