Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2003 - 2006 Freightliner Sprinter 3500
Confirmed to Fit
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
On Sale Today
Original price was $436.25. Current price is $379.77.You save $56.48 (13%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 18 - Fri, Aug 21
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
These durable custom hitches are manufactured for 2003-2006 Dodge Sprinter 2500, 2003-2006 Dodge Sprinter 3500, 2003-2006 Freightliner Sprinter 2500, 2003-2006 Freightliner Sprinter 3500 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2006 | Freightliner Sprinter 3500 | w/41" Wide Frames, Except 118" Wheelbase & Factory Metal Step Platform |

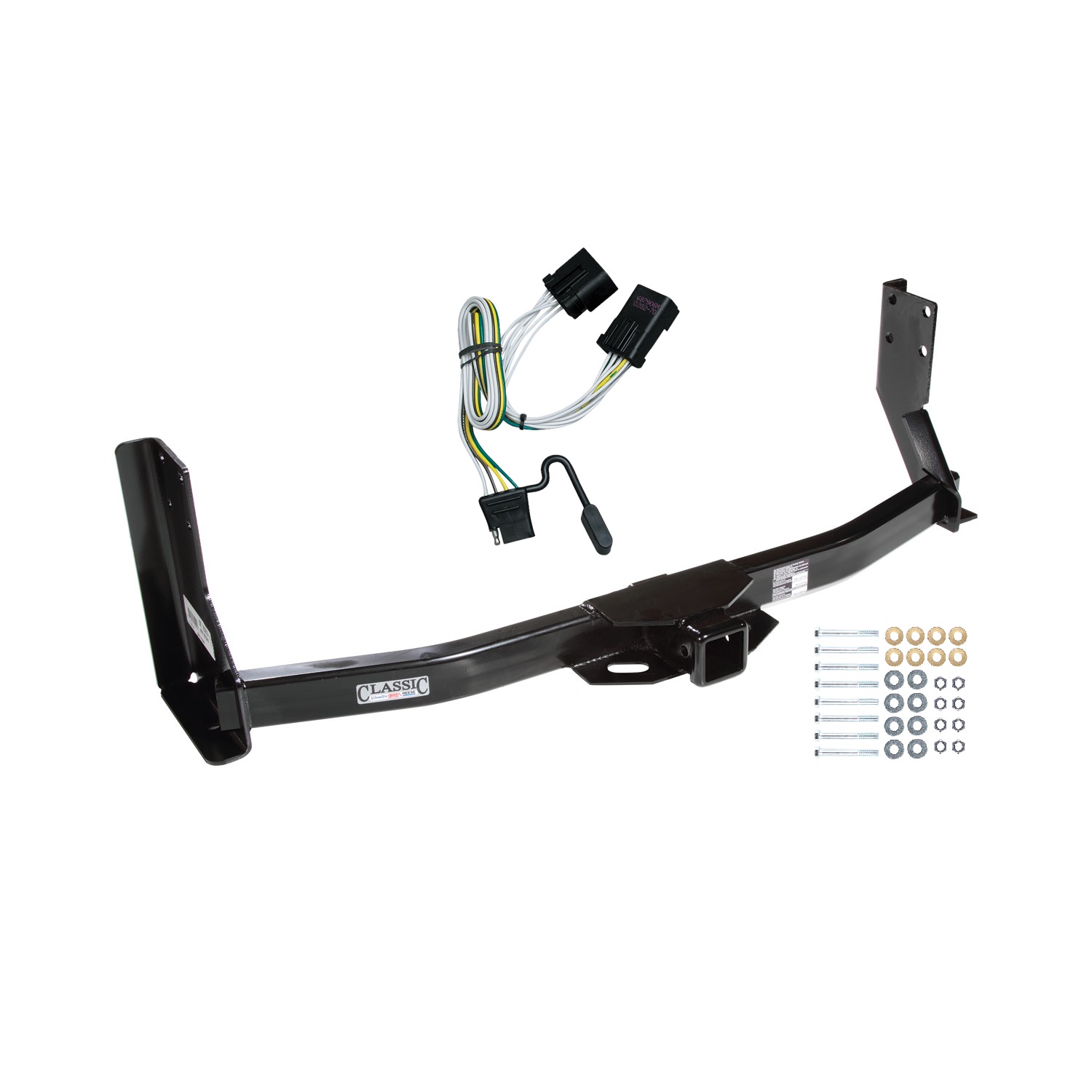

The 2003-2006 Freightliner Sprinter 3500 w/41" Wide Frames, Except 118" Wheelbase & Factory Metal Step Platform Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75210-4-118381) fits the following vehicles: 2003-2006 Freightliner Sprinter 3500. Always verify your specific year, make, and model before ordering.
The 2003-2006 Freightliner Sprinter 3500 w/41" Wide Frames, Except 118" Wheelbase & Factory Metal Step Platform Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75210-4-118381) fits 2003-2006 Freightliner Sprinter 3500 models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2003-2006 Freightliner Sprinter 3500 w/41" Wide Frames, Except 118" Wheelbase & Factory Metal Step Platform Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75210-4-118381) is designed to fit the 2003-2006 Freightliner Sprinter 3500.
The 2003-2006 Freightliner Sprinter 3500 w/41" Wide Frames, Except 118" Wheelbase & Factory Metal Step Platform Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75210-4-118381) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

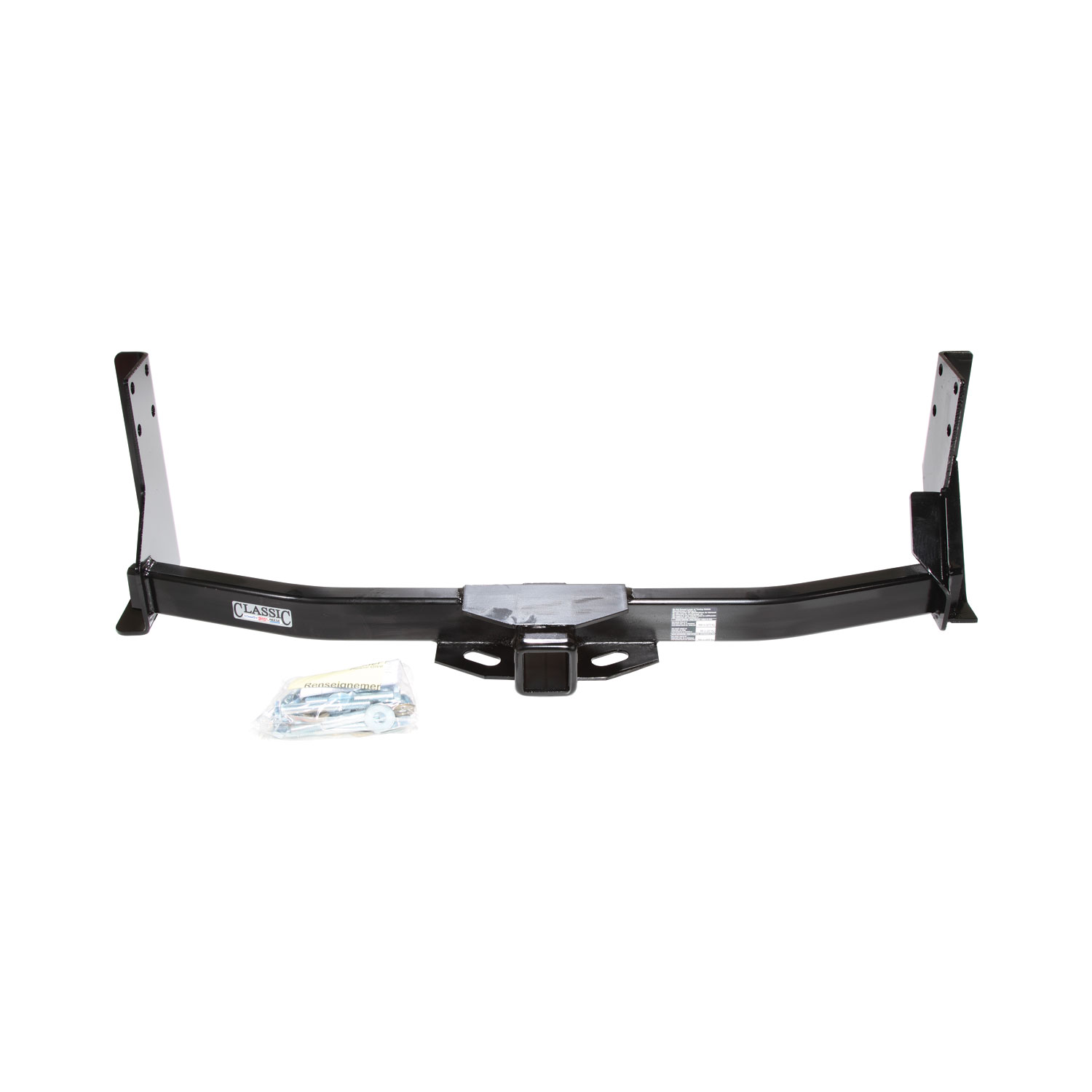

Yes, part number 75210 is designed for Dodge Sprinter and Freightliner Sprinter vehicles. The hitch assembly includes part numbers 75210, 44745, and 87647.
You will need wrenches in 18mm and 3/4 inch sizes, and a torque wrench. No drill bits are required as no drilling is necessary for this installation.
The hitch comes with fastener kit 75210F, which includes: (8) ½-13 x 4" hex bolts, (8) ½ conical toothed washers, (8) ½ flat washers, and (8) ½-13 hex nuts. These fasteners are used to secure the hitch to the vehicle frame and to re-attach the factory step bumper mounting bracket if present.
If your Sprinter has a factory step bumper, you must remove the fasteners that attach the bumper mounting bracket to the vehicle frame (one on each side) and discard them. The bumper mounting bracket will then be re-attached at its original position using fasteners provided with the hitch. If your vehicle does not have a factory step bumper, proceed directly to step 2 of the installation.
All ½-13 GR5 fasteners must be tightened to 75 lb.-ft. (102 N·M) using a torque wrench.
The 75210 hitch has two capacity ratings depending on the ball mount type: Weight Distributing ball mount supports a maximum gross trailer weight of 7,500 lb. (3,405 kg) and maximum tongue weight of 750 lb. (341 kg). Weight Carrying ball mount supports a maximum gross trailer weight of 5,000 lb. (2,270 kg) and maximum tongue weight of 500 lb. (227 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch capacity ratings.
No, drilling is not required. The equipment list specifies "Drill Bits: None", and the installation uses existing mounting points on the vehicle frame.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but emphasizes regular inspection as part of routine maintenance.
Yes, the 75210 hitch is designed for Dodge Sprinter and Freightliner Sprinter vehicles.
You need 18mm and 3/4 inch wrenches, a torque wrench, and eye protection. No drilling is required.
If your Sprinter has a factory step bumper, remove the mounting bracket fasteners (one each side) and discard them. The bracket will be re-attached using hitch-provided fasteners. If there is no factory step bumper, proceed directly to step 2.
All ½-13 GR5 fasteners must be tightened to 75 lb.-ft. (102 N·M) using a torque wrench.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry. If the hitch or ball is damaged, remove and replace it immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Wear eye protection when working beneath the vehicle.
Yes, if your Dodge Van does not have a factory 7-way trailer tow package. If your Dodge Van is equipped with a factory 7-way trailer tow package, the adapter is compatible but requires a different installation procedure involving removal of the 7-way bracket.
Yes, this adapter is compatible with Durango, Dakota, and Full Size Ram trucks. If your vehicle is equipped with a factory 7-way trailer tow package, follow the factory 7-way installation procedure. If not, follow the standard installation procedure for vehicles without factory 7-way.
Yes, this adapter is compatible with Jeep Grand Cherokee. If your Grand Cherokee is equipped with a factory 7-way trailer tow package, follow the factory 7-way installation procedure (steps 5-6). If not, follow the standard installation procedure (steps 1-4).

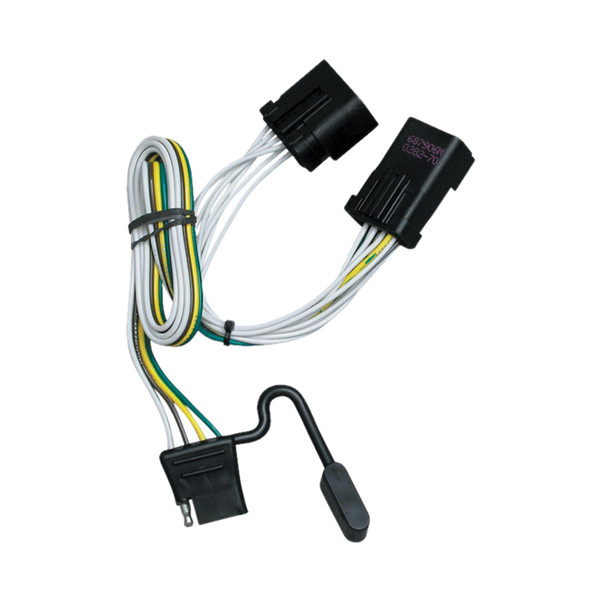

This unit is rated for 7.5 amps per circuit.
The trailer harness connector is located under the vehicle, behind the bumper, on the driver's side of the vehicle.
Yes. Before connecting the T-connector adapter, check that the mating surfaces of the connectors are free of dirt. Clean if necessary to ensure proper connection.
1. Locate the trailer harness connector under the vehicle behind the bumper on the driver's side. 2. Remove the protective cap and clean the connector mating surfaces if necessary. 3. Connect the T-connector adapter end to the vehicle's connector, ensuring it is fully inserted with locking tabs in place. 4. Place the protective cap on the remaining plug end. 5. Test the installation with a test light or trailer.
1. Remove the screws on the bracket holding the 7-way in place. 2. Pull out the 7-way to access the plug on the back. 3. Slide the red tab to the unlocked position and separate the connector. 4. Connect the T-connector adapter between the separated halves. 5. Slide the red locking tab to the locked position. 6. Route the 4-flat connector away from the 7-way bracket. 7. Push the 7-way back into the bracket and reinstall the screws. 8. Test the installation with a test light or trailer.
Remove the protective cap from the vehicle's connector and save it. After connecting the T-connector adapter, place the protective cap on the remaining plug end to protect it from dirt and moisture.
The T-connector is fully inserted when the locking tabs are in place. Ensure the connector is completely seated before proceeding.
After connecting the T-connector adapter between the separated halves of the factory 7-way connector, position the 4-flat connector so it does not interfere with or rest against the 7-way bracket. This prevents potential damage or poor connection.
Test the installation with a test light or trailer. This confirms that the adapter is properly connected and functioning.
Yes, if you have a Full Size Dodge Van, Durango, Dakota, Full Size Ram, Jeep Grand Cherokee, or Dodge Van with or without a factory 7-way trailer tow package. Installation procedure varies depending on whether your vehicle has a factory 7-way.
7.5 amps per circuit.
Under the vehicle, behind the bumper, on the driver's side.
Only if your vehicle has a factory 7-way: remove the bracket screws and pull out the 7-way to access the connector. For vehicles without factory 7-way, no removal is necessary.
Yes, check that the mating surfaces are free of dirt and clean if necessary before connecting the adapter.
Test with a test light or trailer to confirm proper connection and function.
