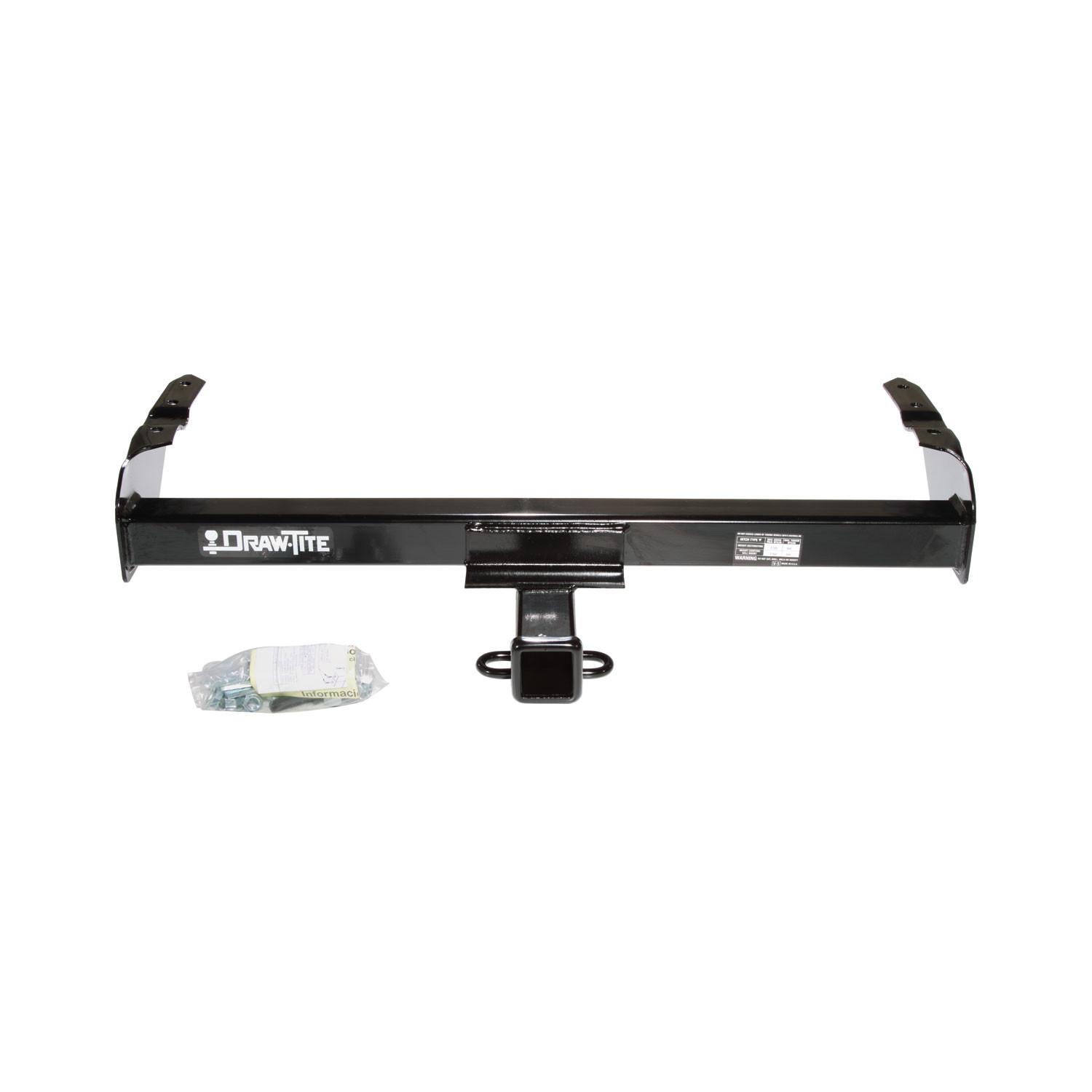

These durable custom hitches are manufactured for 1968-1979 Dodge D100, 1977-1993 Dodge D150, 1968-1980 Dodge D200, 1981-1993 Dodge D250, 1968-1980 Dodge D300, 1981-1993 Dodge D350, 1997-2004 Dodge Dakota, 1967-1989 Dodge W100, 1977-1993 Dodge W150, 1967-1980 Dodge W200, 1981-1993 Dodge W250, 1967-1980 Dodge W300, 1981-1993 Dodge W350, 1978-1996 Ford Bronco, 1975-1983 Ford F-100, 1980-1996 Ford F-150, 1975-1996 Ford F-250, 1997-1997 Ford F-250 HD, 1975-1997 Ford F-350 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 | Dodge Dakota | — |

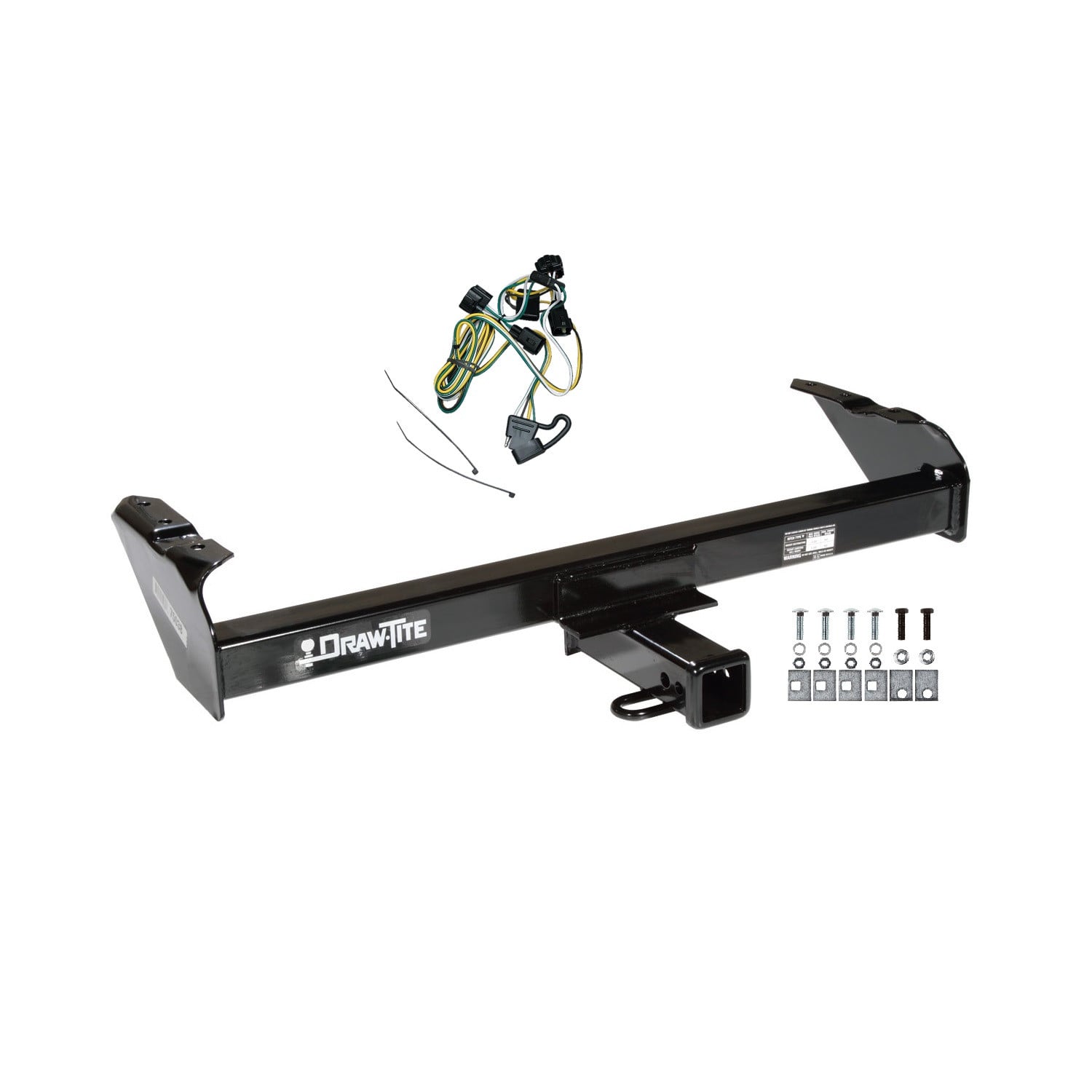

Yes, the 2004-2004 Dodge Dakota Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 75038 (Part #DTB75038-118323) is designed to fit the 2004 Dodge Dakota.
The 2004-2004 Dodge Dakota Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 75038 (Part #DTB75038-118323) fits 2004 Dodge Dakota models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2004-2004 Dodge Dakota Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 75038 (Part #DTB75038-118323) fits the following vehicles: 2004 Dodge Dakota. Always verify your specific year, make, and model before ordering.
The 2004-2004 Dodge Dakota Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 75038 (Part #DTB75038-118323) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, hitch model 75038 is designed for Dodge Dakota pickups. The forward and rearward receiver attachment holes should align with existing holes in the vehicle frame. If existing holes are not present, you will need to drill 1/2" holes using the receiver as a template. Note that spare tire positioning may require adjustment after installation.
Yes, hitch 75038 is compatible with Ford F-Series pickups equipped with a 37.5 frame. However, bumper brackets may require readjustment to provide clearance for the hitch side brackets. On some Ford pickup models equipped with a 16" spare tire, you may need to adjust the spare tire cradle to retain under-vehicle tire stowage after hitch installation.
Yes, hitch 75038 fits both Dodge Ramcharger and Plymouth Trailduster. However, these applications require special installation: the rear frame rivet must be drilled out and the receiver attachment made at that position. If the receiver is later removed, you must reinstall the 1/2-20 X 1-3/4 GR5 hex bolts (tightened to 95 lb.-ft.) to retain the frame and crossmember connection.
Yes, hitch 75038 is compatible with Ford Bronco full size models.
The maximum gross trailer weight is 8000 lb. for a ball mount hitch and 5000 lb. for a weight distributing hitch. Maximum tongue weight is 800 lb. for ball mount and 500 lb. for weight distributing. However, you must not exceed the lower of these hitch ratings or your towing vehicle manufacturer's ratings.
The hitch weighs approximately 36.6 lb.
You will need a torque wrench to tighten all fasteners. The manual specifies wrenches are required but does not list specific wrench sizes. A 1/2" drill bit is required to drill holes in the frame. All fasteners must be tightened with a torque wrench to the specified values.

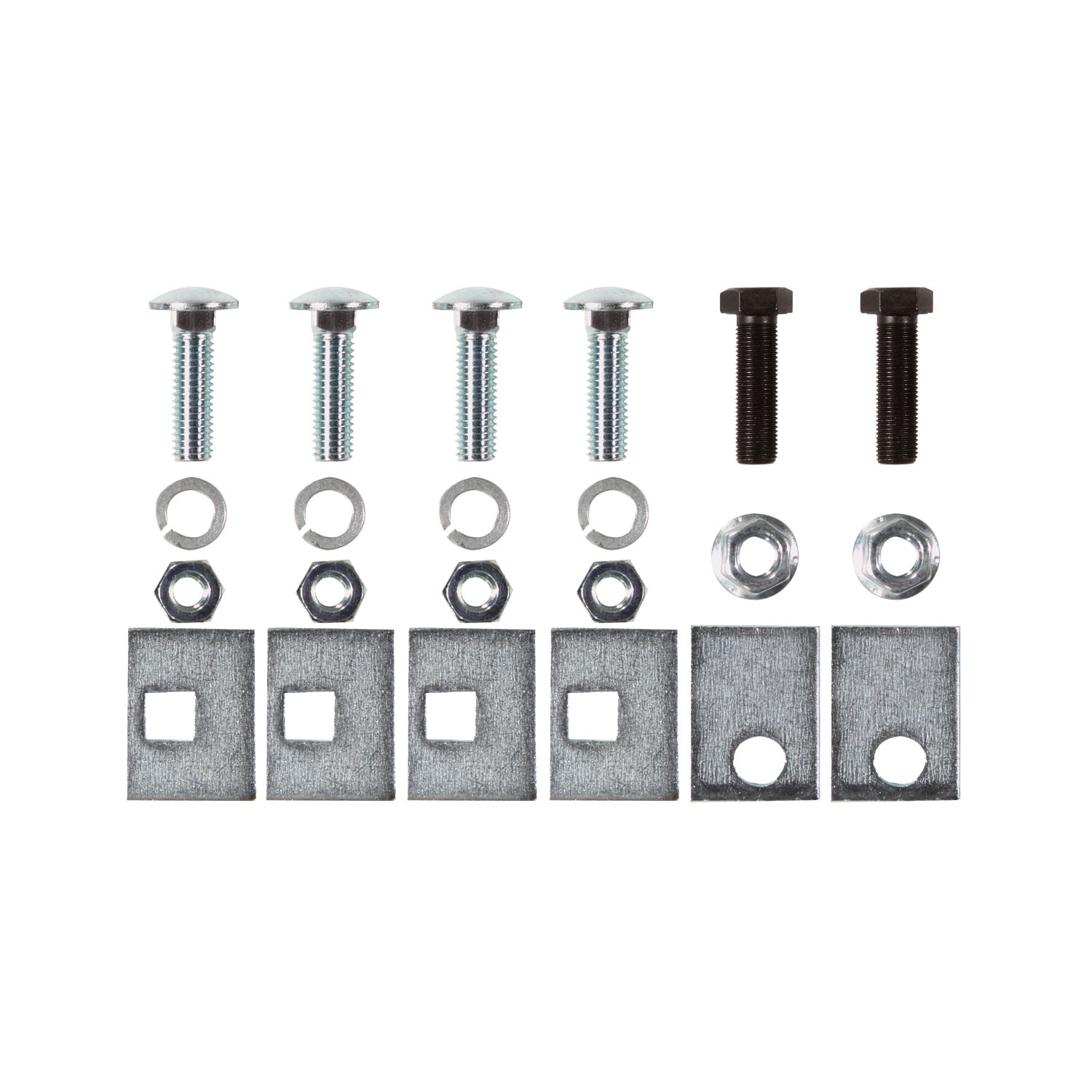

The hitch uses 1/2-13 x 1-3/4 GR5 carriage bolts with lock washers and 1/2-20 x 1-3/4 GR5 hex bolts with flanged locknuts. Installation also requires 1/4 x 1-1/2 x 2 blocks (part numbers 1277 and 3149) placed inside the vehicle frame. The manual references fastener kit number 1130-494 but does not list all included items.
The manual states 'where applicable, remove spare tire and carrier from vehicle' as the first step. This indicates that some vehicles require removal while others may not. For Dodge Dakota applications, the spare tire may be repositioned rather than fully removed. For Ford F-Series pickups with 16" spare tires, the spare tire cradle may need adjustment to retain under-vehicle stowage after installation.
Undercoating must be removed from the attaching surfaces to ensure proper contact between the receiver and the vehicle frame, which is necessary for a secure installation and proper torque transfer.
Position the receiver on the vehicle making sure it is centered on the vehicle. The formed depression in the side bracket must be positioned over the rivet, if present. The receiver will then be used as a template to mark the drilling locations.
You must drill 1/2" holes in the bottom of the frame using the receiver as a template. For Dodge Dakota applications, the forward and rearward receiver attachment holes should align with existing holes in the vehicle frame; if existing holes are not present, use a 1/2" drill to create them.
No. The manual explicitly states 'Do not cut access or attachment holes with a torch.' You must use a 1/2" drill bit to create the holes.
The rear frame rivet must be drilled out. The receiver attachment is then made at this position. If the receiver is later removed, you must reinstall the 1/2-20 x 1-3/4 GR5 hex bolts (tightened to 95 lb.-ft.) to retain the frame and crossmember connection.
Tighten the nuts on 1/2-13 GR5 carriage bolts to 75 lb.-ft. using a torque wrench.
Tighten the locknuts on 1/2-20 GR5 hex bolts to 95 lb.-ft. using a torque wrench. This applies to both standard installations and to the bolts that must be reinstalled on Ramcharger and Trailduster applications if the receiver is removed.
The 1/4 x 1-1/2 x 2 blocks (part numbers 1277 and 3149) must be placed inside the vehicle frame. They are positioned under the fasteners to distribute the load and prevent the frame from being crushed.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Follow your car maker's specifications for maximum trailer weight and tongue weight. Do not exceed the lower of your towing vehicle manufacturer's ratings or the hitch ratings (8000 lb. max gross trailer weight for ball mount, 5000 lb. for weight distributing; 800 lb. max tongue weight for ball mount, 500 lb. for weight distributing).
If the spare tire and carrier are relocated and/or modified to retain under-box stowage, you must make sure the relocated tire and carrier do not contact the brake line, rear axle, or other safety-related components.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the State of New York and V.E.S.C. Regulation V-5.
Hitch 75038 fits Dodge D&W Series Pickup, Dodge Dakota, Dodge Ramcharger, Ford Bronco (Full Size), Ford F-Series Pickup (W/37.5 Frame), and Plymouth Trailduster. Ramcharger and Trailduster require drilling out the rear frame rivet.
Yes. You must drill 1/2" holes in the bottom of the frame using the receiver as a template. For Ramcharger and Trailduster, the rear frame rivet must also be drilled out. Do not use a torch to cut holes.
You need a torque wrench (to tighten all fasteners), a 1/2" drill bit, and wrenches. All fasteners must be tightened with a torque wrench to specified values (75 lb.-ft. for carriage bolts, 95 lb.-ft. for hex bolts).
Tighten 1/2-13 GR5 carriage bolts to 75 lb.-ft. and 1/2-20 GR5 hex bolts to 95 lb.-ft. Use a torque wrench for all fasteners.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Do not exceed towing vehicle manufacturer's ratings or hitch ratings. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.

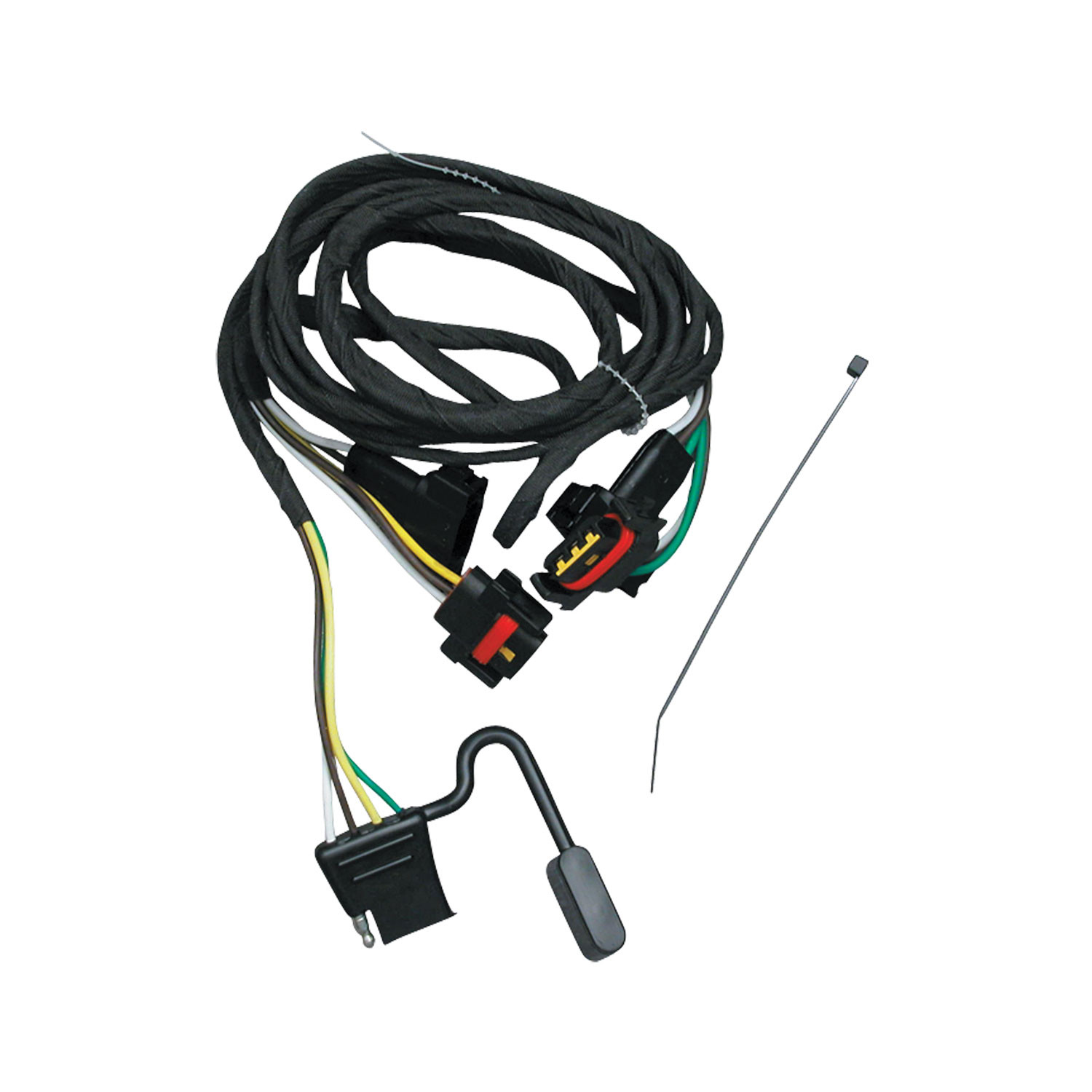

Yes, part number 18323-037 is designed for Dodge Dakota. The installation procedure for Dakota differs from Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager models, so follow the Dakota-specific instructions on page 2 of the manual.
Yes, part number 18323-037 is compatible with Chrysler Town & Country. Follow the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Yes, part number 18323-037 is compatible with Plymouth Voyager. Use the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Yes, part number 18323-037 is designed for Dodge Caravan. Follow the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Part number 18323-037 is rated for 7.5 amps per circuit.
Yes. For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager, remove the right tail lamp assembly first, then repeat the procedure for the left side. For Dodge Dakota, remove both tail lamp assemblies before beginning installation.
For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager: green, brown, and white wires. For Dodge Dakota: yellow and green wires.
Lay the T-connector harness on top of the bumper. Route the connectors with green, brown, and white wires to the right side of the vehicle. Push the 4-flat plug behind the bumper fascia at the center of the vehicle. Route the remainder of the harness behind the bumper as well. When reinstalling tail lamp assemblies, position the wire harness between the housing and the body, and secure it under the bumper.
Beginning on the left (driver) side, route the T-connector harness containing the yellow wire out from under the vehicle through the taillight opening. Route the connector with the green wire across the vehicle along the vehicle frame and out from under the vehicle through the right (passenger) side tail light opening.
Disconnect the wire harness from the upper tail lamp socket. Plug the T-connector harness connectors into the mating plugs on the tail lamp socket and vehicle wiring harness. Ensure that connectors are fully inserted with locking tabs in place. Repeat this procedure for the left side.
Disconnect the vehicle's wiring harness connector from the taillight assembly. Plug the T-connector between these separated halves, ensuring the connectors are fully inserted together. Repeat this procedure for the other side using the appropriate connector (yellow wire on left side, green wire on right side).
Test the installation with a test light or trailer to verify that all connections are working correctly.
Be careful not to damage connector locking tabs when disconnecting the wire harness. Ensure that connectors are fully inserted with locking tabs in place when connecting the T-connector harness. Do not pinch the wires when reinstalling the tail lamp assemblies.
Part number 18323-037 fits Chrysler Town & Country, Dodge Caravan, Plymouth Voyager, and Dodge Dakota. Installation procedures differ by vehicle model.
Yes. Remove the right tail lamp assembly first for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager; remove both tail lamp assemblies for Dodge Dakota.
Test the installation with a test light or trailer to verify proper operation.
For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager: green, brown, and white. For Dodge Dakota: yellow and green.
Do not damage connector locking tabs. Ensure connectors are fully inserted with locking tabs in place. Do not pinch wires when reinstalling tail lamp assemblies.
