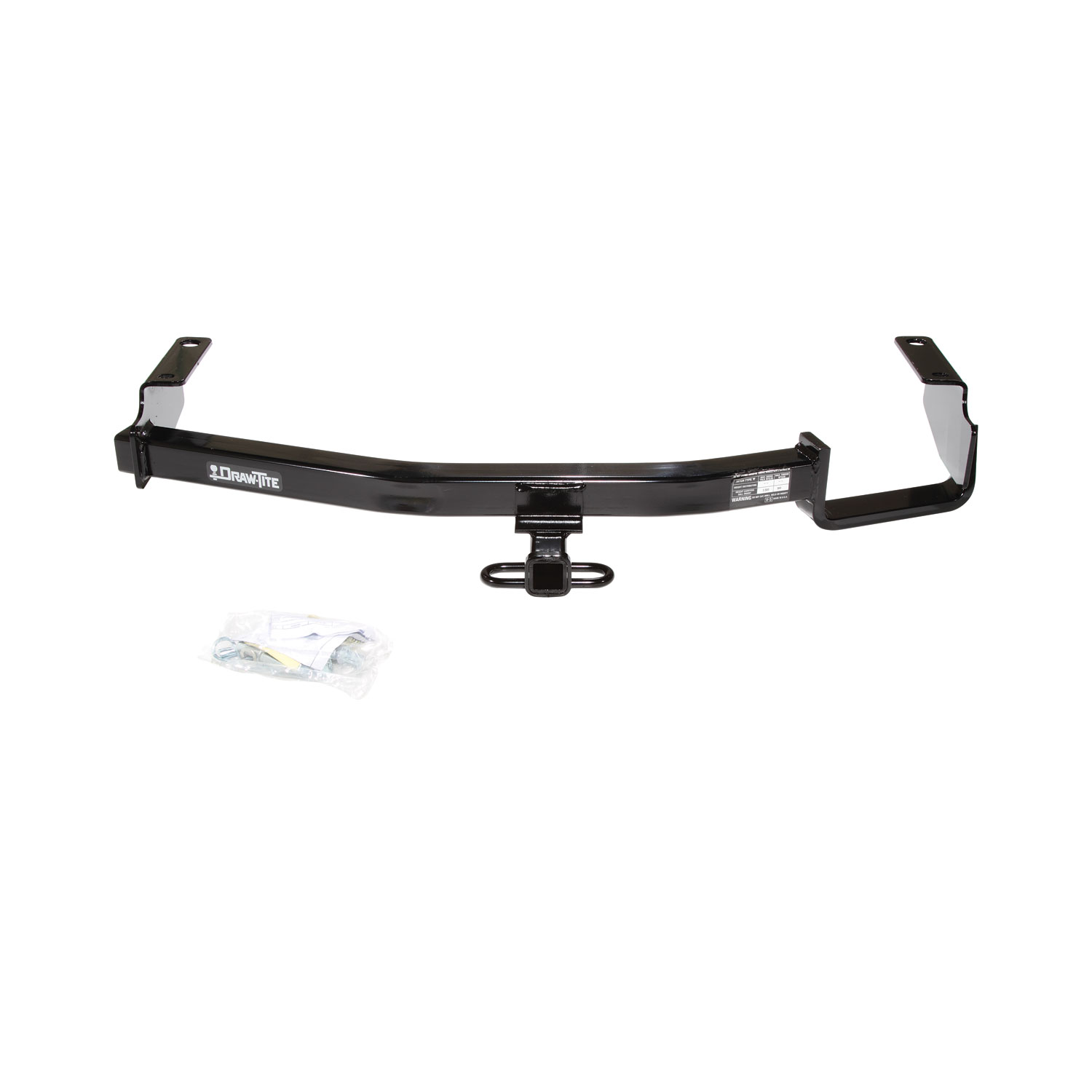

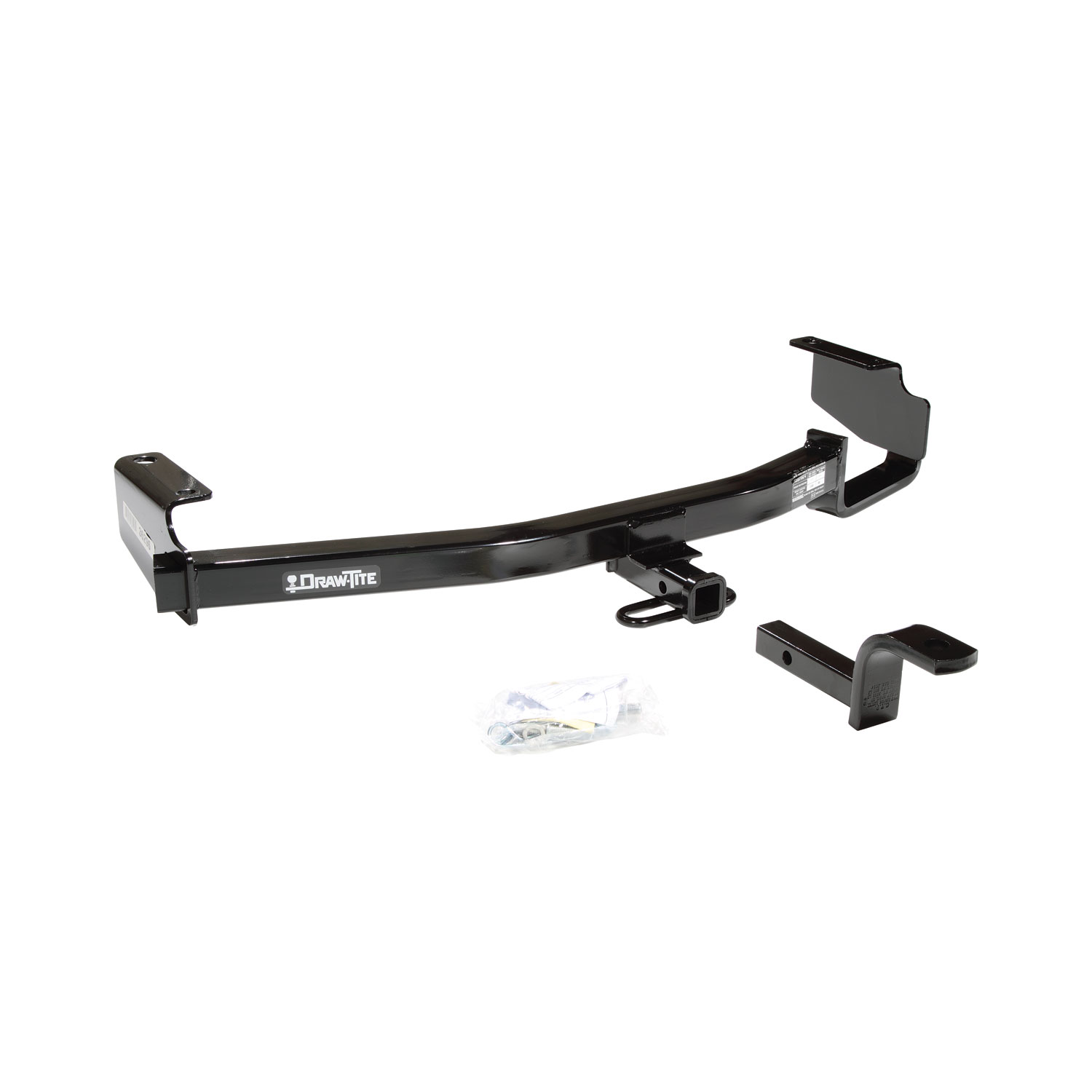

These dependable custom hitches are manufactured for 1996-2007 Chrysler Town Country, 2001-2003 Chrysler Voyager, 1996-2007 Dodge Caravan, 1996-2007 Dodge Grand Caravan, 1996-2000 Plymouth Grand Voyager, 1996-2000 Plymouth Voyager and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2000 | Dodge Grand Caravan | Except w/Stow & Go Seats |
The 2004-2007 Dodge Grand Caravan Except w/Stow & Go Seats Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36296-3-118300) fits 1999-2000 Dodge Grand Caravan models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2004-2007 Dodge Grand Caravan Except w/Stow & Go Seats Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36296-3-118300) is designed to fit the 1999-2000 Dodge Grand Caravan.
The 2004-2007 Dodge Grand Caravan Except w/Stow & Go Seats Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36296-3-118300) fits the following vehicles: 1999-2000 Dodge Grand Caravan. Always verify your specific year, make, and model before ordering.
The 2004-2007 Dodge Grand Caravan Except w/Stow & Go Seats Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36296-3-118300) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36296 fits all Chrysler Town & Country models, including 2WD and 4WD versions with both short and long wheelbase configurations.
Yes, part number 36296 fits Dodge Caravan and Plymouth Voyager models in all configurations: 2WD, 4WD, short wheelbase, and long wheelbase.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 18mm and 19mm sizes, and a torque wrench. No drill bits are required as no drilling is necessary for this installation.
The hitch includes: two M12 x 1.75 studs, two ½" lock washers, two spacers (3/16 x 1-1/2 x 2), and two M12 x 1.75 hex nuts. Additional fasteners are available in fastener kit F36296.
No. You only need to remove the front bumper bolts on both sides and the rear bumper bolts. The bumper itself does not need to be fully removed.
No, no drilling is required. The hitch uses existing bumper bolt holes and fastens to the frame using M12 x 1.75 studs installed where the bumper bolts were removed.
All M12 x 1.75 fasteners must be tightened with a torque wrench to 75 lb.-ft. (102 N·m).
The studs should be installed and seated to the frame where the bumper bolts were removed, but final tightening occurs when the M12 x 1.75 nuts are tightened to 75 lb.-ft. (102 N·m).
The drawbar must be used in the RISE position only. The drawbar kit 36071 is sold separately.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe operation.
Yes, if you own a Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, or Plymouth Voyager in any configuration (2WD, 4WD, short or long wheelbase).
18mm and 19mm wrenches and a torque wrench. No drilling is required.
Tighten all M12 x 1.75 fasteners to 75 lb.-ft. (102 N·m) with a torque wrench.
Maximum gross trailer weight is 3500 lb (1589 kg); maximum tongue weight is 300 lb (136 kg). Do not exceed your vehicle manufacturer's rating.
The drawbar must be used in the RISE position only. Drawbar kit 36071 is sold separately.
No. Remove only the front bumper bolts on both sides and the rear bumper bolts; the bumper itself stays in place.

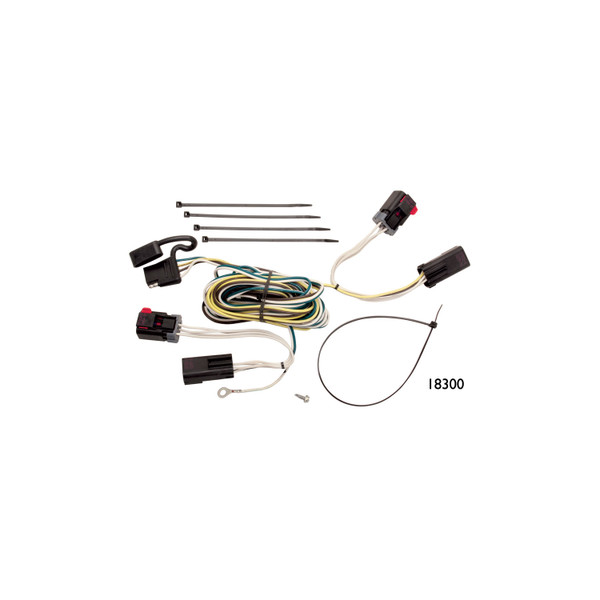

The N118300 T-Connector is a trailer wiring adapter that integrates with your vehicle's existing taillamp harness. It allows you to connect a trailer's electrical system to your vehicle without permanently modifying the factory wiring. The unit is rated for 7.5 amps per circuit. When not in use, it can be stored in your vehicle's jack storage compartment.
The manual does not specify which vehicle makes, models, or years are compatible with the N118300. Contact the manufacturer or your retailer with your vehicle's year, make, and model to confirm fitment before purchasing.
You will need a utility knife, a drill with a 3/32" bit, and a circuit tester or trailer to test the installation after completion. An eyelet and screw are provided with the unit for grounding the White wire.
The manual does not specify whether battery disconnection is required. Contact the manufacturer or consult a qualified installer for guidance on this safety step.
Yes. The first step of installation requires you to remove both of the vehicle's rear taillamp housings. You will then disconnect the wire harness from both taillamp sockets by sliding the red locking tab to the unlocked position.
The jack storage compartment is located on the driver's side of your vehicle. During installation, you will open this cover and partially remove the driver's side rear trim panel. The T-Connector is pushed through the jack storage compartment and out through the driver's side rear taillamp. After installation, the 4-Flat connector is stored in this compartment when not in use.
Open the jack storage cover on the driver's side and partially remove the driver's side rear trim panel. If necessary, peel back the black tape covering a hole on the vehicle body panel. Using the connector end of the T-Connector, push it inside the vehicle through the jack storage compartment and out the driver's side rear taillamp. Reposition the tape over the hole and wires if necessary. Then plug the T-Connector between the mating plug on the taillamp socket and the vehicle's wiring harness, and secure the connectors with the red locking tab.
Yes. With the vehicle wiring and grommets exposed on the driver's side, you must slit the grommet with a utility knife from the hole where the vehicle wiring passes through to the outside edge. Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that hold it to the wires. After installing the T-Connector, place the rubber grommet back over the T-Connector wiring, push all existing vehicle wiring back into the grommet hole, and re-seat the grommet.
Route the T-Connector ends containing the Green wire over to the passenger side and repeat the previous installation steps: remove the rear taillamp housing, disconnect the wire harness, expose and slit the grommet, open the jack storage cover, push the connector through the jack storage compartment and out the passenger-side rear taillamp, plug the T-Connector between the mating plug and vehicle harness, secure with the red locking tab, and re-seat the grommet.
Locate a suitable grounding point near the adapter. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the White wire using the eyelet and screw provided.
Drill a 3/32" hole for the White ground wire. Do not drill into the vehicle floor or bed.
No. The manual explicitly states: "Do not drill into vehicle floor or bed." You must locate a suitable grounding point near the adapter that does not involve drilling through the floor or bed.
The manual identifies two wire colours: Green and White. The Green wire ends are routed to the passenger side during installation. The White wire is the ground wire, which is secured to a suitable grounding point using the provided eyelet and screw. The manual does not identify other wire colours or their functions.
Locate a suitable grounding point near the adapter. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the White wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed.
The N118300 is rated for 7.5 amps per circuit.
Test the installation with a circuit tester or trailer. This confirms that all connections are secure and the wiring is functioning correctly before you use the connector with a trailer.
Replace all trim panels removed during installation. Reinstall the taillamp housings, positioning the wire harness between the housing and the vehicle body. Store the 4-Flat connector in the jack storage compartment when not in use.
Store the 4-Flat connector in the jack storage compartment when not in use.
The manual does not specify compatible vehicles. Contact the manufacturer or retailer with your vehicle's year, make, and model to confirm fitment.
You will need a utility knife, a drill with a 3/32" bit, and a circuit tester or trailer for testing. An eyelet and screw are provided.
Yes. You must drill a 3/32" hole for the ground wire. You will also use a utility knife to slit the vehicle's rubber grommet. Do not drill into the vehicle floor or bed.
The N118300 is rated for 7.5 amps per circuit.
Test the installation with a circuit tester or trailer to confirm all connections are secure and functioning correctly.
Store the 4-Flat connector in the vehicle's jack storage compartment when not in use.
