Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Ford Freestar | — |

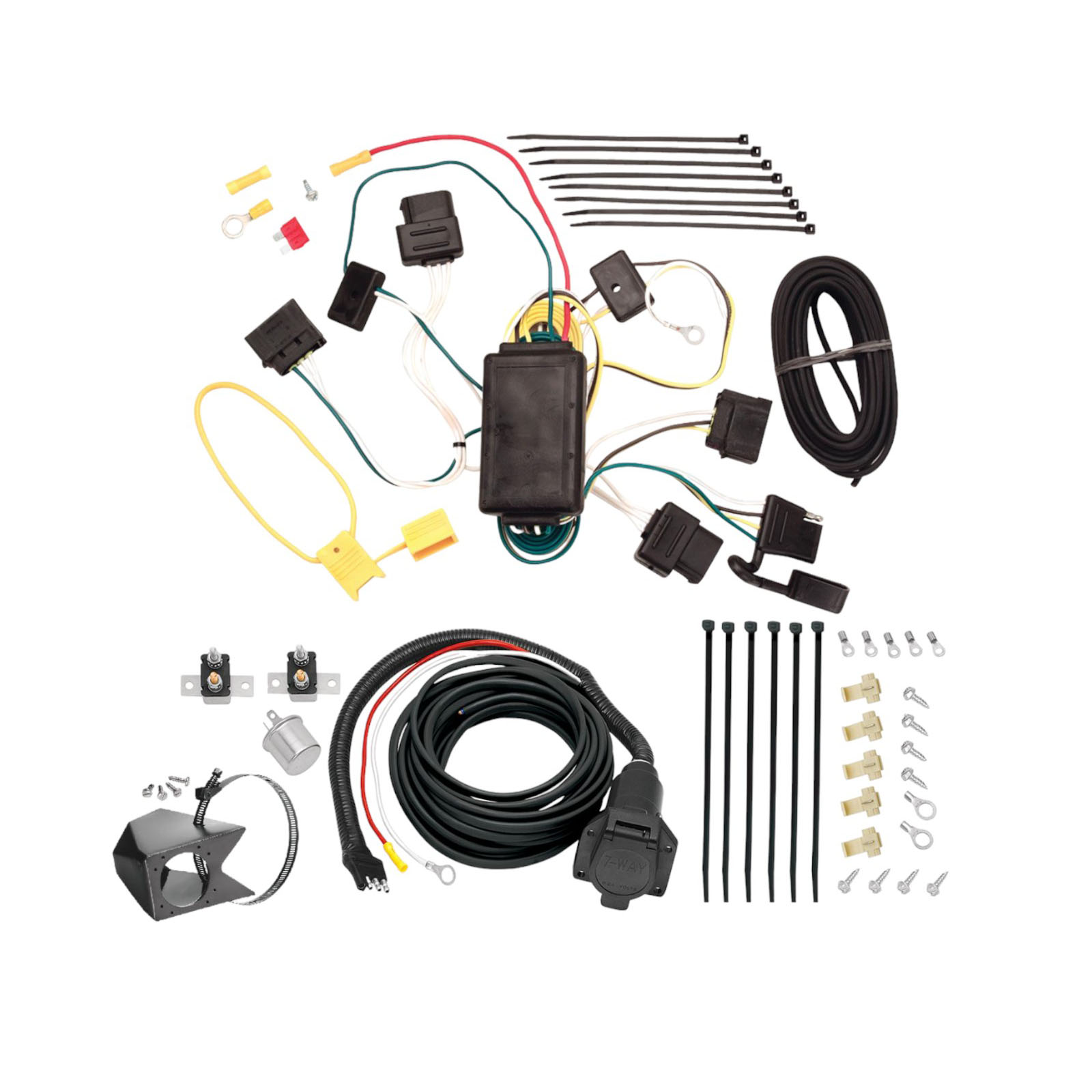

The 2004-2007 Ford Freestar Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW8259) fits 2004-2007 Ford Freestar models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2004-2007 Ford Freestar Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW8259) fits the following vehicles: 2004-2007 Ford Freestar. Always verify your specific year, make, and model before ordering.
Yes, the 2004-2007 Ford Freestar Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW8259) is designed to fit the 2004-2007 Ford Freestar.
The 2004-2007 Ford Freestar Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW8259) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The T-Connector is an electrical adapter that integrates with your vehicle's taillight system to enable trailer lighting. It contains a black converter box and wiring harness with multiple connectors (green, yellow, and brown wires) that connect to your vehicle's existing taillight assemblies and battery. The system is designed for vehicles with low-side switched taillight systems.
No. The T-Connector is designed specifically for vehicles with a low-side switched taillight system. The manual states that conventional troubleshooting techniques do not apply to this system type. Before purchasing, verify that your vehicle has this taillight configuration. The manual does not specify which vehicle makes, models or years are compatible.
The installation instructions require access to the vehicle's jack storage compartment to route and store the 4-flat connector. The manual does not provide an alternative method if this compartment is not present. Contact the manufacturer to confirm compatibility with your specific vehicle.
The recommended tools are: flat-head screwdriver, trim panel tool, drill, wrench, pliers, and Torx. You will need these to remove taillight assemblies, access trim panels, drill a grounding hole, and work with fasteners and connectors.
The T-Connector kit includes: a black converter box, wiring harness with green, yellow, and brown wires, two yellow butt connectors, one ring terminal, a 10 amp fuse, a fuse holder, and a 4-flat connector for storage in the jack compartment. All fasteners and connectors needed for installation are provided.
Yes. You must disconnect the vehicle's negative battery cable before connecting the fuse holder to the positive battery terminal. The battery is located on the driver's side. Reconnect the negative cable only after the 10 amp fuse has been installed in the fuse holder.
No. The first step requires you to open the tailgate and remove the vehicle's taillight assemblies by removing the screws and carefully prying the taillight away from the vehicle. The T-Connector plugs directly between the vehicle's wiring harness and the taillight connectors, so removal is necessary.
Begin on the passenger side: disconnect the black connector from the taillight assembly and plug the T-Connector containing the green wire between the separated halves. Then route the T-Connector containing the yellow and brown wires to the left (driver's) side, disconnect the black connector from that taillight assembly, and plug the T-Connector between those separated halves. Ensure all connectors are fully inserted with locking tabs in place.
On both the passenger and driver sides, pull the rubber grommet surrounding the wiring harness away from the vehicle body. Carefully slit the grommet to allow the T-Connector wires to pass through. After routing the wires, reinstall the grommet into the mounting hole. This protects the wires from damage and maintains the vehicle's weatherproofing.
The 4-flat connector is pulled into the jack storage compartment during installation (step 5) and must be retained there for future use. The manual notes to store the 4-flat in the jack storage compartment when not in use.
Route the black 12 gauge wire from underneath the vehicle up through the opening between the bumper and the taillight on the passenger side. Attach it to the red T-Connector wire marked "Battery +" using the yellow butt connector provided. This connection must be made after the fuse holder is connected to the positive battery terminal and before the negative battery cable is reconnected.
Route the black 12 gauge wire from the fuse holder rearward along the frame rail to the bumper and over to the passenger's side taillight. Avoid hot pipes, heat shields, the gas tank, and pinch points. This prevents damage to the wire and reduces fire risk.
Clean a flat area that will not interfere with the replacement of the taillight housing using a 50/50 isopropyl alcohol and water mixture. Peel off the double-sided tape backing and mount the T-Connector's black converter box to this clean surface. The converter box must be mounted before reinstalling the taillight housing.
Replace all trim panels that were removed during installation. Reinstall the taillight housing, positioning the wire harness between the housing and the vehicle body. This ensures proper fit and protects the wiring.
The manual mentions locating a suitable grounding point near the connector on the driver's side (step 9), which implies drilling may be required. However, the manual does not provide specific drilling instructions, hole size, or location. Before drilling, you must verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Consult the manufacturer or a professional installer for the exact grounding point location.
Yes. The installation requires you to carefully slit the rubber grommets on both the passenger and driver sides to allow the T-Connector wires to pass through. After slitting, the grommets are reinstalled into the mounting holes. This is a permanent modification to the vehicle's wiring protection.
The T-Connector kit includes a 10 amp fuse. This fuse must be installed in the fuse holder after all connections are complete and the negative battery cable has been reconnected.
The black wire connecting the fuse holder to the T-Connector's battery positive terminal is 12 gauge. This wire is routed underneath the vehicle from the fuse holder to the passenger side taillight.
The T-Connector has multiple colored wires: green wire (routed to passenger side taillight), yellow and brown wires (routed to driver's side taillight), and a red wire marked "Battery +" (connected to the positive battery terminal via the black 12 gauge wire). The black converter box also connects to a grounding point on the driver's side.
The T-Connector kit includes two yellow butt connectors. These are used to connect the fuse holder to the black 12 gauge wire (step 11) and to connect the black 12 gauge wire to the red "Battery +" wire on the T-Connector (step 12). All T-Connector plugs to the vehicle's taillight harnesses use the connector halves already present on the vehicle.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum 1 stop/turn light per side (2.1 amps) or maximum tail lights (4.2 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the towing manufacturer's instructions for your specific towing capacity.
All connections must be complete for the T-Connector to function properly. Incomplete connections can cause electrical faults, improper trailer lighting, or fire risk. After installation, test and verify the installation with a test light or trailer to ensure all connections are secure and functioning correctly.
After installation is complete, test and verify the installation with a test light or trailer. This confirms that all connections are secure, the fuse is functioning, and the trailer lighting circuit is working correctly. Do not use the trailer until testing is complete.
The T-Connector is designed for vehicles with low-side switched taillight systems. It requires a jack storage compartment, threshold plate, and rubber grommets around the wiring harnesses. The manual does not specify which vehicle makes and models are compatible. Verify your vehicle's taillight system type before purchasing.
Yes. Disconnect the vehicle's negative battery cable before connecting the fuse holder to the positive battery terminal. Reconnect the negative cable only after the 10 amp fuse is installed.
The manual mentions locating a grounding point on the driver's side, which may require drilling, but does not provide specific drilling instructions or hole size. Before drilling, verify what is behind the surface to avoid damage. Consult the manufacturer for the exact grounding point location.
A 10 amp fuse is included. Install it in the fuse holder after all connections are complete and the negative battery cable is reconnected.
Do not exceed 1 stop/turn light per side (2.1 amps) or 2 tail lights (4.2 amps), whichever is lower than your towing manufacturer's rating. Overloading can cause fires.
Test and verify the installation with a test light or trailer after completion. This confirms all connections are secure and the trailer lighting circuit is functioning correctly.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.
The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
