Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2004-2020 Toyota Sienna All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Sienna (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 500 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Hitch sits 9.5" above ground when installed
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 Toyota Sienna All Class 3 Trailer Hitch, 2" Receiver, Select Toyota Sienna (Exposed Main Body)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2020 | Toyota Sienna | — |

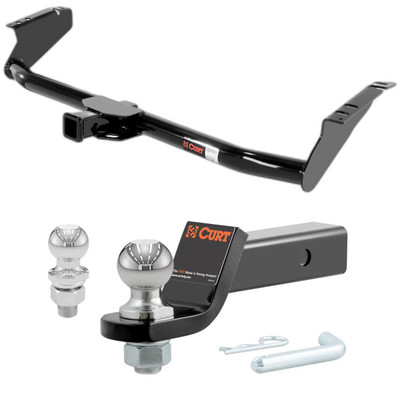

The 2004-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13105-001) fits 2004-2020 Toyota Sienna models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2004-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13105-001) is designed to fit the 2004-2020 Toyota Sienna.
The 2004-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13105-001) fits the following vehicles: 2004-2020 Toyota Sienna. Always verify your specific year, make, and model before ordering.
The 2004-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13105-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 50 lbs.
Yes, the Curt 13105 is designed for the Toyota Sienna.
The kit includes 6 M12x1.25 hex cap head cap screws (HHCS), class 10.9, 40 mm length (part number 10-10277) and 6 conical toothed washers, 1/2 inch (part number 30-00149).
Required tools are: ratchet, torque wrench, 6 inch extension, 19 mm socket, screwdriver, and aviation shears.
Yes, you must remove the underbody panel if present. The panel will later be sandwiched between the hitch and the trunk pan after trimming.
Yes, you must lower the exhaust assembly for ease of installation. After installation, you will raise it back to its original position.
No, drilling is not required. The hitch uses existing weldnuts in the frame rails.
Yes, the underbody panel may require trimming. You must mark the panel for trimming and confirm fit prior to trimming. Some models may have a lip that protrudes down, which will also need to be trimmed. Refer to the Underbody Trim Diagrams 1 and 2 in the manual for trim locations and dimensions.
All M12 fasteners must be torqued to 79 ft-lbs.
Slide the driver side plate through the slot trimmed in the underbody panel. Raise the hitch and underbody panel into position, aligning the holes with existing weldnuts in the frame rails. Secure the hitch using the 6 M12 hex bolts and conical toothed washers provided, then torque all M12 fasteners to 79 ft-lbs.
The underbody panel is trimmed and then sandwiched between the hitch and the trunk pan. After the hitch is secured and the exhaust is raised back into position, the underbody panel is reattached to maintain the manufacturer's appearance and fuel economy rating.
Do not exceed the vehicle manufacturer's recommended towing capacity. The manual does not specify the hitch's own capacity limits; consult your Toyota Sienna owner's manual for the vehicle's maximum towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Yes, the Curt 13105 is designed for the Toyota Sienna.
You need a ratchet, torque wrench, 6 inch extension, 19 mm socket, screwdriver, and aviation shears.
Torque all M12 fasteners to 79 ft-lbs.
Do not exceed your vehicle manufacturer's recommended towing capacity. Consult your Toyota Sienna owner's manual for specific limits.
Periodically check the receiver hitch to ensure all fasteners are tight and structural components are sound.
