Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2020 Toyota Sienna All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Sienna (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires temporary lowering of exhaust and underbody panel trimming

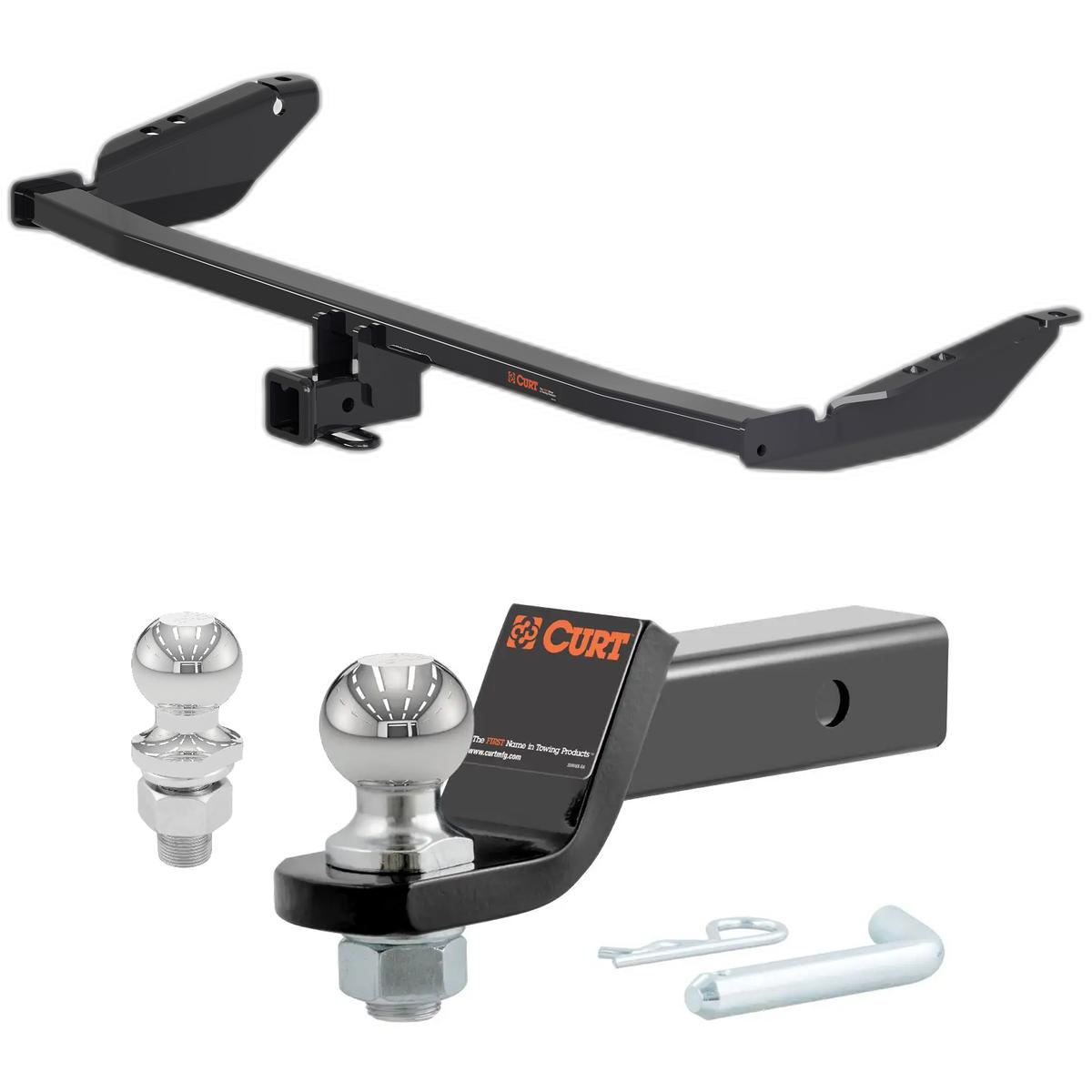

2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 Toyota Sienna All Class 3 Trailer Hitch, 2" Receiver, Select Toyota Sienna (Concealed Main Body)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2020 | Toyota Sienna | — |
Yes, the 2011-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13343-001) is designed to fit the 2011-2020 Toyota Sienna.
The 2011-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13343-001) fits the following vehicles: 2011-2020 Toyota Sienna. Always verify your specific year, make, and model before ordering.
The 2011-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13343-001) fits 2011-2020 Toyota Sienna models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2020 Toyota Sienna All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13343-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13343 is designed for 2011-Present Toyota Sienna vans. This is a weight-carrying hitch with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 525 lbs.
The CURT 13343 is rated for a maximum trailer weight of 3,500 lbs and tongue weight of 525 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: ratchet, 10mm and 19mm sockets, 6-inch socket extension, torque wrench, flat-head screwdriver, Phillips-head screwdriver, rotary tool, tape measure, masking tape or marker, and safety glasses. No drilling is required.
Yes. You must temporarily remove the underbody panel (by removing 5 screws with a 10mm socket, 4 plastic screws with a Phillips-head screwdriver, and 8 plastic push pins with a flat-head screwdriver), lower the exhaust by disconnecting 1 rubber isolator, and temporarily remove the rear fascia (which requires removing 1 plastic rivet and 2 screws per side from the hatch area, 1 screw per side from inside the rear wheel well, 2 plastic clips on the passenger side and 1 on the driver side, and disconnecting backup sensor connectors as needed).
Two people may be required to ease installation. The manual rates this as a moderate to challenging difficulty level, with professional installation taking 120 minutes and novice DIY installation taking 60 minutes.
No, drilling is not required. However, trimming of the underbody panel is required. The panel must be marked and trimmed according to the trim diagram (4 inches and 7 inches as shown) before reinstallation.
The M12 bolts must be torqued to 86 lb-ft. These bolts are installed with 1/2-inch conical toothed washers and connect the hitch to the existing weldnuts on both sides of the vehicle frame rails.
The hitch includes 6 M12x1.25x40 Class 10.9 zinc-plated hex head cap screws (part number 10-10277) and 6 1/2-inch stainless steel conical toothed washers (part number 30-00149). These fasteners connect the hitch to the vehicle's existing weldnuts.
Safety glasses must be worn at all times during installation. Before beginning, read all instructions thoroughly. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Technical support is available at 877-287-8634.
After installation, periodically check that all fasteners are tight and all structural components are sound. This ongoing maintenance is essential to ensure safe operation of the hitch.
Non-trailer loads can be applied to this hitch, but they must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The CURT 13343 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York V.E.S.C. Regulation V-5 and SAE J684.
Yes. The CURT 13343 is designed for 2011-Present Toyota Sienna vans with a 3,500 lb trailer weight and 525 lb tongue weight capacity.
No drilling is required. Trimming of the underbody panel is required using a rotary tool according to the provided trim diagram.
Torque the M12 bolts to 86 lb-ft using a torque wrench. Use 1/2-inch conical toothed washers under each bolt.
Essential tools: ratchet, 10mm and 19mm sockets, 6-inch socket extension, torque wrench, Phillips and flat-head screwdrivers, rotary tool, tape measure, masking tape, marker, and safety glasses.
Yes. You must temporarily lower the exhaust by disconnecting one rubber isolator, then raise it back into position after installing the hitch.
Maximum trailer weight is 3,500 lbs and tongue weight is 525 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound to ensure safe operation.
