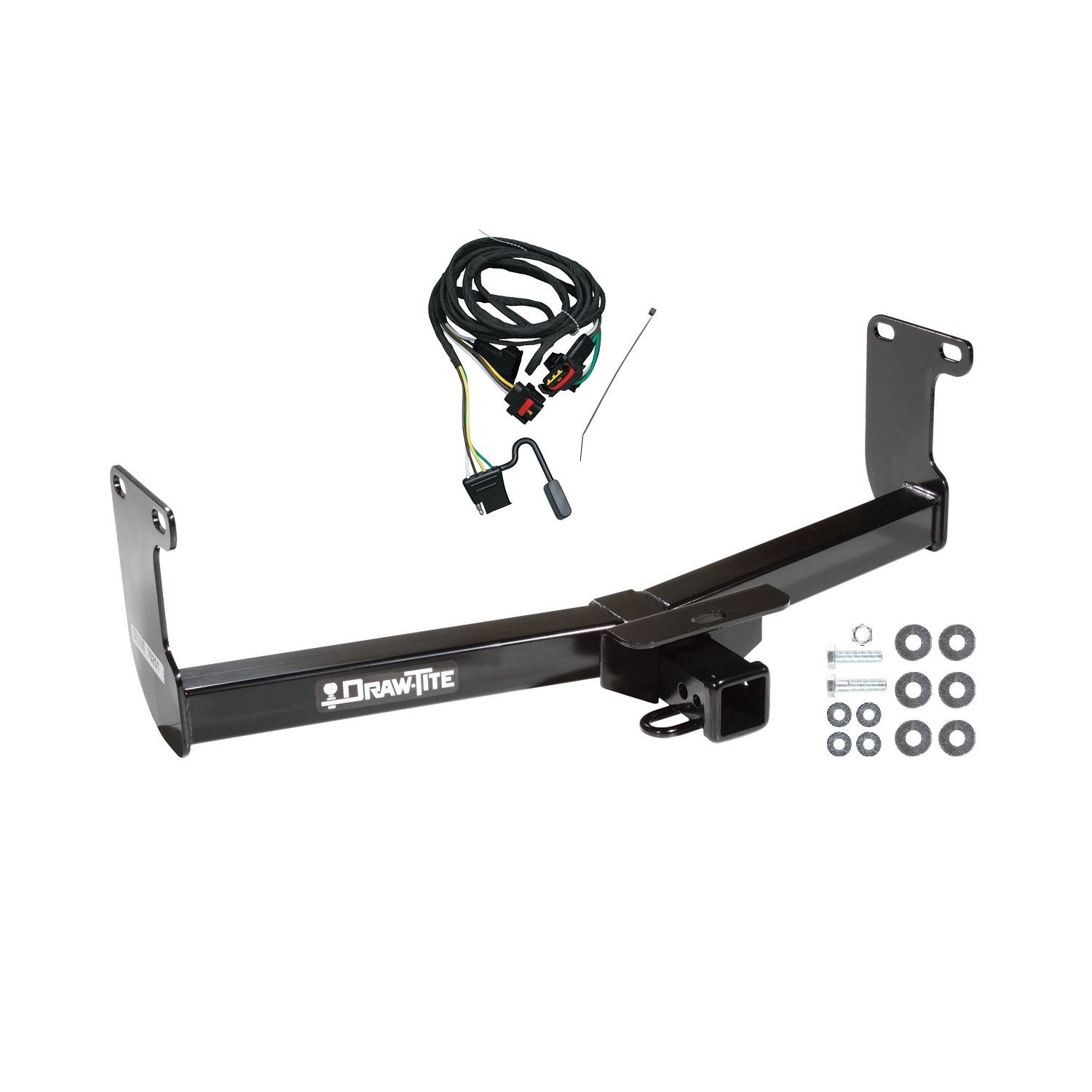

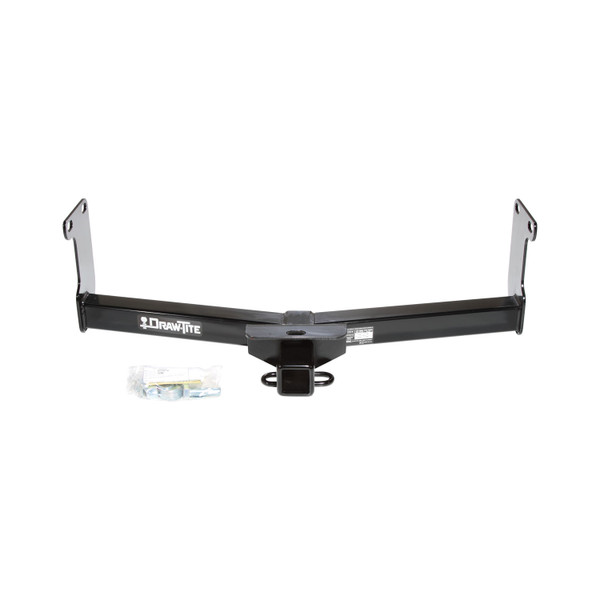

These durable custom hitches are manufactured for 2005-2010 Dodge Dakota, 2006-2009 Mitsubishi Raider, 2011-2011 RAM Dakota and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2009 | Mitsubishi Raider | — |
Yes, part number 75251 is designed for the Dodge Dakota. The manual covers installation for this vehicle. However, the manual does not specify which model years are compatible. Contact the manufacturer or your retailer to confirm your specific Dakota year and configuration are supported.
The kit includes: 1 hex bolt ¾-10 x 2.75 GR5, 1 lock nut ¾-10 with nylon insert, 6 flat washers ¾", and 8 flat washers ½". The fastener kit is part number 75251F. The installation also reuses 2 existing bolts per side removed from the frame mounting brackets.
You need: tape, wrenches (1-1/8" and 22mm), and a torque wrench. No drill bits are required—no drilling is necessary for this installation.
No, drilling is not required. The installation uses existing frame mounting bracket bolts and does not require any new holes to be drilled.
1. Remove the lower bolts from the frame mounting brackets (2 per side); save these bolts. 2. Attach flat washers with tape to the underside of the bumper. 3. Insert the bumper bracket mounting structure between the washers and bumper. 4. Swivel the hitch into position and loosely reinstall the removed fasteners with additional flat washers. 5. Install the bumper bracket mounting structure fasteners as shown in the diagram. 6. Tighten all fasteners to the required torque specifications.
Tighten all ¾-10 GR5 fasteners with a torque wrench to 260 Lb.-Ft. (353 N·M).
Tighten all M14 CL8.8 fasteners with a torque wrench to 89 Lb.-Ft. (121 N·M).
The hitch has two capacity ratings depending on type: Weight Distributing hitch supports a maximum gross trailer weight of 8,000 lbs (3,632 kg) with a maximum tongue weight of 800 lbs (363 kg). Weight Carrying Ball Mount supports a maximum gross trailer weight of 5,000 lbs (2,270 kg) with a maximum tongue weight of 500 lbs (227 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these hitch ratings.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using damaged components.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Leave fasteners loose during the initial assembly steps. In Step 4, loosely reinstall the frame mounting bolts with additional washers. Only after all components are positioned (Step 5) should you tighten all fasteners to the required torque specifications in Step 6.
Flat washers serve two purposes: they are attached with tape to the underside of the bumper (Step 2) to provide a mounting surface for the bumper bracket mounting structure, and additional washers are used when reinstalling the frame mounting bolts (Step 4) to distribute load and provide clearance. The manual notes that additional flat washers may be inserted for more clearance if needed.
Remove 2 lower bolts from the frame mounting brackets per side (4 bolts total). These bolts are reused during installation and should not be discarded. They are reinstalled in Step 4 with additional flat washers.
Yes, part 75251 is designed for the Dodge Dakota. Confirm your specific model year with the manufacturer or retailer.
No, no drilling is required. The installation reuses existing frame mounting bolts.
You need tape, wrenches (1-1/8" and 22mm), and a torque wrench. No drill is required.
Tighten ¾-10 GR5 fasteners to 260 Lb.-Ft. (353 N·M) and M14 CL8.8 fasteners to 89 Lb.-Ft. (121 N·M) using a torque wrench.
Weight Distributing: 8,000 lbs gross trailer weight, 800 lbs tongue weight. Weight Carrying Ball Mount: 5,000 lbs gross trailer weight, 500 lbs tongue weight. Do not exceed your vehicle manufacturer's rating.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Yes, part number 18323-037 is designed for Dodge Dakota. The installation procedure for Dakota differs from Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager models, so follow the Dakota-specific instructions on page 2 of the manual.
Yes, part number 18323-037 is compatible with Chrysler Town & Country. Follow the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Yes, part number 18323-037 is compatible with Plymouth Voyager. Use the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Yes, part number 18323-037 is designed for Dodge Caravan. Follow the installation instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager on page 1 of the manual.
Part number 18323-037 is rated for 7.5 amps per circuit.
Yes. For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager, remove the right tail lamp assembly first, then repeat the procedure for the left side. For Dodge Dakota, remove both tail lamp assemblies before beginning installation.
For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager: green, brown, and white wires. For Dodge Dakota: yellow and green wires.

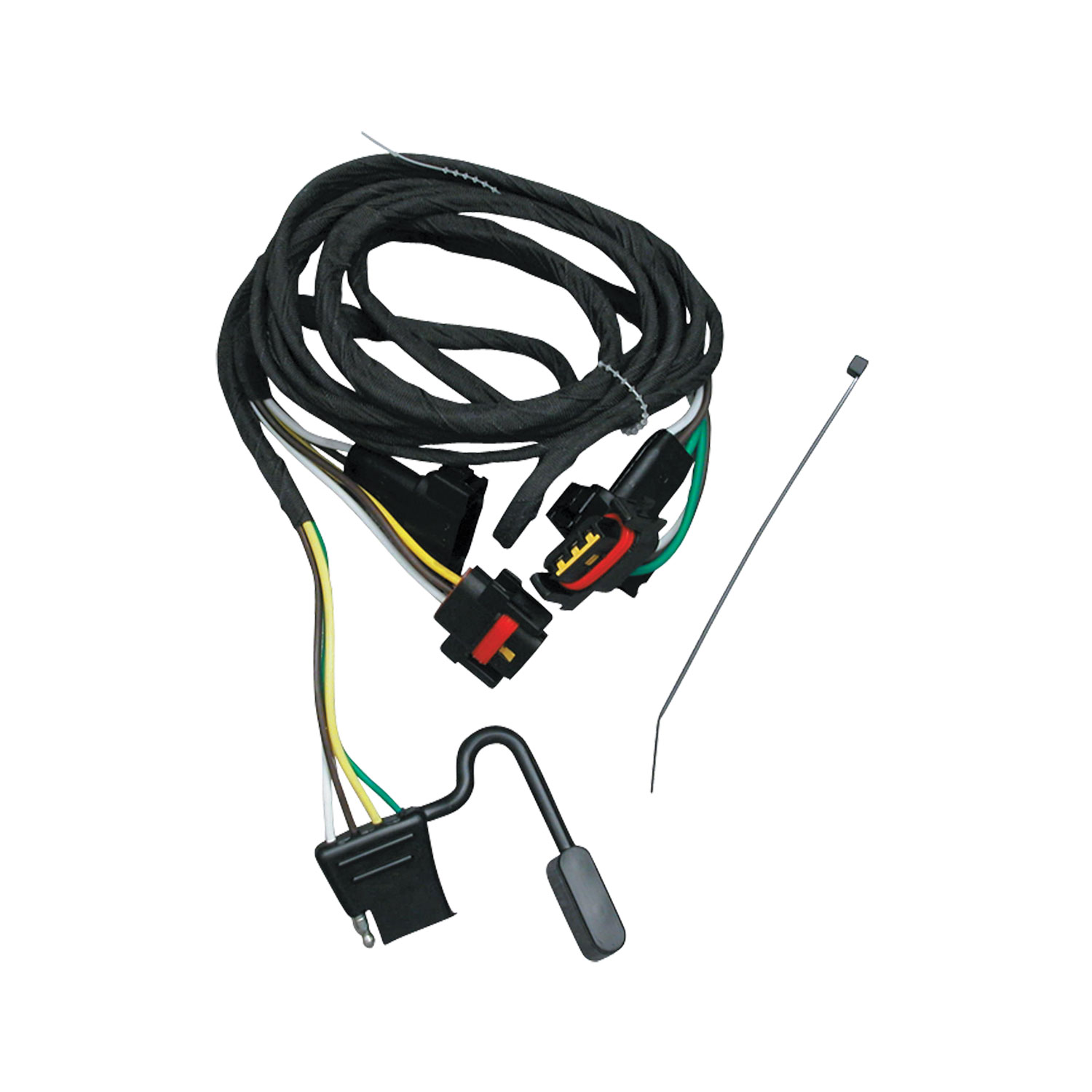

Lay the T-connector harness on top of the bumper. Route the connectors with green, brown, and white wires to the right side of the vehicle. Push the 4-flat plug behind the bumper fascia at the center of the vehicle. Route the remainder of the harness behind the bumper as well. When reinstalling tail lamp assemblies, position the wire harness between the housing and the body, and secure it under the bumper.
Beginning on the left (driver) side, route the T-connector harness containing the yellow wire out from under the vehicle through the taillight opening. Route the connector with the green wire across the vehicle along the vehicle frame and out from under the vehicle through the right (passenger) side tail light opening.
Disconnect the wire harness from the upper tail lamp socket. Plug the T-connector harness connectors into the mating plugs on the tail lamp socket and vehicle wiring harness. Ensure that connectors are fully inserted with locking tabs in place. Repeat this procedure for the left side.
Disconnect the vehicle's wiring harness connector from the taillight assembly. Plug the T-connector between these separated halves, ensuring the connectors are fully inserted together. Repeat this procedure for the other side using the appropriate connector (yellow wire on left side, green wire on right side).
Test the installation with a test light or trailer to verify that all connections are working correctly.
Be careful not to damage connector locking tabs when disconnecting the wire harness. Ensure that connectors are fully inserted with locking tabs in place when connecting the T-connector harness. Do not pinch the wires when reinstalling the tail lamp assemblies.
Part number 18323-037 fits Chrysler Town & Country, Dodge Caravan, Plymouth Voyager, and Dodge Dakota. Installation procedures differ by vehicle model.
Yes. Remove the right tail lamp assembly first for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager; remove both tail lamp assemblies for Dodge Dakota.
Test the installation with a test light or trailer to verify proper operation.
For Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager: green, brown, and white. For Dodge Dakota: yellow and green.
Do not damage connector locking tabs. Ensure connectors are fully inserted with locking tabs in place. Do not pinch wires when reinstalling tail lamp assemblies.
