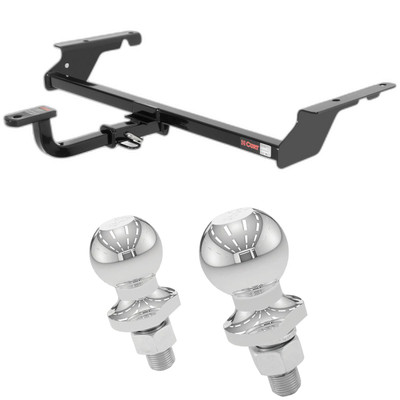

2005-2011 Volvo V50 Wagon Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $503.85. Current price is $478.71.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2005 - 2011 Volvo S40
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2005-2011 Volvo S40 All
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Volvo S40 and V50 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

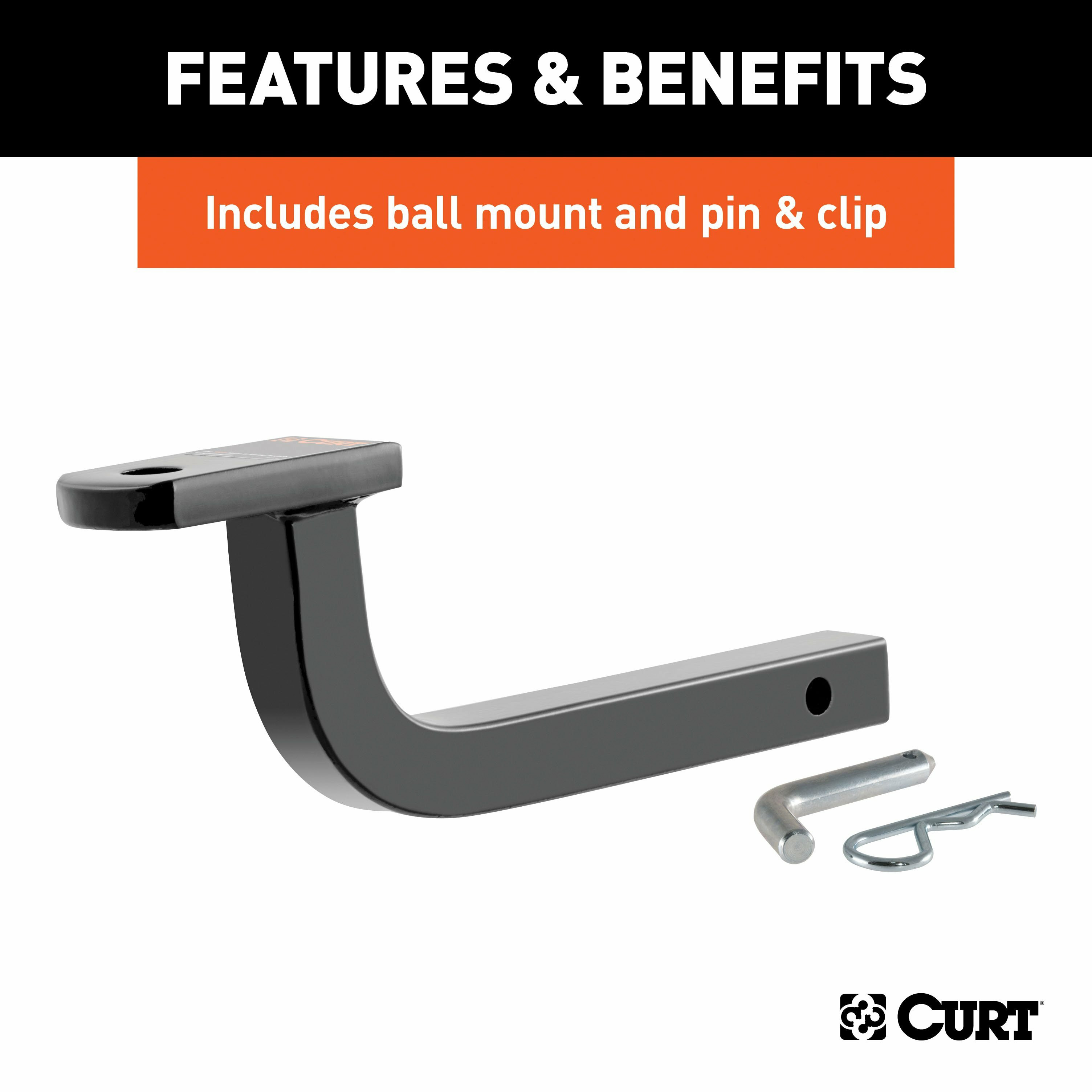

Includes ball mount #45522, installation hardware, pin & clip

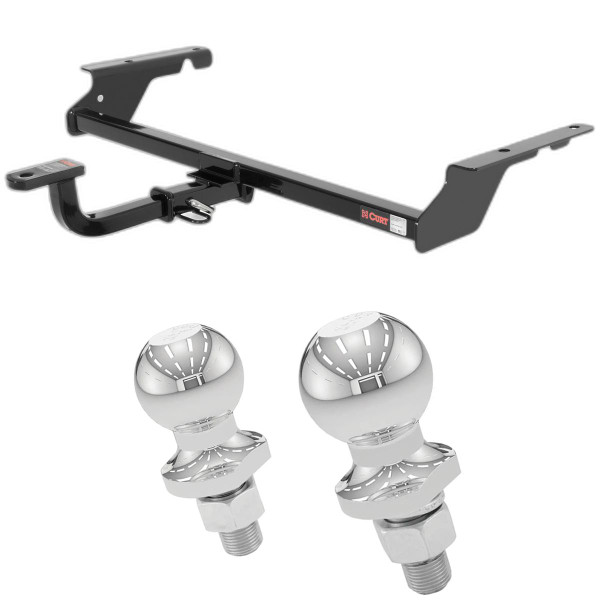

2005, 2006, 2007, 2008, 2009, 2010, 2011 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Volvo S40, V50
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2011 | Volvo S40 | — |
The 2005-2011 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114383-002) fits 2005-2011 Volvo S40 models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2005-2011 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114383-002) fits the following vehicles: 2005-2011 Volvo S40. Always verify your specific year, make, and model before ordering.
Yes, the 2005-2011 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114383-002) is designed to fit the 2005-2011 Volvo S40.
The 2005-2011 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114383-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 11438 is designed for Volvo S40 and V50 Wagon models. This is a receiver hitch rated for 2,000 lbs trailer weight and 200 lbs tongue weight capacity.
No, drilling is not required. The installation uses existing vehicle attachment points on the frame rail and tie-down bracket.
Yes. You must lower the exhaust by removing two M8 bolts from each side and discard them. You also need to bend the tabs on the exhaust bracket to allow clearance for the hitch.
Torque all M8 fasteners to 23 lb-ft and all 1/2" fasteners to 110 lb-ft.
Non-trailer loads can be carried, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight capacity. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch is designed for use with ball mount number D-221.
The kit includes: 4 M8-1.25 x 40 hex bolts, 2 1/2-13 x 1 3/4 hex bolts, 2 CM-SP50 round hole spacers (0.250 x 1.00 x 1.50 inch), 2 HFN 1213 hex flange nuts, 4 5/16" lock washers, and 4 5/16" washers.
Yes. Step 1 of the installation requires you to remove two M8 bolts from each side of the exhaust and discard them. The new M8 x 40mm bolts included in the kit are used to secure the hitch.
1. Lower the exhaust by removing two M8 bolts from each side and discard them. Bend the tabs on the exhaust bracket for clearance. 2. Raise the hitch into position and loosely install the M8 x 40mm bolts with 5/16" conical washers, sandwiching the hitch side bracket between the frame rail and exhaust hanger bracket. 3. Install 1/2" fasteners through the hitch side brackets and vehicle tie-down bracket. 4. Torque all M8 fasteners to 23 lb-ft and all 1/2" fasteners to 110 lb-ft.
Loosely install the M8 x 40mm bolts and 5/16" conical washers in step 2. Install the 1/2" fasteners in step 3. Only after all fasteners are in place do you torque them in step 4: M8 fasteners to 23 lb-ft and 1/2" fasteners to 110 lb-ft.
All M8 fasteners must be torqued to 23 lb-ft.
All 1/2" fasteners must be torqued to 110 lb-ft.
The tabs on the exhaust hanger bracket must be bent to allow clearance for the hitch. This prevents interference between the hitch and the exhaust system.
The kit includes 2 CM-SP50 round hole spacers (0.250 x 1.00 x 1.50 inch). These are used to properly space components during installation, though the manual does not specify their exact placement.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Failure to properly support non-trailer loads with auxiliary stabilizing straps will void the product warranty.
