Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2005-2012 Volvo S40 All
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Volvo S40 and V50 (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Receiver, Select Volvo S40, V50
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2012 | Volvo S40 | — |

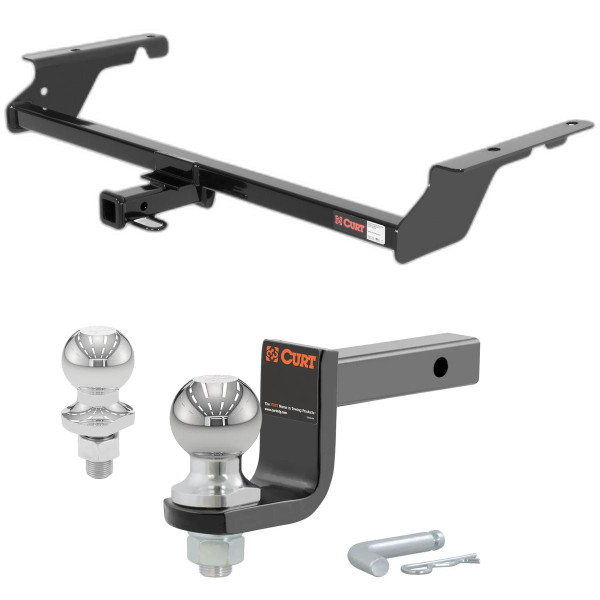

Yes, the 2005-2012 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11438-002) is designed to fit the 2005-2012 Volvo S40.
The 2005-2012 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11438-002) fits 2005-2012 Volvo S40 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2005-2012 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11438-002) fits the following vehicles: 2005-2012 Volvo S40. Always verify your specific year, make, and model before ordering.
The 2005-2012 Volvo S40 All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11438-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt hitch 11438 is designed for the Volvo S40 / V50 Wagon. The hitch is available under part numbers 249438 or 247438.
The manual does not specify the tongue weight capacity. Contact Curt Manufacturing technical support at 877-287-8634 for this specification.
The manual does not specify the trailer weight capacity. Contact Curt Manufacturing technical support at 877-287-8634 for this specification.
The Curt 11438 hitch is designed for use with ball mount D-221.
No, drilling is not required. The hitch uses existing vehicle attachment points on the frame rails and tie-down brackets.
You do not need to fully remove the exhaust, but you must lower it. The first installation step is to lower the exhaust by removing two M8 bolts from each side. These bolts should be discarded. You will also need to bend the tabs on the exhaust bracket to allow clearance for the hitch.
The hitch includes: four M8 × 40 mm hex head cap screws (part 10-10417), two 1/2-13 UNC × 1-3/4" hex head cap screws (part 10-10370), two 0.250 × 1.00 × 1.50" round hole spacers (part CM-SP50), two 1/2-13 UNC serrated flange nuts (part 20-00062), four 5/16" lock washers (part 30-00219), and four 5/16" flat washers (part 30-00195).
1. Lower the exhaust by removing two M8 bolts from each side and discard them. Bend the tabs on the exhaust bracket for hitch clearance. 2. Raise the hitch into position and loosely install the M8 × 40 mm bolts with 5/16" conical washers, sandwiching the hitch side bracket between the frame rail and exhaust hanger bracket. 3. Install the 1/2" fasteners through the hitch side brackets and vehicle tie-down bracket. 4. Torque all M8 fasteners to 23 lb-ft and all 1/2" fasteners to 110 lb-ft.
All M8 fasteners must be torqued to 23 lb-ft.
All 1/2" fasteners must be torqued to 110 lb-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has a gross load capacity, but you must follow Volvo's specifications for your S40 or V50 Wagon.
Non-trailer loads may be applied to this hitch, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval; contact Curt Manufacturing at 877-287-8634 for detailed maintenance recommendations.
The manual does not specify which tools are required. Contact Curt Manufacturing technical support at 877-287-8634 for a complete tool list.
The manual does not address battery disconnection. Contact Curt Manufacturing technical support at 877-287-8634 for safety guidance.
The manual indicates that both professional and DIY installation are possible, but does not provide estimated installation times. For guidance on whether you should use professional installation, contact Curt Manufacturing at 877-287-8634.
Yes, the Curt 11438 (part numbers 249438 or 247438) is designed for Volvo S40 / V50 Wagons.
No drilling is required. The hitch uses existing vehicle attachment points.
Yes. You must lower the exhaust by removing two M8 bolts from each side (discard them) and bend the tabs on the exhaust bracket to allow hitch clearance.
Torque M8 fasteners to 23 lb-ft and 1/2" fasteners to 110 lb-ft.
The Curt 11438 is designed for use with ball mount D-221.
Curt Manufacturing warrants the hitch to be free of defects in material and workmanship at retail purchase. Alteration, misuse, or improper installation voids the warranty. Non-trailer loads must be supported by auxiliary stabilizing straps or warranty is void.
