CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2005 - 2015 Nissan Xterra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2005-2015 Nissan Xterra All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Xterra (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

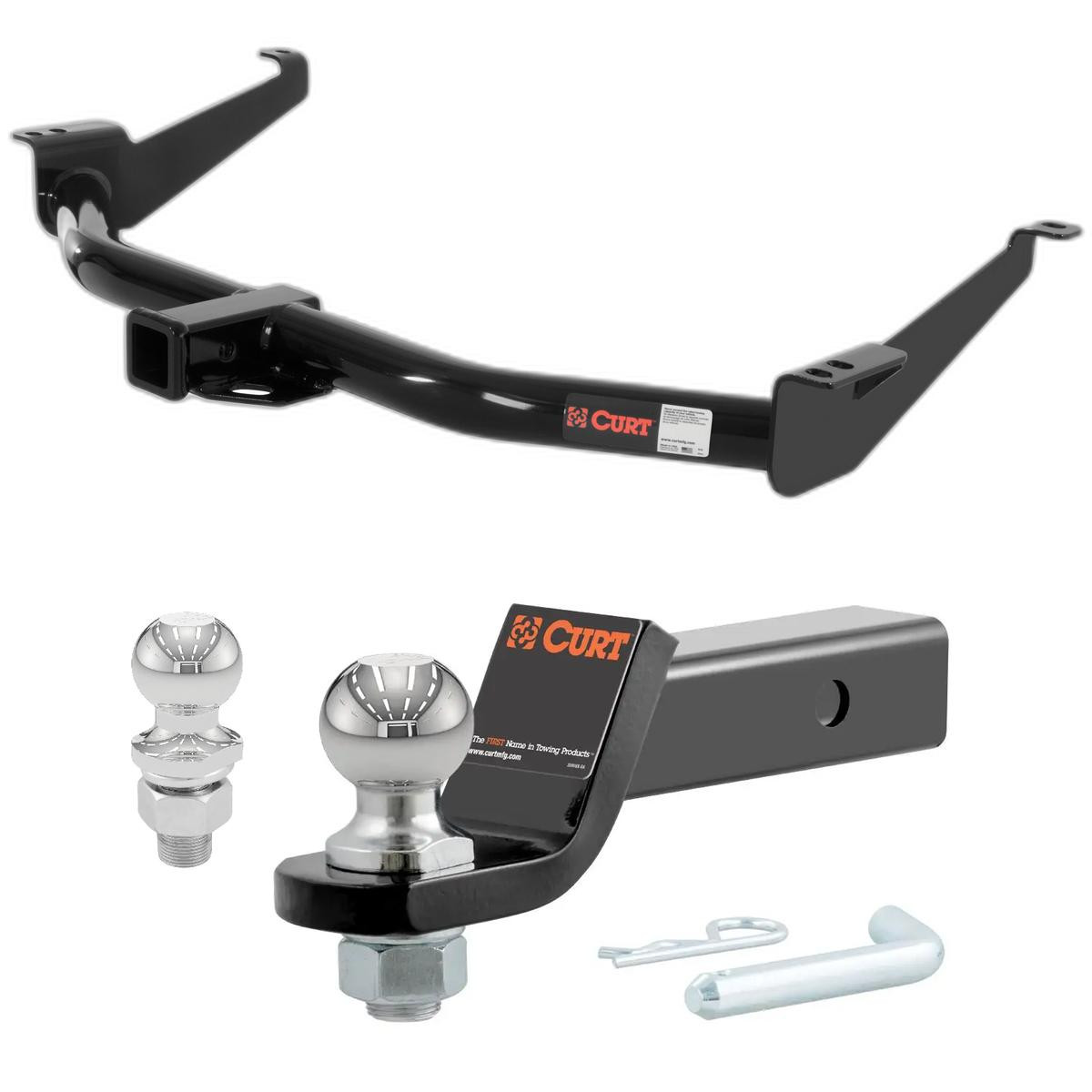

2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Nissan Xterra All Class 3 Trailer Hitch, 2" Receiver, Select Nissan Xterra
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2015 | Nissan Xterra | — |
Yes, Curt part number 13514 (also listed as 78204/RRH13514) is designed for the Nissan Xterra. The manual does not specify model years or body styles, so contact Curt Technical Support at 1-877-287-8634 to confirm your specific vehicle configuration.
As a weight-carrying hitch: 4,000 lbs trailer weight and 400 lbs tongue weight. As a weight-distribution hitch: 6,000 lbs trailer weight and 600 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 60 lbs.
No, drilling is not required. The hitch uses existing factory bolt holes and fasteners.
Required tools: 1/2" ratchet, torque wrench, 6" extension, 22mm socket, 19mm socket, 12mm socket, and 12mm wrench.
Yes, the spare tire must be lowered for ease of installation and then reinstalled after the hitch is secured.
Yes, the exhaust must be lowered by removing three bolts from the exhaust hanger bracket. These bolts are reused and the exhaust is reinstalled after the hitch is secured.
Torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft.
The Curt 13514 is designed for the Nissan Xterra and requires no drilling. However, the installation process requires lowering the spare tire and exhaust to clear the hitch during installation. Contact Curt Technical Support at 1-877-287-8634 to confirm compatibility with your specific model year and body style.
The hitch includes: four M12 hex tap bolts (part 10-10269), four 9/16" lock washers (part 30-00194), two M14 hex tap bolts (part 10-10275), and two 1/2" conical washers (part 30-00149). The lower bumper bracket bolts are removed and discarded; they are not reused.
1. Lower the spare tire. 2. Lower the exhaust by removing three bolts from the exhaust hanger bracket. 3. Remove the lower two bumper bracket bolts on both sides (discard them; do not remove the top bolt). 4. Raise the hitch into position over the exhaust and finger-tighten with M12 hex bolts and conical washers. 5. Install the remaining M14 hex bolts and lock washers through the hitch and bumper bracket. 6. Reinstall the exhaust hanger bracket. 7. Torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft. 8. Reinstall the spare tire.
The exhaust must be lowered to provide clearance for the hitch to be raised into position. The exhaust hanger bracket is removed by taking out three bolts, and these bolts are reused to reinstall the bracket after the hitch is secured.
Remove only the lower two bumper bracket bolts on both sides of the vehicle. Do not remove the top bolt. The lower bolts are discarded and not reused.
All M12 fasteners must be torqued to 86 lb-ft.
All M14 fasteners must be torqued to 136 lb-ft.
Yes. After raising the hitch into position over the exhaust, finger-tighten the M12 hex bolts and conical washers first. Then install the M14 hex bolts and lock washers. Finally, torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; consult your vehicle manufacturer's maintenance schedule or contact Curt Technical Support at 1-877-287-8634 for recommended intervals.
Do not exceed your vehicle manufacturer's recommended towing capacity, even if the hitch capacity is higher. The Curt 13514 supports up to 4,000 lbs trailer weight and 400 lbs tongue weight as a weight-carrying hitch, or 6,000 lbs trailer weight and 600 lbs tongue weight as a weight-distribution hitch.
Curt Manufacturing warrants the hitch to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
