Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2005-2015 Toyota Tacoma All

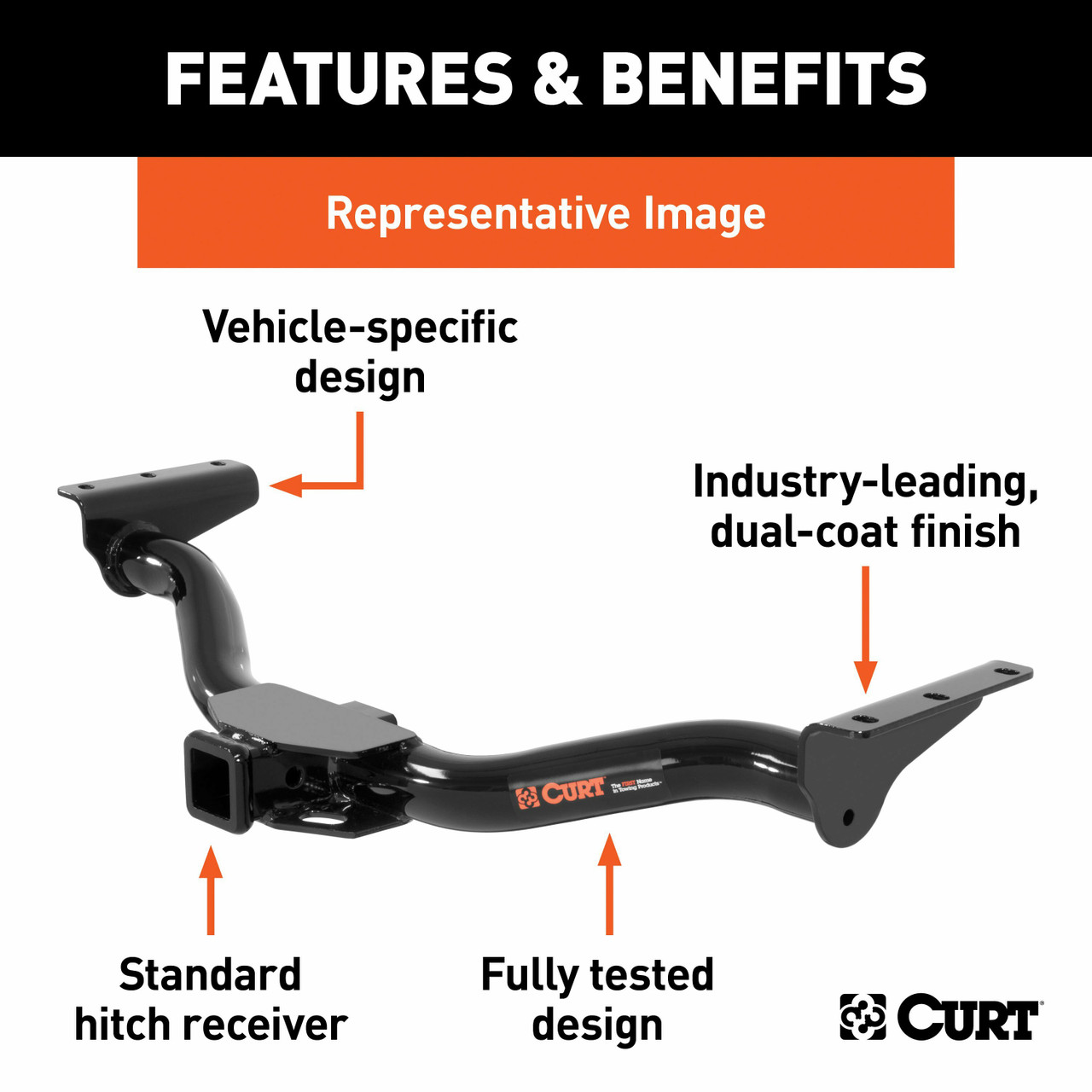

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Tacoma (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,500 lbs. WD and 550 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Tacoma All Class 3 Trailer Hitch, 2" Receiver, Select Toyota Tacoma
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2015 | Toyota Tacoma | — |
The 2005-2015 Toyota Tacoma All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13323-001) fits the following vehicles: 2005-2015 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
The 2005-2015 Toyota Tacoma All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13323-001) fits 2005-2015 Toyota Tacoma models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2005-2015 Toyota Tacoma All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13323-001) is designed to fit the 2005-2015 Toyota Tacoma.
The 2005-2015 Toyota Tacoma All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13323-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The part number is 13323. The hitch is manufactured by Curt Manufacturing and was published on 6/15/2012.
Yes, part number 13323 is designed for Toyota Tacoma and X-Runner vehicles. The installation instructions are specific to these models.
The kit includes: 4× M12-1.25×40 hex bolts, 4× 1/2" conical toothed washers, and 4× 0.188×1.50×2.00" round hole spacers (part number CM-SP32). The spacers are used to create clearance between the bumper bracket and bumper structure.
Yes, bumper removal is required. You must remove 2 hex bolts and loosen 3 hex bolts from each bumper bracket to access the frame rails and install the hitch.
No, drilling is not required. The hitch uses existing frame weldnuts and factory bolt holes.
Yes, for X-Runner models only, the X-frame support bracket must be temporarily removed during hitch installation and then reinstalled after the hitch is fully installed.
If the bumper alignment pin interferes with hitch installation, use a saw or cutoff wheel to remove the alignment pin from the side bracket.
1. Remove 2 hex bolts and loosen 3 hex bolts from each bumper bracket. 2. Raise the hitch into position between the bumper brackets and frame rails. Install supplied bolts through the hitch into frame weldnuts. 3. Reinstall factory bolts through bumper brackets, hitch plates, and into the frame. 4. With bumper supported, remove 2 existing hex bolts from one side of the bumper bracket and bumper structure. 5. Insert 2 spacer blocks (CM-SP32) between bumper bracket and bumper on both sides, then reinstall bolts. 6. Torque all hardware. 7. For X-Runner only, temporarily remove and then reinstall the X-frame support bracket.
The 4 spacer blocks (CM-SP32, 0.188×1.50×2.00") are inserted between the bumper bracket and bumper structure. Two spacers are installed on each side of the vehicle during step 5 of the installation.
Torque supplied M12 hardware to 86 ft-lbs, existing M12 hardware to 86 ft-lbs, and existing M10 hardware to 48 ft-lbs.
The bumper must be supported during installation to keep it from dropping down. This is a safety precaution to prevent injury and damage during the installation process.
The hitch weight specification is not provided in the installation manual. Contact Curt Manufacturing technical support at 1-877-287-8634 for this information.
The manual lists load capacity specifications for both weight carrying and weight distribution modes, but the specific values are not filled in. Contact Curt Manufacturing technical support at 1-877-287-8634 for the exact trailer weight and tongue weight capacities.
Yes, the Curt 13323 is designed for Toyota Tacoma and X-Runner models. No drilling is required, but bumper removal is necessary.
The kit includes 4 M12-1.25×40 hex bolts, 4 1/2" conical toothed washers, and 4 spacer blocks (CM-SP32).
No, drilling is not required. The hitch bolts into existing frame weldnuts.
Yes, bumper removal is required. You will remove 2 bolts and loosen 3 bolts from each bumper bracket to access the frame.
Torque supplied M12 bolts to 86 ft-lbs and existing M10 bolts to 48 ft-lbs.
Yes, for X-Runner models only, temporarily remove the X-frame support bracket during installation and reinstall it after the hitch is fully installed.
Support the bumper to keep it from dropping during installation. If the bumper alignment pin interferes, remove it with a saw or cutoff wheel.
