Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

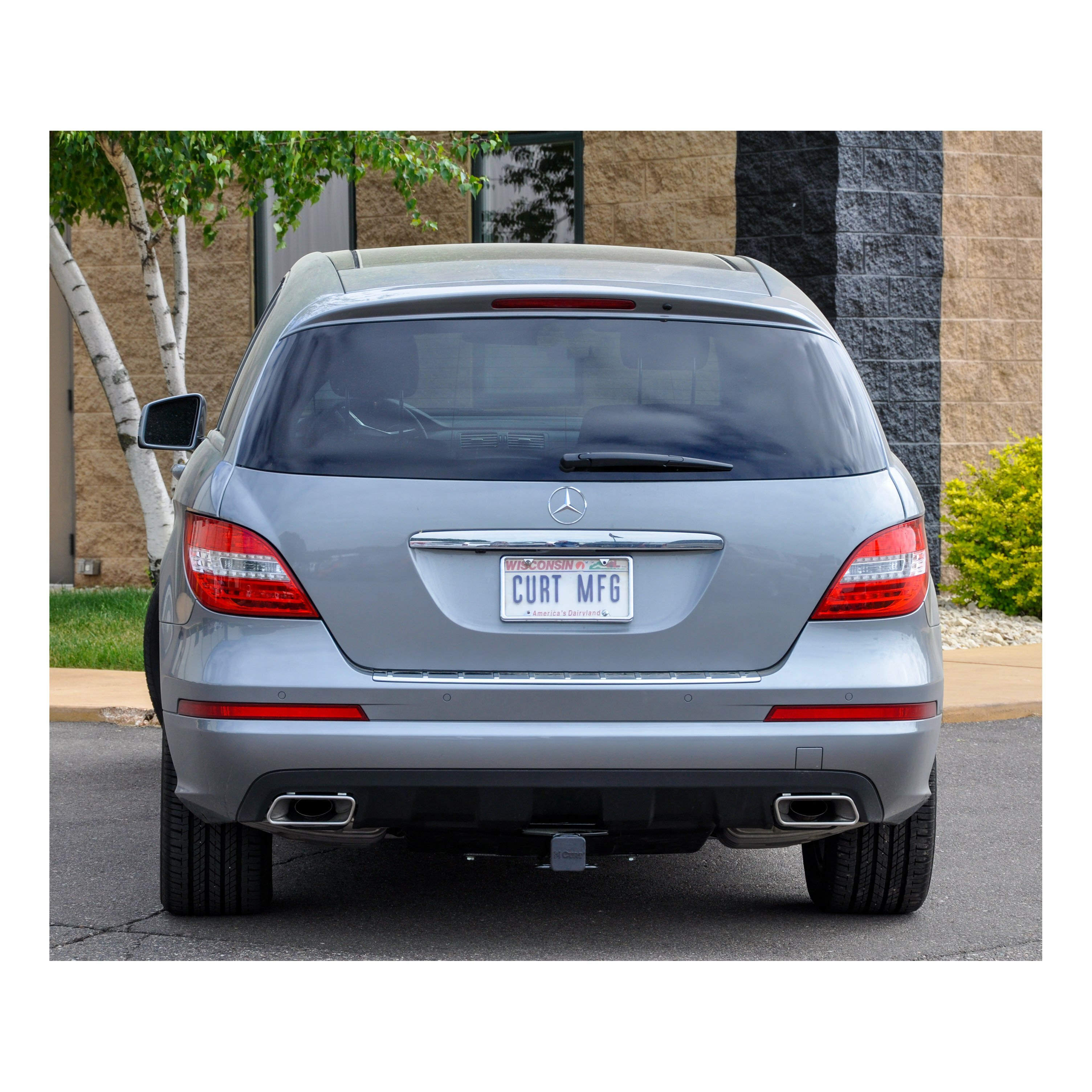

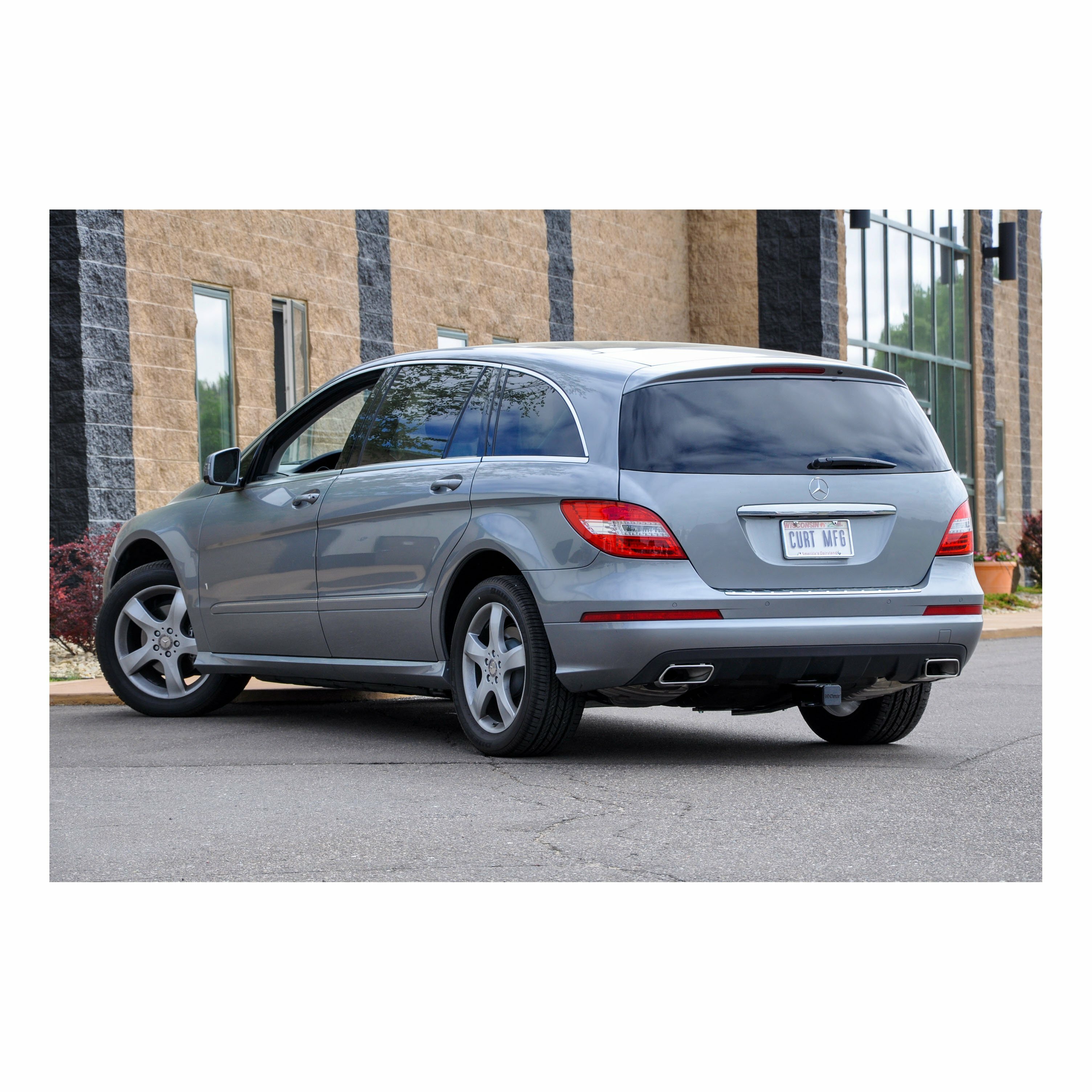

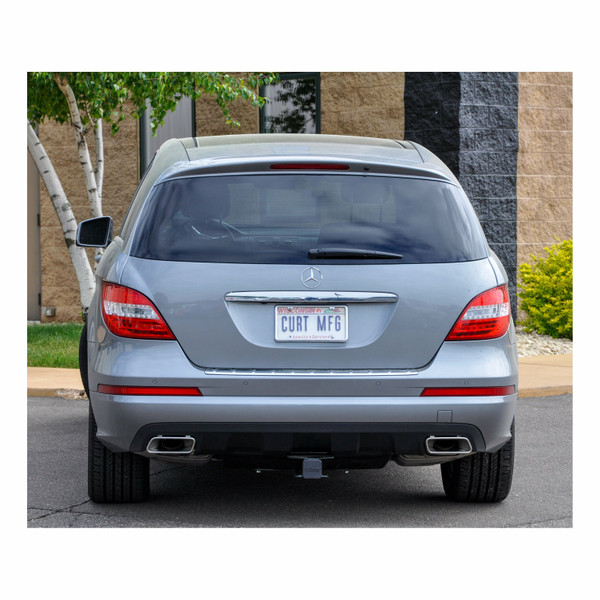

This fits: 2007-2009 Mercedes-Benz R320 All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mercedes-Benz R320, R350 and R500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

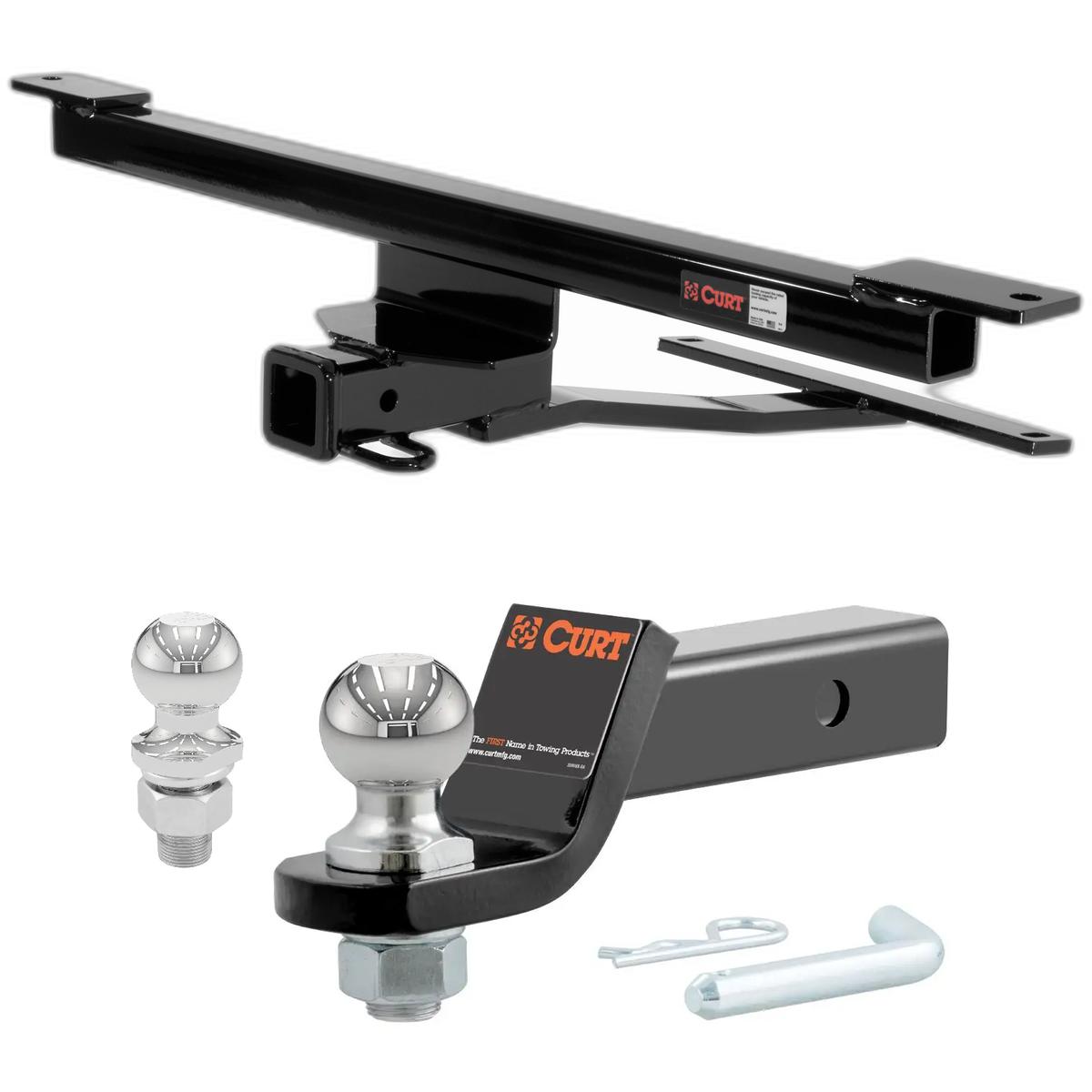

2007, 2008, 2009 Mercedes-Benz R320 All Class 3 Trailer Hitch, 2" Receiver, Select Mercedes-Benz R320, R350, R500
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2009 | Mercedes-Benz R320 | — |
The 2007-2009 Mercedes-Benz R320 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13103-004) fits the following vehicles: 2007-2009 Mercedes-Benz R320. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2009 Mercedes-Benz R320 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13103-004) is designed to fit the 2007-2009 Mercedes-Benz R320.
The 2007-2009 Mercedes-Benz R320 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13103-004) fits 2007-2009 Mercedes-Benz R320 models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2009 Mercedes-Benz R320 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13103-004) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13103 is designed for Mercedes R350, R500, R320 CDI, R320, and R350 BlueTEC models. The hitch has a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Yes, Curt part number 13103 is compatible with the Mercedes R320 CDI. The installation procedure is the same as for other R-Class models covered by this manual.
The Curt 13103 has a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
You will need: ratchet, torque wrench, 10mm socket, 15mm socket, 17mm socket, 15mm wrench, rotary tool, and safety glasses. The rotary tool is required for trimming the underbody panel.
Only if your vehicle does not have existing crossmembers. For vehicles without crossmembers, you must remove the spare tire and tool kit from inside the vehicle before installation (Step 3 of the installation procedure). For vehicles with existing crossmembers, spare tire removal is not required.
Yes, you must trim the underbody panel for hitch clearance. The manual includes a diagram showing where to trim. You may also need to trim the bumper cover on some models. A rotary tool is required for this work. The trimming is permanent.
The kit includes: (2) M10×1.5×45mm hex head cap screws, (2) M10×1.5×140mm hex head cap screws, (2) 7/16-14 UNC carriage bolts, (2) M10×1.5 flange nuts, (2) 7/16-14 UNC serrated flange nuts, (6) 3/8" flat washers, (2) 3/8" conical toothed washers, (2) round hole spacers (CM-SP52), and (2) square hole spacers (CM-SP2).
Yes. You will remove 4 fascia bolts; 3 of these will be reused to reattach the fascia later, and 1 will not be reused and should be returned to the vehicle owner. You will also remove nuts from the underbody panel and the inside bumper mounting bolts and nuts on both sides; these should be retained and reinstalled later.
All M10 hardware must be torqued to 45 lb-ft. This applies to both M10×1.5×45mm and M10×1.5×140mm bolts and M10×1.5 flange nuts.
For vehicles without crossmembers, 7/16" hardware (carriage bolts and serrated flange nuts) must be torqued to 59 lb-ft. The manual does not specify a torque value for 7/16" hardware on vehicles with crossmembers.
Vehicles with crossmembers: You remove the crossmember fasteners and use M10 bolts to secure the hitch to the crossmember and trunk pan. Vehicles without crossmembers: You remove the spare tire and tool kit, and use 7/16" carriage bolts with CM-SP2 spacers to secure the hitch directly to the trunk pan through existing holes. Both require underbody panel trimming and reinstallation of fascia bolts.
Only if your vehicle does not have existing crossmembers. For vehicles without crossmembers, you must use silicone sealant to seal hardware installed through the trunk pan (Step 10). For vehicles with crossmembers, silicone sealant is not mentioned.
All non-trailer loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is a routine maintenance requirement to maintain the warranty and ensure safe operation.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt will repair or replace the product at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation.
Yes, the Curt 13103 is designed for Mercedes R350, R500, R320 CDI, R320, and R350 BlueTEC models.
You need a ratchet, torque wrench, 10mm, 15mm, and 17mm sockets, 15mm wrench, rotary tool, and safety glasses.
Yes, you must trim the underbody panel for hitch clearance using a rotary tool. You may also need to trim the bumper cover on some models.
Torque all M10 hardware to 45 lb-ft. For vehicles without crossmembers, torque 7/16" hardware to 59 lb-ft.
The hitch has a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
