Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2007-2011 Chevrolet Aveo5 All
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Aveo5 and Pontiac G3 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip

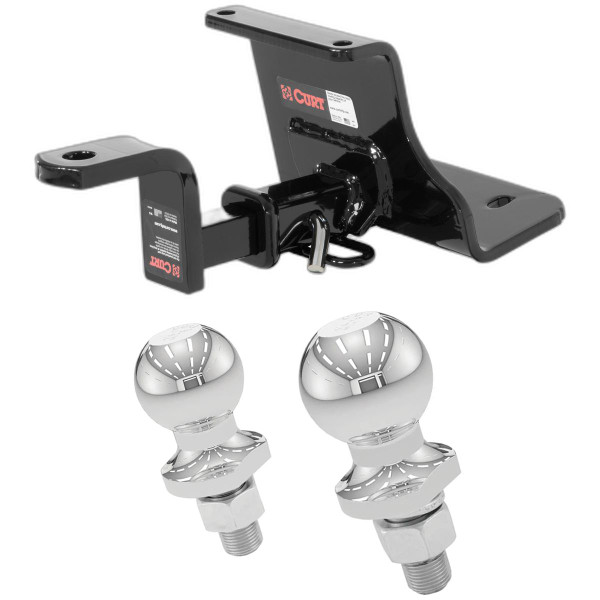

2007, 2008, 2009, 2010, 2011 Chevrolet Aveo5 All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Chevrolet Aveo5, Pontiac G3
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Chevrolet Aveo5 | — |
The 2007-2011 Chevrolet Aveo5 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113063-001) fits 2007-2011 Chevrolet Aveo5 models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2011 Chevrolet Aveo5 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113063-001) fits the following vehicles: 2007-2011 Chevrolet Aveo5. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2011 Chevrolet Aveo5 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113063-001) is designed to fit the 2007-2011 Chevrolet Aveo5.
The 2007-2011 Chevrolet Aveo5 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113063-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt hitch 11306 is designed for the Chevrolet Aveo 5 hatchback. It is also compatible with the Pontiac G3 hatchback. Confirm your vehicle is a hatchback model before purchasing.
Yes, Curt hitch 11306 is designed for the Pontiac G3 hatchback. It is also compatible with the Chevrolet Aveo 5 hatchback.
The hitch has a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 16 lbs.
You will need: 3/4" socket, 12" extension, ratchet, torque wrench, and a drill with 1/2" bit.
The kit includes: 3 carriage bolts (1/2-13 x 1 3/4"), 3 spacers (.250 x 1.00 x 3.00" square hole), 3 hex flange nuts (HFN 1213), and 2 pieces of 1/2" x 30" fishwire.
Yes, drilling is required. You must drill holes in the bumper beam for 1/2" bolts. The drill access is obtained by removing the bottom rear fascia screws. A 1/2" drill bit is required.
You do not need to remove the entire fascia, but you must remove the bottom rear fascia screws to allow drill access through the rear holes of the hitch and into the bumper. These screws are reinstalled after drilling and torquing.
All 1/2" fasteners must be torqued to 110 lb-ft.
1. Place carriage bolt and spacer into the vehicle's tow loop and raise the hitch into position, securing with hex flange nut (finger tight). 2. Remove bottom rear fascia screws for drill access. 3. Rotate hitch to center it on the vehicle and square it to the bumper, then drill 1/2" holes in the bumper beam. 4. Fishwire carriage bolts and spacers through the bumper ends, out the drilled holes, and through the hitch mounting holes. 5. Install flange nuts to the carriage bolts. 6. Torque all 1/2" fasteners to 110 lb-ft and reinstall fascia screws.
Fishwire is a fastening method where bolts and spacers are threaded through the bumper from the outside, passing through the drilled holes and into the hitch mounting holes. The term refers to the flexible 1/2" x 30" fishwire included in the kit, which is used to guide the carriage bolts through the bumper.
During Step 1, secure the carriage bolt and spacer in the tow loop with the hex flange nut at finger tight only. Full torquing to 110 lb-ft is performed in Step 6, after all fasteners are installed and the hitch is properly aligned and drilled.
In Step 3, rotate the hitch so that it is centered on the vehicle and square to the bumper before drilling the holes for the 1/2" bolts.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself is rated for 2,000 lbs. trailer weight and 200 lbs. tongue weight, but your vehicle's capacity may be lower.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt hitch 11306 is designed for use with ballmount #55001 or #45501.
Yes, Curt 11306 is designed specifically for Chevrolet Aveo 5 and Pontiac G3 hatchbacks.
Yes, you must drill 1/2" holes in the bumper beam. You will need a drill with a 1/2" bit.
You need: 3/4" socket, 12" extension, ratchet, torque wrench, and a drill with 1/2" bit.
All 1/2" fasteners must be torqued to 110 lb-ft.
The hitch is rated for 2,000 lbs. trailer weight and 200 lbs. tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer loads must be supported by auxiliary stabilizing straps. Failure to do so voids the warranty. Do not exceed your vehicle's towing capacity.
