CURT
On Sale Today
Original price was $541.85. Current price is $394.71.You save $147.14 (27%)
Free Shipping
Ships free on all orders
Authorized Dealer
2007 - 2018 BMW X5
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Aug 13 - Sun, Aug 16
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2007-2018 BMW X5 All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the BMW X5 and X6 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 BMW X5 All Class 3 Trailer Hitch, 2" Receiver, Select BMW X5, X6
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime

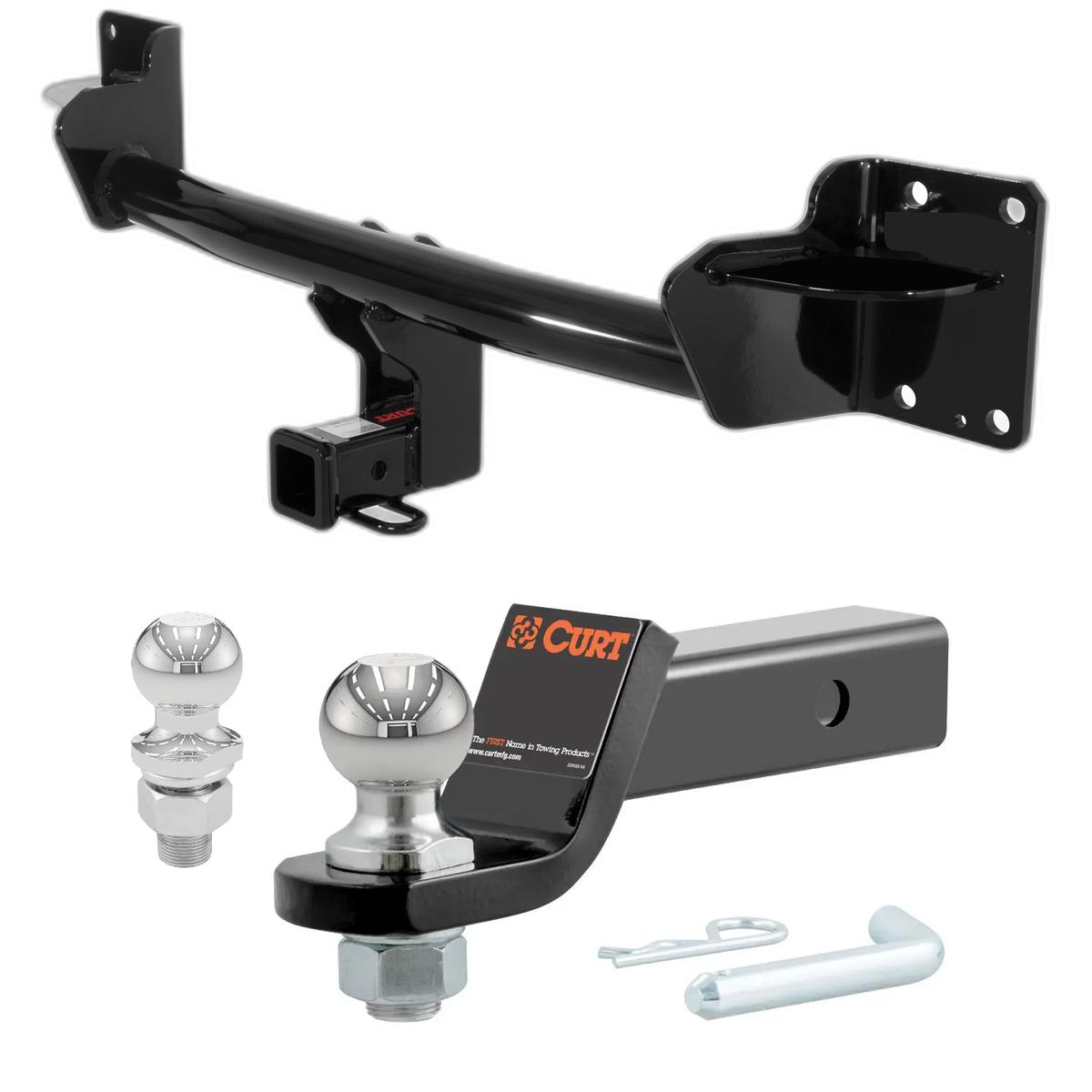

The 2007-2018 BMW X5 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13077-001) fits the following vehicles: 2007-2018 BMW X5. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2018 BMW X5 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13077-001) is designed to fit the 2007-2018 BMW X5.
The 2007-2018 BMW X5 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13077-001) fits 2007-2018 BMW X5 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2018 BMW X5 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13077-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
When used as a weight carrying hitch, the gross load capacity is not specified in the manual (the specification page shows a blank value). When used as a weight distribution hitch, the gross load capacity is 6,000 lbs trailer weight and 600 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Contact Curt technical support at 1-877-287-8634 for the weight carrying capacity specification.
Yes, Curt hitch 13077 is designed for BMW X5 and X6 models from 2007 to present. The installation instructions are specific to these vehicles. If your X5 or X6 is 2007 or later, this hitch is compatible.
No. The manual states: 'OEM tow hooks can no longer be used at rear of vehicle' after this hitch is installed. The hitch installation requires removal and modification of the rear bumper fascia, which makes the factory tow hooks inaccessible.
Required tools are: 8mm and 18mm sockets, ratchet, 8-inch socket extension, torque wrench, plastic rivet gun, aviation shears, tape measure, pry tool, and safety glasses. A torque wrench is essential because all M12 hardware must be torqued to exactly 82 lb-ft.
The hitch includes 8 M12×1.5 Class 10.9 hex nuts (part 20-00133), 8 S-CON 1/2-inch washers (part 30-00149), and 4 black 1/4-inch rivets (part 10-10501). The hitch mounts to existing weld studs on both frame rails; no drilling is required.
The manual states: 'To ease installation, 2 people may be required.' This suggests that while one person may be able to complete the installation, having a second person will make the job easier, particularly when handling the bumper fascia and beam removal and when raising the hitch into position.
The installation is rated as 'Challenging'. The manual recommends reading all instructions thoroughly before beginning and suggests contacting an authorized Curt installer if you are hesitant to undertake the task on your own. Technical support is available at 1-877-287-8634.
No. The manual clearly states 'NO DRILLING REQUIRED'. The hitch mounts to existing weld studs on both frame rails using the supplied M12 hardware.
Yes. The manual states 'FASCIA TRIMMING REQUIRED'. In step 7, you must trim the bumper fascia as shown in the trim diagram using aviation shears. The trim diagram shows cuts of 4.00 inches and 2.25 inches. The manual notes that all dimensions are approximate, so you should confirm fit prior to trimming.
The manual states: 'Once removed return bumper beam to owner.' This indicates the bumper beam is removed during installation but should be returned to the vehicle owner. The manual does not specify whether it is reinstalled on the vehicle or retained separately by the owner.
All M12 hardware must be torqued to 82 lb-ft (foot-pounds). This is a critical specification; use a calibrated torque wrench to ensure proper fastener tension.
Follow these steps in order: (1) Remove 2 plastic rivets from each wheel well opening, pull back wheel well cover, and remove 1 fastener on each side using 8mm socket. (2) Unclip 1 reflector on each side and remove 1 fastener on each side using 8mm socket. (3) Remove 6 fasteners on the bottom of the bumper fascia and unplug electrical harness if present. On 2011–present models, remove tail lights via trunk access panel and remove 2 nuts on each side using 8mm socket. (4) Release press-in tabs along the top of the bumper fascia and remove it. Remove 4 nuts on each side using 18mm socket to remove the bumper beam. Lowering the tailgate to 45 degrees allows access to upper mounting nuts.
Raise the hitch into position aligned with the existing weld studs on both frame rails. Secure it using the supplied M12 hardware (8 nuts and 8 washers). Then torque all M12 hardware to 82 lb-ft using a torque wrench.
After trimming the fascia as required and confirming fit, reinstall it onto the vehicle using the provided black 1/4-inch rivets. Use a plastic rivet gun to secure the fascia. The manual notes that OEM tow hooks can no longer be used at the rear of the vehicle after installation.
Wear safety glasses at all times while installing this product. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance. Technical support is available at 1-877-287-8634.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. This applies to any load that is not a trailer (such as cargo carriers, bike racks, or other accessories).
You must never exceed your vehicle manufacturer's recommended towing capacity. This is a critical safety requirement stated in the manual. Even though the hitch has a rated capacity (6,000 lbs trailer weight and 600 lbs tongue weight for weight distribution mode), your BMW's manufacturer specifications may be lower and must be followed.
Periodically check the hitch to ensure that all fasteners are tight and that all structural components are sound. This is an ongoing maintenance requirement, not a one-time check. Regular inspection helps prevent loosening of fasteners due to vibration and use.
The manual states to 'periodically check' all fasteners to ensure they are tight and all structural components are sound. While a specific interval is not provided, periodic checks should be performed regularly during the life of the hitch, particularly after initial installation and before each towing trip.
Yes, Curt 13077 fits BMW X5 and X6 models from 2007 to present.
No drilling is required. The hitch mounts to existing weld studs on the frame rails. Fascia trimming is required using aviation shears.
You need 8mm and 18mm sockets, ratchet, 8-inch socket extension, torque wrench, plastic rivet gun, aviation shears, tape measure, pry tool, and safety glasses.
All M12 hardware must be torqued to 82 lb-ft using a calibrated torque wrench.
As a weight distribution hitch: 6,000 lbs trailer weight and 600 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Two people may be required to ease installation, though one person may be able to complete it.
Wear safety glasses at all times during installation. All non-trailer loads must be supported by auxiliary stabilizing straps. Never exceed your vehicle manufacturer's recommended towing capacity.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2018 | BMW X5 | — |
