Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2000-2006 BMW X5 SUV
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the BMW X5 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

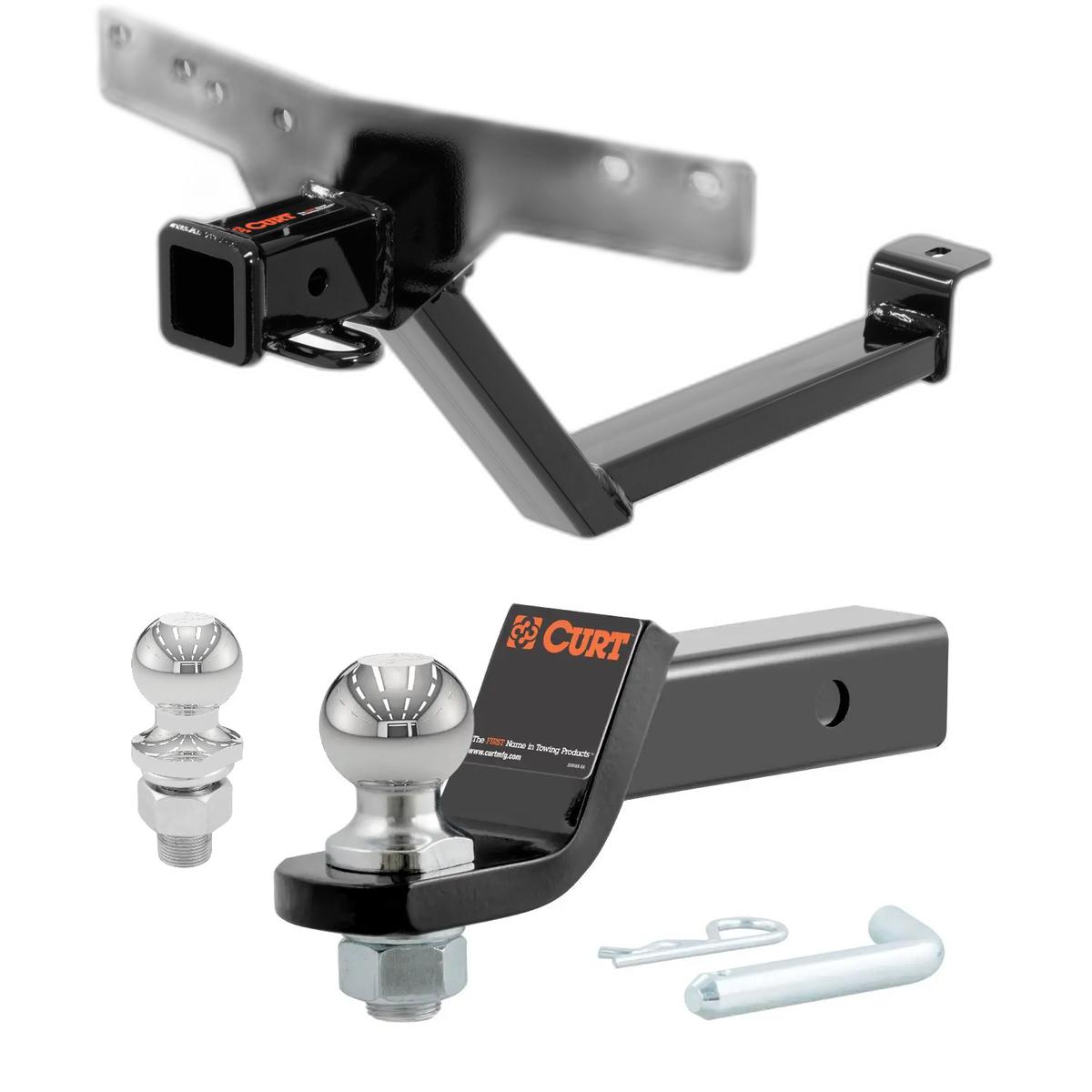

2000, 2001, 2002, 2003, 2004, 2005, 2006 BMW X5 SUV Class 3 Trailer Hitch, 2" Receiver, Select BMW X5
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2006 | BMW X5 | SUV |
The 2000-2006 BMW X5 SUV CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13162-001) fits the following vehicles: 2000-2006 BMW X5. Always verify your specific year, make, and model before ordering.
The 2000-2006 BMW X5 SUV CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13162-001) fits 2000-2006 BMW X5 models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2000-2006 BMW X5 SUV CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13162-001) is designed to fit the 2000-2006 BMW X5.
The 2000-2006 BMW X5 SUV CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13162-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 120 lbs.
Yes, Curt part number 13162 is designed for the BMW X5.
The bumper fascia must be trimmed to allow clearance for the hitch main body tubes. The trim opening should be approximately 2 3/4" wide × 4 1/2" long, centered on the lower bumper fascia. The bumper fascia can then be reinstalled, and the center door either returned to the vehicle owner or trimmed to allow the receiver to pass through.
The parts list includes: 1× 1/2-13 rivet nut (20-00203), 1× 1/2" flat washer (30-00133), 1× 1/2" lock washer (30-00153), 1× 1/2" S-con washer (30-00149), 1× 1/2-13 UNC 1-3/4" grade 8 hex head cap screw (10-10370), 6× 3/8" S-con washers (30-00148), 6× M10×1.5 50mm class 10.9 hex head cap screws (10-10490), and 6× 3/4" × 11 GA tube spacers (13162-TS).
Yes, the bumper fascia must be removed before installation. Remove 4 screws from inside the rear fenders, remove each trim ring and fascia center door, remove 1 screw above each exhaust opening, then pull the bumper fascia straight back.
Remove the 6 existing M10 fasteners from the rear attachment beam. These should be returned to the vehicle owner.
Yes, drilling is required. You must drill a 1/2" hole at a location 1 1/8" from the front on the bottom of the forward attachment beam, then enlarge that hole to 11/16".
Yes, trimming is required. The bumper fascia must be trimmed to allow clearance for the hitch main body tubes, approximately 2 3/4" wide × 4 1/2" long, centered on the lower bumper fascia.
Measure and mark 1 1/8" from the front on the bottom of the forward attachment beam. Drill a 1/2" hole at the point where this measurement meets the slot toward the front of the vehicle, then enlarge the hole to 11/16".
All 1/2" fasteners must be torqued to 110 lb-ft.
All M10 fasteners must be torqued to 45 lb-ft.
Insert the rivet nut into the drilled hole, then layer in order: lock washer, washer, hitch, conical washer, and bolt. Press the hitch up to the vehicle tightly and torque the bolt to 45 lb-ft. Then remove the bolt and conical washer to remove the lock washer and washer, and reinstall the bolt and conical washer.
Do not exceed the vehicle manufacturer's recommended towing capacity. The manual does not specify a capacity for this hitch; you must consult your BMW X5 owner's manual or contact Curt Manufacturing technical support at 1-877-287-8634 for the specific capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
Yes, the Curt 13162 is designed for the BMW X5.
Yes. You must drill a 1/2" hole (enlarged to 11/16") in the forward attachment beam, and trim the bumper fascia approximately 2 3/4" wide × 4 1/2" long to clear the hitch.
Yes, the bumper fascia must be removed by taking out 4 screws from the rear fenders, trim rings, the center door, and 1 screw above each exhaust opening.
Torque all M10 fasteners to 45 lb-ft and all 1/2" fasteners to 110 lb-ft.
The hitch weight is 120 lbs.
Do not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing at 1-877-287-8634 for the specific capacity of this hitch.
