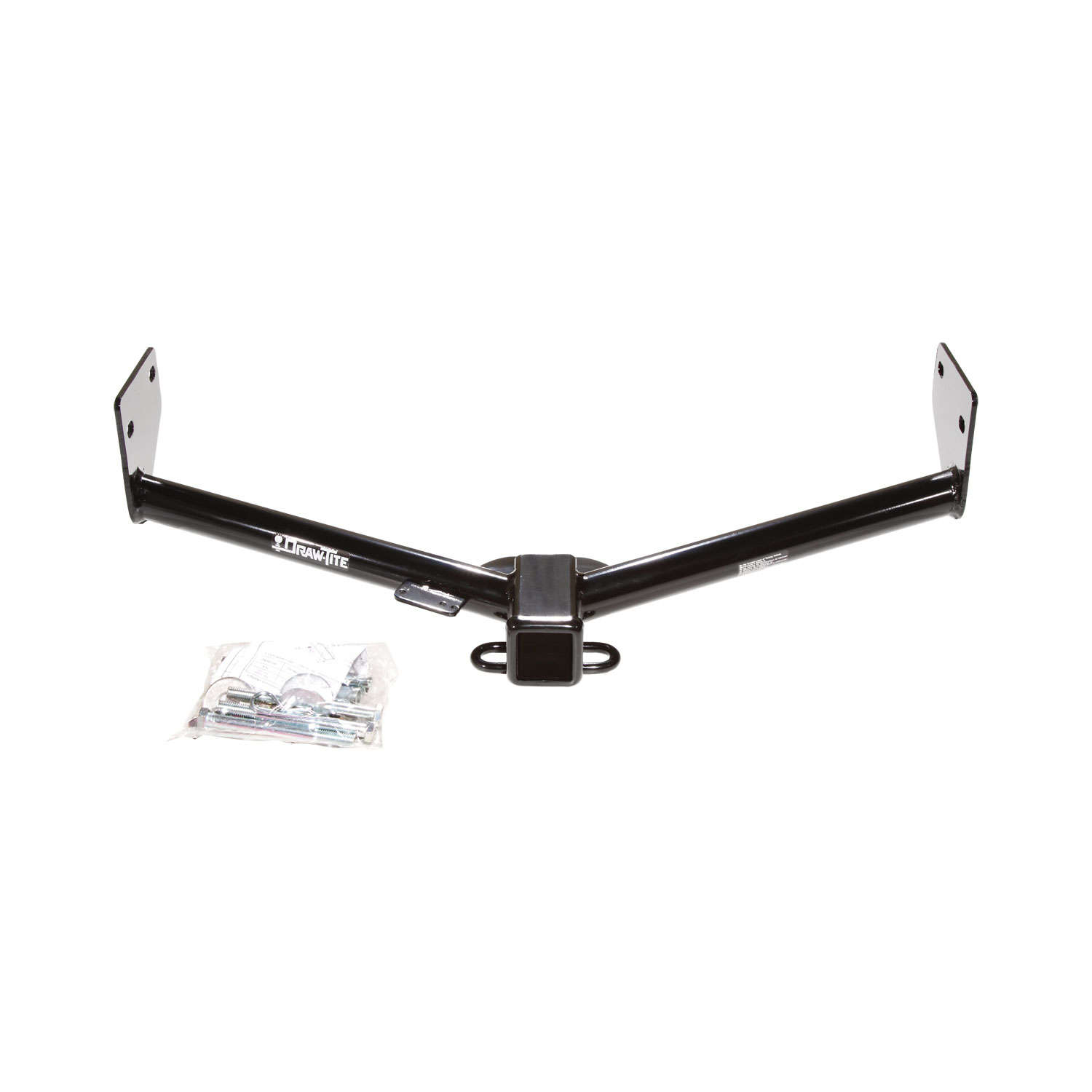

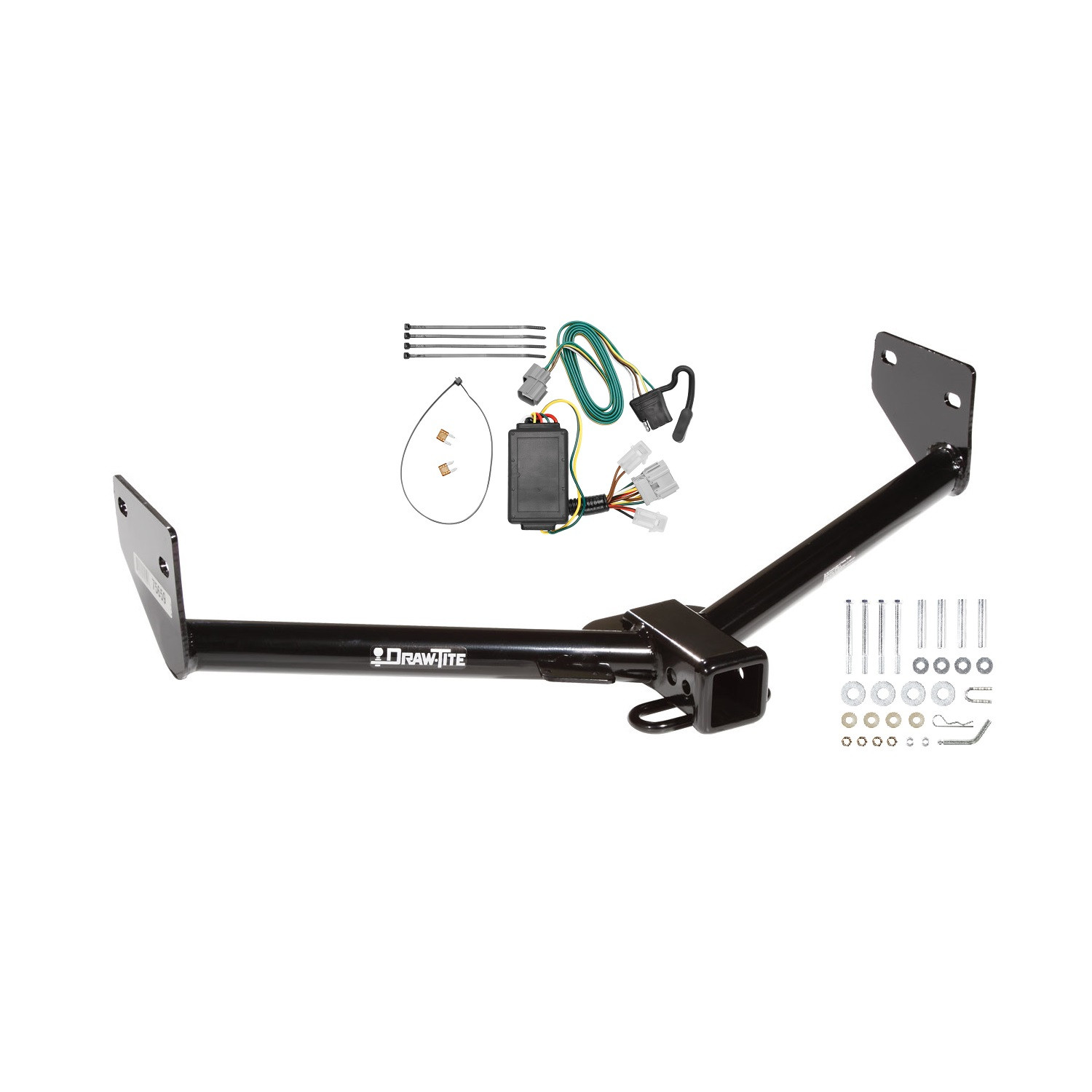

These durable custom hitches are manufactured for 2003-2011 Honda Element and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2011 | Honda Element | Except SC |
Yes, the 2009-2011 Honda Element Except SC Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75659-6-118465) is designed to fit the 2009-2011 Honda Element.
The 2009-2011 Honda Element Except SC Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75659-6-118465) fits 2009-2011 Honda Element models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2011 Honda Element Except SC Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75659-6-118465) fits the following vehicles: 2009-2011 Honda Element. Always verify your specific year, make, and model before ordering.
The 2009-2011 Honda Element Except SC Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75659-6-118465) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75659 is designed for all 2003-2008 Honda Element models, including the SC model. However, if you have an SC model, the plastic bumper fascia will require trimming during installation.
Yes, the hitch fits all SC models, but the plastic bumper fascia must be trimmed as part of the installation process.
The hitch has a maximum tongue weight of 350 lb and a maximum gross trailer weight of 3500 lb. However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
You will need wrenches in 3/4" and 7/8" sizes, and a torque wrench to tighten the fasteners to specification. No drill bits are required as no drilling is necessary for this installation.

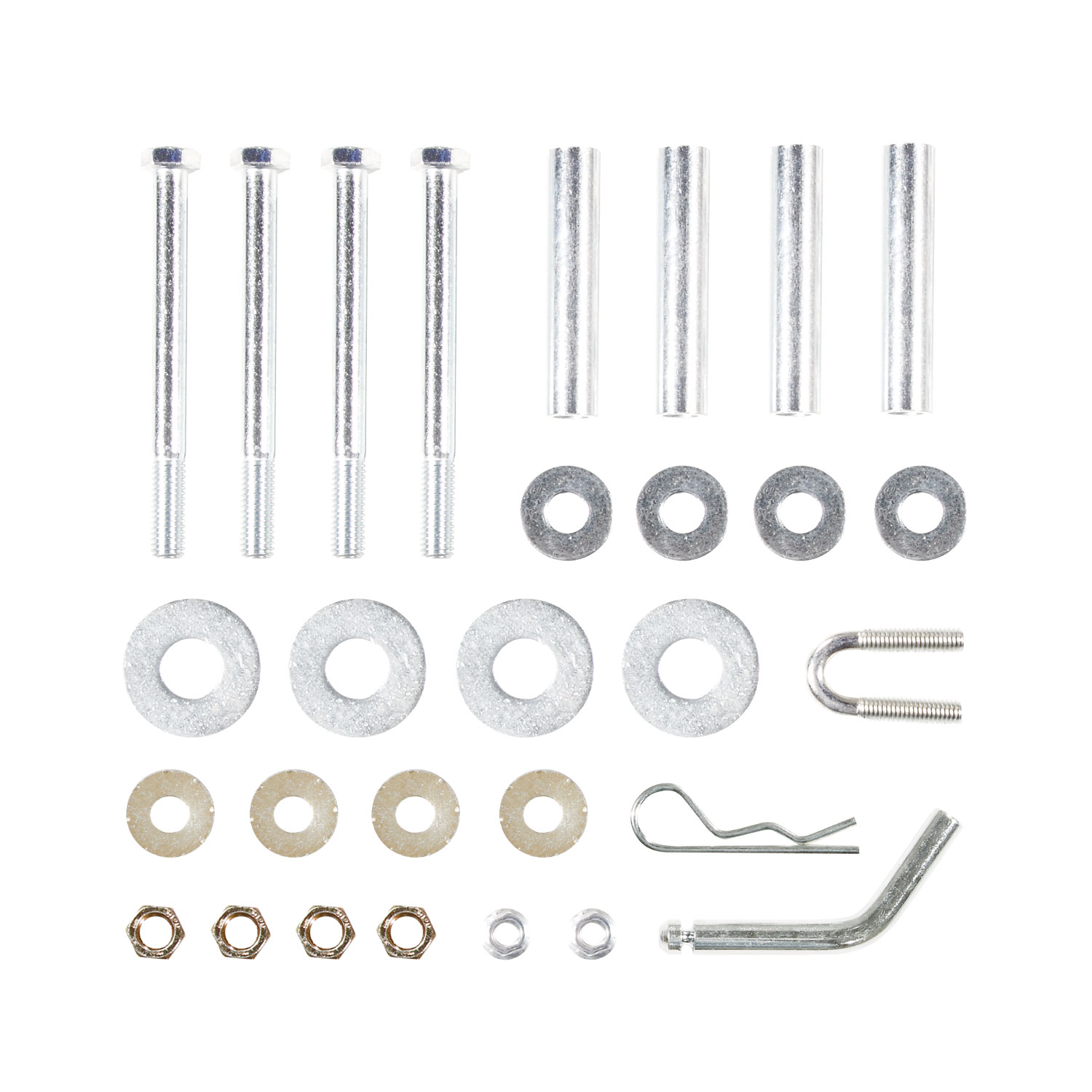

The fastener kit 75659F includes: four 1/2"-13 × 5-1/2" Grade 5 hex bolts, four 1/2" flat washers, four 1/2" conical toothed washers, four 1/2" hex nuts, four tube spacers, four 3/4" flat washers, one 3/8" U-bolt, and two 3/8" flanged hex locknuts.
No, no drilling is required. The hitch attaches to existing vehicle frame mounting points using the four 1/2" bolts provided in the fastener kit.
Tighten the four 1/2" bolts with a torque wrench to 75 lb-ft (102 N·m).
Tighten the 3/8" U-bolt with a torque wrench to 30 lb-ft (41 N·m).
1. Install the 1/2" bolts and 1/2" flat washers from outside the vehicle frame, and tube spacers and 3/4" flat washers from inside the frame on both sides, pulling bolts back so they barely protrude. 2. Raise the hitch into position carefully without dislodging the washers (or slide 3/4" flat washers into place after raising). 3. Push the 1/2" bolts through the hitch brackets on both sides, ensuring 3/4" flat washers are over tube spacers and between the frame and hitch bracket, then install conical washers and hex nuts and tighten loosely. 4. Install the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket. 5. Install the 3/8" flanged hex locknuts on the U-bolt so it draws up evenly, tighten the U-bolt first, then tighten the four 1/2" bolts to 75 lb-ft.
The 3/4" flat washers should be positioned over the tube spacers and between the inside of the vehicle frame and the outside of the hitch bracket. You can either install them before raising the hitch into position or slide them into place after raising the hitch, whichever is more convenient.
The 3/8" U-bolt attaches over the vehicle's trunk pan tie-down hook and passes down through the center hitch bracket. The 3/8" flanged hex locknuts are then installed on the U-bolt to draw it up evenly.
No, tighten in a specific order: first tighten the 3/8" U-bolt to 30 lb-ft, then tighten the four 1/2" bolts to 75 lb-ft. The bolts should be loosely tightened in step 3 before final torquing.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is essential for safe towing.
For 2003-2004 models, the wiring access location is SUV2. For 2005 and later models, the wiring access location is SUV1-2.
Yes, it fits all 2003-2008 Honda Element models including SC. SC models require plastic bumper fascia trimming.
Maximum 350 lb tongue weight and 3500 lb gross trailer weight, but do not exceed your vehicle manufacturer's rating.
3/4" and 7/8" wrenches and a torque wrench. No drilling required.
1/2" bolts: 75 lb-ft (102 N·m). 3/8" U-bolt: 30 lb-ft (41 N·m).
No, no drilling is required.
Yes, the plastic bumper fascia must be trimmed.
Yes, this T-Connector is designed for the Honda Element. The installation instructions are specific to this vehicle model.

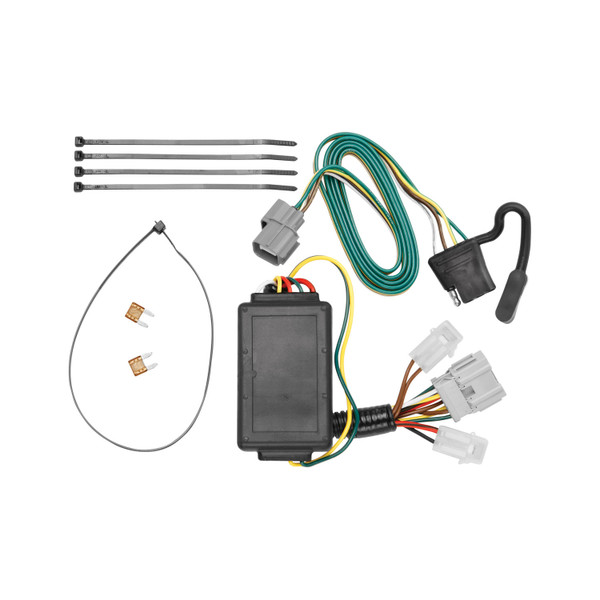

The kit includes a 10-Pin Tow Plug Adapter, a 4-Pin Tow Plug Adapter, a black converter box, supplied fuse holders with wires, double-sided tape or a 14" cable tie for mounting, and a 4-Flat connector for storage in the spare tire compartment when not in use.
No tools are required for installation. The installation uses only hand-tightening of connectors and mounting with supplied double-sided tape or cable tie.
The grey 10-Pin housing is located underneath the dash and to the left of the steering column. It is taped to another harness with blue tape and is accessed by removing the access panel underneath the steering wheel.
Turn the locking knobs 90 degrees counter-clockwise to remove the access panel underneath the steering wheel.
The factory 4-Pin tow harness connector is mounted on the driver's side threshold. It is accessed by opening the rear tailgate and removing cargo nets and the cargo floor hatch to reach the spare tire area.
Check that the mating surfaces of the vehicle harness connectors match the Tow Plug Adapter end. All connector surfaces should be clean and free of dirt before insertion.
Mount the black converter box up under the dash using either the supplied double-sided tape or a 14" cable tie. Position it to prevent damage or rattling, and carefully avoid any areas that would cut or pinch the wire.
If the fuses have not already been removed, remove them from the supplied fuse holders on the wires going from the T-Connector's 10-Pin Tow Plug Adapter to the black converter box before inserting the 10-Pin Tow Plug Adapter. Replace these fuses in step 7 after repositioning all access panels and trays.
Insert the 10-Pin Tow Plug Adapter into the grey 10-Pin housing and lock it into place. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with locking tabs in place.
Insert the 4-Pin Tow Plug Adapter into the factory 4-Pin tow harness connector on the threshold and lock it into place. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with locking tabs in place.
Wear safety glasses during installation. Use all safety precautions. Avoid cutting or pinching wires when mounting the converter box. Be careful not to damage connector locking tabs during insertion.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer rating or: maximum stop/turn light of 1 per side (2.1 amps) or maximum tail lights of 5.6 amps. Overloading the circuit can cause fires.
Store the 4-Flat connector in the spare tire compartment when not in use.
Yes, the T-Connector (118465-037) is designed specifically for Honda Element.
No tools are required. Installation uses hand-tightening of connectors and mounting with supplied double-sided tape or cable tie.
The manual does not specify battery disconnection. However, it does require resetting the vehicle electrical system by temporarily removing the key from the ignition for the initial test.
Maximum stop/turn light: 1 per side (2.1 amps); maximum tail lights: 5.6 amps. Do not exceed the lower of these ratings or the towing manufacturer rating, as overloading can cause fires.
