Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2010-2016 Cadillac SRX All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Cadillac SRX (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2010, 2011, 2012, 2013, 2014, 2015, 2016 Cadillac SRX All Class 3 Trailer Hitch, 2" Receiver, Select Cadillac SRX
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime

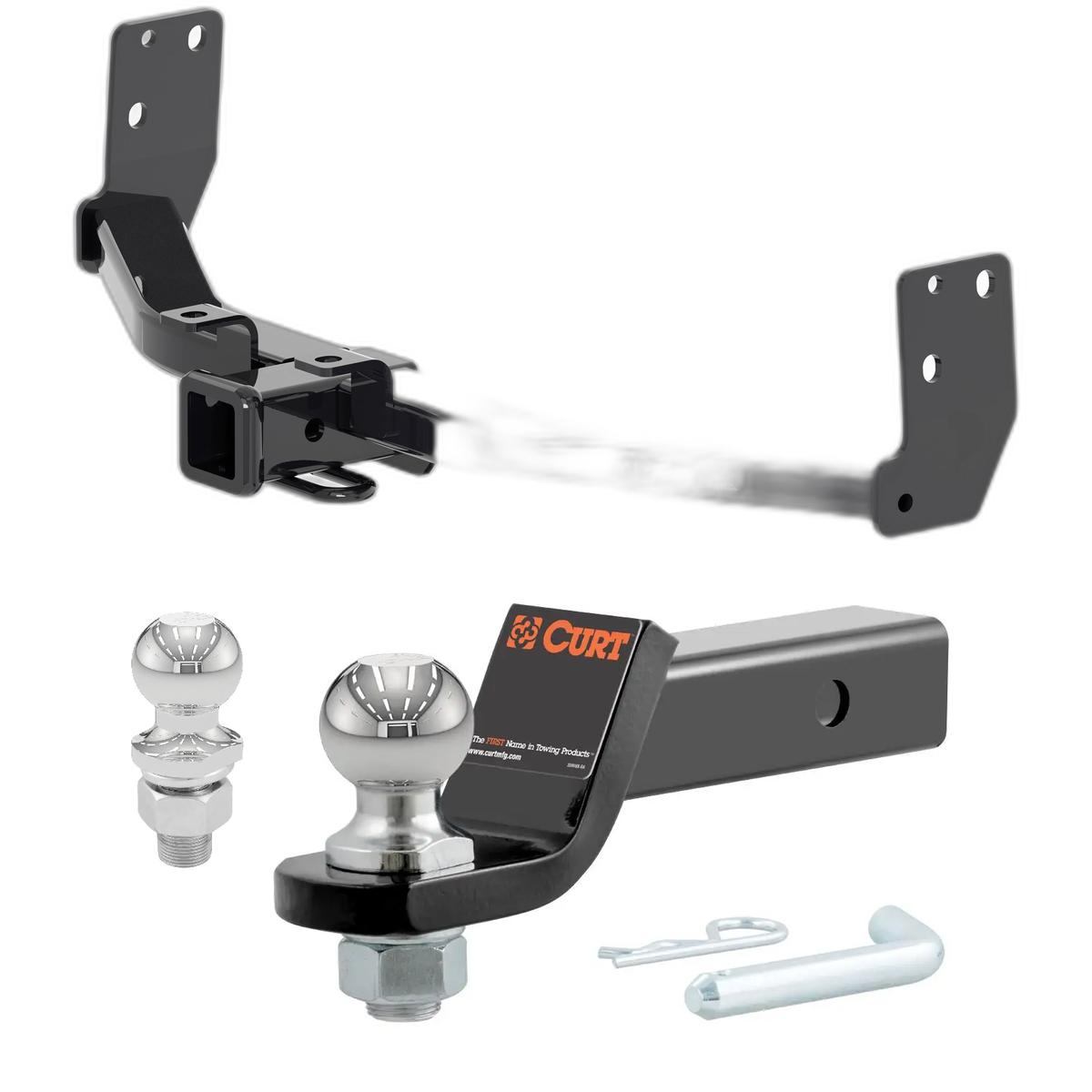

The 2010-2016 Cadillac SRX All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13002-001) fits the following vehicles: 2010-2016 Cadillac SRX. Always verify your specific year, make, and model before ordering.
The 2010-2016 Cadillac SRX All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13002-001) fits 2010-2016 Cadillac SRX models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2010-2016 Cadillac SRX All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13002-001) is designed to fit the 2010-2016 Cadillac SRX.
The 2010-2016 Cadillac SRX All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13002-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13002 is designed for 2010-Present Cadillac SRX Crossover models. Verify your vehicle matches this model and year range before purchasing.
As a weight carrying hitch, the CURT 13002 supports 5,000 lbs trailer weight and 500 lbs tongue weight. As a weight distribution hitch, it supports 6,000 lbs trailer weight and 600 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
You will need: torque wrench, ratchet, 10mm socket, 19mm socket, Phillips and flat blade screwdrivers, wire pipe brush, and masking tape. Safety glasses must be worn at all times during installation.
No, drilling is not required. The hitch uses existing factory mounting points on the frame rails.
All M12 fasteners must be torqued to 79 ft-lbs.
If you plan to install a trailer wiring harness, do so before installing the hitch. The driver side plate slides between the wiring harness and the driver side frame rail during hitch installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for assistance.
The hitch weighs 30 lbs.
The installation is rated as moderate difficulty. Professional installation takes approximately 60 minutes, while a novice DIY installation typically takes 30 minutes.
The kit includes 6 M12x1.75x30mm hex head cap screws (part number 10-10432) and 6 1/2" conical toothed washers (part number 30-00149). These fasteners secure the hitch to the frame rails.
1. Remove the 2 screws securing the center fascia panel and remove the panel. 2. Remove the 4 plastic push fasteners securing the rear fascia to the fascia support brackets, and remove the 2 nuts securing the brackets to the trunk pan. 3. Raise the hitch into position and secure using M12-1.75x30mm bolts and 1/2" conical toothed washers, sliding the driver side plate between the wiring harness and driver side frame rail. 4. Reinstall the fascia support brackets and fasteners. 5. Torque all M12 fasteners to 79 ft-lbs. 6. Return the center fascia panel and fasteners to the owner.
You do not need to remove the rear fascia completely. You only need to remove the 4 plastic push fasteners securing the rear fascia to the fascia support brackets and the 2 nuts securing the brackets to the trunk pan. Then pull down on the rear fascia to access the mounting area. The fascia support brackets are removed and reinstalled during the process.
Slide the driver side plate between the wiring harness and the driver side frame rail. You may need to pull down on the rear fascia to slide the hitch between the trunk pan and fascia.
Use masking tape to protect the vehicle finish, particularly when working with the fascia and brackets.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for assistance.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is important for safe towing operation.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, this product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
For more information, log onto www.curtmfg.com. For helpful towing tips, log onto www.hitchinfo.com. For technical support questions, call 877-287-8634.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2016 | Cadillac SRX | — |
