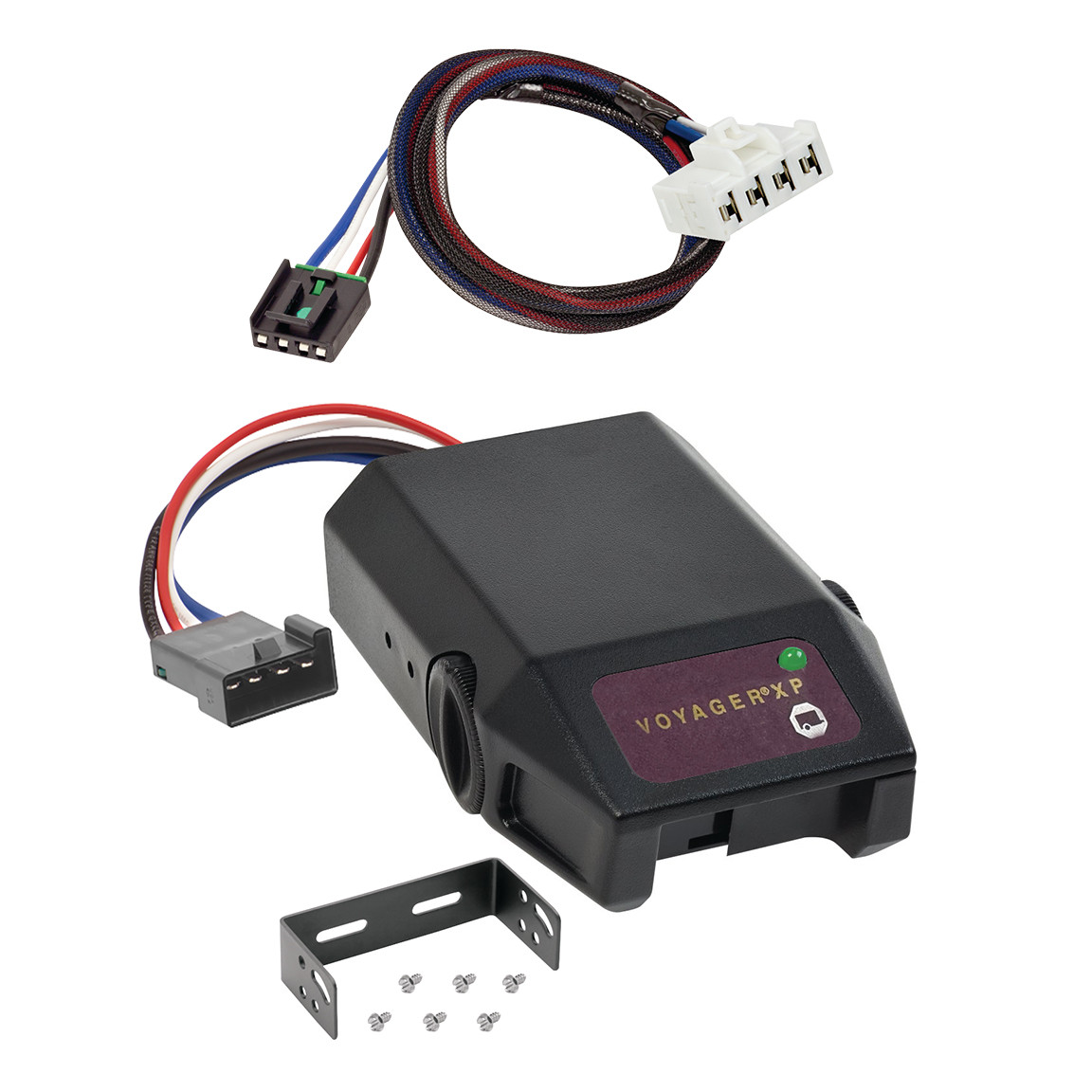

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2012 | Ram 1500 | — |
The adapter is designed for Dodge Ram Pickup vehicles equipped with an OEM electric brake control harness connector. The connector is located under the dash, left of the steering column, taped to another harness near the emergency brake pedal. If your vehicle has this 4-pin connector, the adapter will fit. Vehicles without an OEM trailer tow package may require additional fuses and relays (sold separately) to complete the installation.

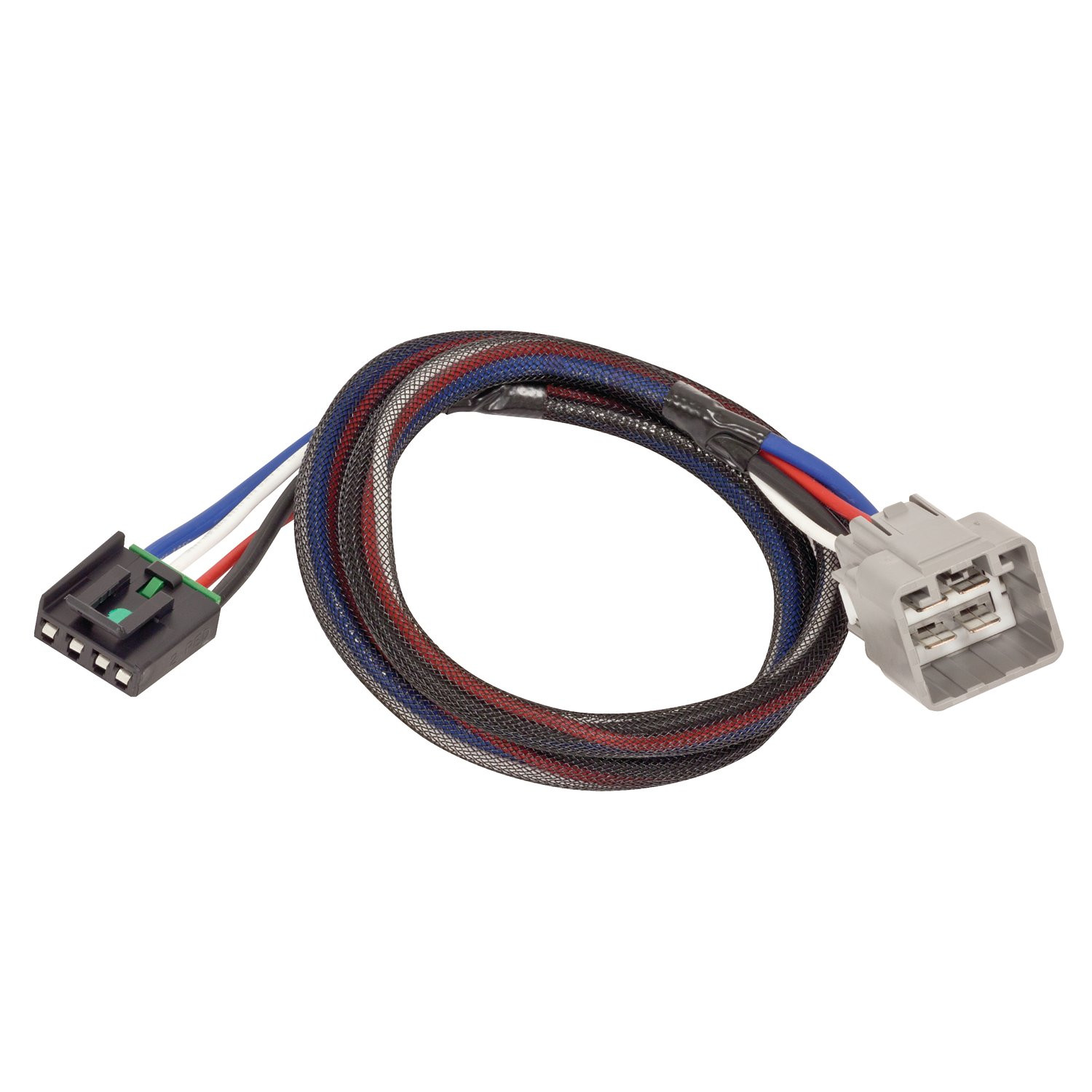

The 20273-037 is an electric trailer brake control wiring adapter that connects your vehicle's OEM electric brake control system to an aftermarket trailer brake controller. It features a 4-pin connector that mates with your vehicle's electric controller connector and includes male terminals for wiring connections.
No tools are required for installation of the adapter itself. However, you will need butt connectors to attach the adapter wires to the corresponding wires on your electric brake control system. The brake control manufacturer's installation instructions will specify what additional tools may be needed for their specific unit.
The electric brake control harness connector is located underneath the dash and to the left of the steering column. It will be taped to another harness near the emergency brake pedal. Look for a 4-pin connector that matches the one on the adapter.
1. Locate the vehicle's 4-pin electric brake control harness connector under the dash, left of the steering column. 2. Plug the brake control adapter into this connector. 3. Use butt connectors to attach the wires from the adapter to the corresponding wires on your electric brake control system, following the brake control manufacturer's installation instructions. 4. Complete installation per the brake control manufacturer's instructions and perform their test procedures.
The adapter connects four circuits: (1) Vehicle stop lamp switch to brake controller (input), (2) Fused trailer brake controller battery feed, (3) Trailer brake controller (output) to the electric trailer brake, and (4) Ground. The adapter housing contains male terminals on the mating side. You will use butt connectors to attach these wires to the corresponding wires on your electric brake control system.
Do not exceed the lower of your towing manufacturer's rating or a maximum of 4 axles with 8 brakes (24 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control manufacturer's instructions for additional safety information.
Vehicles equipped with an OEM trailer tow package typically have the necessary fuses and relays. However, vehicles not equipped with an OEM trailer tow package may require additional fuses and relays to complete the output and battery feed circuits. These are sold separately. Consult your vehicle's owner's manual for the locations where these components should be installed.
Yes. You must wear safety glasses and use all safety precautions during installation. This is stated in the safety warnings at the beginning of the manual.
Yes, if your Dodge Ram has an OEM electric brake control harness connector under the dash, left of the steering column. Vehicles without OEM tow packages may need additional fuses and relays (sold separately).
No tools are required for the adapter itself. You will need butt connectors to attach the adapter wires to your brake control system wires.
Maximum 4 axles with 8 brakes (24 amps), or your towing manufacturer's rating, whichever is lower. Exceeding this can cause fires.
Yes. After plugging in the adapter and connecting the wires with butt connectors, complete the installation per the brake control manufacturer's instructions, mount the unit as directed, and perform their test procedures.
Yes. Vehicles not equipped with an OEM trailer tow package may require fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual for locations.
