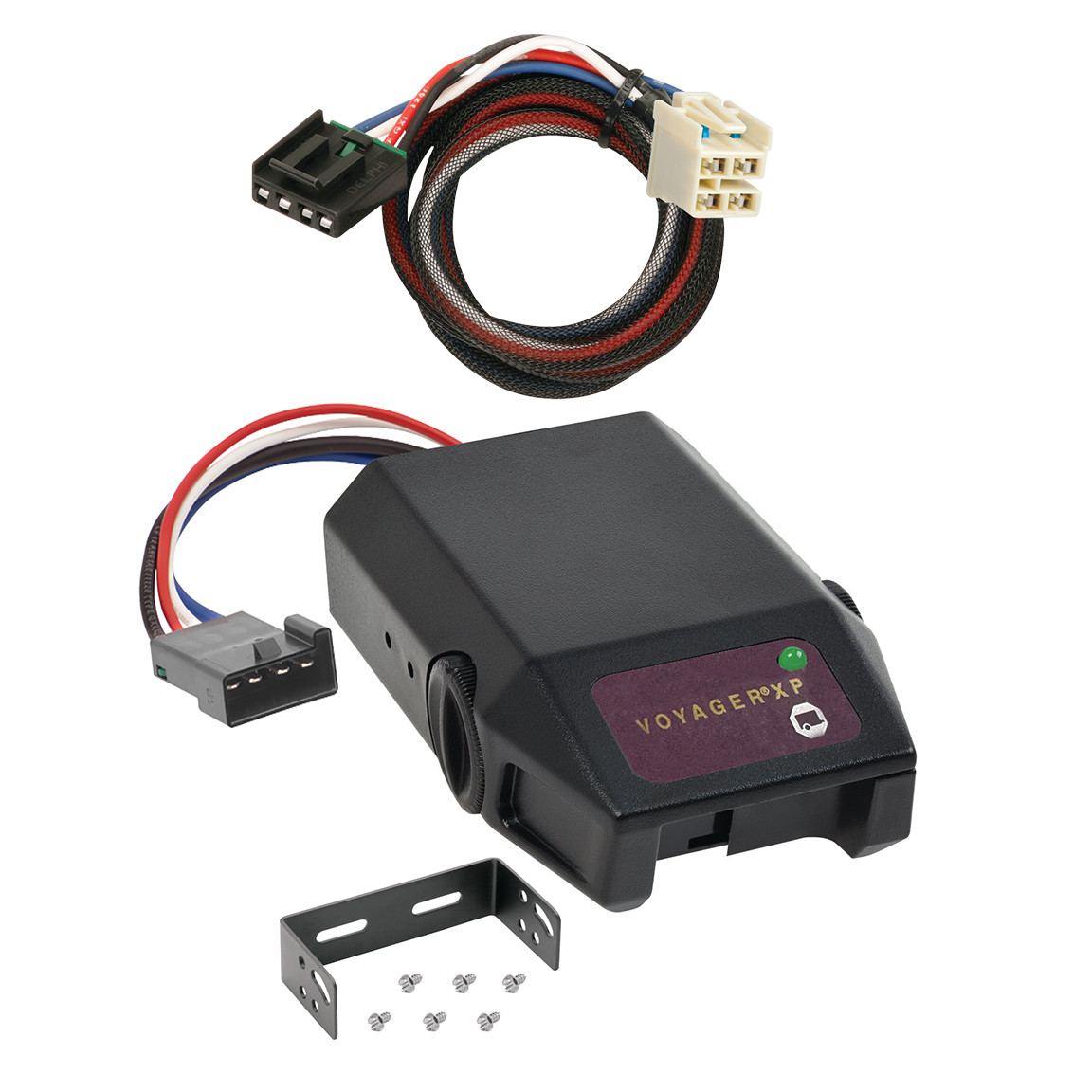

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2018 | Ram 1500 | — |
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

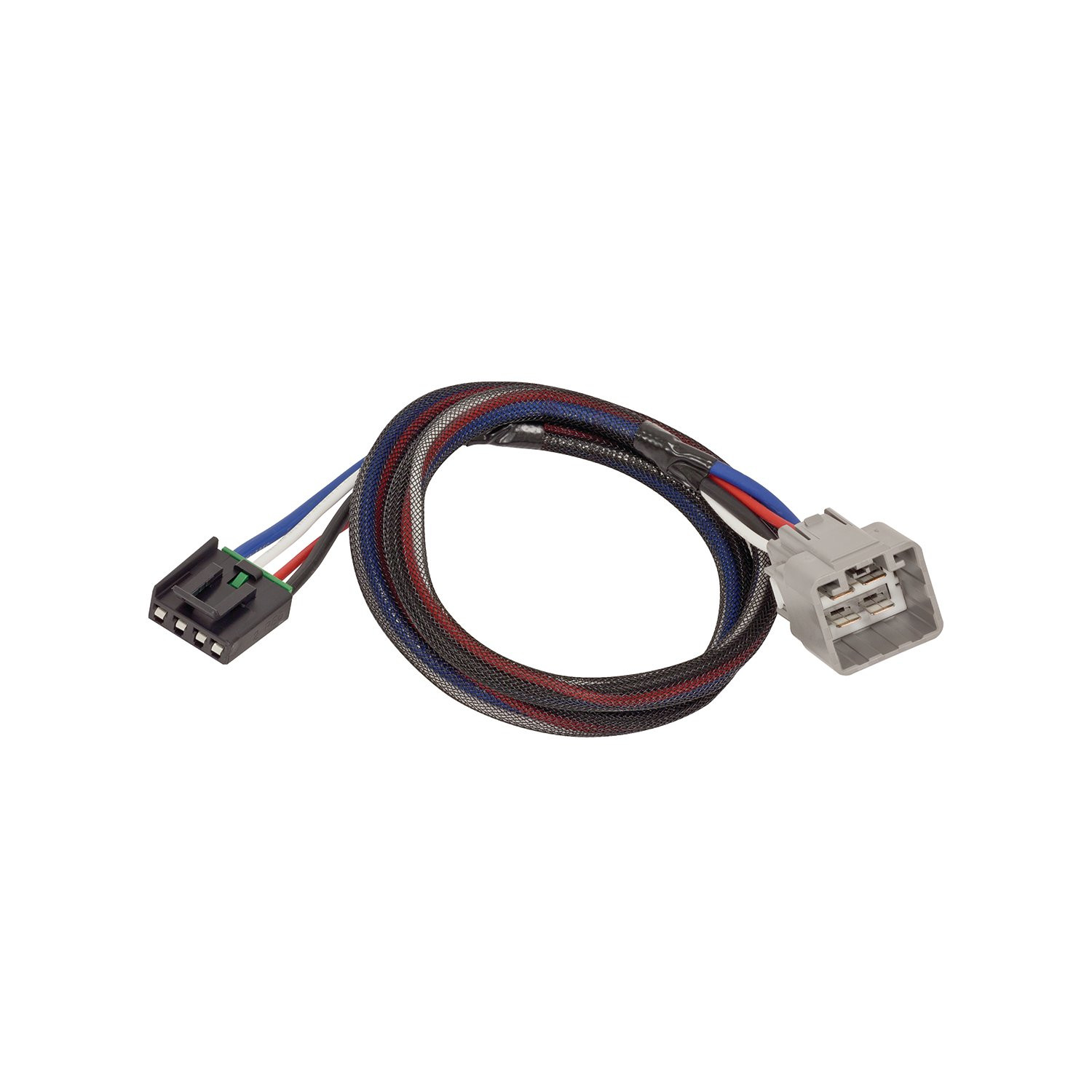

Yes, the 3024-037 is designed for Ram 1500, 2500, and 3500 vehicles. Your truck must have a factory electric brake control harness with a 4-pin connector located underneath the dash, right of the steering column. If your vehicle does not have this factory harness, this adapter will not work.
Yes, if you are installing part number 3024-P only, you must use additional kit 30235-P to ensure compliance with California regulations. Failure to use the additional kit may result in independent liability for the user.
No tools are required for installation of the 3024-037 adapter itself. However, you will need to follow the electric brake control manufacturer's installation instructions, which may require additional tools depending on the specific brake control unit being installed.
The electric brake control harness connector is located underneath the dash, right of the steering column. The harness will be taped to another harness. You are looking for a 4-pin connector that will mate with the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit itself. Only after this connection is made, plug the adapter into the vehicle's electric brake control harness connector (the 4-pin connector located underneath the dash, right of the steering column). Then follow all brake control manufacturer's installation instructions.
Do not exceed the lower of your towing manufacturer's rating or 8 brakes (24 amps) maximum for 4 axles. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
Wear safety glasses and use all safety precautions during installation. Read and follow all vehicle warnings and installation instructions before beginning. Complete the installation per the electric brake control manufacturer's instructions and perform all test procedures as instructed by that manufacturer.
The 3024-037 fits Ram 1500, 2500, and 3500 trucks equipped with a factory electric brake control harness.
No tools are required for the adapter installation itself.
Yes, if installing part number 3024-P, you must use additional kit 30235-P for California compliance.
Maximum 24 amps (8 brakes on 4 axles), or the lower of your towing manufacturer's rating. Do not exceed this to prevent circuit overload and fire risk.
Plug the adapter into the brake control unit's receptacle first, then connect it to the vehicle's 4-pin harness connector under the dash.
