This fits: 2011-2013 Kia Sorento All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Santa Fe and Kia Sorento (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2011, 2012, 2013 Kia Sorento All Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Santa Fe, Kia Sorento
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Kia Sorento | — |

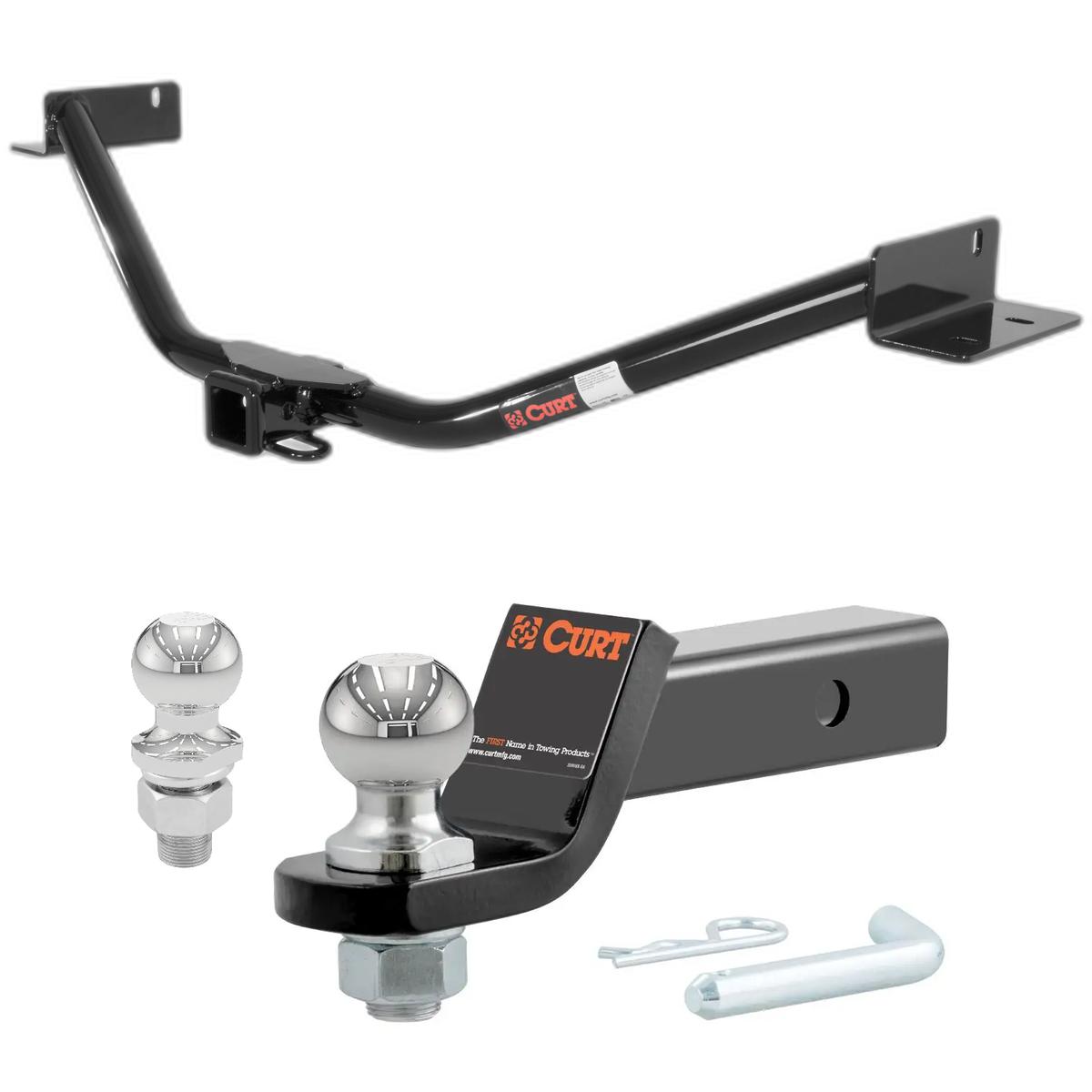

Yes, the 2011-2013 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13073-001) is designed to fit the 2011-2013 Kia Sorento.
The 2011-2013 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13073-001) fits 2011-2013 Kia Sorento models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2013 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13073-001) fits the following vehicles: 2011-2013 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 2011-2013 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13073-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part number 13073 is designed for the Hyundai Santa Fe and 2nd Generation Kia Sorento, including SX models. If your vehicle is a different year, model, or generation, this hitch is not compatible. Verify your vehicle's year and model before purchasing.
The spare tire must be lowered and temporarily removed during installation to ease access to the exhaust and heat shield. After installation is complete, the spare tire is reinstalled in its original position. The hitch is designed to accommodate the factory spare tire once installation is finished.
No drilling is required. The hitch uses existing weldnuts on both the driver and passenger side frame rails. All fasteners are installed through existing pass-through holes in the frame rails.
Yes, the heat shield must be trimmed to allow the hitch side plate to rest against the vehicle frame rail. Approximately 8 inches of the heat shield along the inside of the frame rail will be removed. The heat shield is then reattached with the original nuts after trimming.
Fascia trimming is required on some models. If the vehicle fascia prevents the hitch from being raised completely into position, trim the fascia according to the trim diagram provided in the manual. Trim dimensions are approximate and may vary depending on vehicle model. Check fit prior to trimming.
Required tools are: 11/16" and 5/8" socket, 10mm and 18mm socket, ratchet, torque wrench, screwdriver, tape measure, aviation shears, utility knife, marking pen, swivel socket, and socket extension.
The hitch includes: (4) M10 - 1.25 x 30 hex bolts, (6) 7/16" conical toothed washers, (2) 7/16 - 14 x 4 1/2 hex bolts, and (2) 7/16-14 hex flange nuts. The M10 bolts and washers secure the hitch to the frame rails. The 7/16" bolts and nuts are installed through the side plates and frame rail pass-through holes.
1. Lower the exhaust by removing three rubber isolators. 2. Lower and temporarily remove the spare tire. 3. Remove the heat shield by removing three nuts and one screw. 4. Trim the heat shield to allow the hitch side plate to rest against the vehicle frame rail (approximately 8 inches). 5. Reattach the heat shield with the three nuts. 6. Raise the hitch into position by raising the passenger side over the exhaust. 7. Secure with supplied M10 bolts and 7/16" conical toothed washers. 8. Install 7/16" hardware through side plates and frame rail pass-through holes. 9. Torque all fasteners. 10. Raise the exhaust and reinstall the spare tire.
All 7/16" hardware (hex bolts and hex flange nuts) must be torqued to 70 lb-ft.
All M10 hardware (M10 - 1.25 x 30 hex bolts) must be torqued to 48 lb-ft.
The manual lists a gross load capacity of 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch.
All non-trailer loads applied to the 13073 hitch must be supported by Curt 18050 Stabilizing Straps. Do not apply non-trailer loads without this support.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done before each use and at regular intervals during ownership.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing and at routine maintenance intervals is recommended.
The 13073 fits Hyundai Santa Fe and 2nd Generation Kia Sorento, including SX models.
No drilling is required. The hitch uses existing weldnuts and pass-through holes in the frame rails.
Yes, approximately 8 inches of the heat shield along the inside of the frame rail must be trimmed. The heat shield is then reattached with the original nuts.
A torque wrench is essential, along with 10mm and 18mm sockets, 11/16" and 5/8" sockets, ratchet, screwdriver, tape measure, aviation shears, utility knife, marking pen, swivel socket, and socket extension.
Torque 7/16" hardware to 70 lb-ft and M10 hardware to 48 lb-ft.
When used as a weight-carrying hitch, the 13073 supports 3,500 lbs. trailer weight and 350 lbs. tongue weight.
Yes, all non-trailer loads must be supported by Curt 18050 Stabilizing Straps.
