Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2021-2025 Kia Sorento All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Santa Fe and Kia Sorento (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2021, 2022, 2023, 2024, 2025 Kia Sorento All Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Santa Fe, Kia Sorento
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2025 | Kia Sorento | — |

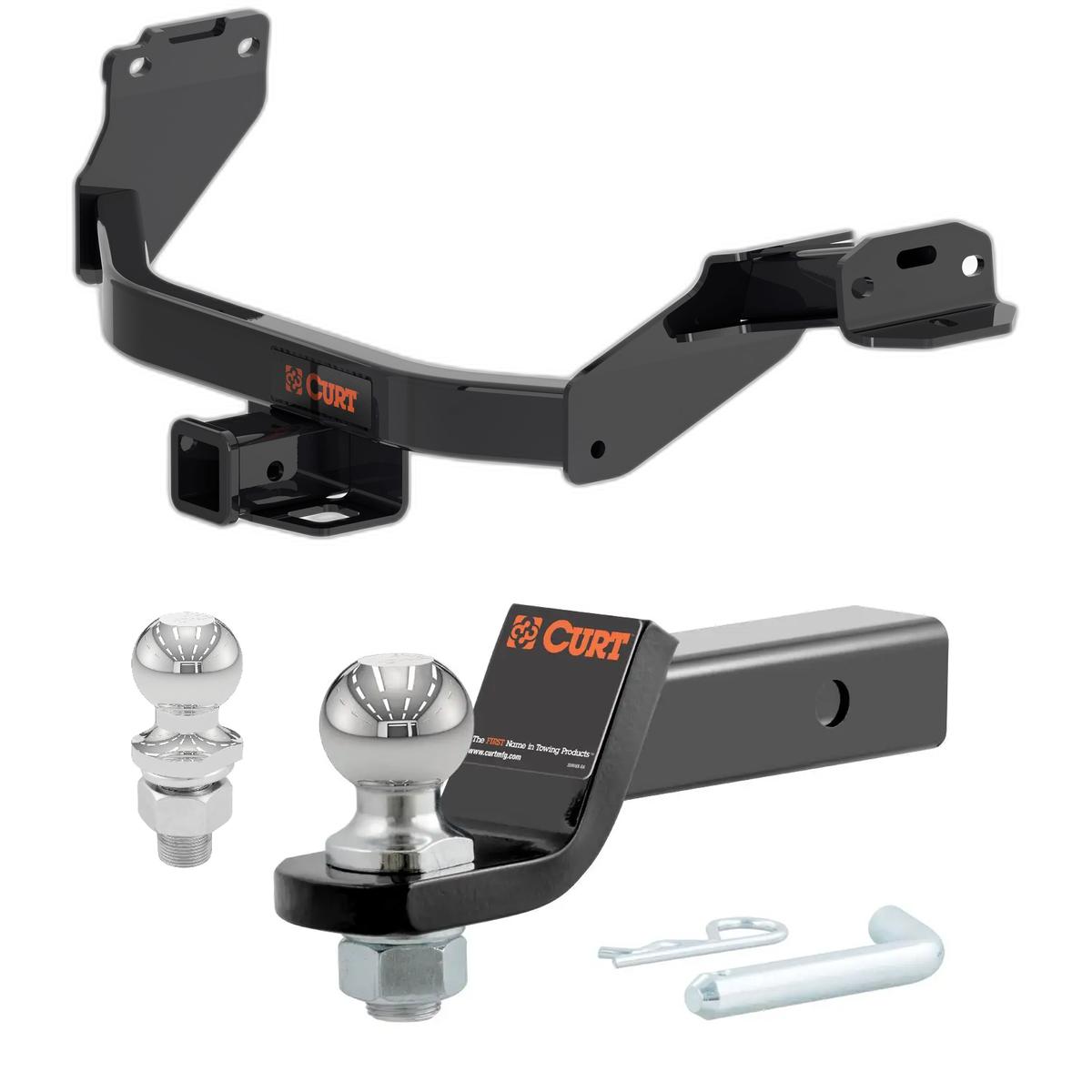

The 2021-2025 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13609-001) fits 2021-2025 Kia Sorento models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2021-2025 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13609-001) is designed to fit the 2021-2025 Kia Sorento.
The 2021-2025 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13609-001) fits the following vehicles: 2021-2025 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 2021-2025 Kia Sorento All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13609-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13609 trailer hitch has a gross trailer weight (GTW) capacity of 4,000 lbs and a tongue weight (TW) capacity of 600 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The manual confirms that CURT 13609 is designed for Kia Sorento models. However, the manual does not specify which model years or body styles are supported. Contact CURT product support at 877-287-8634 or check curtmfg.com to confirm your specific vehicle year and configuration are compatible.
You will need: torque wrench, ratchet, 3" socket extension, 6" socket extension, exhaust removal tool, flathead screwdriver, 3/8" socket, 19mm socket, and 1" or larger wrench. For a complete tools reference guide, visit curtmfg.com/trailer-hitch-installation.
The kit includes 6 hex bolts (M12-1.25 x 40mm) and 6 conical-toothed washers (1/2"). The hitch uses existing M12 weldnuts already present in your vehicle's frame rails.
Yes. For models with a spare tire, you must loosen the spare tire carrier nut using a 3/8" socket and lower the spare tire before installation. The spare tire is reinstalled in the final step after the hitch is mounted.
Yes, for Kia Sorento models only. Remove the three lower plastic clips on the driver side near the wheel well and pull the cover straight down. If it does not come free, unscrew the two upper plastic nuts by hand until you can remove the cover. The cover is reinstalled after the hitch is mounted.
Yes. You must remove the four rearmost exhaust hanger rods from the three rubber isolators and support the exhaust with a stand to prevent damage. The exhaust is reinstalled after the hitch is mounted.
If additional clearance is needed between the hitch and exhaust after installation, you must remove the rearmost rubber isolator from the frame-rail exhaust hanger rod and adjust the rail exhaust hanger rod down approximately five degrees using a box end wrench. The rubber isolator is then reinstalled. This adjustment is only performed if clearance is inadequate after initial mounting.
Raise the hitch into position by sliding the passenger side of the hitch over the exhaust first. Then align the three holes on both sides of the hitch with the three weld nuts in the frame rails on both sides of the vehicle.
Loosely install three hex bolts (M12-1.25 x 40mm) and three conical-toothed washers on each side of the hitch into the hitch holes and weld nuts in the frame rails. The conical-toothed washers should be oriented with the teeth facing the frame. Do not fully tighten until all bolts are installed.
All M12 fasteners must be torqued to 60 ft-lbs.
If exhaust hanger removal pliers are not available, use a 5/8" open end wrench. Slide the wrench up to the rubber isolator, cradling the hanger rod. Place the flat edge of a pry bar between the wrench and the hanger stop or hanger rod, then rotate the pry bar toward the wrench to remove the rubber isolator. Using a lubricant or soapy water on the hanger rod and isolator helps removal.
To remove debris from weldnuts in the frame, spray lubricant or compressed air into the hole. For heavy debris, use a wire brush. Take care not to damage the threads.
Safety glasses must be worn at all times while installing this product. Never exceed your vehicle manufacturer's recommended towing capacity.
After installation, inspect the hitch and exhaust to ensure there is adequate clearance between them. If additional clearance is needed, adjust the rail exhaust hanger rod down approximately five degrees using a box end wrench and reinstall the rubber isolator.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the exact interval; consult your vehicle owner's manual or contact CURT at 877-287-8634 for recommended inspection frequency.
CURT 13609 is designed for Kia Sorento models. Confirm your specific year and body style with CURT at 877-287-8634 or curtmfg.com.
Torque wrench, ratchet, 3" and 6" socket extensions, exhaust removal tool, flathead screwdriver, 3/8" and 19mm sockets, and 1" or larger wrench. See curtmfg.com/trailer-hitch-installation for a complete tools reference guide.
Yes. You must lower the spare tire, lower the exhaust, remove the plastic cover (Sorento only), and remove rubber plugs from the frame rails.
All M12 fasteners must be torqued to 60 ft-lbs.
Gross trailer weight (GTW) 4,000 lbs, tongue weight (TW) 600 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Wear safety glasses at all times. Never exceed vehicle manufacturer's towing capacity. Perform periodic inspection to ensure all hardware remains tight.
