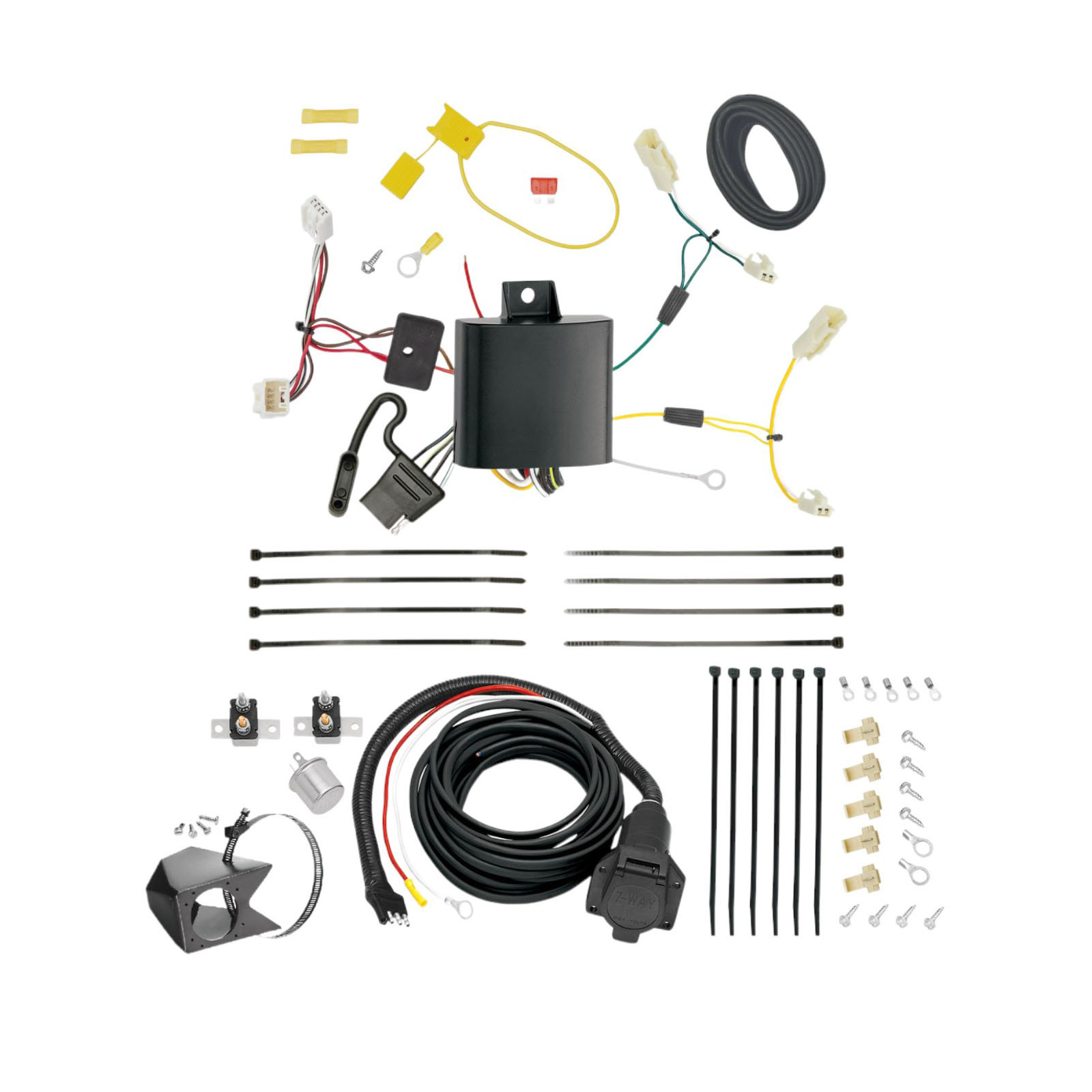

2011-2011 Dodge Avenger Tekonsha Custom 7-Way + Brake Controller Install KitTekonsha$265.11Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2014 Dodge Charger
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $243.75. Current price is $190.98.You save $52.77 (22%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Dodge Charger | — |
The 2011-2014 Dodge Charger Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW25392) fits 2011-2014 Dodge Charger models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2014 Dodge Charger Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW25392) fits the following vehicles: 2011-2014 Dodge Charger. Always verify your specific year, make, and model before ordering.
Yes, the 2011-2014 Dodge Charger Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW25392) is designed to fit the 2011-2014 Dodge Charger.
The 2011-2014 Dodge Charger Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW25392) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.
The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.

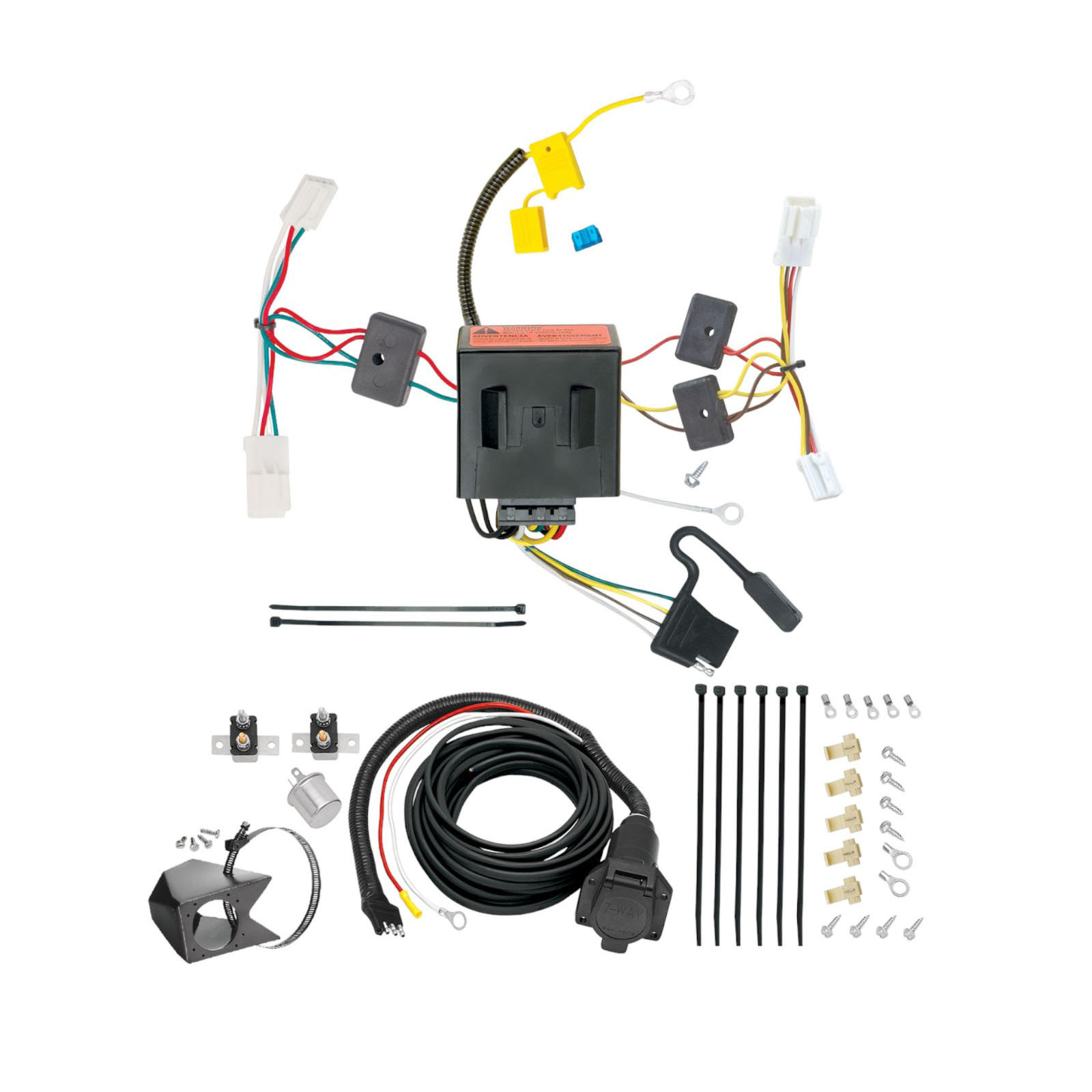

The T-Connector Charger is a taillight wiring adapter that integrates with your vehicle's existing taillight connectors to enable trailer lighting functionality. It includes a black box-module that processes the vehicle's taillight signals and a harness with colour-coded wires (yellow, green, and white) that connect to the vehicle's taillight wiring, battery, and ground points.
The manual does not specify which vehicle makes, models, or years are compatible with part 118560-037. Contact the manufacturer or your retailer with your vehicle's year, make, model, and cab/bed configuration to confirm fitment before purchase.
You will need: trim panel remover, 10mm socket and ratchet (or 10mm wrench), drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. The manual also specifies that cable ties and double-sided tape are provided with the product.
The product includes: a 10-amp fuse and fuse holder, cable ties, double-sided tape, an eyelet and screw for the white ground wire, and a ring terminal with yellow wire for the battery connection. The manual does not specify the total quantity of cable ties or tape provided.
The manual does not explicitly state whether the battery must be disconnected before installation. However, it does require connecting a ring terminal to the positive battery terminal in step 7 and resetting the electrical system by removing the ignition key for the initial test. Consult your vehicle's owner's manual or a qualified technician regarding battery disconnection safety.
The black box-module must be mounted ONLY in the interior of the vehicle on a flat, dry surface that is free of moisture and high enough to avoid direct contact with water or liquid. The manual specifies mounting near the center of the vehicle below the trunk threshold using the provided double-sided tape. Do not mount on the exterior or in areas exposed to elements or moisture, as this causes serious damage to the vehicle and module.
1. Open the trunk and remove the threshold panel. Partially remove the corner felt trunk liner on both sides to expose the taillight wiring harness. Remove two Torx-20 screws and cargo loops. 2. Behind the driver's side taillight, separate the vehicle's wiring connectors and insert the T-Connector end with the yellow wire between them, locking into place. 3. Route the T-Connector end with the green wire to the passenger's side and repeat the connection. 4. Ensure all connectors are fully inserted with locking tabs in place.
Yes. You must drill one 3/32" hole on the driver's side near the taillight connectors to secure the white ground wire with the provided eyelet and screw. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
On the passenger's side, locate the vehicle's positive (+) battery cable on the fuse box. Using a wrench or socket, remove the nut from the battery terminal stud. Place the ring terminal with the yellow wire onto the stud, replace the nut, and tighten. Then install the 10-amp fuse into the provided fuse holder. Read and follow all warnings and cautions printed on the vehicle's battery before proceeding.
The white wire serves as the ground connection. Locate a suitable grounding point on the driver's side near the taillight connectors, drill a 3/32" hole, and secure the white wire using the provided eyelet and screw. Do not drill into any exposed surfaces.
A 10-amp fuse is installed in the fuse holder that connects to the positive battery terminal. This fuse protects the circuit from overload.
Do not exceed the lower of your towing manufacturer's rating or: maximum 2 stop/turn lights per side (4.2 amps total) or maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information on your specific towing capacity.
Wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. When routing and securing the harness with cable ties, avoid areas that would pinch, cut, or melt the wire. Read and follow all warnings and cautions printed on the vehicle's battery. Do not mount the black box-module on the exterior or in moisture-exposed areas.
All connections must be complete for the T-Connector to function properly. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. Then test and verify the installation using a test light or by connecting an actual trailer. Ensure all connectors are fully inserted with locking tabs in place and all wiring is secure.
After installation, verify that: (1) all taillight connectors are fully inserted with locking tabs in place, (2) the black box-module is securely mounted in a dry interior location, (3) the white ground wire is properly secured with the eyelet and screw, (4) the yellow wire ring terminal is tightened on the battery positive terminal, (5) the 10-amp fuse is installed in the fuse holder, (6) all wiring is routed and secured with cable ties to prevent pinching or cutting, (7) trunk panels, carpet, and clips are reinstalled without cutting or pinching wires, and (8) the system functions correctly using a test light or trailer.
Store the 4-Flat connector in the rear cargo area of the vehicle when not in use.
The manual does not specify compatible vehicle makes, models, or years. Contact the manufacturer or retailer with your vehicle's year, make, model, and configuration to confirm fitment before purchase.
A 10-amp fuse is installed in the fuse holder connected to the positive battery terminal.
Do not exceed: 2 stop/turn lights per side (4.2 amps) or 7.5 amps for tail lights. Overloading causes fire risk. Consult your vehicle's owner's manual for towing capacity limits.
The manual states that all connections must be complete for the T-Connector to function properly. Verify that: (1) all taillight wiring connectors are fully inserted with locking tabs in place on both driver and passenger sides, (2) the grey 12-pin connector from the T-Connector is fully inserted into the black box-module with locking tabs in place, (3) the yellow wire ring terminal is properly tightened on the battery positive terminal, (4) the 10-amp fuse is installed in the fuse holder, (5) the white ground wire is securely fastened with the eyelet and screw, and (6) all connector surfaces are clean and free of dirt. Reset the vehicle's electrical system by temporarily removing the ignition key, then test again with a test light or trailer.
Ensure that the mating surfaces of the wiring connectors match and that all connector surfaces are clean and free of dirt. Check that you are not damaging the locking tabs during insertion. Insert the connectors fully until the locking tabs are completely in place. If connectors still do not lock, do not force them; verify that you have the correct connector ends for each location (yellow wire on driver's side, green wire on passenger's side).
