Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2017 Jeep Patriot All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Compass and Patriot (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2011, 2012, 2013, 2014, 2015, 2016, 2017 Jeep Patriot All Class 3 Trailer Hitch, 2" Receiver, Select Jeep Compass, Patriot
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2017 | Jeep Patriot | — |

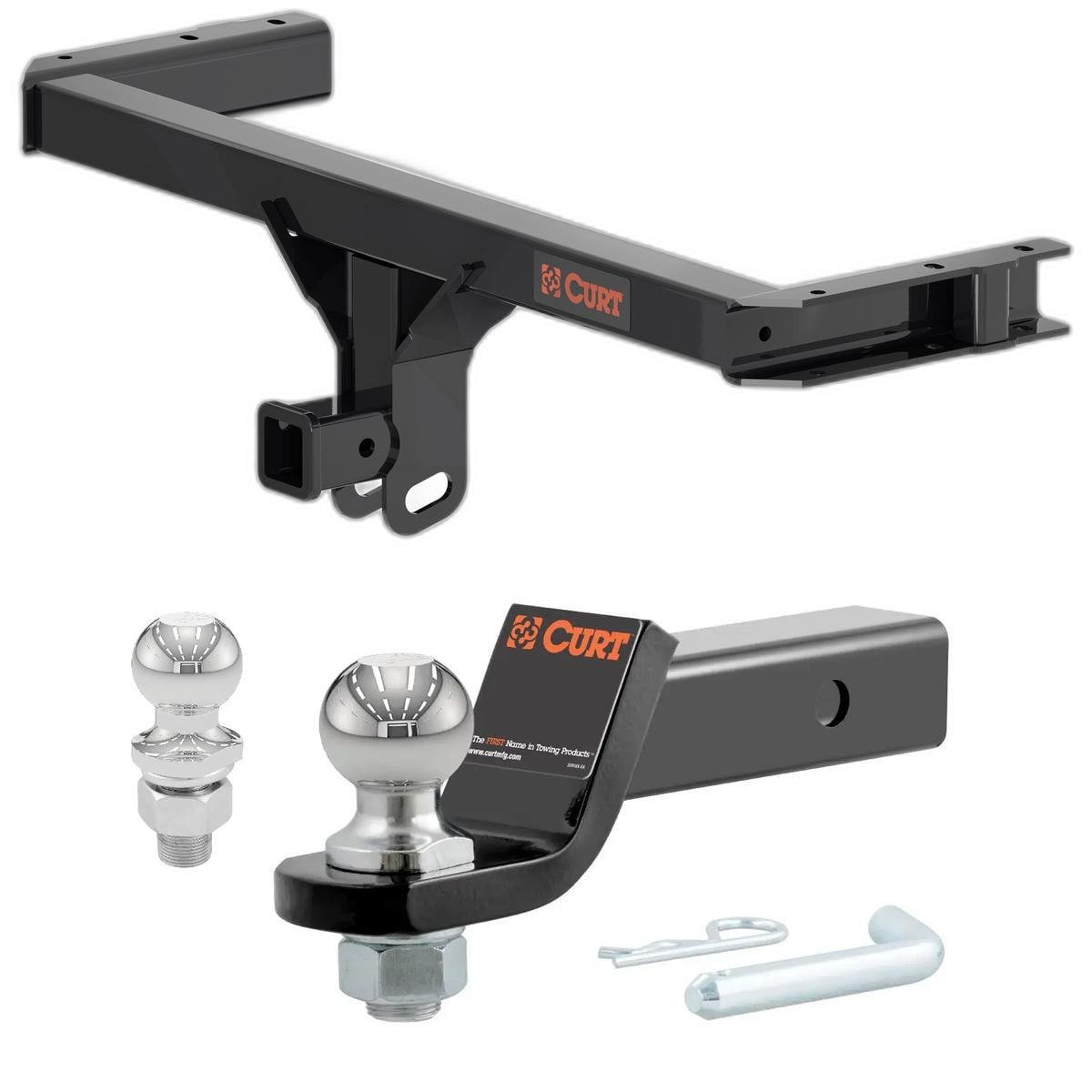

The 2011-2017 Jeep Patriot All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13081-002) fits the following vehicles: 2011-2017 Jeep Patriot. Always verify your specific year, make, and model before ordering.
The 2011-2017 Jeep Patriot All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13081-002) fits 2011-2017 Jeep Patriot models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2011-2017 Jeep Patriot All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13081-002) is designed to fit the 2011-2017 Jeep Patriot.
The 2011-2017 Jeep Patriot All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13081-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13081 is designed for 2011-Current Jeep Patriot and Compass SUVs. Verify your vehicle matches this model and year range before purchase.
Yes, CURT part number 13081 is designed for 2011-Current Jeep Patriot and Compass SUVs. Verify your vehicle matches this model and year range before purchase.
The hitch supports a maximum trailer weight of 4,000 lbs and tongue weight of 400 lbs when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
The minimum tongue weight capacity is 400 lbs. Do not exceed your vehicle manufacturer's recommended towing capacity.
Required tools: ratchet, 3/4", 7mm and 11mm sockets, die grinder, marker, tape measure, and torque wrench. Safety glasses must be worn at all times during installation.
Yes, a die grinder is required because fascia trimming is necessary for this installation.
The hitch includes: (4) hex head cap screws 1/2-13 UNC Grade 8 (part 10-10407), (4) flat washers 1/2" (part 30-00133), and (4) serrated flange nuts 1/2-13 UNC Grade 8 (part 20-00062). The 4" hex bolts must be inserted from outside the frame rails during installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. CURT technical support is available at 877-287-8634.
Installation is rated as moderate to challenging. If you are hesitant to undertake this task on your own, contact an authorized CURT installer. Technical support is available at 877-287-8634.
Yes, fascia trimming is required. The trim dimensions are approximate: trim 2 5/8 inches from the fascia center on one side and 2 9/16 inches on the other. Check fit prior to completing trim. A die grinder is required for this work.
Trim dimensions are approximate: 2 5/8 inches and 2 9/16 inches from the fascia center. Check fit prior to completing trim. Rotate the hitch up so it is touching the fascia and mark where to trim before cutting.
Yes, you must lower the exhaust by removing (3) rubber isolators. Support the exhaust to avoid possible damage. The exhaust is reinstalled in the final step after the hitch is secured.
Yes, temporarily remove the heat shield by removing (4) nuts. If a tow loop is present, remove it and return it to the vehicle owner. The heat shield is reinstalled after the hitch is secured.
1. Remove (4) plastic fasteners and (4) hex screws from fascia. 2. Lower exhaust by removing (3) rubber isolators (support exhaust). 3. Remove heat shield by removing (4) nuts. 4. Insert 4" hex bolts with washers into frame rails from outside; raise hitch between frame rails; push front bolts through mounting plates and loosely install 1/2" flange nuts. 5. Rotate hitch up to touch fascia and mark trim locations. 6. Trim fascia per trim diagram. 7. Secure hitch with (4) flange nuts. 8. Torque all 1/2" fasteners to 110 ft-lbs. 9. Reinstall heat shield, fasteners, and exhaust.
Loosely install the 1/2" flange nuts in step 4 when pushing the front bolts through the mounting plates. Do not fully tighten until step 8, after the hitch is rotated into position, fascia is trimmed, and the hitch is secured to the frame.
Torque all 1/2" fasteners to 110 ft-lbs after the hitch is fully positioned and secured to the frame.
Torque all 1/2" flange nuts to 110 ft-lbs. This is performed after the hitch is rotated into final position, fascia is trimmed, and the hitch is secured to the frame.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch is rated for a maximum of 4,000 lbs trailer weight and 400 lbs tongue weight, but your vehicle's manufacturer may specify a lower limit. Always follow the more restrictive specification.
Safety glasses must be worn at all times while installing this product.
All non-trailer loads applied to this product must be supported by CURT part number 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check this receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe operation and to maintain warranty coverage.
Periodically check this receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
The trim dimensions provided (2 5/8 inches and 2 9/16 inches) are approximate. Before completing the trim, rotate the hitch up so it is touching the fascia and mark where to trim. Check fit prior to completing trim. If fit is still incorrect after following this procedure, contact CURT technical support at 877-287-8634.
CURT part number 13081 is a receiver hitch designed for 2011-Current Jeep Patriot and Compass SUVs. It is rated for a maximum trailer weight of 4,000 lbs and tongue weight of 400 lbs when used as a weight-carrying hitch.
CURT technical support is available at 877-287-8634. For more information, visit www.curtmfg.com. For helpful towing tips, visit www.hitchinfo.com.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Insert 4" hex bolts with washers into the frame rails from the outside. Raise the hitch into position between the frame rails. Push the front bolts through the mounting plates and loosely install 1/2" flange nuts. Then rotate the hitch up so it is touching the fascia to mark trim locations. After trimming, secure the hitch to the frame with (4) flange nuts and torque all 1/2" fasteners to 110 ft-lbs.
