Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $307.50. Current price is $291.60.You save $15.90 (5%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Aug 12 - Sat, Aug 15
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

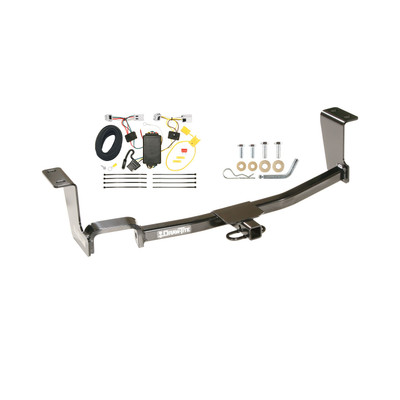

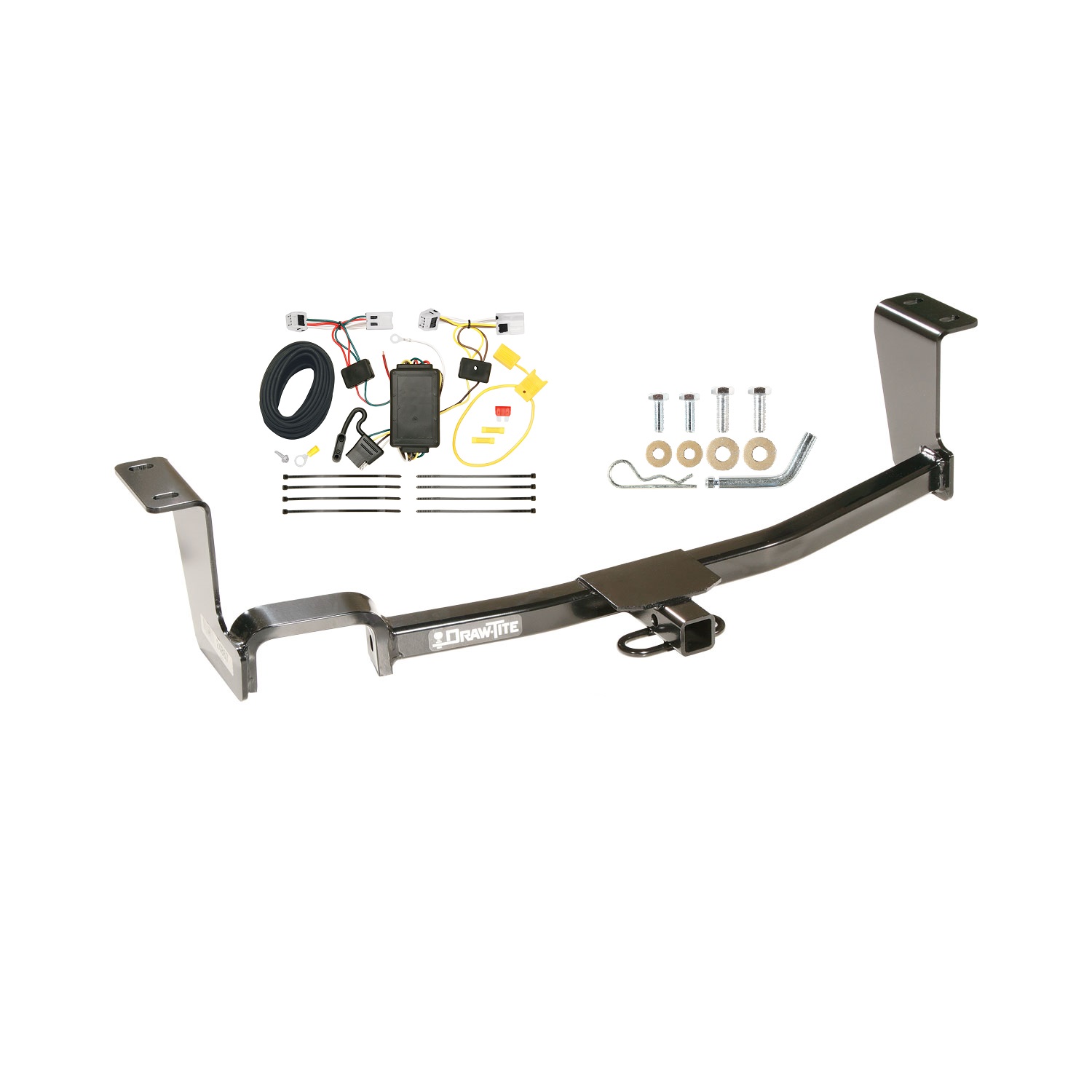

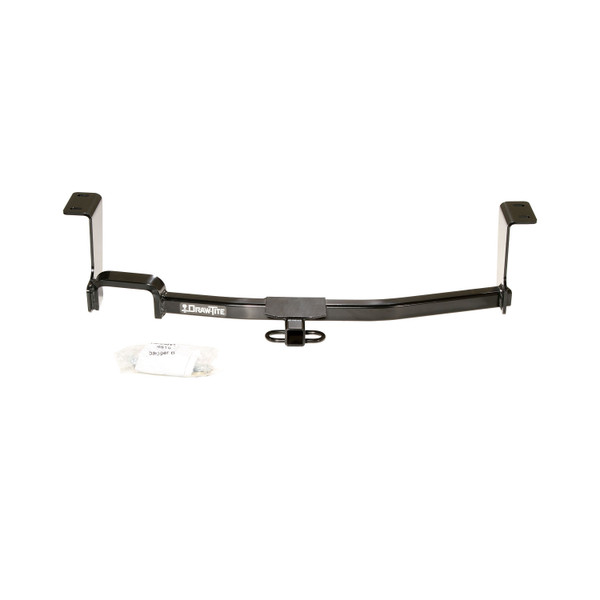

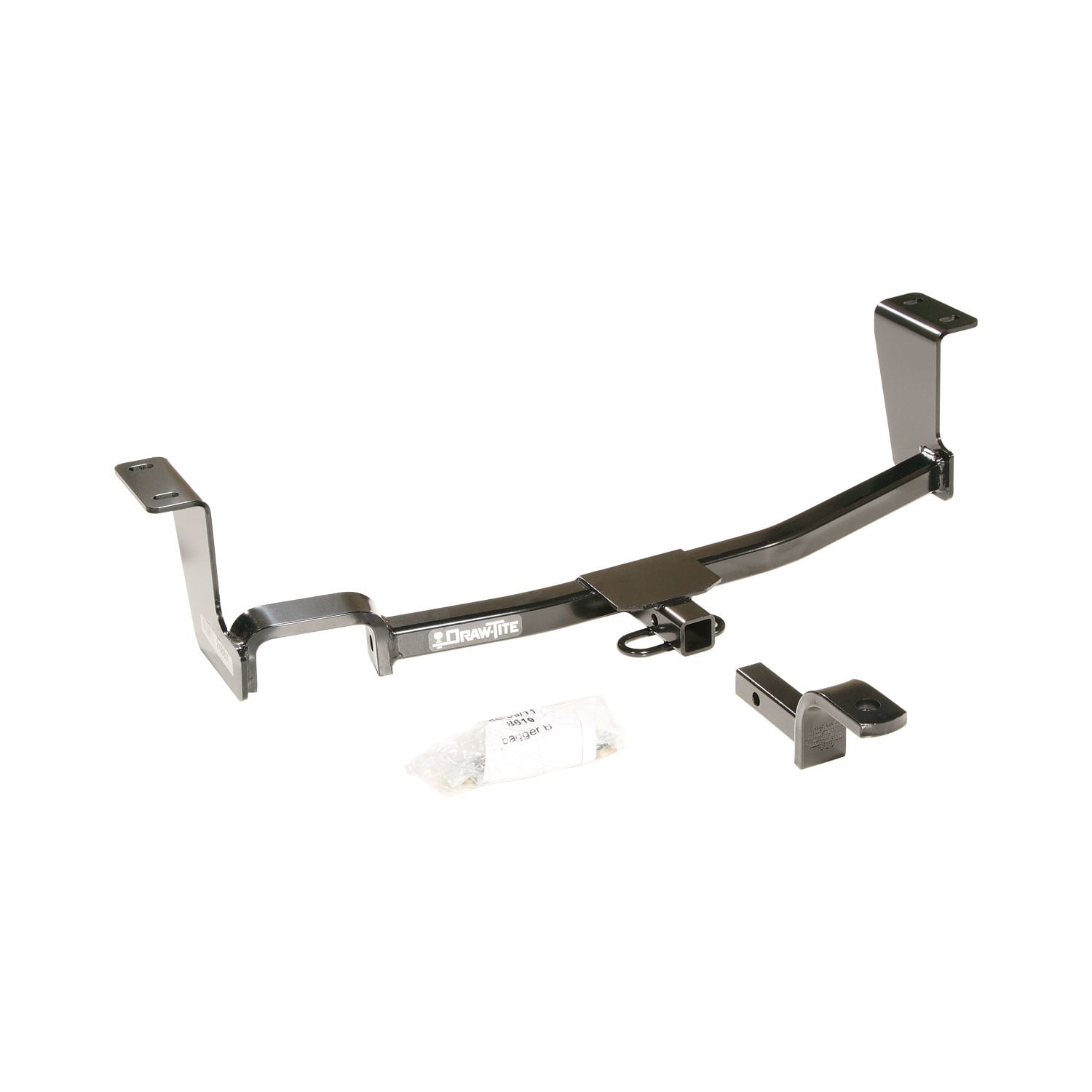

These dependable custom hitches are manufactured for 2011-2017 Nissan JUKE and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2001 | Nissan JUKE | AWD, Except Nismo & Nismo RS |
Part number 24867 is designed for Nissan Juke AWD models from 2010, 2011, and 2015. Confirm your vehicle year and that it is AWD before purchasing. The manual does not confirm fitment for other years or FWD models.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 17mm, 18mm, and 19mm sizes, a 6" extension, and a torque wrench. You will also need lubricant or soapy water to help remove the exhaust system rubber isolators.
Yes. Step 1 requires you to remove and return the factory tow hook and its 4 bolts to the vehicle owner before proceeding with hitch installation.
Yes. Step 2 requires you to lower the exhaust system at the rubber isolator in 3 places, leaving the rubber isolator attached to the muffler. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to help removal, and support the system to prevent the muffler from falling under its own weight.
Yes. Step 3 requires you to scrape undercoating and caulking from the bottom of the frame rails in an area large enough to allow the hitch brackets to sit flush against the frame rails. You must also clean out undercoating from the weldnuts without damaging the threads, and confirm that an M10 hex bolt will thread into the weldnuts.
Step 4 requires you to raise the hitch into position on the driver's side and loosely install a hex bolt and conical washer through the elongated hole in the hitch into the vehicle frame. Repeat on the passenger's side. Then center the hitch on the vehicle and install the remaining hardware as shown in the diagram.
All M10 CL 8.8 fasteners must be tightened to 39 Lb.-Ft. (52 N*M) using a torque wrench.
All M12 CL 8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N*M) using a torque wrench.
The hitch includes: 2 × M12 × 1.25 × 35mm CL8.8 hex bolts, 2 × M10 × 1.25 × 30mm CL8.8 hex bolts, 2 × 1/2" conical washers, and 2 × 3/8" conical washers. Additional fasteners are available in kit 24867F.
Yes. Step 6 requires you to reinstall the exhaust system after all hitch fasteners have been tightened to the required torque specifications.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not allow the muffler to fall under its own weight when lowering the exhaust system. Support the exhaust system while removing all rubber hangers.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the rise position only. Do not use it in any other position.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
No. The drawbar is sold separately as kit 3593. You will need to purchase this separately if you require a drawbar.
No. The fascia is sold separately. You will need to purchase it separately if you require one.
Yes, part 24867 fits Nissan Juke AWD models from 2010, 2011, and 2015 only. Confirm your year and AWD drivetrain before purchasing.
You need 17mm, 18mm, and 19mm wrenches, a 6" extension, a torque wrench, and lubricant or soapy water for exhaust removal.
Yes, remove and return the factory tow hook and its 4 bolts to the vehicle owner before installing the hitch.
Yes, lower the exhaust at the rubber isolator in 3 places, leaving the isolator attached to the muffler. Use lubricant or soapy water and support the system to prevent it from falling.
M10 CL 8.8 bolts: 39 Lb.-Ft. (52 N*M). M12 CL 8.8 bolts: 68 Lb.-Ft. (92 N*M). Use a torque wrench for all fasteners.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
The drawbar must be used in the rise position only. The drawbar is sold separately as kit 3593.
