2011-2017 Nissan Juke S, AWD Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $407.85. Current price is $304.92.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2017 Nissan Juke SV, AWD

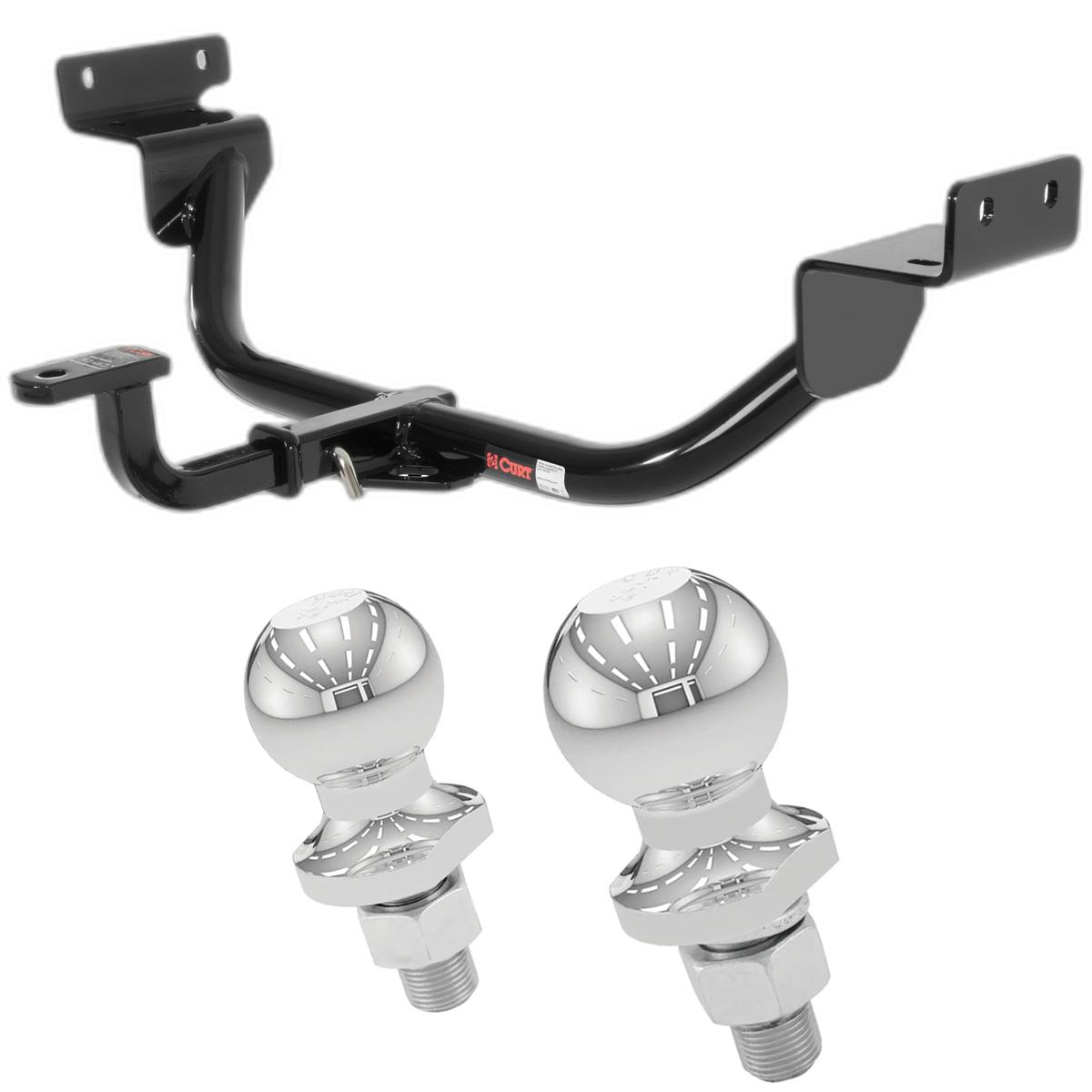

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Nissan Juke (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

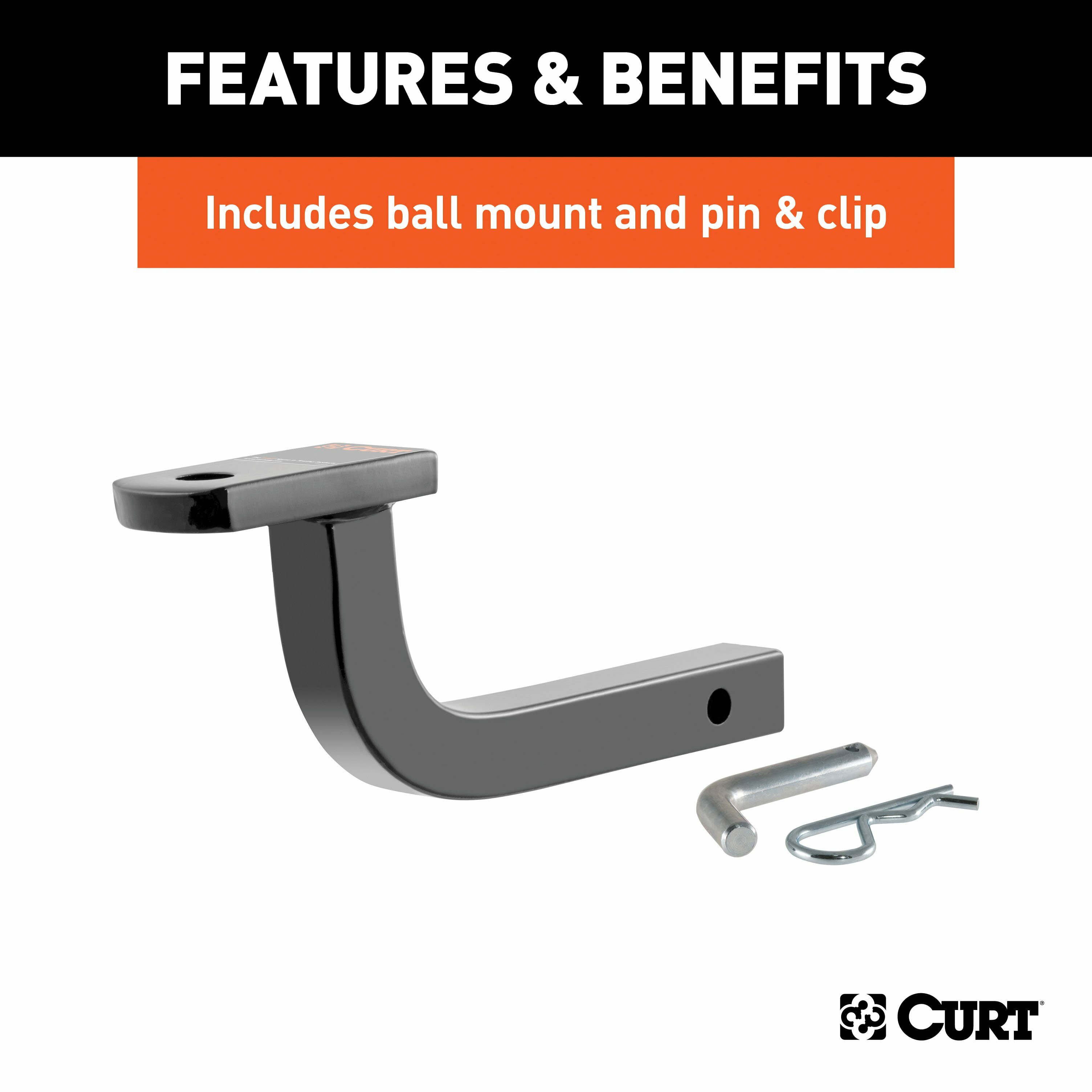

Includes ball mount #45520, installation hardware, pin & clip
2011, 2012, 2013, 2014, 2015, 2016, 2017 Nissan Juke SV, AWD Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Nissan Juke
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2017 | Nissan JUKE | SV, AWD |
Yes, the 2011-2017 Nissan Juke SV, AWD Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-110883-003) is designed to fit the 2011-2017 Nissan JUKE.
The 2011-2017 Nissan Juke SV, AWD Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-110883-003) fits 2011-2017 Nissan JUKE models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2017 Nissan Juke SV, AWD Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-110883-003) fits the following vehicles: 2011-2017 Nissan JUKE. Always verify your specific year, make, and model before ordering.
The 2011-2017 Nissan Juke SV, AWD Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-110883-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 110883 hitch is designed for Nissan Juke AWD models from 2011-present, excluding NISMO models. If your vehicle is a 2011 or newer Juke with all-wheel drive and is not a NISMO variant, this hitch will fit. If you have a NISMO model or a 2WD Juke, this hitch is not compatible.
No. The CURT 110883 is specifically designed for Nissan Juke AWD models excluding NISMO. NISMO models are not compatible with this hitch.
The CURT 110883 is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
You will need: a socket wrench, torque wrench, 17mm socket, 18mm socket, 20mm socket, 8-inch socket extension, and a pry bar. Safety glasses should be worn at all times during installation.
The hitch includes: four M10-1.25 x 30 hex bolts with four 7/16-inch conical toothed washers, and four M12-1.25 x 30mm hex bolts with four 1/2-inch conical toothed washers. The hitch uses existing weldnuts on both frame rails.
No. The CURT 110883 requires no drilling. It uses existing weldnuts on the vehicle's frame rails.
Yes. You must remove the existing factory tow loop from the passenger side of the vehicle. Return the tow loop and its hardware to the vehicle owner.
Yes. You must lower the exhaust by removing three rubber isolators from the muffler. Wire may be used to hold the exhaust to prevent damage if it is lowered too far. After the hitch is installed, the exhaust is raised back into position.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
The M12-1.25 x 30mm hex bolts must be torqued to 86 lb-ft.
The M10-1.25 x 30 hex bolts must be torqued to 48 lb-ft.
While the CURT 110883 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, you must never exceed your vehicle manufacturer's recommended towing capacity. Your vehicle's capacity may be lower than the hitch rating, and you are responsible for following your vehicle manufacturer's specifications.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the installation.
The CURT 110883 is designed for use with ball mount #D-20 / 45520. Euro mount options are also available: #45561 for a 1-7/8-inch ball or #45562 for a 2-inch ball.
CURT Manufacturing Inc. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, if your vehicle is a 2011-present Nissan Juke AWD model excluding NISMO. NISMO and 2WD models are not compatible.
The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing weldnuts on the vehicle's frame rails.
You will need a socket wrench, torque wrench, 17mm, 18mm, and 20mm sockets, 8-inch socket extension, and a pry bar. Safety glasses are required.
The exhaust must be temporarily lowered by removing three rubber isolators from the muffler during installation, then raised back into position afterward. No permanent modifications are required.
Torque M12-1.25 bolts to 86 lb-ft and M10-1.25 bolts to 48 lb-ft.
All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to use them voids the warranty.
