2012-2015 Toyota Prius Plug-In All Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $347.85. Current price is $264.92.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2012-2015 Toyota Prius Sedan
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Toyota Prius, Prius Plug-In and Prius V (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

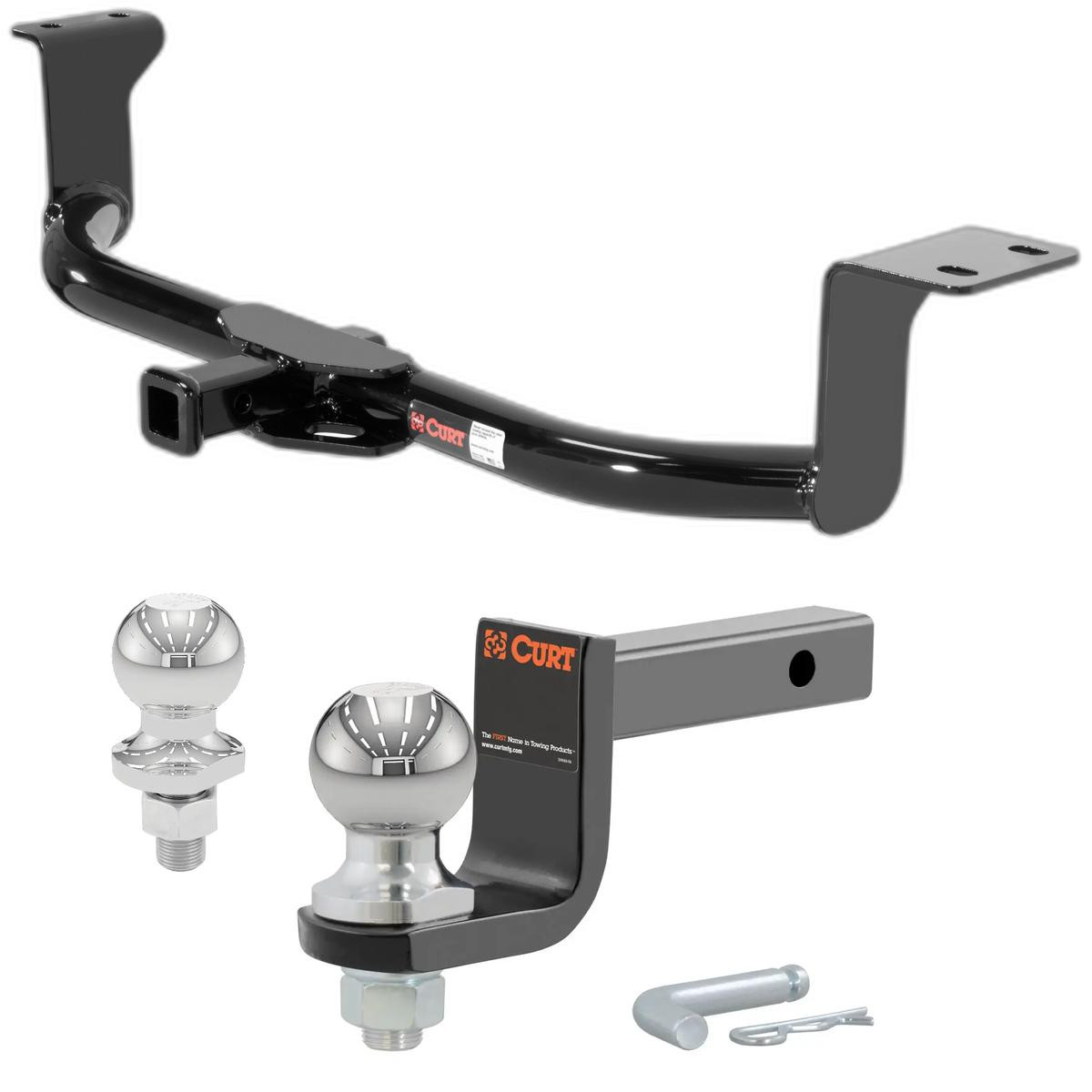

Includes ball mount #45521, installation hardware, pin & clip
2012, 2013, 2014, 2015 Toyota Prius Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Prius
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Toyota Prius | Sedan |
The 2012-2015 Toyota Prius Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112763-002) fits the following vehicles: 2012-2015 Toyota Prius. Always verify your specific year, make, and model before ordering.
The 2012-2015 Toyota Prius Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112763-002) fits 2012-2015 Toyota Prius models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2012-2015 Toyota Prius Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112763-002) is designed to fit the 2012-2015 Toyota Prius.
The 2012-2015 Toyota Prius Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112763-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 11276 fits 2010–present Toyota Prius hatchback models. It also fits 2010–2015 Toyota Prius Plug-In hatchback and 2010–present Toyota Prius V wagon. Confirm your model year and body style against these ranges before purchase.
Yes. CURT 11276 is designed for the 2010–present Toyota Prius V wagon.
CURT 11276 is rated for a maximum trailer weight of 2,000 lbs and tongue weight of 200 lbs when used as a weight-carrying hitch. You must not exceed your vehicle manufacturer's recommended towing capacity.
The maximum tongue weight is 200 lbs.
You will need a ratchet, torque wrench, 6-inch socket extension, 17 mm socket, and 19 mm socket. Safety glasses should be worn at all times during installation.
The kit includes four M12 – 1.25 × 40 mm hex bolts and four 1/2-inch conical toothed washers. These fasteners attach the hitch to the vehicle's frame weldnuts.
No. The manual states 'no drilling required' for this hitch.
Yes. You must remove the existing tow loop and its bolts before installation. Return the tow loop and bolts to the vehicle owner. On standard Prius models, access the bolts through the tow loop cut-out in the underbody panel.
You do not need to remove the entire exhaust. However, you must remove the existing bolts from the rearmost exhaust hanger to the lower exhaust and return them to the owner. For ease of installation, the manual recommends removing the rearmost rubber isolator; see the rubber isolator removal diagram in the manual.
The manual states that 2 people may be required to ease installation. If you are hesitant to undertake the task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
All 12 mm fasteners must be torqued to 86 ft-lbs.
No. In step 3, you loosely attach the hitch to the weldnuts using the supplied bolts and washers. Only after positioning both the driver and passenger side plates (steps 3 and 4) do you torque all 12 mm fasteners to 86 ft-lbs in step 5.
1. Remove existing bolts from the rearmost exhaust hanger to the lower exhaust and return them to the owner. Optionally remove the rubber isolator. 2. Remove existing bolts from the tow loop and return the tow loop and bolts to the owner. 3. Position the hitch by raising the driver side plate against the frame rail and loosely attach it using M12 – 1.25 × 40 mm bolts with 1/2-inch conical toothed washers. 4. Clamp the passenger side plate between the frame rail and exhaust bracket and secure it with the same bolts and washers. 5. Torque all 12 mm fasteners to 86 ft-lbs. 6. Reinstall the rubber isolator if it was removed in step 1.
Raise the driver side plate against the frame rail. On standard Prius models, this plate will go through the tow loop cut-out in the underbody panel. Loosely attach it to the weldnuts in the frame using the supplied M12 – 1.25 × 40 mm bolts with 1/2-inch conical toothed washers.
Clamp the passenger side plate between the frame rail and the exhaust bracket. Secure it using M12 – 1.25 × 40 mm bolts with 1/2-inch conical toothed washers.
CURT 11276 is designed for use with ball mount #45501. Euro mount options are available: #45571 (1 7/8-inch ball) and #45572 (2-inch ball). The ball mount must be used in the rise position only.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads.
Never exceed your vehicle manufacturer's recommended towing capacity. This is a critical safety requirement.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the installation.
Yes. CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
Yes, it fits 2010–present Prius hatchback, 2010–2015 Prius Plug-In hatchback, and 2010–present Prius V wagon.
Maximum trailer weight is 2,000 lbs and tongue weight is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required.
All 12 mm fasteners must be torqued to 86 ft-lbs.
All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to use them voids the warranty.
Yes, remove the existing tow loop and its bolts. Also remove bolts from the rearmost exhaust hanger to the lower exhaust. Return all removed parts to the owner.
