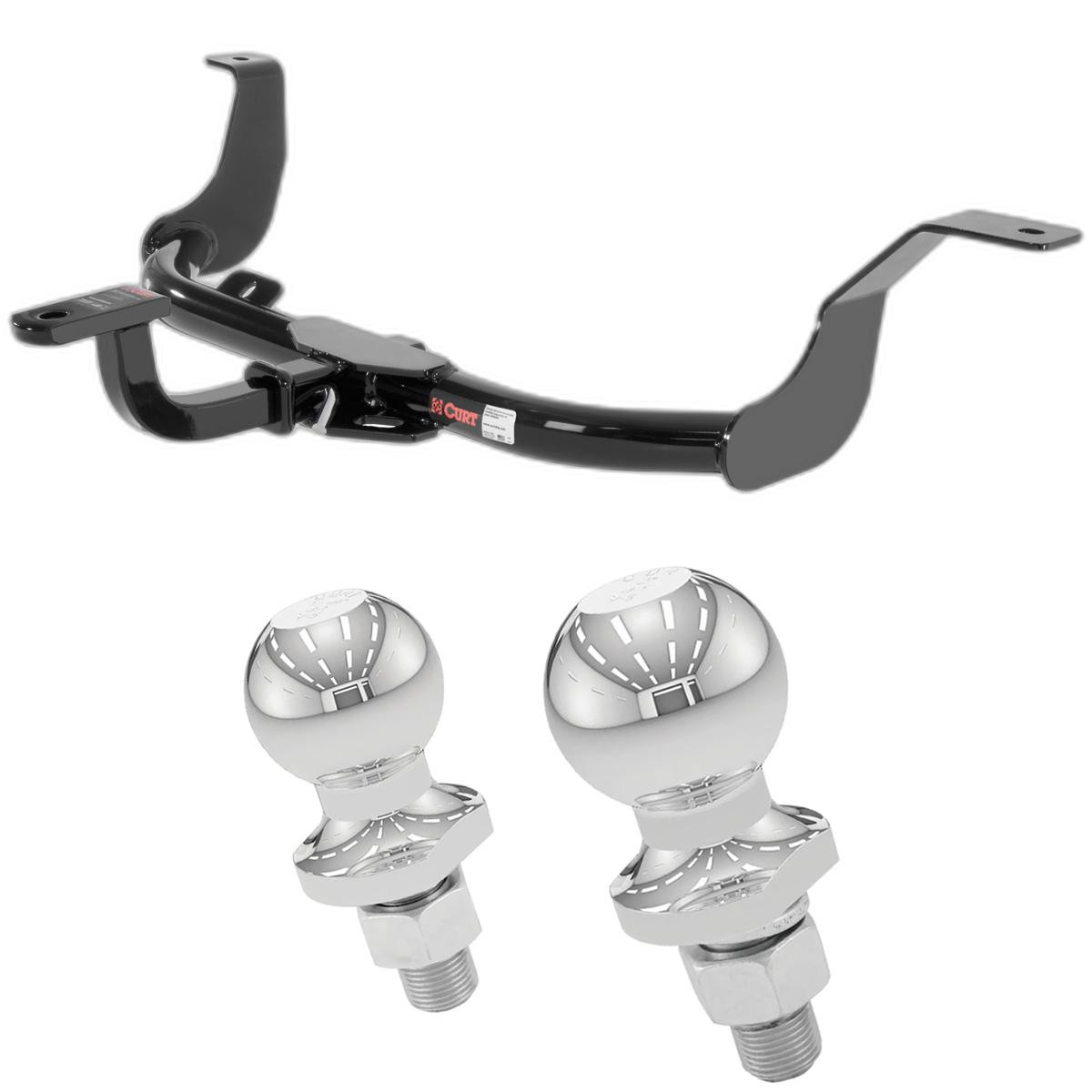

2012 Nissan Versa Hatchback Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $483.85. Current price is $353.92.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2012 Nissan Versa Sedan
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Nissan Versa (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

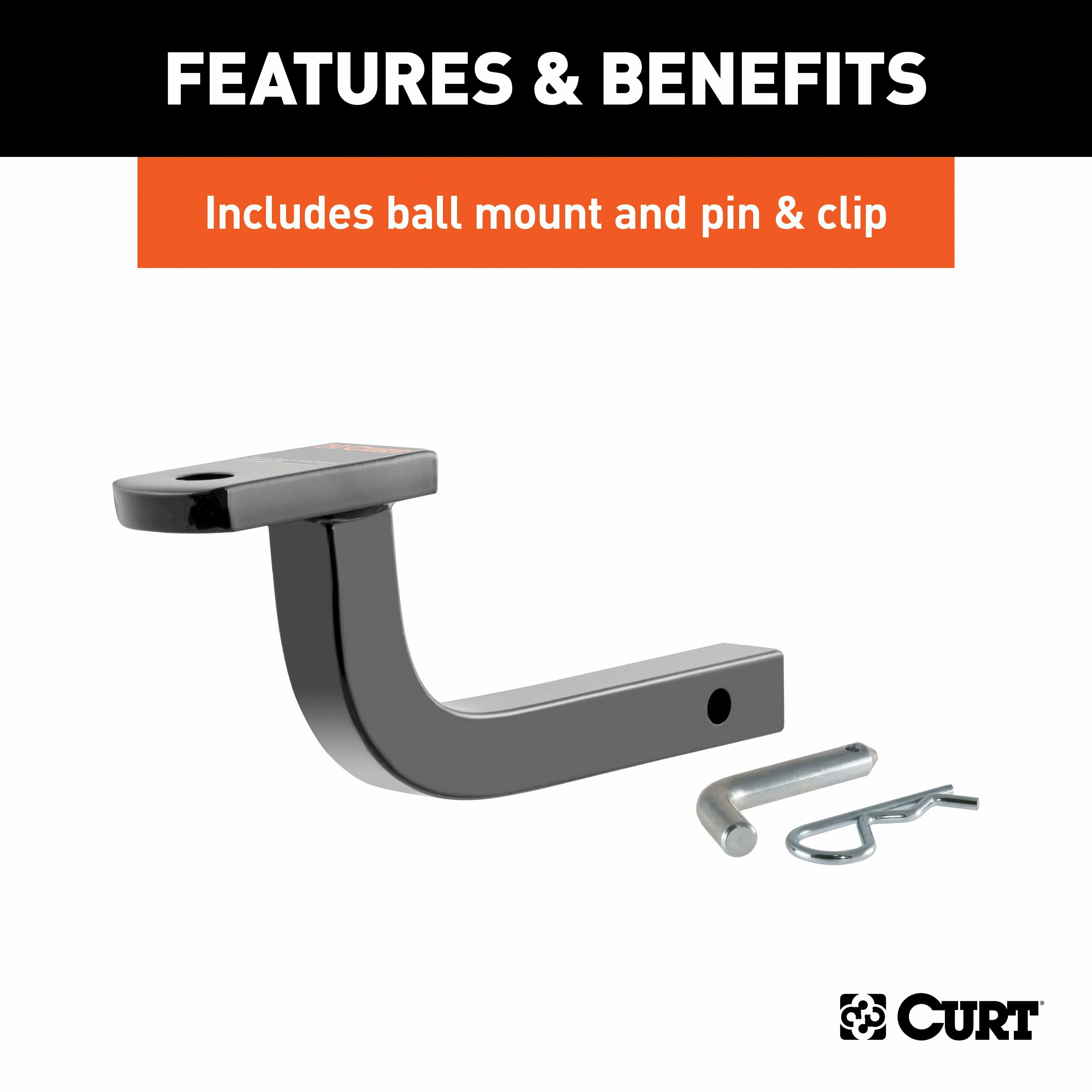

Includes ball mount #45520, installation hardware, pin & clip
2012 Nissan Versa Sedan Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Nissan Versa
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 | Nissan Versa | Sedan |
Yes, part number 11256 is designed for Nissan Versa Sedan models from 2012 to current. Verify your vehicle year and body style (sedan) match before purchasing.
The hitch supports a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 60 lbs.
You will need: a ratchet, torque wrench, 3/4" socket, 10" socket extension, aviation shears, die grinder, and safety glasses. Using proper tools will greatly improve the quality of the installation and reduce installation time.
The kit includes: two CM-SP17 spacers (0.250 x 1.25 x 2.50" square hole), two 1/2" fishwire pieces, one 1/2-13 x 1 3/4" carriage bolt, one CM-SP4 spacer (0.250 x 1.50 x 3.00" square hole), three HFN 1213 hex flange nuts, and two 1/2-13 x 1 1/2" carriage bolts.
Two people may be required to ease installation. The installation is rated as moderate difficulty. If you are hesitant to undertake this task on your own, Curt recommends contacting an authorized Curt installer for additional assistance. Technical support is available at 1-800-798-0813.
Yes. The first installation step is to lower the exhaust by removing two exhaust isolators. After the hitch is installed and secured, you must raise the exhaust back into position and reattach the rubber isolators.
Yes. You must enlarge existing holes on both the driver and passenger sides of the vehicle to allow the CM-SP17 spacers to pass into the vehicle frame rail. You will also need to trim the heat shield to allow access to the round hole on the passenger side. These modifications are permanent.
The fishwire hardware technique is used to reverse pull the 1/2" x 1 1/2" carriage bolts and CM-SP17 spacers into the enlarged holes from inside the vehicle frame rail. The manual references a reverse pull fishwire technique diagram for detailed visual guidance on this step.
All 1/2" hardware must be torqued to 110 lb-ft. Use a torque wrench to ensure proper tightening.
1. Lower exhaust by removing two exhaust isolators and remove the rubber plug from the driver side hole. 2. Trim heat shield to access the passenger side round hole. 3. Enlarge holes on both driver and passenger sides for the CM-SP17 spacers. 4. Reverse fishwire the 1/2" x 1 1/2" carriage bolts and CM-SP17 spacers into the enlarged holes, and install the 1/2" x 1 3/4" carriage bolt and CM-SP4 spacer through the top of the vehicle tow loop. 5. Raise the hitch into position and secure with 1/2" hex flange nuts. 6. Torque all 1/2" hardware to 110 lb-ft. 7. Raise exhaust back into position and reattach the rubber isolators.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. Using proper tools will improve installation quality and reduce time required.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by Curt part 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the Curt catalog or visit www.curtmfg.com for further information on stabilizing straps.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This should be done regularly to maintain safe operation.
The hitch is designed for use with Curt ball mount D-20 / 45520. Euro mount options are available: part 45561 (1-7/8" ball) and part 45562 (2" ball).
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, the Curt 11256 is designed for Nissan Versa Sedan models from 2012 to current.
The hitch supports 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
You will need a ratchet, torque wrench, 3/4" socket, 10" socket extension, aviation shears, die grinder, and safety glasses.
Yes, you must enlarge existing holes on both sides of the vehicle and trim the heat shield. These are permanent modifications.
All 1/2" hardware must be torqued to 110 lb-ft.
All non-trailer (wheel-less) loads must be supported by Curt part 18050 stabilizing straps, or the warranty is voided.
Two people may be required to ease installation. If hesitant, contact an authorized Curt installer or call technical support at 1-800-798-0813.
