Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2013-2015 Subaru XV Crosstrek All

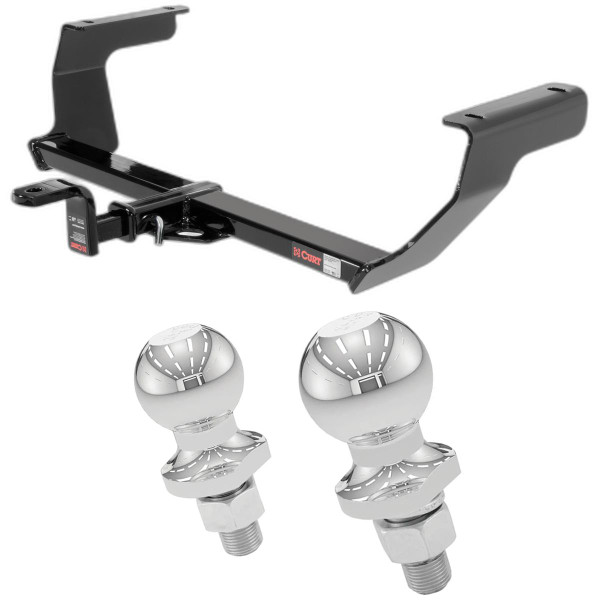

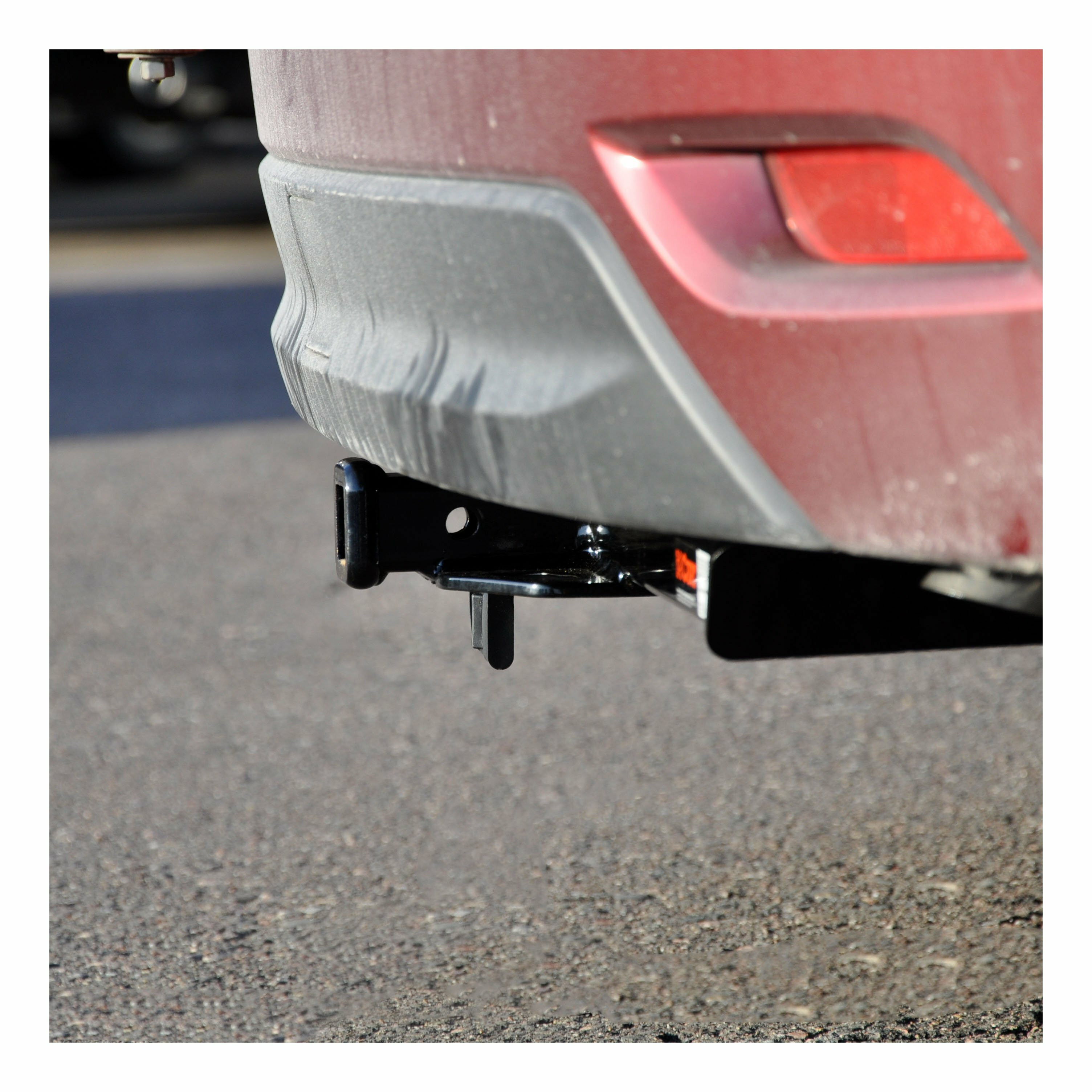

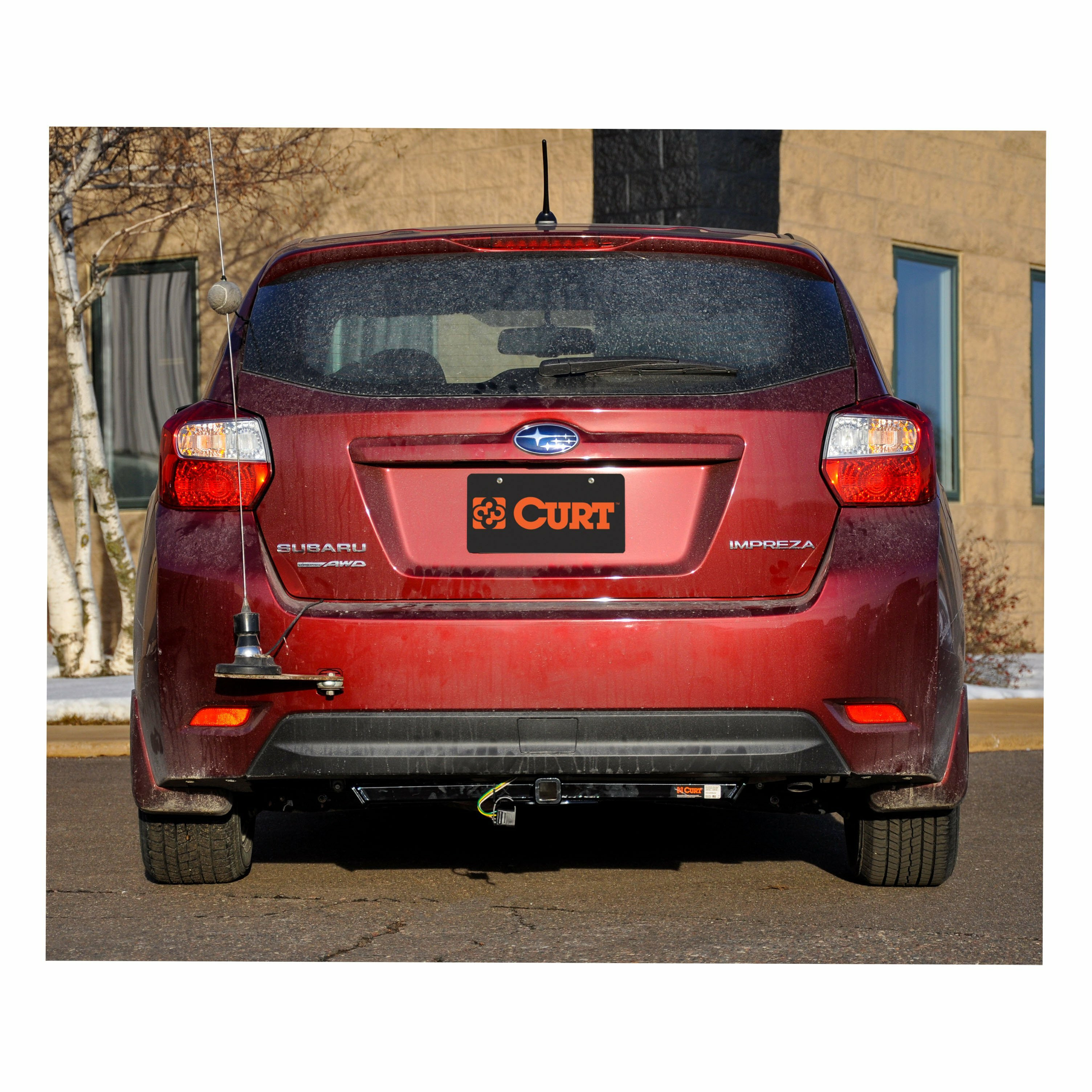

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Subaru Impreza and XV Crosstrek (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2013, 2014, 2015 Subaru XV Crosstrek All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Subaru Impreza, XV Crosstrek
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2015 | Subaru XV Crosstrek | — |
Yes, the 2013-2015 Subaru XV Crosstrek All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112863-001) is designed to fit the 2013-2015 Subaru XV Crosstrek.
The 2013-2015 Subaru XV Crosstrek All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112863-001) fits 2013-2015 Subaru XV Crosstrek models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2013-2015 Subaru XV Crosstrek All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112863-001) fits the following vehicles: 2013-2015 Subaru XV Crosstrek. Always verify your specific year, make, and model before ordering.
The 2013-2015 Subaru XV Crosstrek All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-112863-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 11286 is designed for 2012-Current Subaru Impreza 5-door and (XV) Crosstrek models. Confirm your vehicle matches this specification before purchasing.
CURT hitch 11286 is designed for use with ballmount #D-55001 or #45501. Euro mount options are also available: #45571 (1 7/8" ball) or #45572 (2" ball).
CURT hitch 11286 has a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Required tools are: 3/8" drive ratchet, 11/16" socket, 3/4" socket, die grinder with rasp bit, 3/8" drive torque wrench, and safety glasses. The die grinder is needed to enlarge access holes in the frame rails as necessary.
The manual rates this installation as "Easy" to "Moderate" difficulty. Two people may be required to ease installation. If you are hesitant to undertake this task on your own, CURT recommends contacting an authorized CURT installer. Technical support is available at 800.798.0813.
The kit includes: 2× 1/2-13 x 1 1/2" carriage bolts, 2× 7/16-14 x 1 1/2" carriage bolts, 2× .250 x 1.00 x 3.00" square hole spacers (CM-SP6), 2× .250 x 1.00 x 2.50" square hole spacers (CM-SP11), 2× .250 x 1.50 x 2.00" round hole spacers (CM-SP16), 2× HFN 1213 hex flange nuts (1/2-13), 2× 7/16-14 hex flange nuts, 1× 7/16" fishwire, and 1× 1/2" fishwire.
Remove the 4 rubber plugs in the frame rails and discard them. Leave the center plugs in place. Read all installation instructions thoroughly before beginning.
Fishwire the 7/16" carriage bolts and spacers into position first through the enlarged access holes in the frame rails. Then reverse fishwire the 1/2" carriage bolts and spacers into position afterward. Enlarge the access hole as necessary using the die grinder with rasp bit. Be careful not to push the bolts into the frame.
Raise the hitch to the frame and align the holes in the hitch with the bolts. Use the 1.50" x 2.00" round hole spacers (CM-SP16) to level the hitch as necessary. Be careful not to push the bolts in the frame during this process.
Yes, hole enlargement is required. You must enlarge the access holes in the frame rails as necessary using a die grinder with rasp bit to accommodate the spacers and bolts. The manual indicates this is a required modification.
Torque all 7/16" fasteners to 70 lb-ft and all 1/2" fasteners to 110 lb-ft. Use a 3/8" drive torque wrench to achieve these specifications.
Wear safety glasses at all times while installing this product. Be careful not to push the bolts into the frame during installation. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is a critical ongoing maintenance requirement to ensure safe operation.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Call CURT Technical Support at 800.798.0813. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
Yes, CURT 11286 fits 2012-Current Subaru Impreza 5-door and (XV) Crosstrek models. It is designed for use with ballmount #D-55001 or #45501, or Euro mount options #45571 (1 7/8" ball) or #45572 (2" ball).
You need: 3/8" drive ratchet, 11/16" and 3/4" sockets, die grinder with rasp bit, 3/8" drive torque wrench, and safety glasses. The die grinder is required to enlarge frame rail access holes.
Yes, hole enlargement is required. You must use a die grinder with rasp bit to enlarge the access holes in the frame rails as necessary to accommodate the spacers and bolts.
Torque 7/16" fasteners to 70 lb-ft and 1/2" fasteners to 110 lb-ft using a 3/8" drive torque wrench.
CURT 11286 supports 2,000 lbs. trailer weight and 200 lbs. tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Wear safety glasses at all times. Do not push bolts into the frame during installation. Never exceed your vehicle manufacturer's towing capacity. Periodically check all fasteners are tight and structural components are sound.
