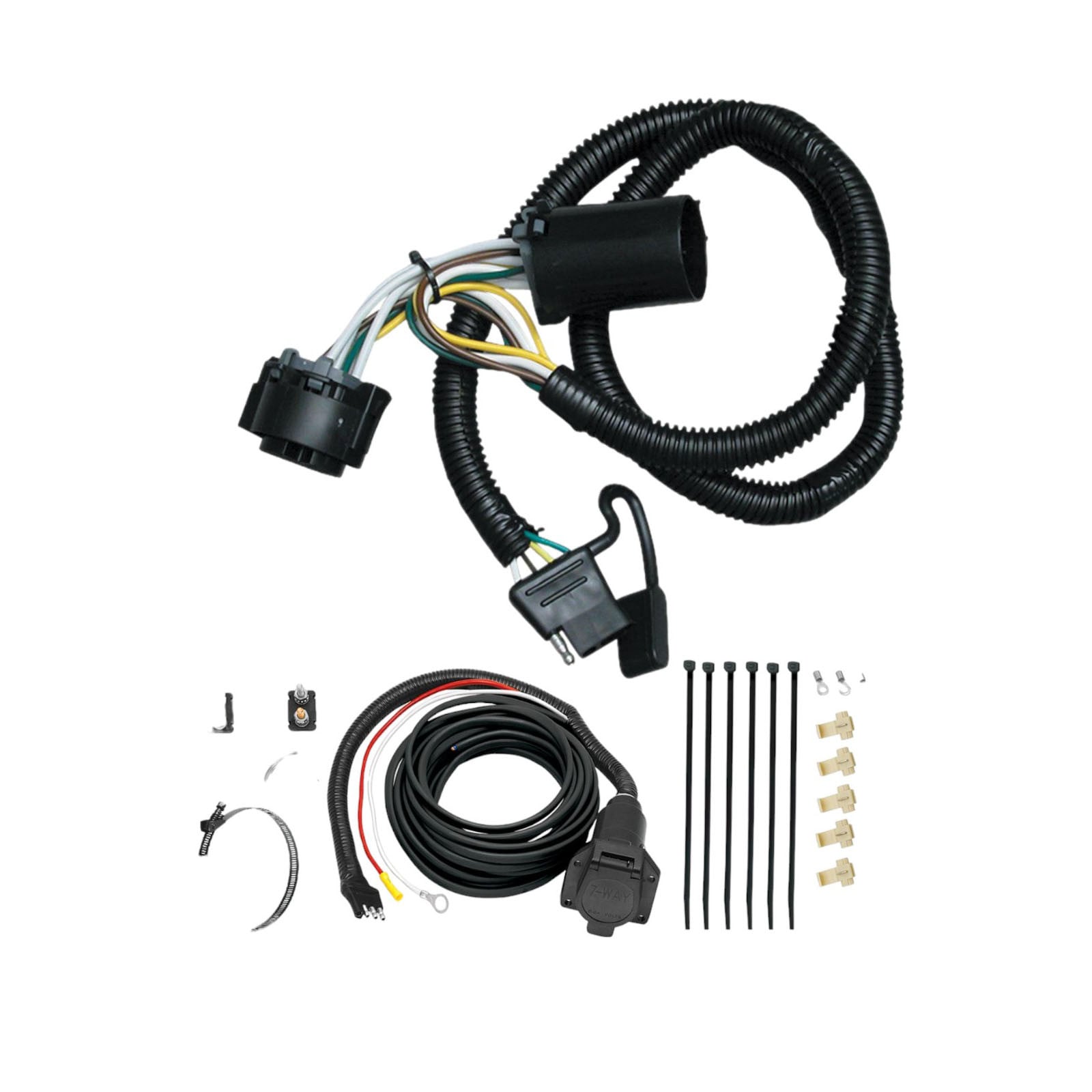

2022-2024 Infiniti QX60 Tekonsha Custom 7-Way + Brake Controller Install KitTekonsha$213.10Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2020 Infiniti QX60
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Infiniti QX60 | — |
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.
The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
Yes, the T-One® T-Connector (118670-037) is designed for the Nissan Pathfinder. It is also compatible with the Infiniti QX60. Always verify compatibility with your specific model year and consult your vehicle's owner's manual for additional information.
Yes, the T-One® T-Connector (118670-037) is compatible with the Infiniti QX60. It is also designed for the Nissan Pathfinder. Always verify compatibility with your specific model year and consult your vehicle's owner's manual for additional information.
The kit includes: two small relays and one large relay for the jumper harness; two blue relays for the engine relay box; a 4-Flat harness; a grey 6-pin connector; a white wire with eyelet and screw for grounding; and cable ties for securing the harness. The tow plug bracket is not included and must be purchased separately.
Required tools are: wire cutters, Phillips head screwdriver, test-probe, trim panel puller, and a 10mm socket & ratchet or 10mm wrench. These tools are needed to remove interior trim panels, disconnect components, and secure fasteners during installation.
Only if your vehicle is equipped with a rear subwoofer. If present, carefully unscrew the retainer bolt at the top of the speaker, disconnect the speaker connector (being careful not to damage the locking tabs), and set the subwoofer aside during installation. You will reinstall it after the harness is secured.
Yes. You must fold the rear seats forward to access the cargo assembly and rotate it to rest on the folded seats. This is necessary to reach the jumper harness connectors located in the storage cargo area.
Using two small relays and one large relay, carefully insert them into the relay jumper harness. The terminals of each relay will match the configuration of the relay jumper harness end. Ensure that the relays are fully inserted with locking tabs in place. Do not use relays other than those included, as different relays can result in the unit not functioning or may damage the vehicle and/or trailer.
On the driver's side, under the trim panel area, locate the jumper harness connectors. The plugs will mate into the two relay jumper harness connectors. After connecting, secure the remainder of the harness with the cable ties provided and ensure that the connectors are fully inserted with locking tabs in place.
The relay box is located behind the driver's side headlight. Open the cover and insert the two blue relays into the open cavities. Ensure that the relays are fully inserted with locking tabs in place.
The grey 6-pin connector is located behind the rear bumper near the center of the vehicle. From underneath the vehicle, locate the tow plug harness and this connector. Remove the vehicle's tow plug protective cap. All connector surfaces should be clean and free of dirt before connecting.
Connect the tow plug end to the vehicle's mating connector. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place. All connections must be complete for the T-One® T-Connector to function properly.
Yes. You must drill a 3/32" hole to secure the white grounding wire. Locate a suitable grounding point near the adapter such as the vehicle frame or crossmember (do not drill into vehicle floor or bed). Clean dirt and rustproofing from the area, drill the 3/32" hole, and secure the white wire using the eyelet and screw provided. Always verify what is behind any surface prior to drilling to avoid damage to the vehicle and/or personal injury. Do not drill into any exposed surfaces.
Drill a 3/32" hole for the white grounding wire. The hole should be made in a suitable grounding point near the adapter such as the vehicle frame or crossmember, not in the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
Route the 4-Flat harness rearward to the back of the fascia of the bumper. Route the wire carefully to avoid any hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. After routing, secure the 4-Flat tow harness to the hitch. Note that a bracket is not included and must be purchased separately.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum stop/turn light is 1 per side (7.5 amps); maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Always consult your vehicle's owner's manual and the towing manufacturer's specifications.
For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. Then test and verify the installation with a test light or trailer once installed. All connections must be complete for the T-One® T-Connector to function properly.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® T-Connector to function properly before testing.
Remove the vehicle's tow plug protective cap and return it to the customer. The manual does not specify whether the cap should be retained for future use or discarded.
Yes. After the harness is secured, reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires during reinstallation.
Remove three 10mm bolts from the storage cargo area using a socket or wrench. Additionally, remove two 10mm bolts holding the cargo loops in place on the driver's side near the driver's side trim panel.
Remove four retaining clips from the cargo assembly area and two retaining clips holding the carpeted trim piece in place on the driver's side. Use a panel puller to carefully remove these clips.
The T-One® T-Connector (118670-037) is designed for the Nissan Pathfinder and Infiniti QX60. Always verify compatibility with your specific model year and consult your vehicle's owner's manual.
No, the tow plug bracket is not included and must be purchased separately. The kit includes relays, harnesses, connectors, grounding wire, and cable ties.
Maximum stop/turn light is 1 per side (7.5 amps); maximum tail lights (7.5 amps). Do not exceed the lower of your towing manufacturer's rating or these limits, as overloading can cause fires.
