Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2014-2020 Mitsubishi Outlander All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mitsubishi Outlander (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2014, 2015, 2016, 2017, 2018, 2019, 2020 Mitsubishi Outlander All Class 3 Trailer Hitch, 2" Receiver, Select Mitsubishi Outlander
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Mitsubishi Outlander | — |

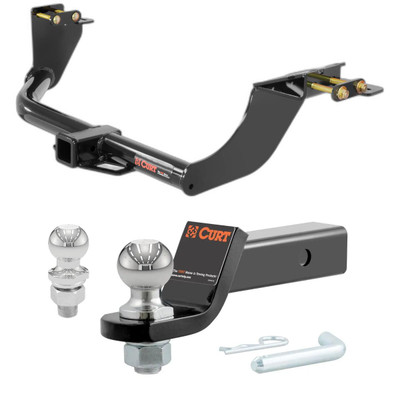

Yes, the 2014-2020 Mitsubishi Outlander All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13163-001) is designed to fit the 2014-2020 Mitsubishi Outlander.
The 2014-2020 Mitsubishi Outlander All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13163-001) fits the following vehicles: 2014-2020 Mitsubishi Outlander. Always verify your specific year, make, and model before ordering.
The 2014-2020 Mitsubishi Outlander All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13163-001) fits 2014-2020 Mitsubishi Outlander models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2014-2020 Mitsubishi Outlander All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13163-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13163 is designed for 2014-current Mitsubishi Outlander SUVs. Verify your vehicle matches this year range and model before purchasing.
When used as a weight carrying hitch, the CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight. When used as a weight distribution hitch, it also supports 4,000 lbs trailer weight and 600 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Required tools are: ratchet, torque wrench, socket extension, 12mm socket, 14mm socket, 17mm socket, 3/4" socket, and screwdriver. Safety glasses must be worn at all times during installation.
No, drilling is not required. The installation uses fishwire hardware and existing frame rail attachment points.
Yes. Step 1 requires removing 3 bolts and the tow loop from the driver side frame rail. The bolts and tow loop should be returned to the vehicle owner.
Yes. Step 2 requires lowering the exhaust by removing 3 rubber isolators. You must support the exhaust as needed to prevent damage. After completing the hitch installation, the exhaust is raised back into position in Step 7.
Fishwire hardware consists of carriage bolts and spacers that are threaded through existing frame rail holes without requiring drilling. The installation includes 1/2" fishwire and 7/16" fishwire. If weldnuts do not exist in the frame rails, 7/16" carriage bolts and spacers are fishwired into the frame rails as shown in the installation diagram (Step 3). On the passenger side, 1/2-13 x 4-1/2" carriage bolts are fishwired through the passenger side plate and out the frame rail (Step 5).
On the passenger side frame rail, you may need to back out the inner bumper bolt to allow the hitch to be fully raised in Step 3. If you back out this bolt, you must tighten and torque it to 25 ft-lbs in Step 5.
You may need to lower or pull down on the spare tire to allow the carriage bolts to slide through the frame rail on the driver side (Step 4).
Torque all 10mm hardware to 48 ft-lbs. Torque all 1/2" hardware to 110 ft-lbs. Torque all 7/16" hardware to 59 ft-lbs. If the inner bumper bolt was backed out during installation, torque it to 25 ft-lbs.
The kit includes: 2x 7/16-14 UNC 1-1/2" grade 8 bolts (part 10-10282), 4x 1/2-13 UNC 4-1/2" grade 8 bolts (part 10-10297), 2x M10x1.25 35mm hex bolts (part 10-10298), 4x 1/2-13 UNC flange nuts (part 20-00062), 2x 7/16-14 UNC flange nuts (part 20-00103), 2x 7/16" conical toothed washers (part 30-00163), 2x 0.250 x 0.88 x 2.25" square hole spacers (part CM-SP2), 2x 1/2" fishwire, 2x 7/16" fishwire, and 2x 0.250" spacer plates (part 13163-SP).
1. Remove 3 bolts and tow loop from driver side frame rail. 2. Lower exhaust by removing 3 rubber isolators and support it. 3. Raise hitch into position, align bottom tabs with center weldnuts, and loosely secure with M10 hex bolts and 7/16" washers (back out inner bumper bolt on passenger side if needed). 4. On driver side, insert 1/2-13 x 4-1/2" carriage bolts and spacer through frame rail, secure with flange nuts (lower spare tire if needed). 5. On passenger side, fishwire 1/2-13 x 4-1/2" carriage bolts through plate and out frame rail, secure with spacer and flange nuts (torque inner bumper bolt to 25 ft-lbs if backed out). 6. Torque all 10mm hardware to 48 ft-lbs, all 1/2" hardware to 110 ft-lbs, and all 7/16" hardware to 59 ft-lbs. 7. Raise exhaust back into position.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is critical for safe towing operation.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight, your Mitsubishi Outlander may have a lower manufacturer-specified limit. Verify your vehicle's towing capacity in your owner's manual before towing.
Professional installation time is approximately 60 minutes. Novice (DIY) installation time is approximately 41 minutes. Actual time may vary depending on your experience level and vehicle condition.
Yes, the CURT 13163 is designed for 2014-current Mitsubishi Outlander SUVs.
The CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight as both a weight carrying and weight distribution hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The installation uses fishwire hardware and existing frame rail attachment points.
You need a ratchet, torque wrench, socket extension, 12mm, 14mm, 17mm, and 3/4" sockets, screwdriver, and safety glasses.
Yes, you must remove the factory tow loop and 3 bolts from the driver side frame rail, and lower the exhaust by removing 3 rubber isolators. Both are restored after hitch installation.
Torque all 10mm hardware to 48 ft-lbs, all 1/2" hardware to 110 ft-lbs, and all 7/16" hardware to 59 ft-lbs. If the inner bumper bolt was backed out, torque it to 25 ft-lbs.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer.
Periodically check that all fasteners are tight and all structural components are sound.
