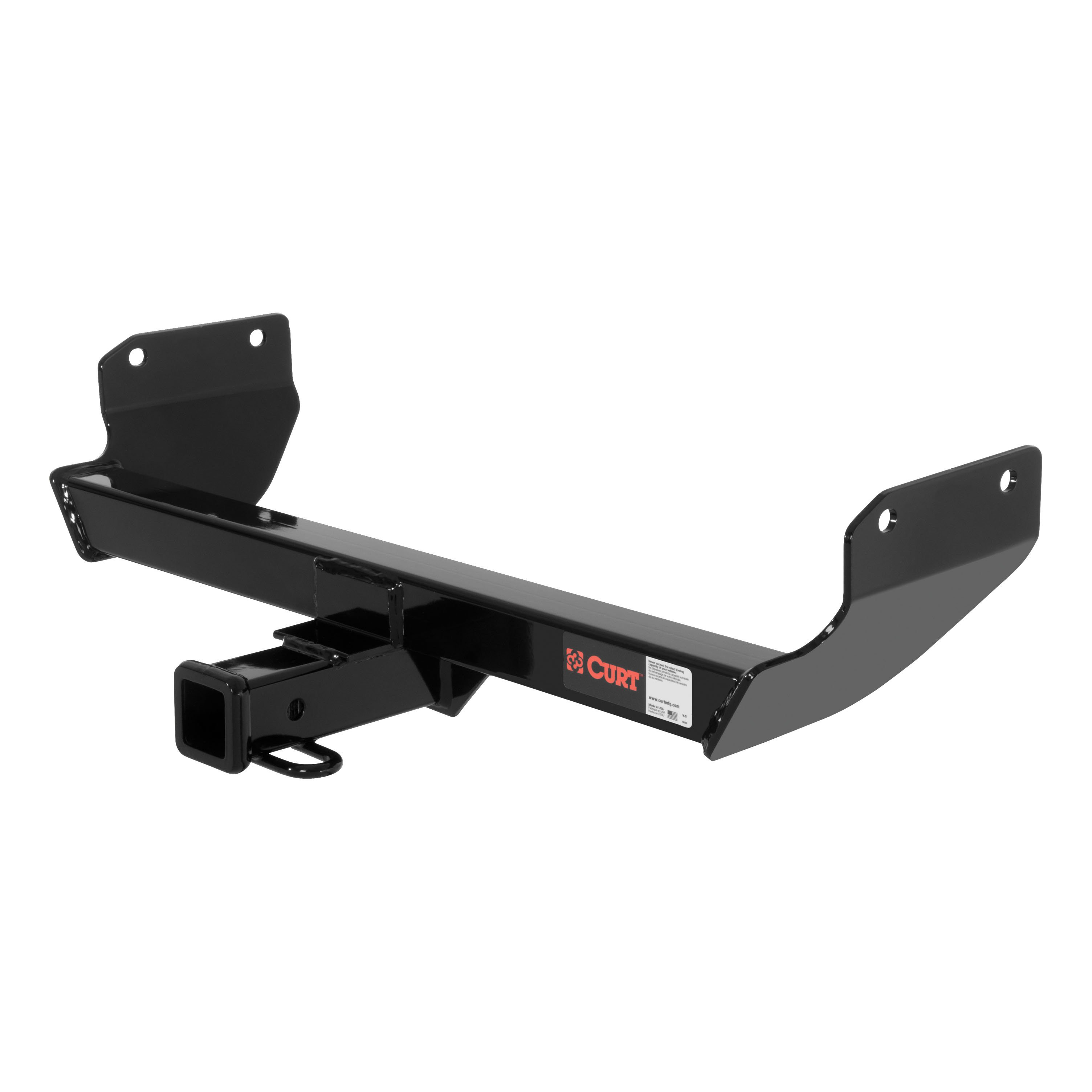

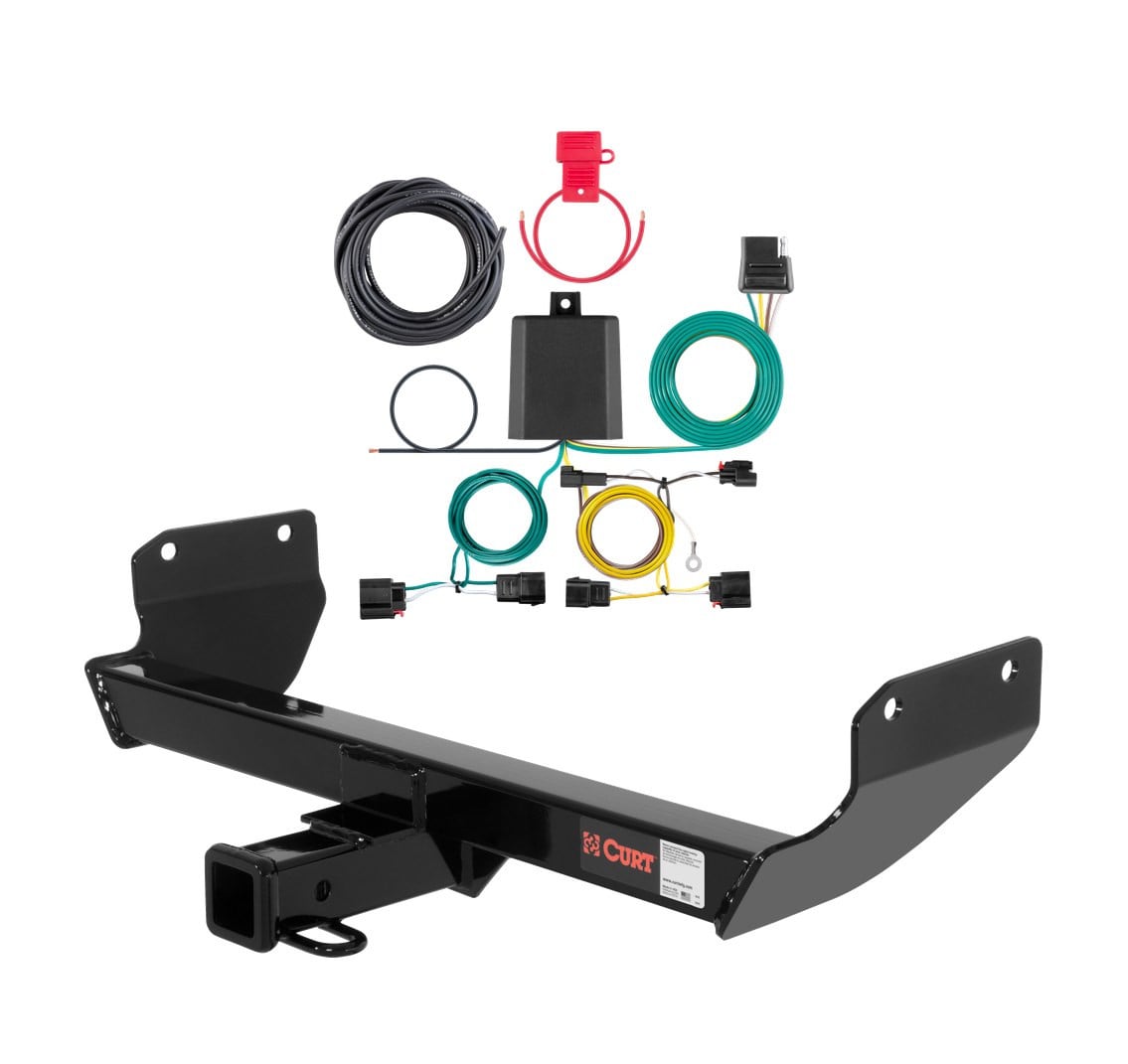

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2014 - 2021 Jeep Grand Cherokee Excluding SRT, SRT8, Trackhawk or diesel. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Grand Cherokee WK2 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 7,500 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Prius AWD-e (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2021 | Jeep Grand Cherokee | Excluding SRT, SRT8, Trackhawk or diesel |
Yes, CURT part number 13065 is designed for the 2011 Jeep Grand Cherokee SUV. Before installation, verify that your hitch matches the vehicle photo and hitch illustration provided in the manual to confirm correct fitment.
When used as a weight carrying hitch, the CURT 13065 supports a maximum trailer weight of 5,000 lbs. and tongue weight of 500 lbs. When used as a weight distribution hitch, it supports a maximum trailer weight of 7,500 lbs. and tongue weight of 750 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The hitch weight is 10 lbs.
You will need a ratchet, a 21mm socket, and a torque wrench. A utility knife may also be needed if trimming of excess caulk is required on the vehicle frame rails.
No, drilling is not required. The hitch uses existing M14 bolt holes on the vehicle frame.
If your 2011 Jeep Grand Cherokee has a factory tow loop, you must remove it before installing the hitch. The tow loop will interfere with hitch installation.
Trimming of excess caulk on the vehicle frame rails may be required if it interferes with hitch installation. Use a utility knife to trim as needed. This is not a permanent modification to the vehicle structure.
1. Remove the four existing M14 bolts from the vehicle frame rails (both driver and passenger sides). These bolts will be reused for hitch installation. 2. Raise the hitch into position and reinstall the four M14 bolts. 3. Tighten all M14 hardware to 126 ft-lbs using a torque wrench. Trim excess caulk on the vehicle frame rails if it interferes with hitch installation.
All M14 hardware must be torqued to 126 ft-lbs.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can make the process easier.
Safety glasses should be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
After installation is complete, periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the hitch.
You should periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
The installation is rated as EASY. Professional installers typically complete the installation in 20 minutes, while a novice DIY installer should expect approximately 33 minutes.
You reuse the existing M14 bolts from your vehicle. The installation requires removing four existing M14 bolts from the vehicle frame rails and reinstalling them through the hitch. No additional bolts are required.
The manual indicates that weldnut cleaning may be required, but does not provide specific details on the cleaning procedure or when it is necessary. Contact CURT Technical Support at 877-287-8634 or 1-877-287-8637 for guidance on whether your vehicle requires weldnut cleaning and how to perform it.
Yes, the CURT 13065 is designed for the 2011 Jeep Grand Cherokee SUV. Verify fitment using the vehicle photo and hitch illustration in the manual.
You need a ratchet, 21mm socket, and torque wrench. A utility knife may be needed to trim excess caulk.
No, drilling is not required. The hitch uses existing M14 bolt holes on the vehicle frame.
All M14 bolts must be torqued to 126 ft-lbs using a torque wrench.
Weight carrying mode: 5,000 lbs. trailer weight, 500 lbs. tongue weight. Weight distribution mode: 7,500 lbs. trailer weight, 750 lbs. tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Wear safety glasses at all times during installation. Read all instructions thoroughly before beginning. If hesitant, contact an authorized CURT installer.

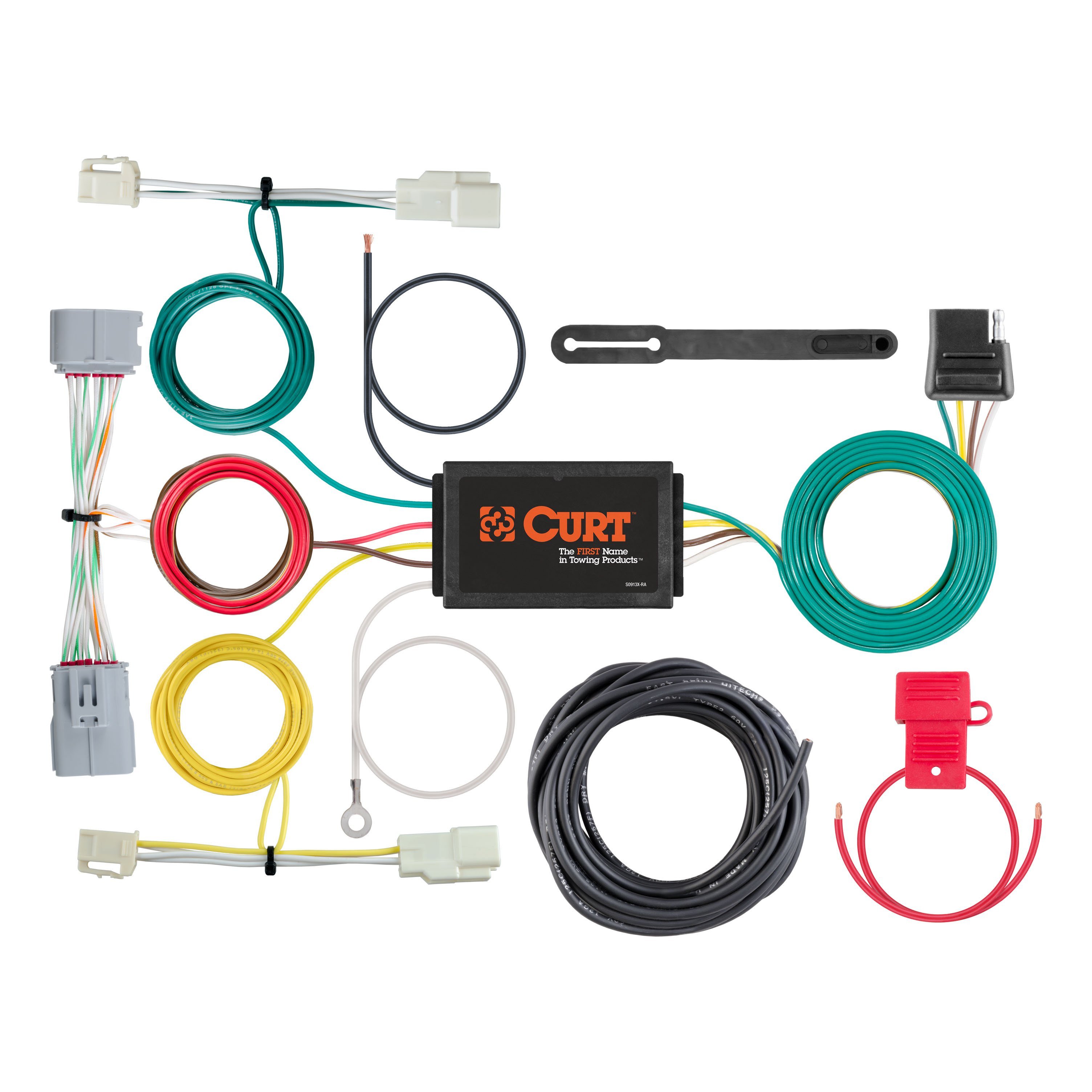

The CURT 56439 is a powered converter wiring harness designed to convert a vehicle's taillight signals into trailer lighting signals. It includes a converter box that processes the vehicle's electrical signals and outputs them through a 4-flat connector for trailer use. The system is rated for 3.0 amps per side on signal circuits and 6.0 amps total on tail/running circuits.
The CURT 56439 is designed for passenger cars with 12-volt negative ground electrical systems. The manual states it is for use only on 12-volt negative ground systems. The wiring locations shown are for passenger cars (P3, P5, P6). For specific vehicle compatibility, consult the vehicle owner's manual or contact the vehicle manufacturer.
Required tools are: ratchet, cutting tool, 10mm socket, wire crimper, socket extension, wire stripper, small flathead screwdriver, electrical tape, and panel trim removal tool. These tools are needed for removing fasteners, cutting the grommet, stripping and crimping wires, and removing interior trim panels.
The kit includes a custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal, a ground screw, double-sided tape for mounting the converter, cable ties, sealant for the grommet, a 4-flat dust cover, and a 10-amp fuse holder with fuse.
Yes. Step 1 requires you to locate the vehicle battery and disconnect the negative battery terminal. Fasten this wire down and away from the battery during installation. The negative battery must remain disconnected until Step 13, after all other wiring is complete and before connecting the 12-volt power wire.
You must remove: all trunk floor coverings and filler panels, the plastic filler in the center of the trunk (behind rear seats), two 10mm cargo hold-down bolts, push fasteners in the vehicle threshold, sidewall fastener covers on both sides of the trunk hatch, side trunk liners, and the access panel to the underside of the vehicle.
On the driver side, use a panel trim removal tool to loosen the sidewall panel and felt liner. Pull back the felt liner to locate the vehicle taillight wiring connectors. Separate the connectors from the taillight housing carefully without damaging the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat on the passenger side with the green wire harness end, routing it along the rear of the vehicle and securing with zip ties under the threshold.
Drilling may be required. Step 7 requires cutting the grommet to allow wiring to pass through. Step 11 requires locating a grounding point near the converter box; if an existing screw or bolt is not available, you must drill a 3/32-inch pilot hole. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate the grommet just to the driver side of the center of the vehicle in the rear body. Remove the grommet from the body. Using a wire cutter, make a cut into the grommet big enough to allow the wiring to be placed inside the mounting groove. Be careful not to cut any wires. Reseat the grommet and use the provided sealant to seal the cut and around all wires. Apply additional sealant as needed to ensure a tight seal and keep the trunk dry.
Signal circuits are rated for 3.0 amps per side. Tail/running circuits are rated for 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The wiring harness includes: yellow wire for left turn signal, green wire for right turn signal, red wire for brake signal, and brown wire for taillight. The converter box has a black power wire that connects to the vehicle battery positive terminal and a white ground wire with ring terminal that connects to the vehicle body.
The battery connection must be fuse-protected with a 10-amp maximum fuse. The kit includes a fuse holder with a 10-amp fuse. Install the fuse after all other steps are complete, as the final step before reconnecting the negative battery terminal.
Route the 12-gauge black power wire from the vehicle battery to the converter, taking care to avoid pinch points and hot or rotating components. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges. Secure the power wire to the vehicle chassis using the provided cable ties.
Mount the black converter box on the driver side, in a flat spot inside the vehicle near the taillight, using the provided double-sided tape. The box must be mounted in a protected area. Failure to mount it in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
Locate a grounding point near the converter box, such as an existing screw or bolt in the vehicle frame. The area should be free from rust, dirt, and paint; use an abrasive pad or paper to clean it if necessary. Secure the white ground wire with its ring terminal to the existing fastener, or drill a 3/32-inch pilot hole and use the provided ground screw.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Disconnect the negative battery terminal before wiring the power wire. Route the power wire to avoid pinch points and hot or rotating components. Use a ring terminal for the battery connection. Do not exceed the product rating or tow vehicle lamp load rating. Ensure the converter box is mounted in a protected area.
After connecting the 12-volt power wire to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. The manual states that once installed, you should test for proper function using one of these methods.
Reinstall all items removed during installation. If the negative battery terminal was disconnected at the beginning, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion. When not in use, roll up and store the 4-flat connector in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This helps maintain proper function and prevent electrical issues.
CURT Group stands behind its products with industry-leading warranties. To register your purchase and access warranty information, visit warranty.curtgroup.com/surveys. Loss of warranty can occur if the product rating is exceeded, the converter box is not mounted in a protected area, or the 10-amp fuse protection is exceeded.
The CURT 56439 is designed for passenger cars with 12-volt negative ground electrical systems. Consult your vehicle owner's manual or contact the vehicle manufacturer to confirm compatibility.
Yes. Disconnect the negative battery terminal before beginning installation and keep it disconnected until all wiring is complete.
The battery connection must be fuse-protected with a 10-amp maximum fuse. The kit includes a fuse holder and 10-amp fuse; install it after all other steps are complete.
Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
