Raybestos
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2023 Jeep Cherokee
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

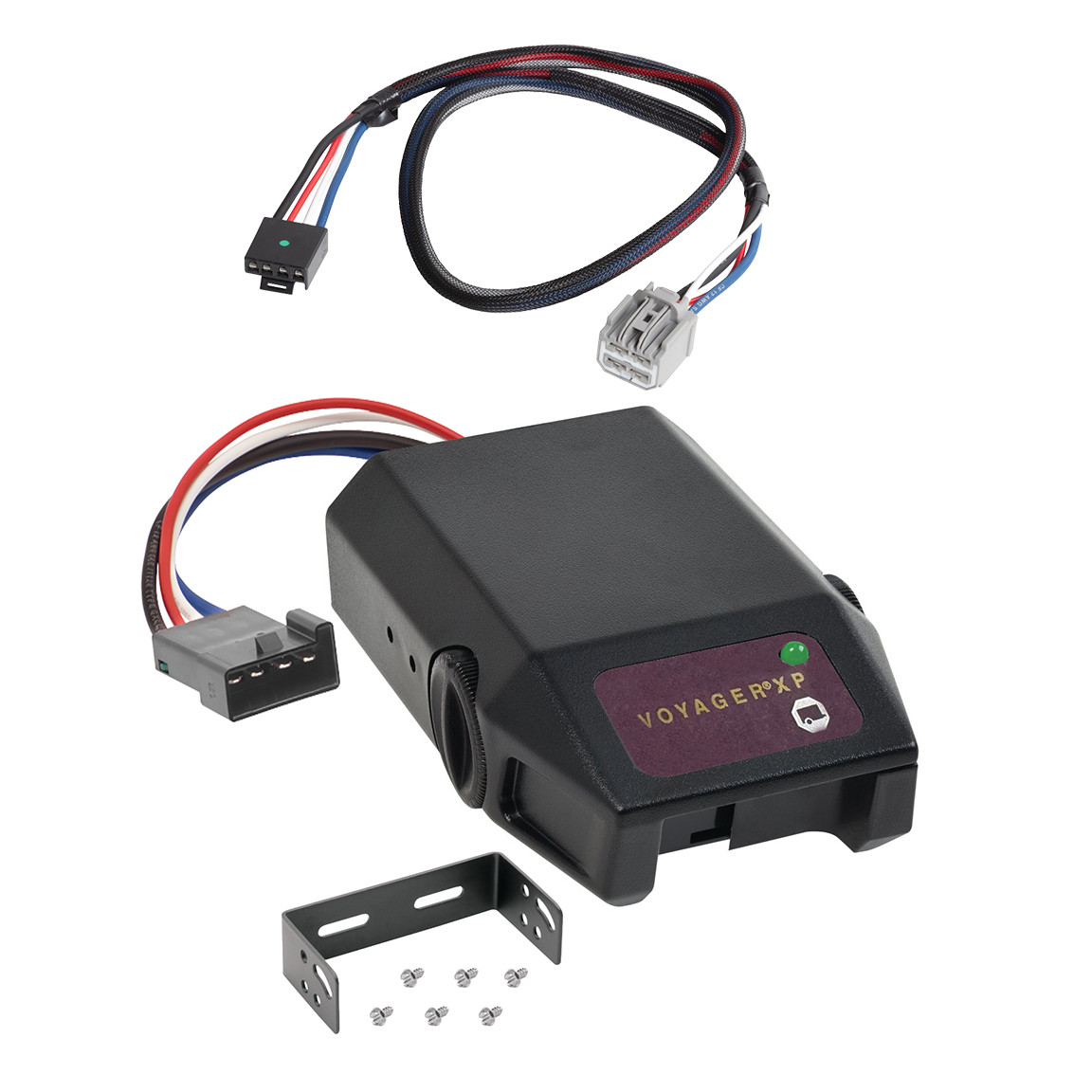

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2023 | Jeep Cherokee | — |
The 2014-2023 Jeep Cherokee Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70150) fits the following vehicles: 2014-2023 Jeep Cherokee. Always verify your specific year, make, and model before ordering.
The 2014-2023 Jeep Cherokee Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70150) fits 2014-2023 Jeep Cherokee models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2014-2023 Jeep Cherokee Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70150) is designed to fit the 2014-2023 Jeep Cherokee.
The 2014-2023 Jeep Cherokee Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70150) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 20276-037 is designed for Jeep Cherokee. However, your vehicle must have an OEM electric brake control harness connector located underneath the dash, left of the steering column. If your Cherokee is not equipped with an OEM trailer tow package, you may still be able to use this adapter, but you will need to purchase additional fuses and relays separately to complete the output and battery feed circuits. Consult your vehicle's owner's manual for compatibility confirmation.
The 20276-037 is an electric trailer brake control wiring adapter that connects your vehicle's electric brake control system to a trailer brake controller. It allows you to control the brakes on an electric trailer from inside your vehicle.
No tools are required for installation of the 20276-037 adapter itself. However, you will need butt connectors to attach the adapter wires to the corresponding wires on your electric brake control system. The manual does not specify the size or quantity of butt connectors needed.
The electric brake control harness connector is located underneath the dash and to the left of the steering column. It will be taped to another harness near the emergency brake pedal. You are looking for a 4-pin connector that will mate with the connector on the adapter.
1. Locate the vehicle's 4-pin electric brake control harness connector underneath the dash, left of the steering column, taped near the emergency brake pedal. 2. Plug the brake control adapter into this connector. 3. Use butt connectors to attach the wires from the adapter to the corresponding wires on the electric brake control, following the brake control manufacturer's installation instructions. 4. Complete installation per the brake control manufacturer's instructions and mount the unit as directed. 5. Perform test procedures as instructed by the brake control manufacturer.
The adapter connects four circuits: (1) Vehicle stop lamp switch to brake controller (input), (2) Fused trailer brake controller battery feed, (3) Trailer brake controller (output) to the electric trailer brake, and (4) Ground. The adapter housing contains male terminals on the pin side (mating side) that connect to your vehicle's 4-pin connector. You must follow the brake control manufacturer's installation instructions to connect the corresponding wires correctly.
The maximum capacity is 4 axles with 8 brakes at 24 amps. Do not exceed the lower of your towing manufacturer's rating or this limit. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control instruction sheet for additional information.
Yes. Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete the output and battery feed circuits. These are sold separately. Consult your vehicle's owner's manual for the locations where these components should be installed.
The manual does not specify whether the battery must be disconnected. Consult your vehicle's owner's manual and the brake control manufacturer's installation instructions for safety procedures before beginning installation.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Follow all safety precautions during installation. Also consult your vehicle's owner's manual and the brake control manufacturer's instructions for additional safety information.
Yes, the 20276-037 is designed for Jeep Cherokee with an OEM electric brake control harness connector. Vehicles without an OEM trailer tow package may need additional fuses and relays (sold separately).
No tools are required. You will need butt connectors to attach the adapter wires to your brake control system.
Maximum 4 axles with 8 brakes at 24 amps. Do not exceed the lower of your towing manufacturer's rating or this limit, as overloading can cause fires.
It is located underneath the dash, left of the steering column, taped to another harness near the emergency brake pedal. Look for a 4-pin connector.
Yes, you may need fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your owner's manual for locations.
