2003-2025 Toyota Sequoia Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035Raybestos$115.11Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Raybestos
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2025 Toyota 4Runner
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

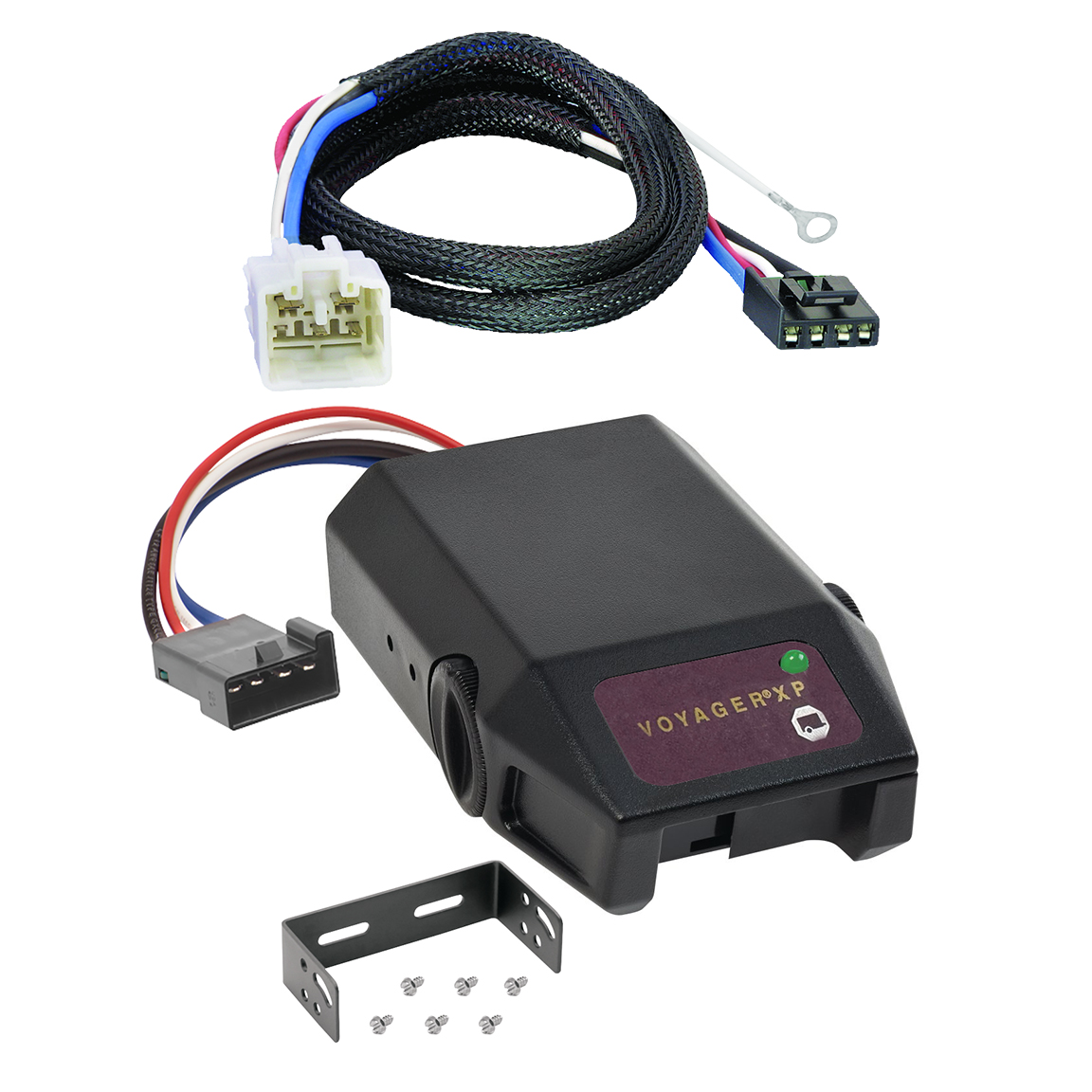

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2025 | Toyota 4Runner | — |
The 2014-2025 Toyota 4Runner Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70319) fits the following vehicles: 2014-2025 Toyota 4Runner. Always verify your specific year, make, and model before ordering.
The 2014-2025 Toyota 4Runner Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70319) fits 2014-2025 Toyota 4Runner models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2014-2025 Toyota 4Runner Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70319) is designed to fit the 2014-2025 Toyota 4Runner.
The 2014-2025 Toyota 4Runner Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70319) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 3041-037 is designed for vehicles with a factory electric brake control harness. The harness must have a 5-pin connector located underneath and to the left of the steering column, taped to another harness near the emergency brake pedal. The manual shows a Toyota 4Runner as an example application. To confirm compatibility with your specific vehicle, check your vehicle's owner's manual or contact the manufacturer, as the manual does not provide a complete compatibility list.

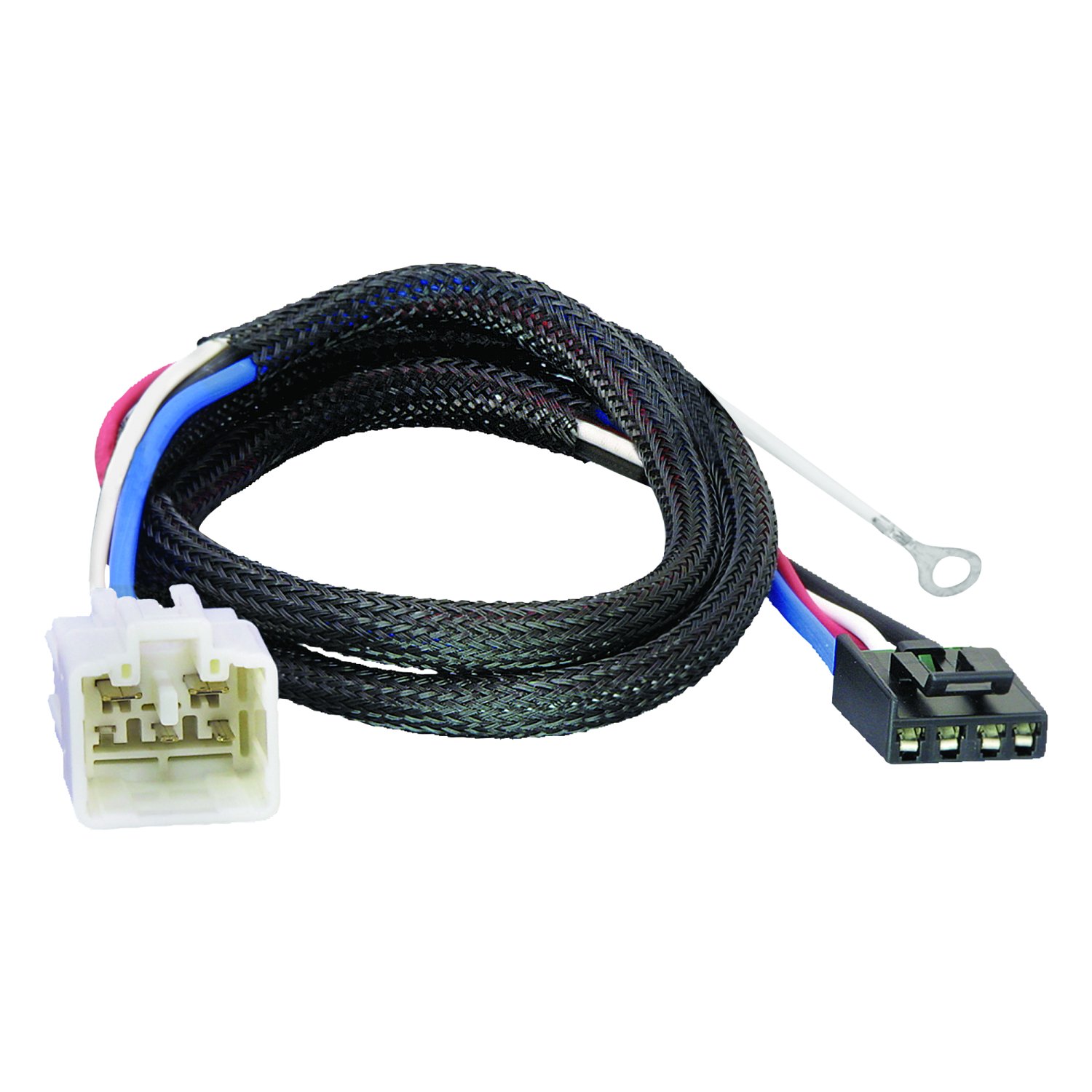

The adapter includes a 5-pin connector that mates with the vehicle's electric brake control harness, a white wire with an eyelet and screw for grounding, and the brake control adapter itself. The eyelet and screw are used to secure the white ground wire to an existing ground stud or to a 3/32" hole that you drill.
The electric brake control harness is located underneath and to the left of the steering column. It is taped to another harness near the emergency brake pedal. The harness has a 5-pin connector that the adapter plugs into.
First, plug the brake control adapter into its mating receptacle on the backside of the brake control unit itself. Then locate the vehicle's electric brake control harness connector (5-pin) and plug the adapter into it. Do not plug the adapter into the vehicle connector before connecting it to the brake control unit.
Drilling is not required if a suitable grounding point already exists near the brake control harness connector, such as an existing ground stud. If no suitable ground point is available, you must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
The manual specifies that you will need a drill with a 3/32" bit if no existing ground stud is available. Safety glasses are required during installation. The adapter comes with an eyelet and screw for grounding, so no additional fasteners are needed for that step. The manual does not specify other tools required.
The adapter supports a maximum of 4 axles with 8 brakes at 24 amps. Do not exceed the lower of your towing manufacturer's rating or this maximum capacity. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control manufacturer's instruction sheet for additional information.
Yes. After plugging the adapter into the vehicle's electric brake control harness, you must follow all installation instructions provided by the electric brake control manufacturer. You must also mount the brake control unit as directed by the manufacturer and perform all test procedures as instructed. The adapter installation is only the first step; the brake control unit installation must be completed per the manufacturer's specific requirements.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Do not drill into the vehicle floor or bed when securing the ground wire. Clean dirt and rustproofing from the grounding area before drilling. Follow all brake control manufacturer's installation instructions and perform test procedures as instructed.
Locate a suitable grounding point near the brake control harness connector. This can be an existing ground stud or a 3/32" hole you drill. Before securing the white ground wire, clean dirt and rustproofing from the area. The white wire is secured using the eyelet and screw provided with the adapter.
The adapter fits vehicles with a factory electric brake control harness and a 5-pin connector located under the steering column. The manual shows a Toyota 4Runner as an example. Verify your vehicle has this harness before purchasing.
Drilling is required only if no existing ground stud is available. If needed, drill a 3/32" hole for the white ground wire. Do not drill into the vehicle floor or bed.
You need safety glasses and a drill with a 3/32" bit (if drilling is required). The adapter includes the eyelet and screw for grounding.
Maximum 4 axles with 8 brakes at 24 amps. Do not exceed the lower of your towing manufacturer's rating or this limit. Overloading can cause fires.
First plug the adapter into the brake control unit's mating receptacle. Then plug the adapter into the vehicle's 5-pin brake control harness connector. Follow the brake control manufacturer's instructions to complete installation.
Wear safety glasses. Do not drill into the vehicle floor or bed. Clean the grounding area of dirt and rustproofing. Follow the brake control manufacturer's instructions and perform all test procedures.
