2003-2025 Toyota Sequoia Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035Raybestos$115.11Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Raybestos
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2025 Toyota Tacoma
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

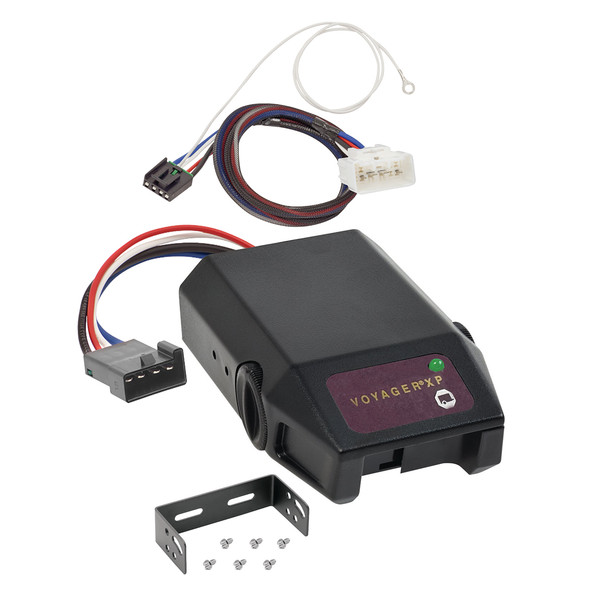

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2025 | Toyota Tacoma | — |
Yes, the 3031-037 is designed for Toyota Tundra. The installation accesses the center dash panel on the driver's side and connects to the vehicle's electric brake control harness.
Yes, the 3031-037 is designed for Toyota Tacoma. The installation accesses the electric brake control harness located underneath and to the left of the steering column, behind the kick panel.
The adapter can be installed, but vehicles not equipped with an OEM trailer tow package may require additional fuses and relays to complete the output and battery feed circuits. These are sold separately. Consult your vehicle's owner's manual for fuse and relay locations.
A trim panel remover is required for Tundra installation. For Tacoma, the harness is accessed behind the kick panel without requiring a trim panel remover tool.
The manual requires that the vehicle be off with keys removed from the ignition before beginning installation. The manual does not specify whether the battery must be disconnected.
Locate the access panel in the center of the dash on the driver's side. Using a trim panel puller, locate the notch in the panel and pry it out and away from the dash carefully to avoid damage. Unplug the housings attaching the panel, being careful not to damage the locking tabs, and set aside.
Locate the vehicle's electric brake control harness underneath and to the left of the steering column, behind the kick panel. It will be taped to another harness near the emergency brake pedal. You will find a white 10-pin connector that mates with the adapter connector.
The white housing contains male terminals and is the mating connector for the vehicle's brake control harness. For Tundra, carefully pull the housing towards the access panel and plug in the mating white housing from the brake control adapter. For Tacoma, carefully remove tape and plug the mating white housing from the adapter into the vehicle's electric brake control harness connector.
You should first locate a suitable grounding point near the connector, such as an existing ground stud. If no existing ground point is available, you may drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the ground wire.
Locate a routing path for the adapter to exit the bottom of the dash. Use a flashlight to shine light up through the bottom of the dash to locate a hole to exit the dash.
After the brake controller is installed, plug in all connectors that were not used back into the original housings and snap the access panel back into place.

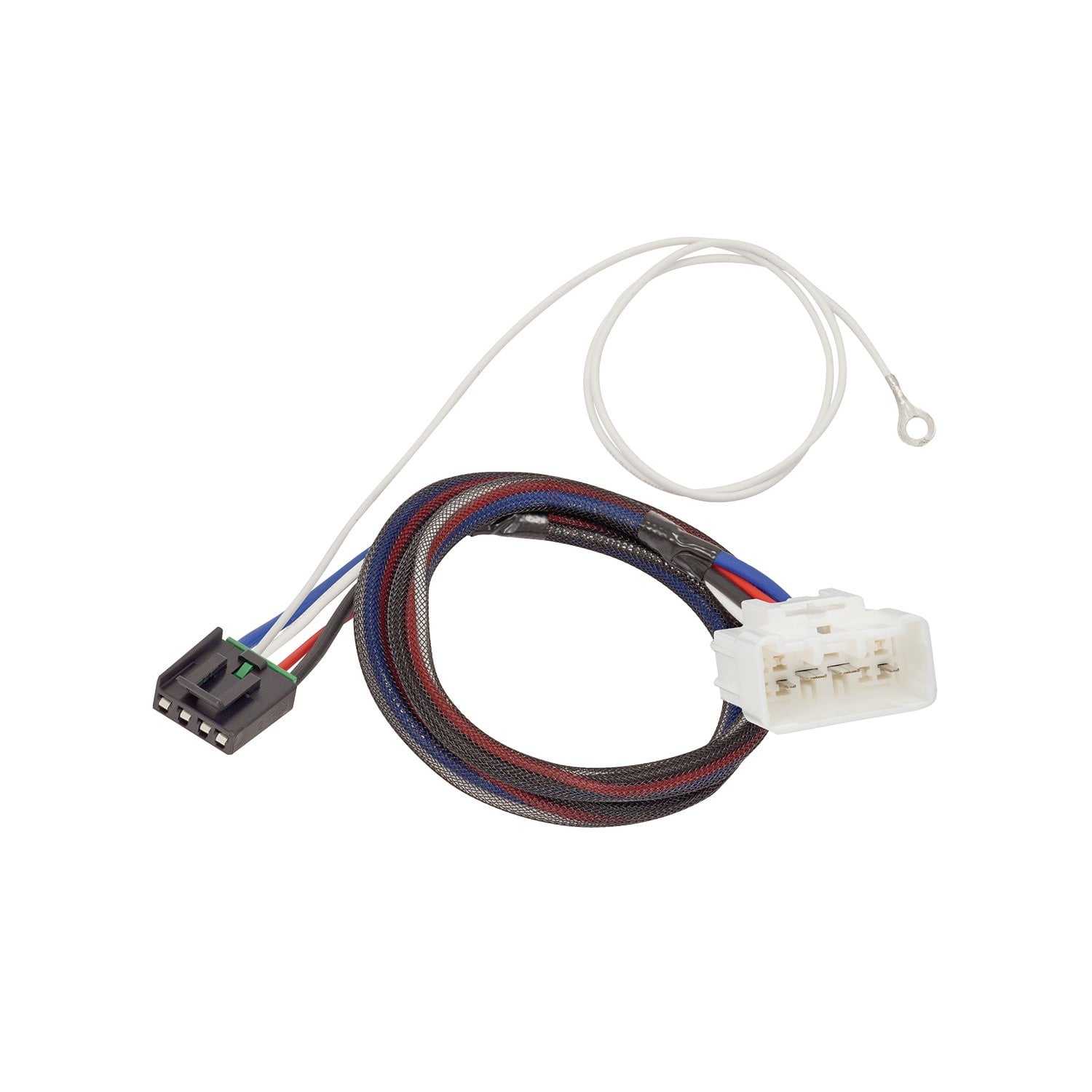

The adapter housing contains four male terminals: #5 is Ground, #7 is Trailer Brake, #8 is Fuse Trailer Brake Controller, and #9 is Vehicle Stop Lamp.
The maximum rating is 18 amps for a configuration of 3 axles with 6 brakes. Do not exceed the lower of your towing manufacturer's rating or this 18 amp specification. Overloading the circuit can cause fires.
Always wear safety glasses during installation. Always read and follow all warnings and instructions included with the product before beginning installation. Always read, understand and follow all warnings and instructions printed on the tow vehicle's battery. Always read your vehicle's owner's manual and the brake control instruction sheet for additional information.
Yes. After the adapter is installed, you must complete the installation per the electric brake control manufacturer's instructions and mount the unit as directed. You must also perform test procedures as instructed by the brake control manufacturer.
The 3031-037 Electric Trailer Brake Control Wiring Adapter fits Toyota Tundra and Toyota Tacoma.
A trim panel remover is required for Tundra. Tacoma installation does not require special tools beyond standard hand tools.
Drilling is not required if an existing ground stud is available. If no existing ground point is found, you may drill a 3/32" hole for the ground wire. Do not drill into the vehicle floor or bed.
Maximum 18 amps for 3 axles with 6 brakes. Do not exceed the lower of your towing manufacturer's rating or this specification.
Yes, vehicles without an OEM trailer tow package may require additional fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual for locations.
Yes. After installing the adapter, you must complete installation per the electric brake control manufacturer's instructions, mount the unit as directed, and perform all test procedures as instructed.
