Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2019 Hyundai Sonata All

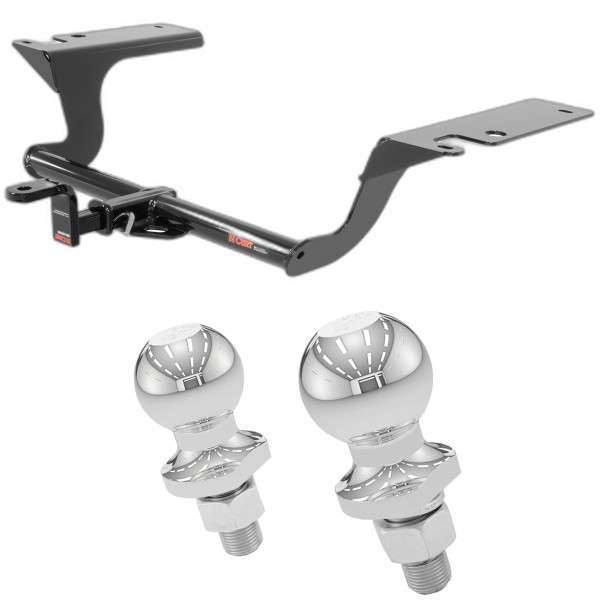

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Hyundai Sonata and Kia Optima (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2015, 2016, 2017, 2018, 2019 Hyundai Sonata All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Hyundai Sonata, Kia Optima
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Hyundai Sonata | — |
The 2015-2019 Hyundai Sonata All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114023-002) fits the following vehicles: 2015-2019 Hyundai Sonata. Always verify your specific year, make, and model before ordering.
The 2015-2019 Hyundai Sonata All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114023-002) fits 2015-2019 Hyundai Sonata models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2019 Hyundai Sonata All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114023-002) is designed to fit the 2015-2019 Hyundai Sonata.
The 2015-2019 Hyundai Sonata All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114023-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 11402 is designed for 2016-present Kia Optima sedans. Confirm your vehicle matches this model and body style before purchasing.
Yes, CURT part number 11402 is designed for 2015-present Hyundai Sonata sedans, including Blue Drive models. The same hitch is used for both Kia Optima and Hyundai Sonata applications.
The hitch has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch is designed for use with CURT ballmount 45521. Euro mount options are available: part number 45571 (1-7/8" ball) or 45572 (2" ball).
Required tools are: ratchet, 10 mm socket, 3/4 inch socket, pry bar, torque wrench, and safety glasses. A die grinder is also listed as required for trimming the underbody panel. Spray lubricant is recommended.
The hitch includes: 4 carriage bolts (1/2-13 x 1 1/4), 4 square hole spacers (CM-SP6, .250 x 1.00 x 3.00"), 4 hex flange nuts (HFN 1213), and 2 pieces of 1/2" x 30" fishwire.
Yes. You must remove the rubber exhaust hangers and temporarily lower the exhaust. Be sure to support the exhaust to prevent damage. After hitch installation, you will raise the exhaust back into position.
Yes. You must temporarily remove the heat shield(s) by removing fasteners with a 10 mm socket. After hitch installation, you will reinstall the heat shield(s), leaving the rear-most fastener off. You may have to slot the front hole in the heat shield.
The manual states the underbody panel is present "if present," indicating it is not on all vehicles. If your vehicle has one, you must remove it by removing plastic fasteners and fasteners with a 10 mm socket. After hitch installation, you will trim and reinstall it.
Yes. You must enlarge the forward-most hole on both frame rails to allow 1/2" bolts and spacers to pass through. The manual does not specify the final hole diameter, only that enlargement is required.
If an underbody panel is present, you must trim it according to the trim diagram. The trim dimensions are approximately 5 1/2 inches and 2 3/4 inches on each side. The manual notes that trim dimensions are approximate and recommends checking fit prior to completing the trim. A die grinder is listed as required for this task.
Fishwire is a technique to route bolts and spacers through frame holes. You thread the 1/2" bolts and spacers into position through the enlarged hole and out the rear holes. Then you reverse the bolts and spacers into the enlarged holes on both sides. This allows proper alignment before final tightening.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
All 1/2" hardware (carriage bolts and hex flange nuts) must be torqued to 110 ft-lbs. Use a torque wrench to achieve this specification.
Safety glasses must be worn at all times while installing this product. When removing and lowering the exhaust, be sure to support it to prevent damage. Be careful not to push hardware into the frame when raising the hitch into position.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
After installation, periodically check that all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
Yes, the CURT 11402 is designed for both 2016-present Kia Optima and 2015-present Hyundai Sonata sedans (including Blue Drive).
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, 10 mm socket, 3/4 inch socket, pry bar, torque wrench, safety glasses, and a die grinder for underbody panel trimming.
Yes. Remove rubber exhaust hangers and temporarily lower the exhaust (support it to prevent damage). Remove heat shield(s) by removing fasteners with a 10 mm socket. Both are reinstalled after hitch mounting.
Yes. You must enlarge the forward-most hole on both frame rails to allow 1/2" bolts and spacers to pass through. If an underbody panel is present, it must be trimmed according to the trim diagram.
All 1/2" hardware must be torqued to 110 ft-lbs using a torque wrench.
All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.
