Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2020 Honda Fit All
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Fit (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

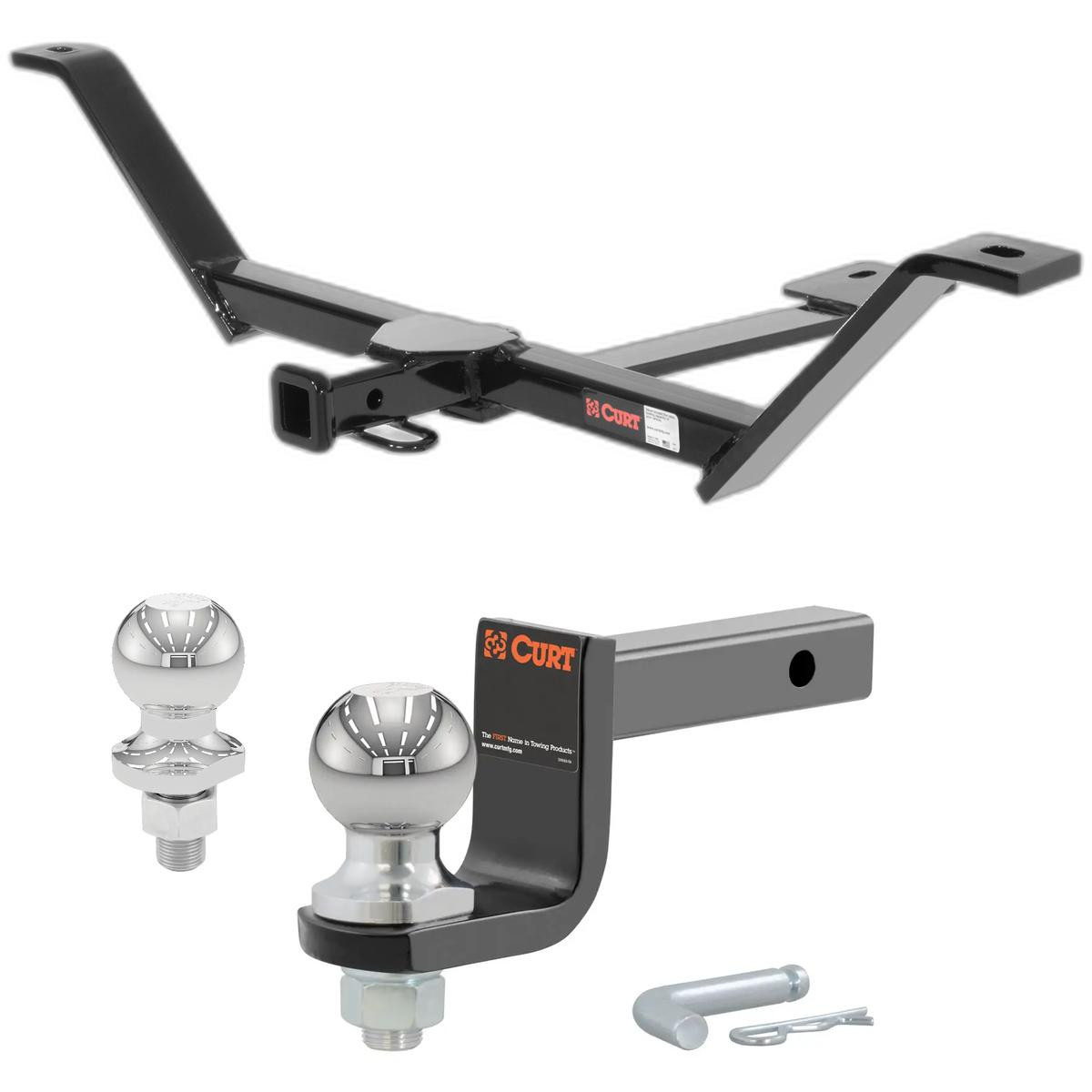

2015, 2016, 2017, 2018, 2019, 2020 Honda Fit All Class 1 Trailer Hitch, 1-1/4" Receiver, Select Honda Fit
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Honda Fit | — |
The 2015-2020 Honda Fit All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11406-001) fits 2015-2020 Honda Fit models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2020 Honda Fit All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11406-001) is designed to fit the 2015-2020 Honda Fit.
The 2015-2020 Honda Fit All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11406-001) fits the following vehicles: 2015-2020 Honda Fit. Always verify your specific year, make, and model before ordering.
The 2015-2020 Honda Fit All Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11406-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 11406 is designed for Honda Fit models from 2015 to present with hatchback body style. Verify your vehicle year and body style match these specifications before purchasing.
The CURT 11406 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11406 is designed for use with ball mount 45521. Euro mount options are also available: 45571 (1 7/8" ball) and 45572 (2" ball).
You will need: ratchet, torque wrench, 6" extension, 9/16" socket, 11/16" socket, and safety glasses. No power tools or drilling equipment is required.
No, the CURT 11406 requires no drilling. It uses existing access holes in the frame rails and the fishwire hardware technique to secure the carriage bolts.
Two people may be required to ease installation, though the manual does not specify whether a single person can complete it. If you are hesitant to undertake the task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
You do not need to remove the muffler completely. You must lower the exhaust by removing the two rear-most rubber isolators from the muffler at the start of installation, then raise and secure it back into position at the end. The muffler hangers may need to be bent slightly for clearance.
The reverse fishwire technique is referenced in the installation instructions for securing carriage bolts through existing frame rail holes. The manual states to "reverse fishwire a 7/16-14 x 1 1/2" carriage bolt and SP2 spacer through the existing hole" on the driver side and a 7/16-14 x 1" bolt on the passenger side, and to leave fishwires attached to prevent loss of hardware inside the frame rail. A detailed diagram is referenced but not provided in this manual excerpt.
Torque all 7/16" hardware to 70 ft-lbs. Torque all 3/8" hardware to 45 ft-lbs. These specifications apply to the carriage bolts, flange nuts, and U-bolt fasteners.
1. Lower the exhaust by removing the two rear-most rubber isolators from the muffler. 2. On the driver side, reverse fishwire a 7/16-14 x 1 1/2" carriage bolt and SP2 spacer through the existing hole. On the passenger side, reverse fishwire a 7/16-14 x 1" carriage bolt and SP2 spacer through the existing hole. Leave fishwires attached. 3. Insert the 3/8" U-bolt through the tow loop, raise the hitch into position, and loosely secure it using 3/8" flange nuts. 4. Place the SP22 spacer on top of the driver side plate and secure the hitch to the frame rails using 7/16" flange nuts. 5. Torque all 7/16" hardware to 70 ft-lbs and all 3/8" hardware to 45 ft-lbs. 6. Raise and secure the exhaust back into position, bending muffler hangers slightly if needed for clearance.
The parts list includes: one 3/8-16 x 1.00 x 1.88" U-bolt, one 7/16-14 UNC 1" carriage bolt (part 10-10311), one 7/16-14 UNC 1-1/2" carriage bolt (part 10-10282), two 7/16" fishwires, two 7/16-14 UNC serrated flange nuts (part 20-00103), two .250 x .88 x 2.25" square hole spacers (CM-SP2), one .250 x 1.50 x 1.50" round hole spacer (CM-SP22), and two 3/8-16 UNC serrated flange nuts (part 20-00099).
The manual specifies that the longer 7/16-14 x 1 1/2" carriage bolt must be installed on the driver side and the shorter 7/16-14 x 1" bolt on the passenger side, but does not explain the reason. This is a required specification for proper installation.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake the task on your own, contact an authorized CURT installer for additional assistance.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify the interval for these checks, so consult the vehicle manufacturer's maintenance schedule or contact CURT technical support at 1-877-287-8634 for guidance.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of defective products and specifically excludes liability for incidental or consequential loss or damage.
Call CURT technical support at 1-877-287-8634. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
Yes, the CURT 11406 is designed specifically for Honda Fit hatchback models from 2015 to present.
The CURT 11406 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No, the CURT 11406 requires no drilling. It uses existing frame rail access holes and fishwire hardware.
You need a ratchet, torque wrench, 6" extension, 9/16" socket, 11/16" socket, and safety glasses. No power tools or drilling equipment is required.
All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps, or the warranty is voided.
