2015-2022 Chevrolet Trax All Class 1 Hitch, 1-1/4"CURTOriginal price was $475.85. Current price is $354.08.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2022 Chevrolet Trax
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2015-2022 Chevrolet Trax All

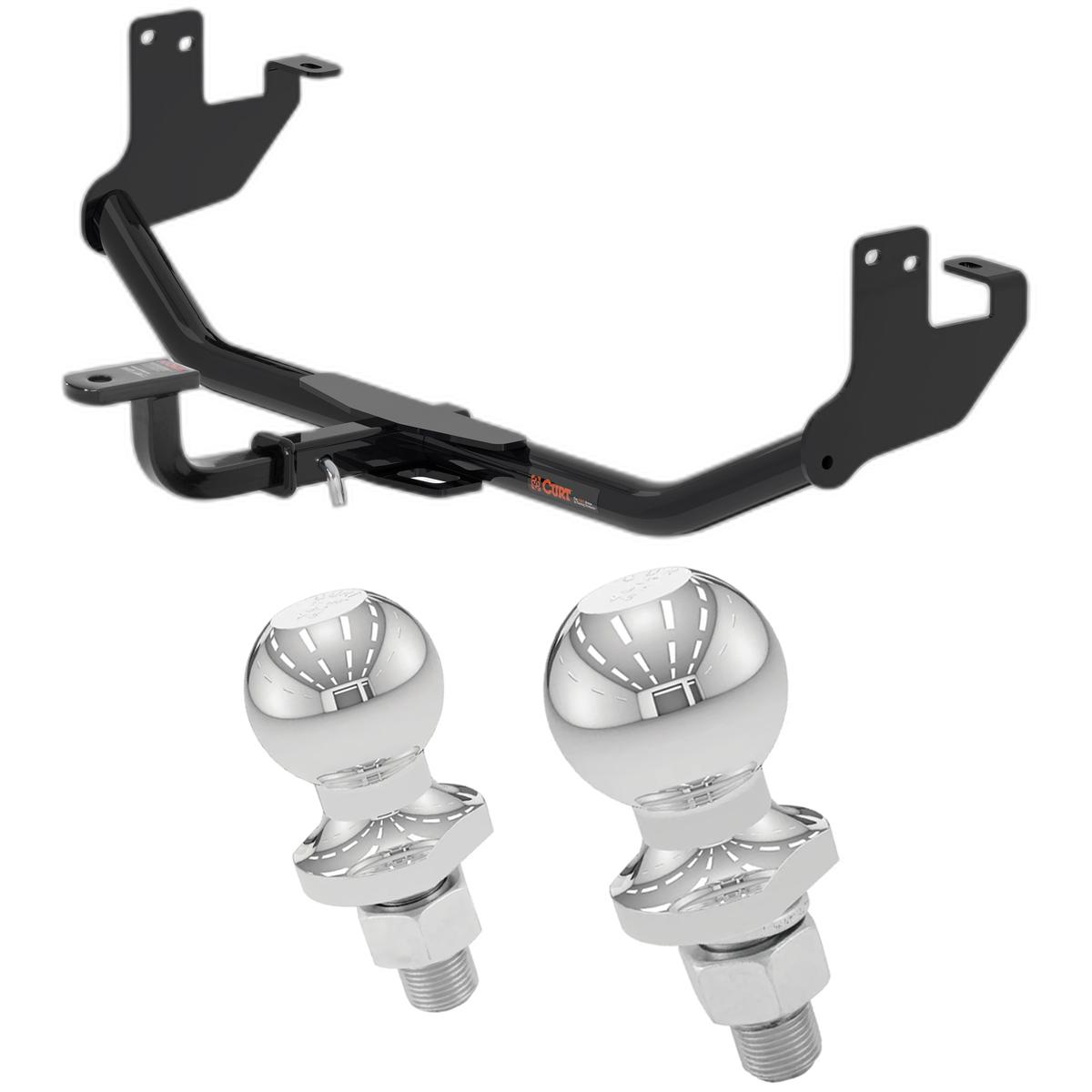

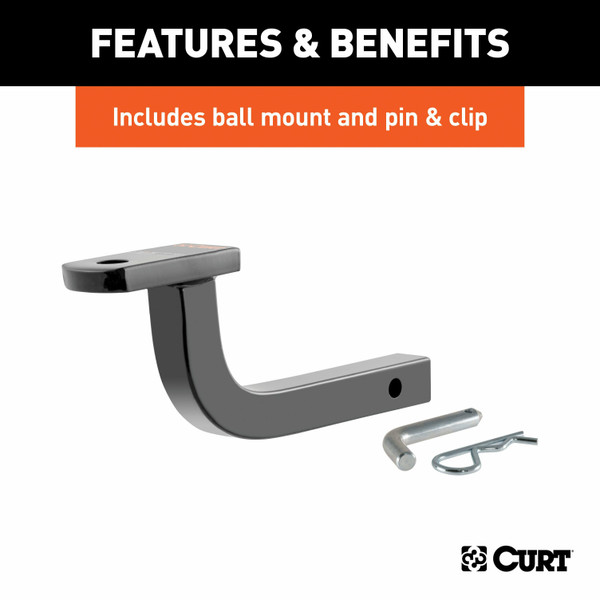

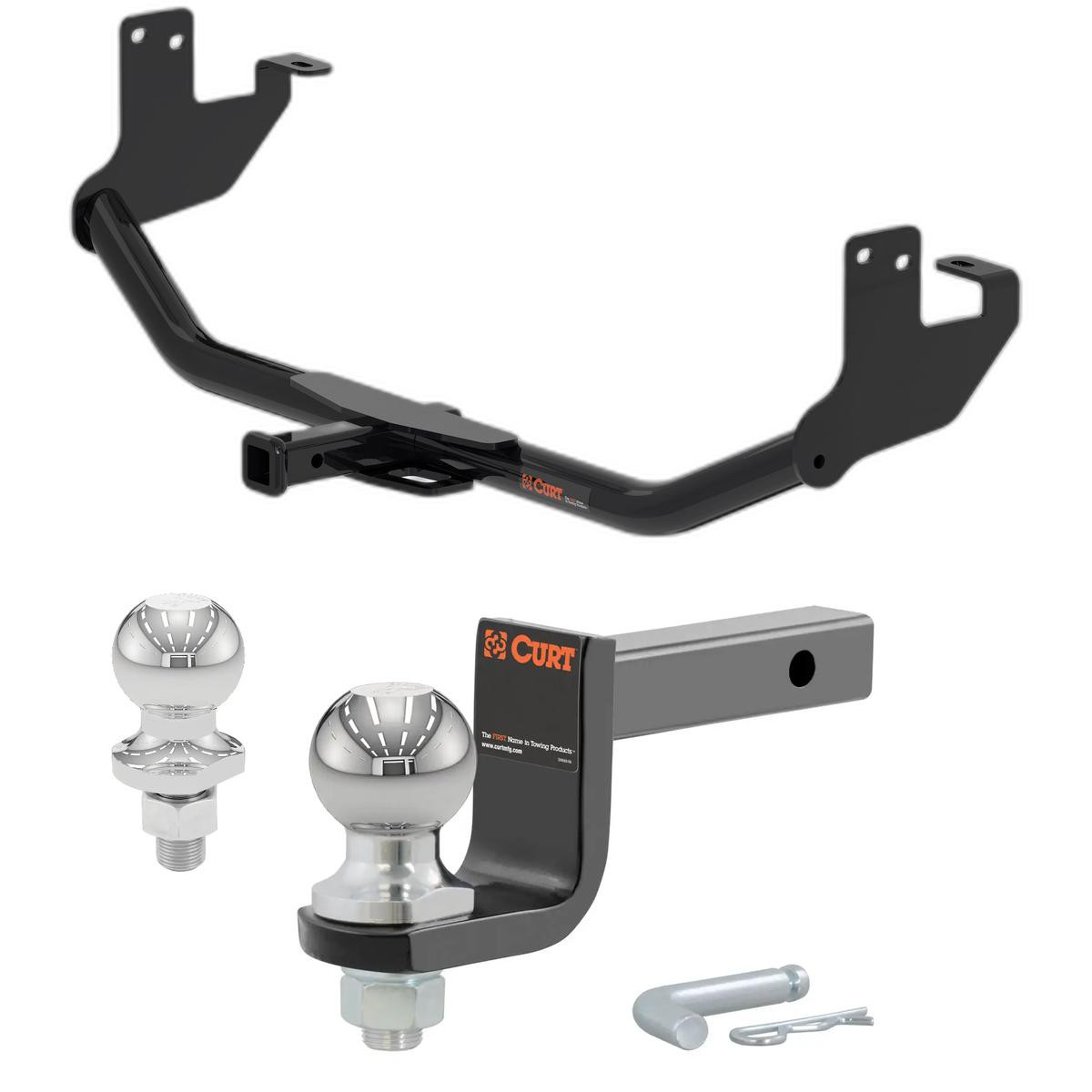

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Buick Encore and Chevrolet Trax (excluding GX; see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Installation requires hole enlargement, trimming and temporary lowering of exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 Chevrolet Trax All Class 1 Hitch, 1-1/4" Ball Mount, Select Buick Encore, Chevy Trax (Excluding GX)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Chevrolet Trax | — |
Yes, the 2015-2022 Chevrolet Trax All Class 1 Hitch, 1-1/4" Ball Mount (Part #CHD-115273-002) is designed to fit the 2015-2022 Chevrolet Trax.
The 2015-2022 Chevrolet Trax All Class 1 Hitch, 1-1/4" Ball Mount (Part #CHD-115273-002) fits 2015-2022 Chevrolet Trax models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2022 Chevrolet Trax All Class 1 Hitch, 1-1/4" Ball Mount (Part #CHD-115273-002) fits the following vehicles: 2015-2022 Chevrolet Trax. Always verify your specific year, make, and model before ordering.
The 2015-2022 Chevrolet Trax All Class 1 Hitch, 1-1/4" Ball Mount (Part #CHD-115273-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 11527 is designed for 2013-present Buick Encore and Chevrolet Trax crossovers. Confirm your vehicle matches this model range before purchasing.
Yes, CURT part number 11527 is designed for 2013-present Chevrolet Trax crossovers. Confirm your vehicle year is 2013 or later before purchasing.
The hitch is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
CURT 11527 is designed for use with ballmount #45520/D-20, EURO ballmount #45561 (1 7/8" ball), or EURO ballmount #45562 (2" ball). Check your ballmount part number to confirm compatibility.
You will need: safety glasses, die grinder, spray lubricant, ratchet, socket extension, 11/16" socket, 3/4" socket, and torque wrench. A die grinder is required to enlarge frame access holes.
The kit includes: 6 carriage bolts (7/16"-14 x 1 1/4", Grade 8), 6 pieces of 7/16" fishwire, 6 square hole spacers (CM-SP2, .250 x .88 x 2.25"), 6 hex flange nuts (7/16"-14), 4 hex bolts (M12-1.25 x 30mm), 4 conical toothed washers (1/2"), and 4 hex bolts (M12-1.75 x 30mm). Hardware usage varies with application.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and using proper tools to improve installation quality and reduce time required.
Professional installation takes approximately 25 minutes. Novice (DIY) installation takes approximately 30 minutes.
Yes, lowering the exhaust is required for ease of installation. Lower rear exhaust hangers from one location on each side of the vehicle. Alternatively, the exhaust can be lowered at one location at the front center of the vehicle, but this must be lowered slowly and supported from underneath during install. After installation is complete, raise the exhaust hangers back into position.
No drilling is required. However, hole enlargement is required. You must enlarge the existing access holes in the vehicle frame using a die grinder to fit the SP2 spacers provided in the hardware kit. Be sure to avoid vehicle brake lines when cutting the frame material.
On some model years, yes. The wheel well plastic on each side of the vehicle near the frame rails will need to be trimmed to provide a flush fit for the hitch side plates. Be sure to avoid vehicle brake lines when cutting the plastic away. Caulking may also need to be trimmed around side mounting holes if present.
The access holes must be enlarged to fit the SP2 spacers (.250 x .88 x 2.25"). The diagram indicates the enlarged hole diameter is .88". Use a die grinder to enlarge both sides of the frame. Avoid vehicle brake lines when cutting.
Fishwiring is a technique used to route fasteners through frame access holes when direct access is not available. For CURT 11527, you must fishwire 7/16" spacers and 7/16" bolts through the bottom access holes into the vehicle frame, then raise the hitch into position and loosely secure it with 7/16" nuts. If no weldnuts exist in the frame, you must also fishwire hardware for the side mounting points through the frame rail and hitch side plates.
Step 5a applies if no weldnuts exist in the frame: fishwire hardware for the side mounting points through the frame rail and hitch side plates, then secure all 7/16" hardware. Step 5b applies if weldnuts already exist in the frame: secure the hitch with M12 bolts and 1/2" conical washers in the side mounting plates instead of fishwiring.
All 7/16" hardware (carriage bolts and hex flange nuts) must be torqued to 70 lb-ft.
All M12 hardware (M12-1.25 x 30mm and M12-1.75 x 30mm bolts with 1/2" conical toothed washers) must be torqued to 86 lb-ft.
Safety glasses must be worn at all times while installing this product. When lowering the exhaust at the front center of the vehicle, it must be lowered slowly and supported from underneath during install. When enlarging frame holes or trimming plastic, be sure to avoid vehicle brake lines. If you are hesitant to undertake this task, contact an authorized CURT installer for additional assistance.
All non-trailer (wheel-less) loads applied to this product must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
After installation, periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended as part of vehicle maintenance.
Yes, CURT 11527 is designed for 2013-present Buick Encore and Chevrolet Trax crossovers.
2,000 lbs trailer weight and 200 lbs tongue weight maximum. Never exceed your vehicle manufacturer's recommended towing capacity.
Safety glasses, die grinder, spray lubricant, ratchet, socket extension, 11/16" and 3/4" sockets, and torque wrench.
7/16" hardware: 70 lb-ft. M12 hardware: 86 lb-ft.
Professional: 25 minutes. Novice (DIY): 30 minutes.
Ballmount #45520/D-20, EURO ballmount #45561 (1 7/8" ball), or EURO ballmount #45562 (2" ball).
