Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel

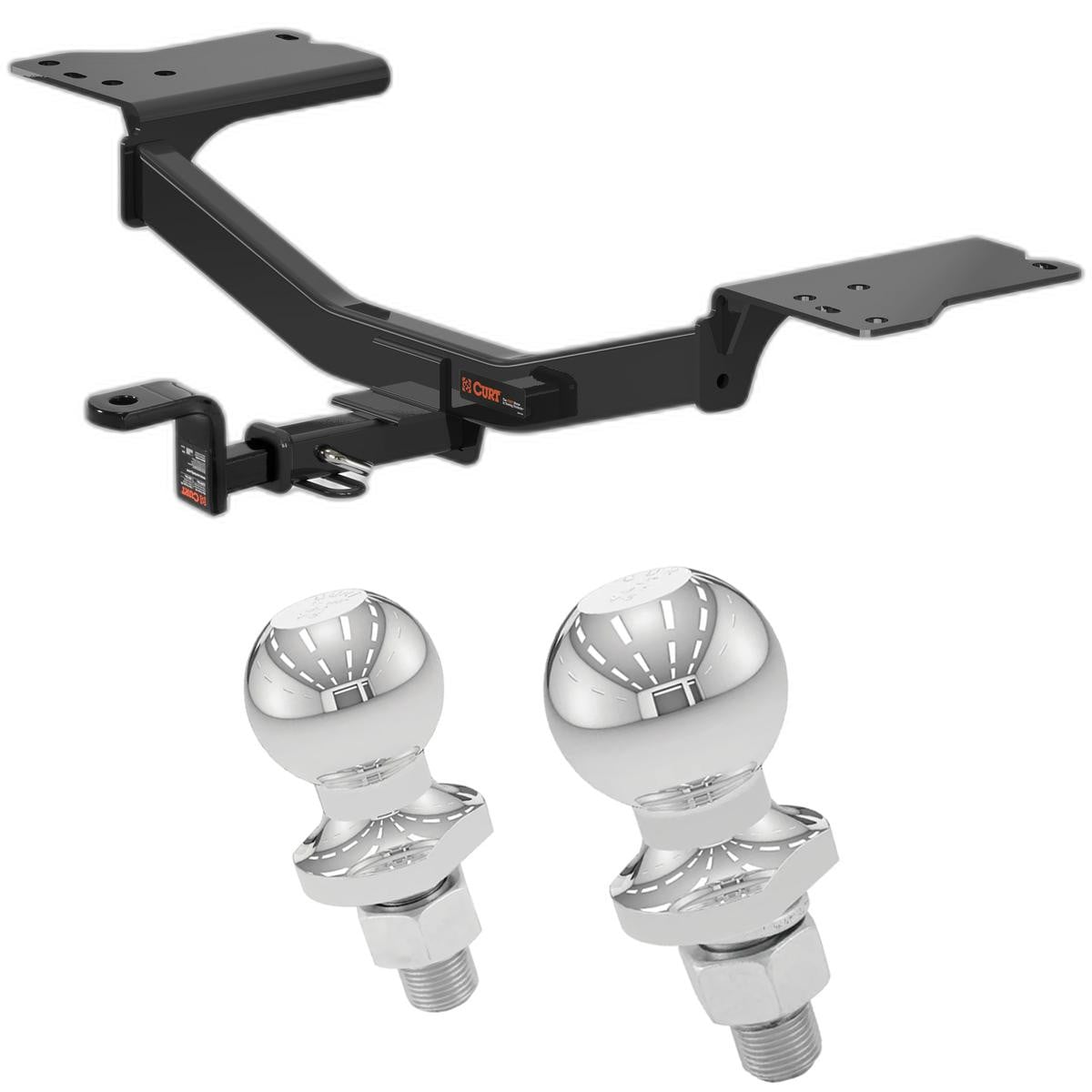

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cruze (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Installation requires heat shield trimming and temporary lowering of the exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2016, 2017, 2018, 2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Chevrolet Cruze
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2019 | Chevrolet Cruze | Sedan, Excluding Diesel |
Yes, CURT part number 11439 is designed for 2016-Present Chevrolet Cruze Sedan models. Confirm your vehicle matches this specification before purchasing.
The CURT 11439 is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
The CURT 11439 is designed for use with ballmount #D-55001 / 45521. Euro mount options are available: #45571 (1-7/8" ball) or #45572 (2" ball).
Required tools are: ratchet, torque wrench, sockets (7mm, 10mm, 13mm, 7/16", and 3/4"), aviation shears, tape measure, safety glasses, marker, and pliers (needle nose pliers recommended for speed nuts).
No, drilling is not required. The CURT 11439 uses existing holes on the frame rails for mounting.
Two people may be required to ease installation, though the manual does not state this is mandatory. If you are hesitant to undertake the task on your own, CURT recommends contacting an authorized CURT installer.
Yes, the exhaust must be lowered. Remove (2) rubber isolators from the muffler towards the center of the vehicle and remove the 13mm nut securing the rearmost hanger to the frame. Unclip the exhaust bracket from the vehicle prior to lowering. Note that exhaust configuration varies depending on the model.
Only if a heat shield is present on your vehicle. If present, unscrew (3) speed nuts using needle nose pliers, trim the heat shield using aviation shears, and reinstall it on the vehicle. All dimensions are approximate; confirm fit prior to trimming.
Yes, the underbody panel must be trimmed to access the passenger side frame rail. Remove (4) screws using a 7mm socket and (3) plastic nuts using a 10mm socket. Trim the underbody panel using the trim diagram provided and set it aside for reinstallation. All dimensions are approximate; confirm fit prior to trimming.
Fishwire (4) CM-SP2 spacers (2 each side) and (4) 7/16" carriage bolts (2 each side) through the access holes and out the mounting holes on each side. Raise the hitch into position and secure with (4) 7/16" flange nuts (2 on each side). Refer to the Fishwire Technique Diagram in the manual for visual guidance.
Torque all 7/16" hardware to 70 ft-lbs.
The kit includes: (4) CM-SP2 spacers (.250 x .88 x 2.25" square hole), (4) 7/16-14 x 1 1/4" carriage bolts, (4) 7/16-14 hex flange nuts, and (4) 7/16" fishwire.
Periodically check that all fasteners are tight and all structural components are sound. This is especially important before towing.
Safety glasses must be worn at all times while installing this product.
All non-trailer loads applied to this product must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
The CURT 11439 requires lowering the exhaust, trimming the underbody panel, and trimming the heat shield if present. No drilling is required. These modifications are necessary for proper installation and fitment.
Yes, the CURT 11439 is designed for 2016-Present Chevrolet Cruze Sedan models with a 2,000 lbs trailer weight and 200 lbs tongue weight capacity.
No drilling is required. The hitch uses existing frame rail holes. You will need to lower the exhaust, trim the underbody panel, and trim the heat shield if present.
You need a ratchet, torque wrench, sockets (7mm, 10mm, 13mm, 7/16", 3/4"), aviation shears, tape measure, safety glasses, marker, and pliers.
Torque all 7/16" hardware to 70 ft-lbs.
Maximum trailer weight is 2,000 lbs and tongue weight is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes, all non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.
